Test G: Shorted Right Channel

Possible Causes:

• Right Channel Speaker Shorted
• Right Instrument Panel Speaker DEF Shorted
• Right Front (+) Circuit Shorted To Ground
• Right Front (+) And (-) Circuits Shorted Together
• Right Front (-) Circuit Shorted To Ground
• Right Pillar Speaker Shorted
• Right Quarter Speaker Shorted
• Right Rear (+) And (-) Circuit Shorted Together
• Right Rear (+) Circuit Shorted To Ground
• Right Rear (-) Circuit Shorted To Ground
• Radio Output Circuit Defective

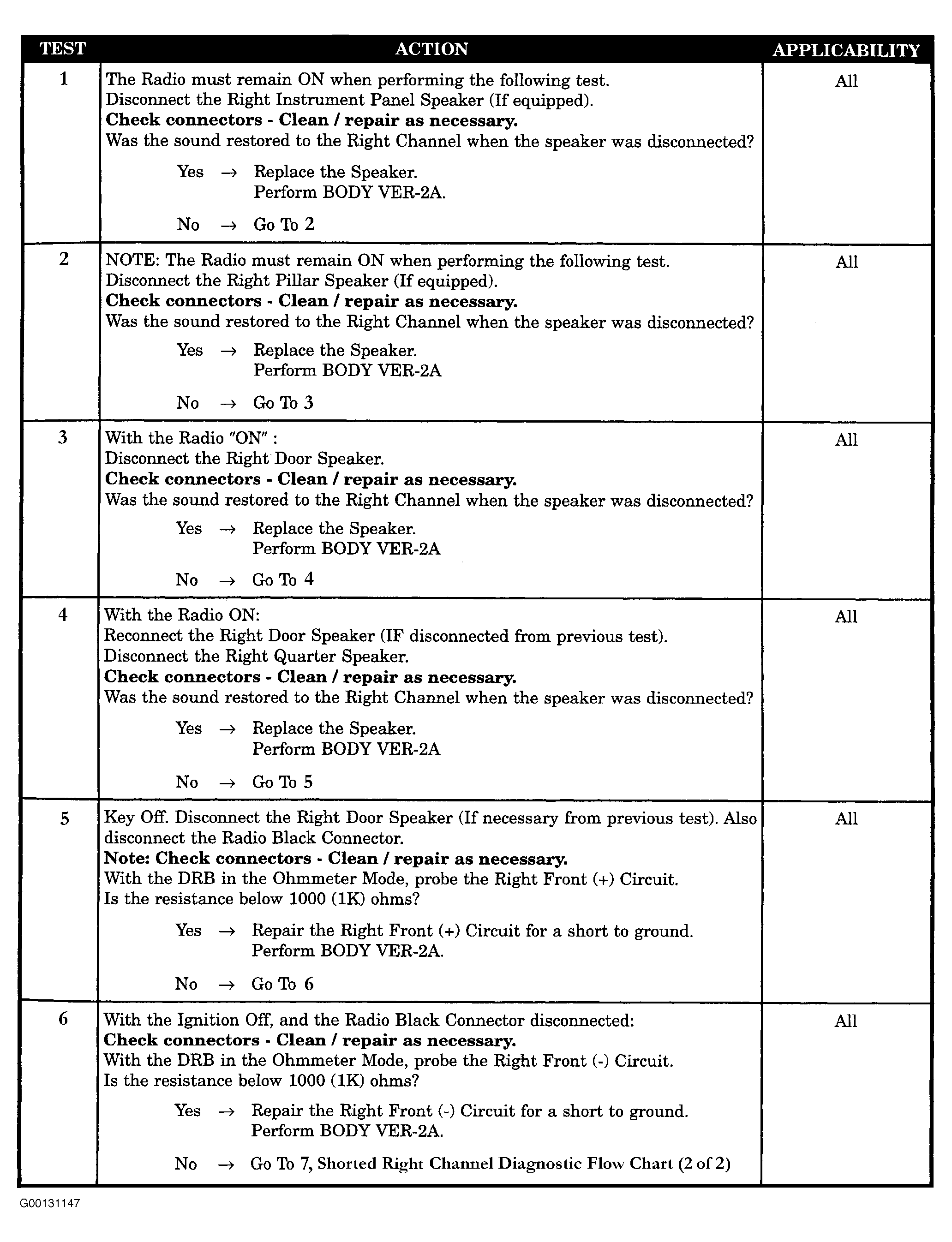

Fig 1: Test G: Shorted Right Channel - Steps 1-6

Courtesy of CHRYSLER CORP.

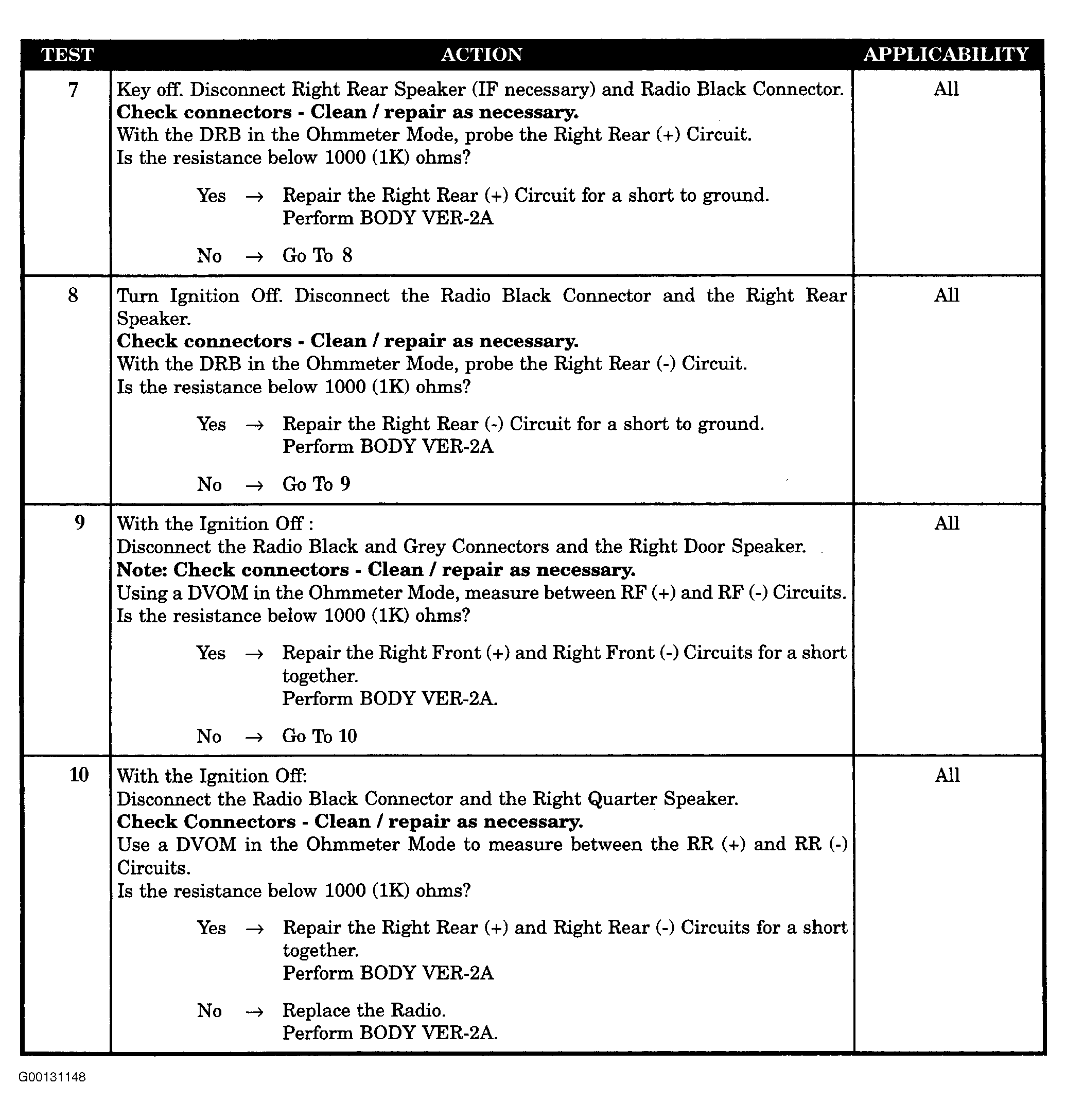

Fig 2: Test G: Shorted Right Channel - Steps 7-10

Courtesy of CHRYSLER CORP.
