Test F: Shorted Rear Channel

Possible Causes:

• Right Rear Quarter Speaker Shorted
• Left Rear (+) And (-) Circuit Shorted Together
• Left Rear (+) Circuit Shorted To Ground
• Left Rear (-) Circuit Shorted To Ground
• Left Rear Quarter Speaker Shorted
• Left Rear Speaker Shorted
• Right Rear (+) And (-) Circuit Shorted Together
• Right Rear (-) Circuit Shorted To Ground
• Right Rear Pillar Speaker Shorted
• Radio Output Circuits Defective

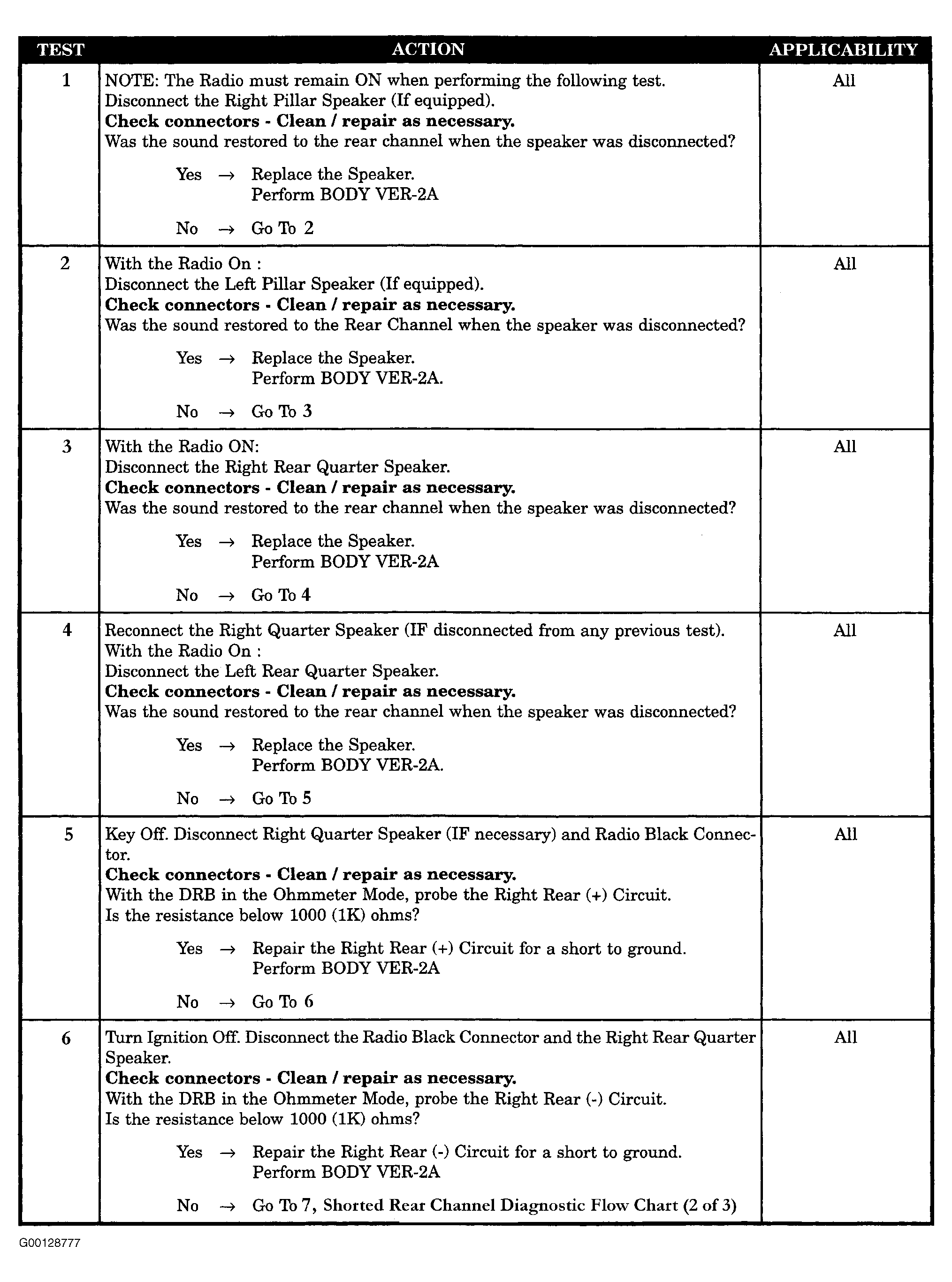

Fig 1: Test F: Shorted Rear Channel - Steps 1-6

Courtesy of CHRYSLER CORP.

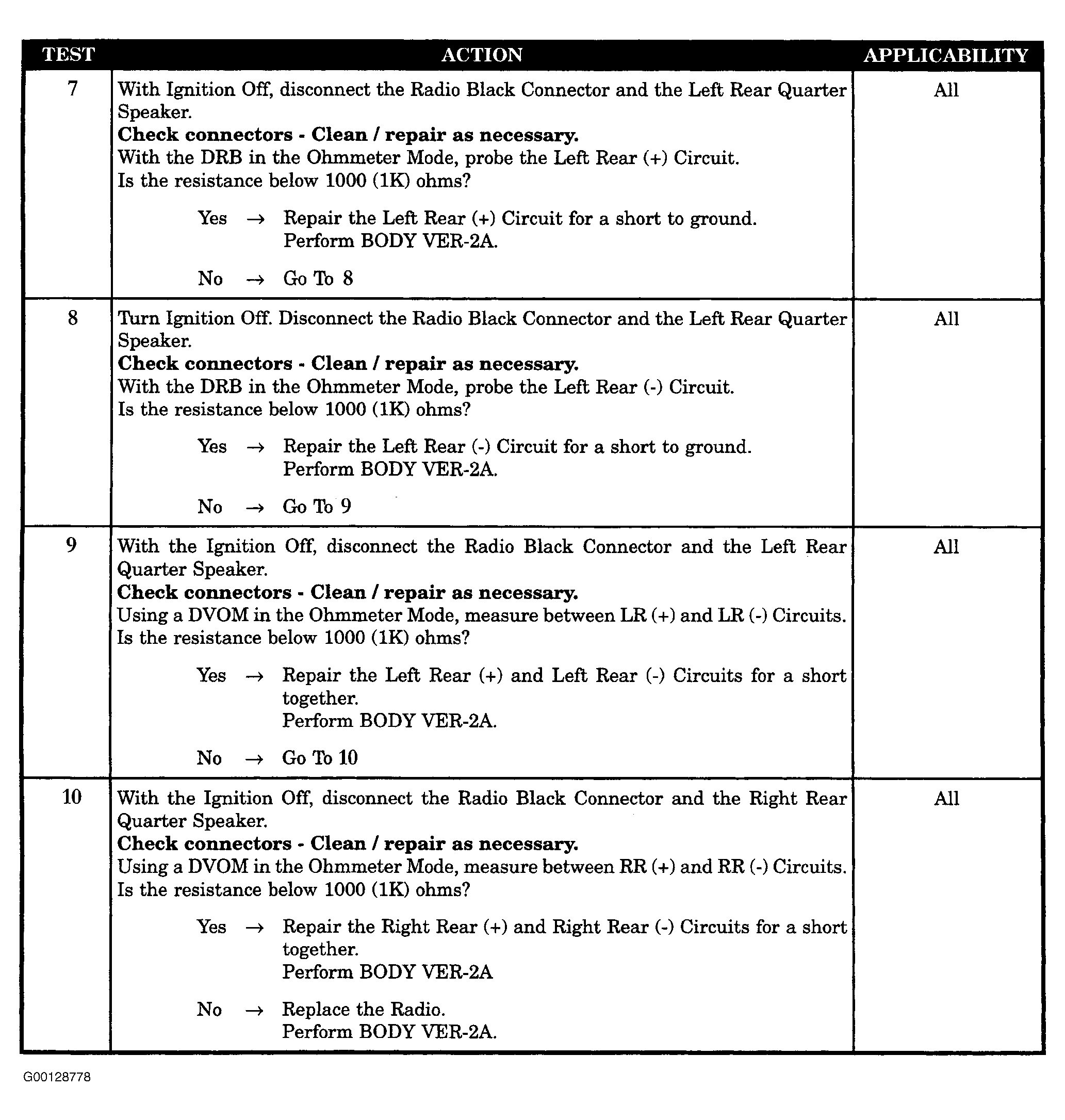

Fig 2: Test F: Shorted Rear Channel - Steps 7-10

Courtesy of CHRYSLER CORP.
