Test E: Shorted Left Channel

Possible Causes:

• Left Door Speaker DEF Shorted
• Left Front Instrument Panel Speaker DEF Shorted
• Left Quarter Speaker Shorted
• Left Rear (+) And (-) Circuit Shorted Together
• Left Rear (+) Circuit Shorted To Ground
• Left Rear (-) Circuit Shorted To Ground
• Left Rear Speaker Shorted
• Left Front (+) Circuit Short To Ground
• Left Front (-) Circuit Shorted To Ground
• Radio Output Circuit Defective

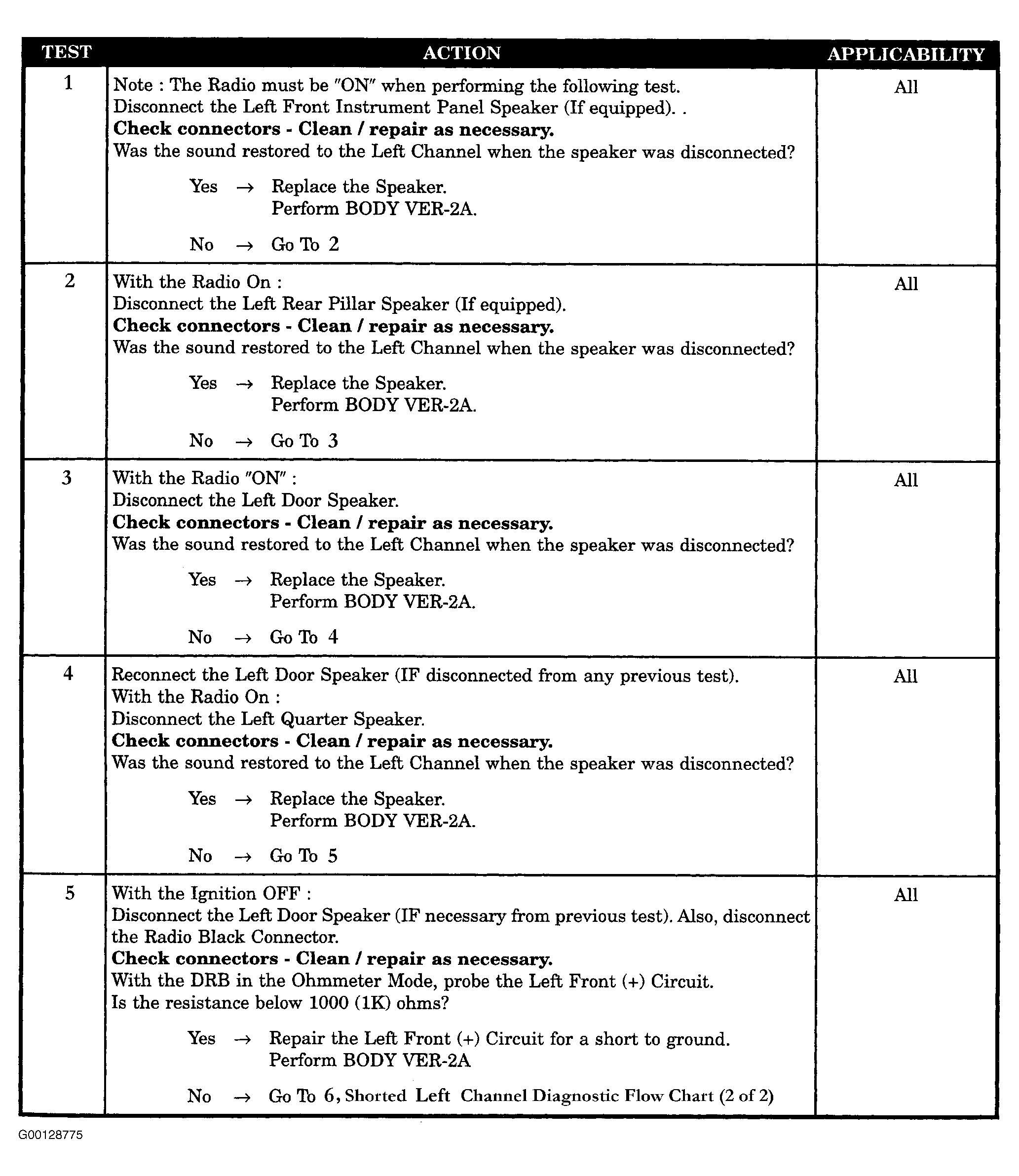

Fig 1: Test E: Shorted Left Channel - Steps 1-5

Courtesy of CHRYSLER CORP.

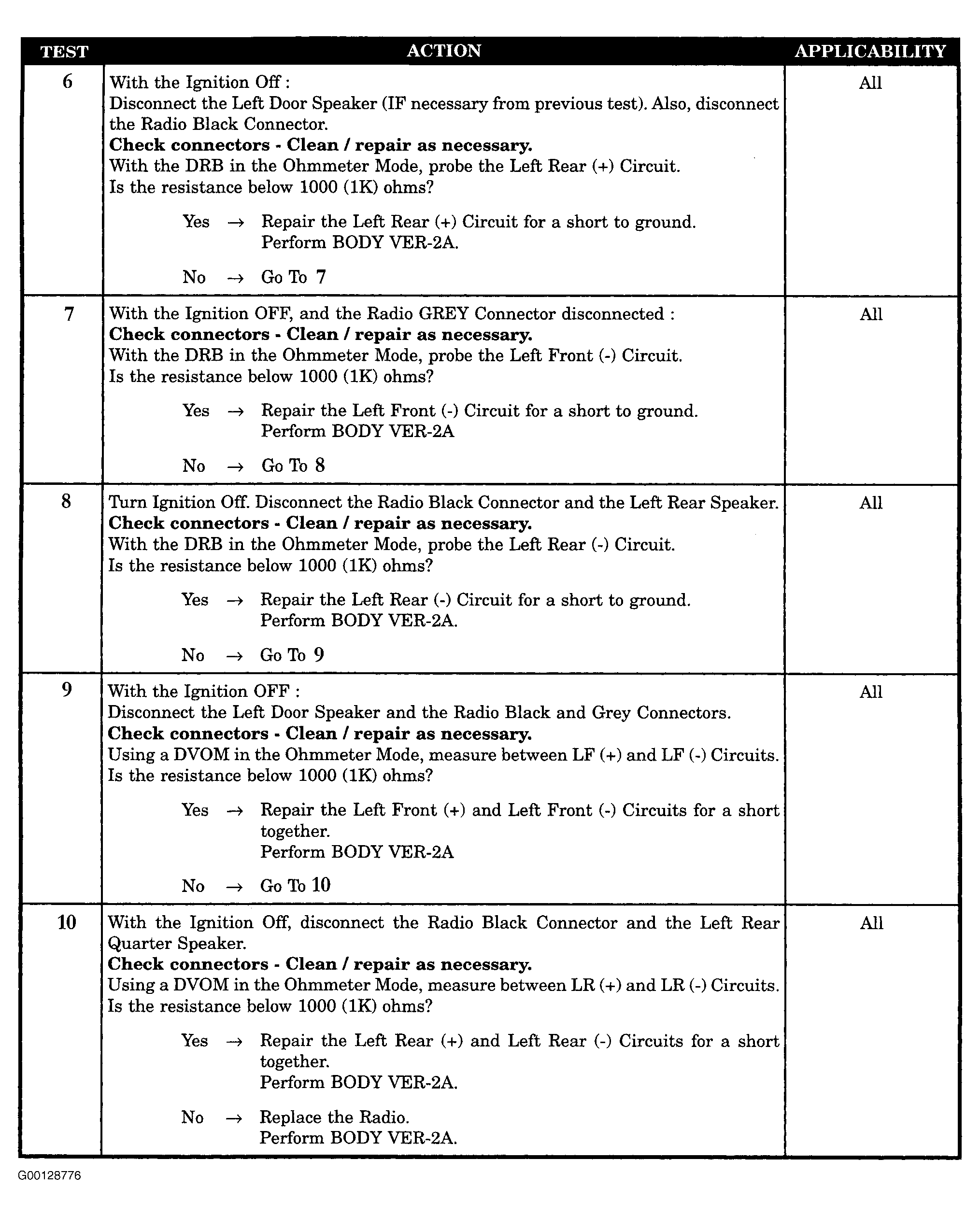

Fig 2: Test E: Shorted Left Channel - Steps 6-10

Courtesy of CHRYSLER CORP.
