Test D: Shorted Front Channel

Possible Causes:

• Left Door Speaker Shorted
• Left Front Instrument Panel Speaker Shorted
• Right Door Speaker Shorted
• Right Front Instrument Panel Speaker Shorted
• Right Front (-) Circuit Shorted To Ground
• Right Front (+) And (-) Circuit Shorted Together
• Right Front (+) Circuit Shorted To Ground
• Left Front (+) And (-) Circuit Shorted Together
• Left Front (+) Circuit Shorted To Ground
• Left Front (-) Circuit Shorted To Ground
• Radio Output Circuits Defective

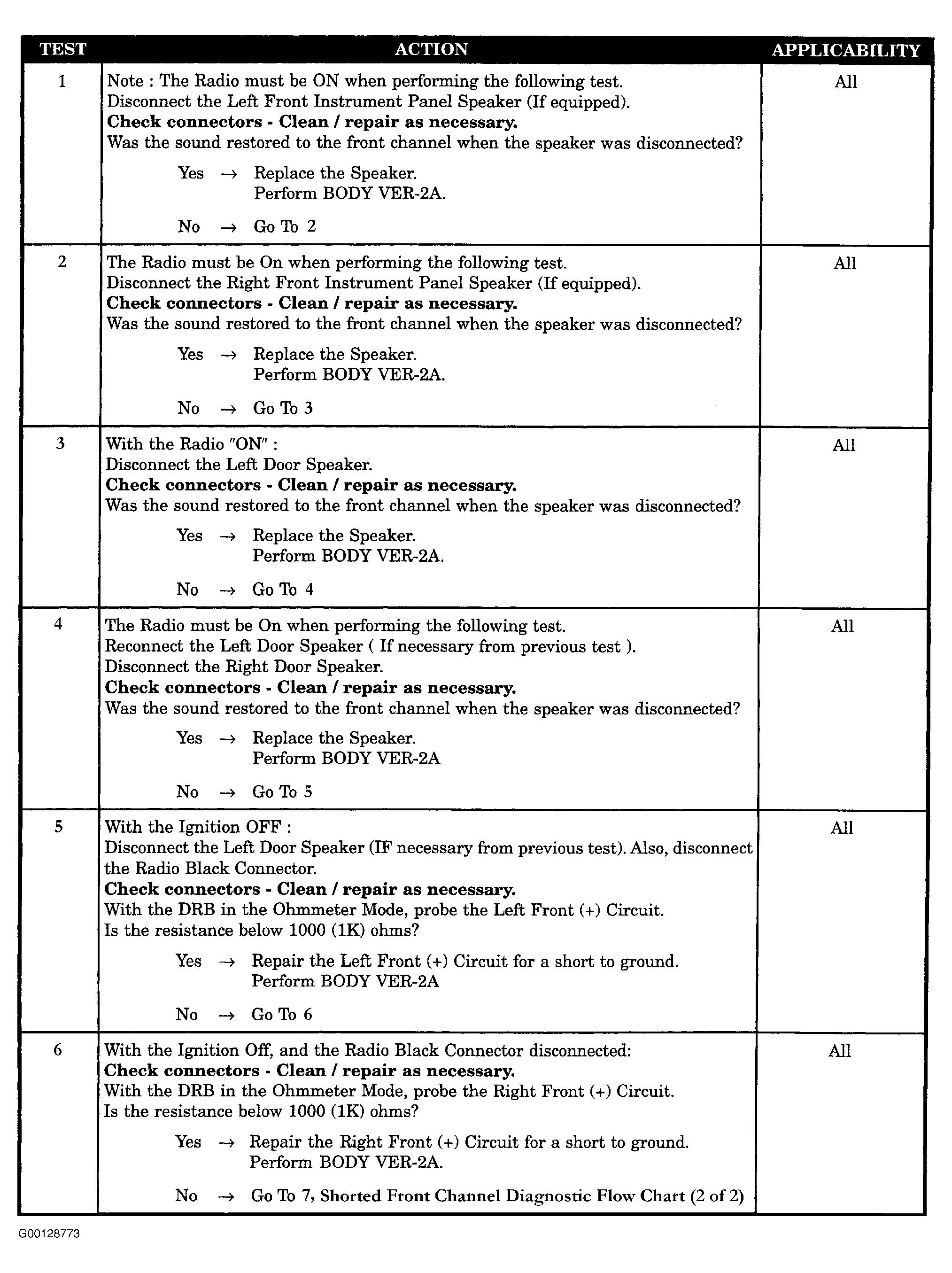

Fig 1: Test D: Shorted Front Channel - Steps 1-6 (1 Of 2)

Courtesy of CHRYSLER CORP.

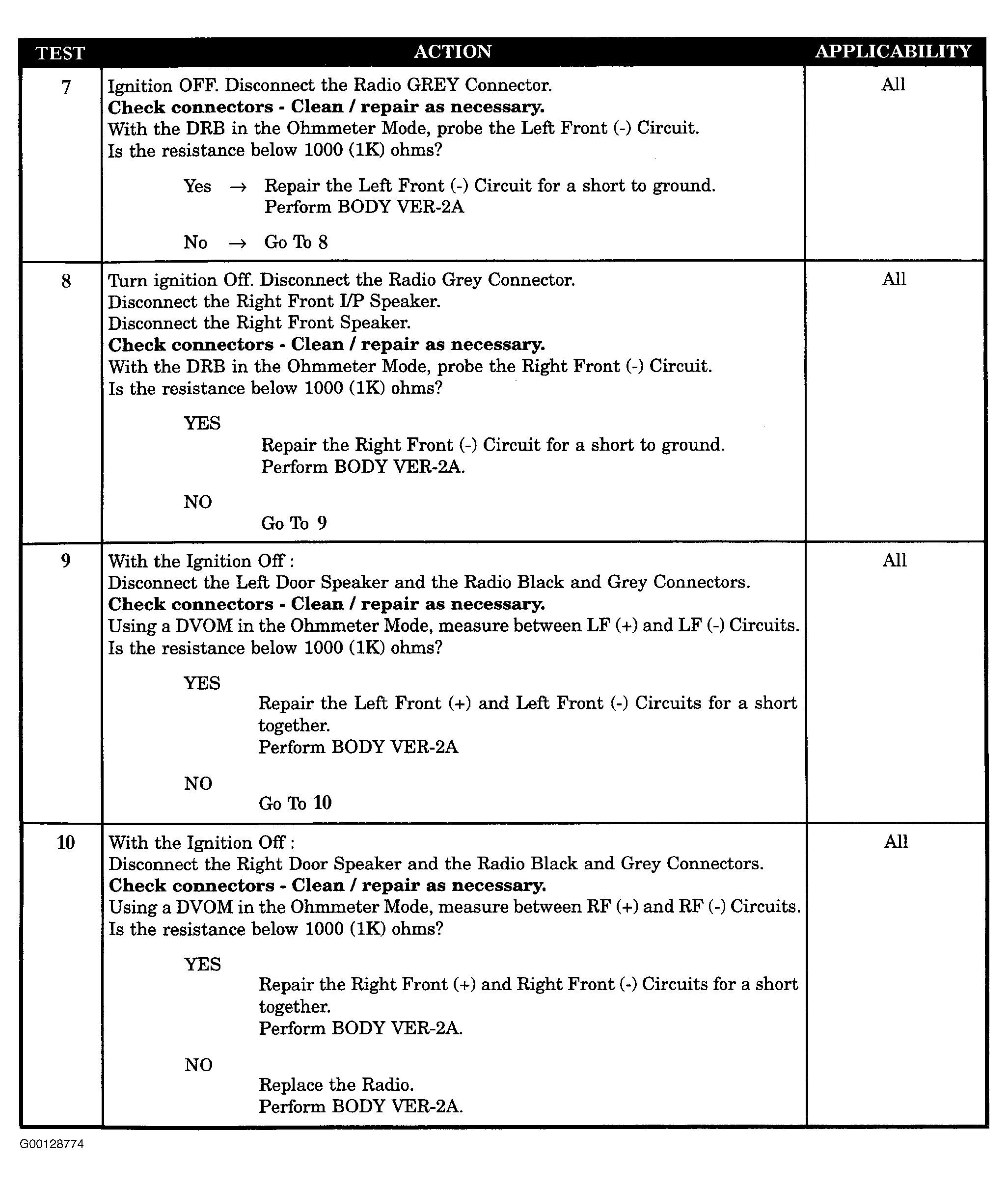

Fig 2: Test D: Shorted Front Channel - Steps 7-10 (2 Of 2)

Courtesy of CHRYSLER CORP.
