Clockspring C2

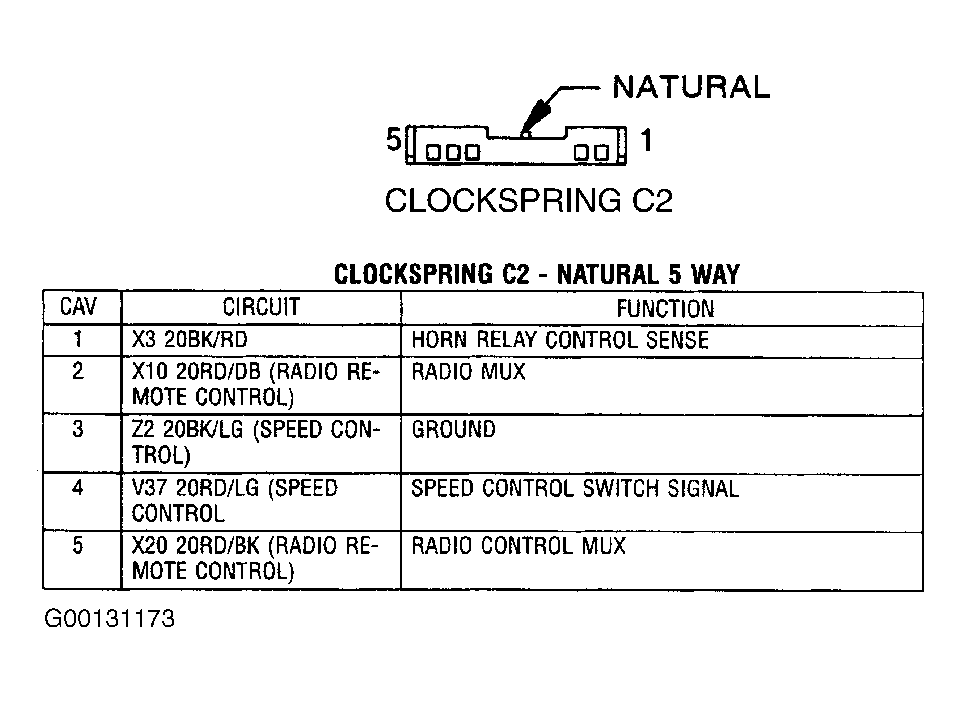

Fig 1: Identifying Clockspring C2 Connector Pinouts
G00131173Courtesy of CHRYSLER CORP.
