Component Tests: Antenna: Notes

The ohmmeter test lead connections for each test are shown in Antenna Test Points. See Fig 1 .

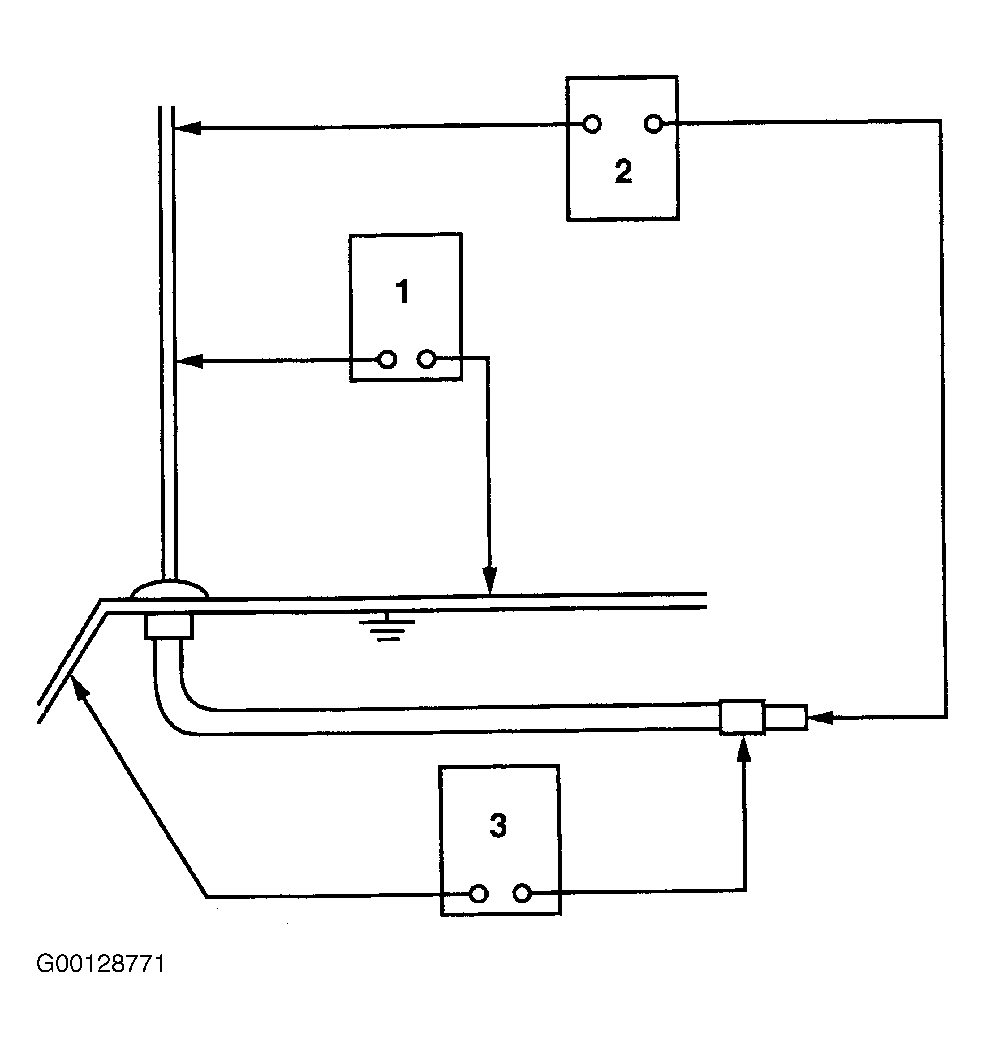

Fig 1: Antenna Test Points

G00128771

Courtesy of CHRYSLER CORP.
