Component Locations

COMPONENT LOCATIONS

Component

Location

Infinity Speaker Choke

On Junction Block/Body Control Module

Infinity Speaker Relay

In Junction Block

Engine Ground

2.4L

⁽¹⁾

3.3L

⁽¹⁾

3.3/3.8L

⁽¹⁾

⁽¹⁾	See Fig 1 -Fig 5

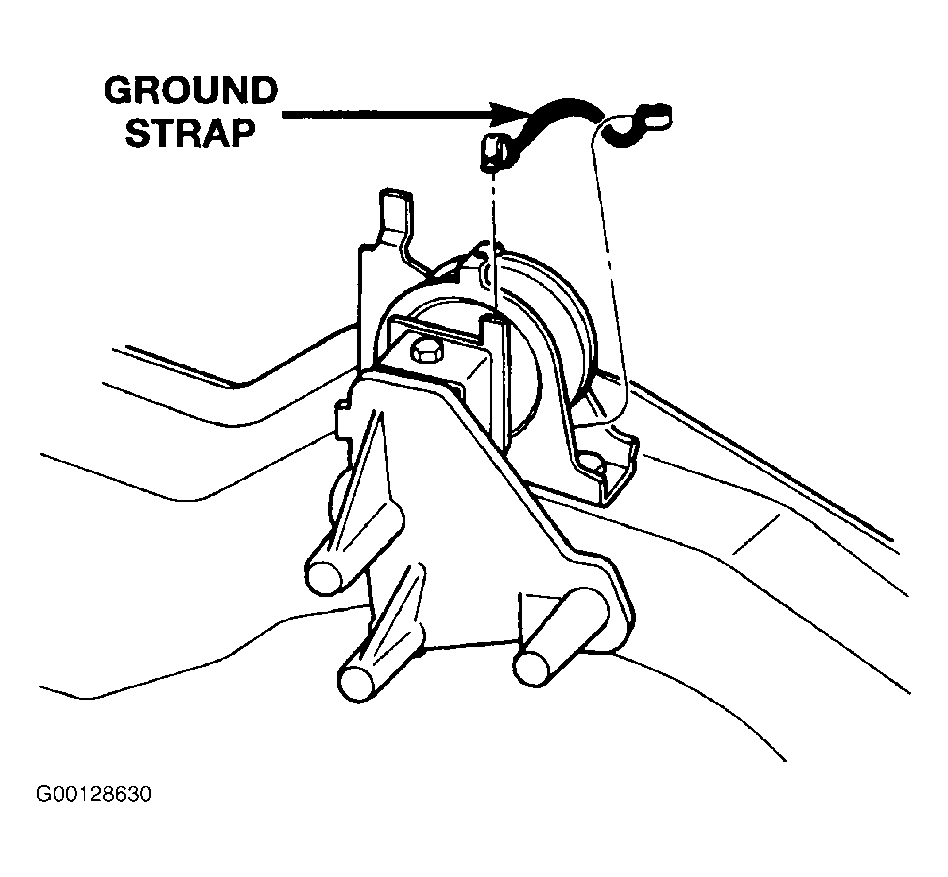

Fig 1: Locating Motor Mount-To-Frame Rail Ground

Courtesy of DAIMLERCHRYSLER CORP.

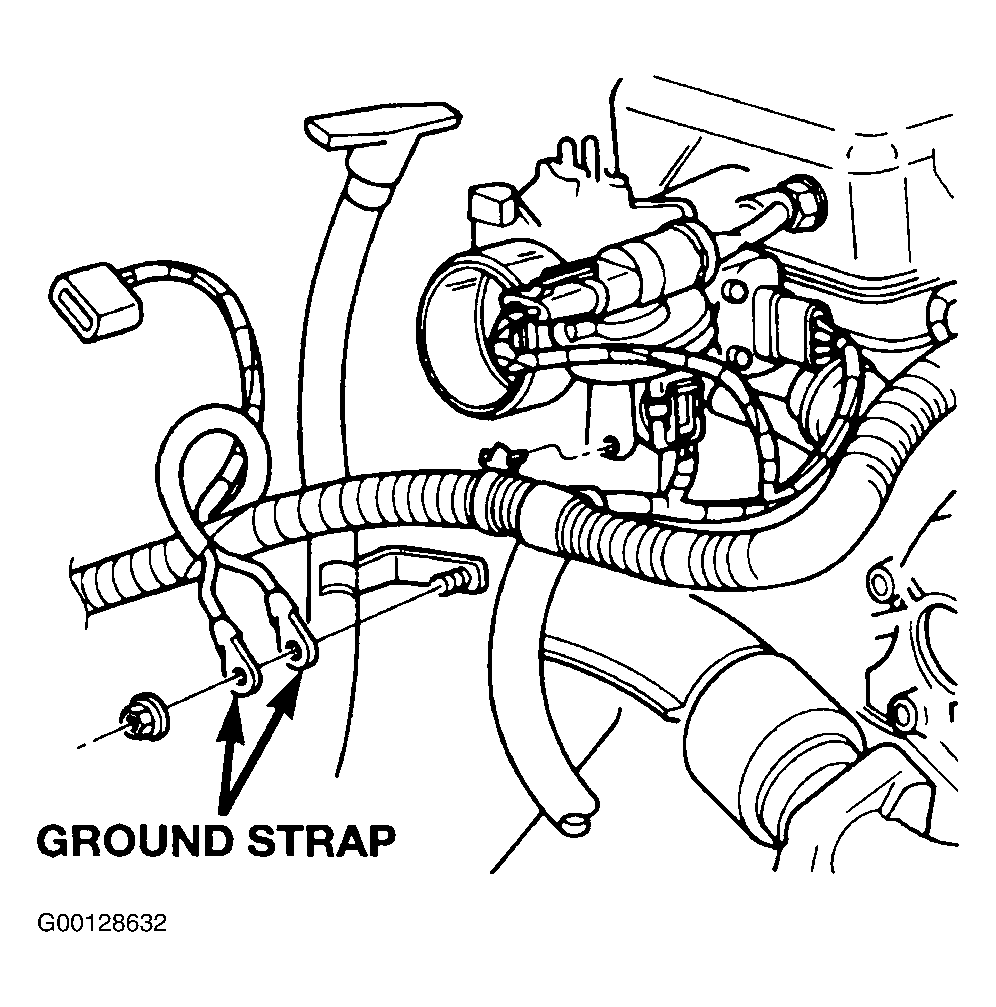

Fig 2: Identifying Engine Ground Locations - 2.4L (1 Of 2)

Courtesy of CHRYSLER CORP.

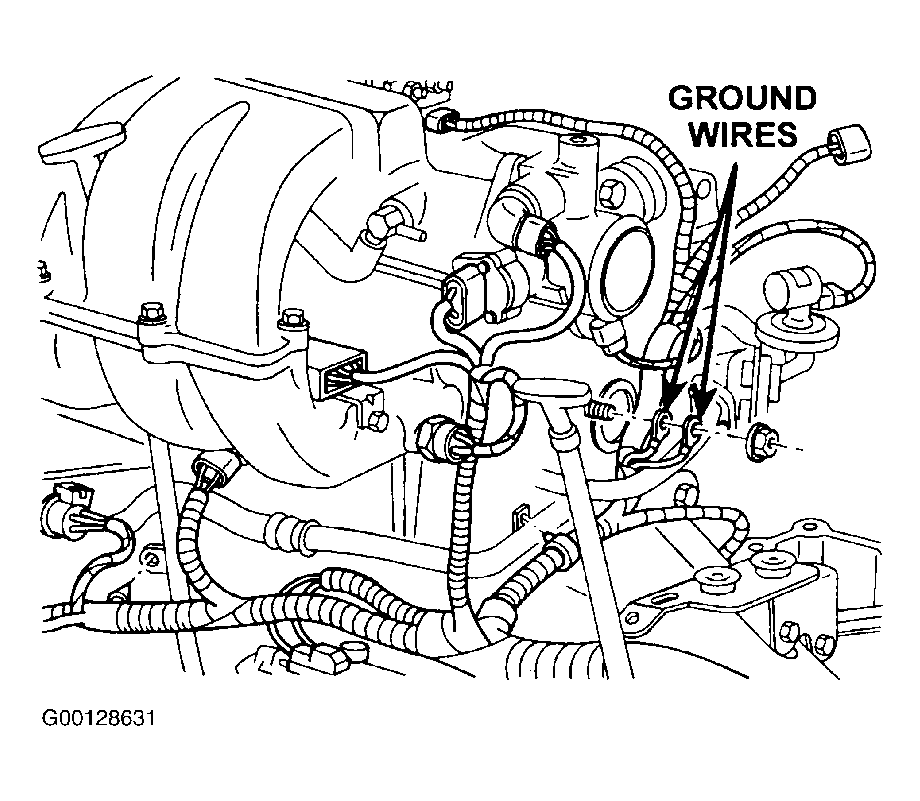

Fig 3: Identifying Engine Ground Locations - 2.4L (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

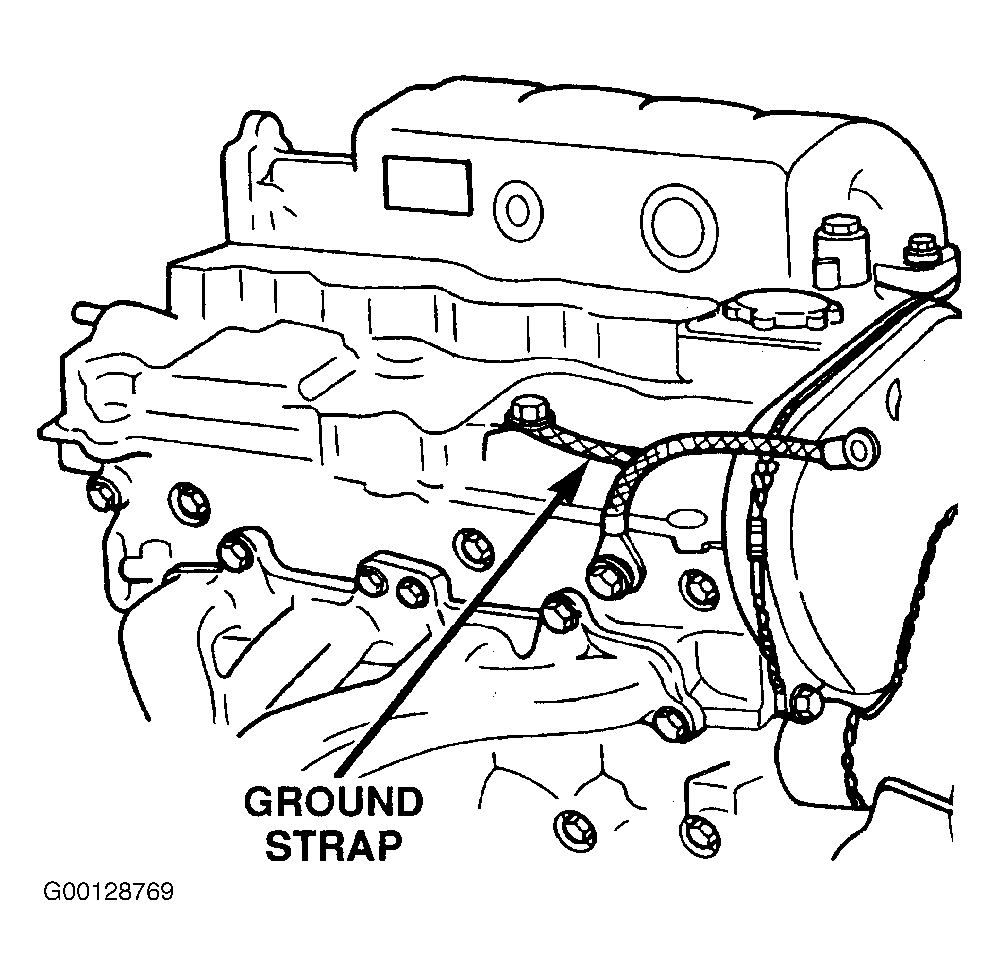

Fig 4: Identifying Engine Ground Locations - 3.3L

Courtesy of CHRYSLER CORP.

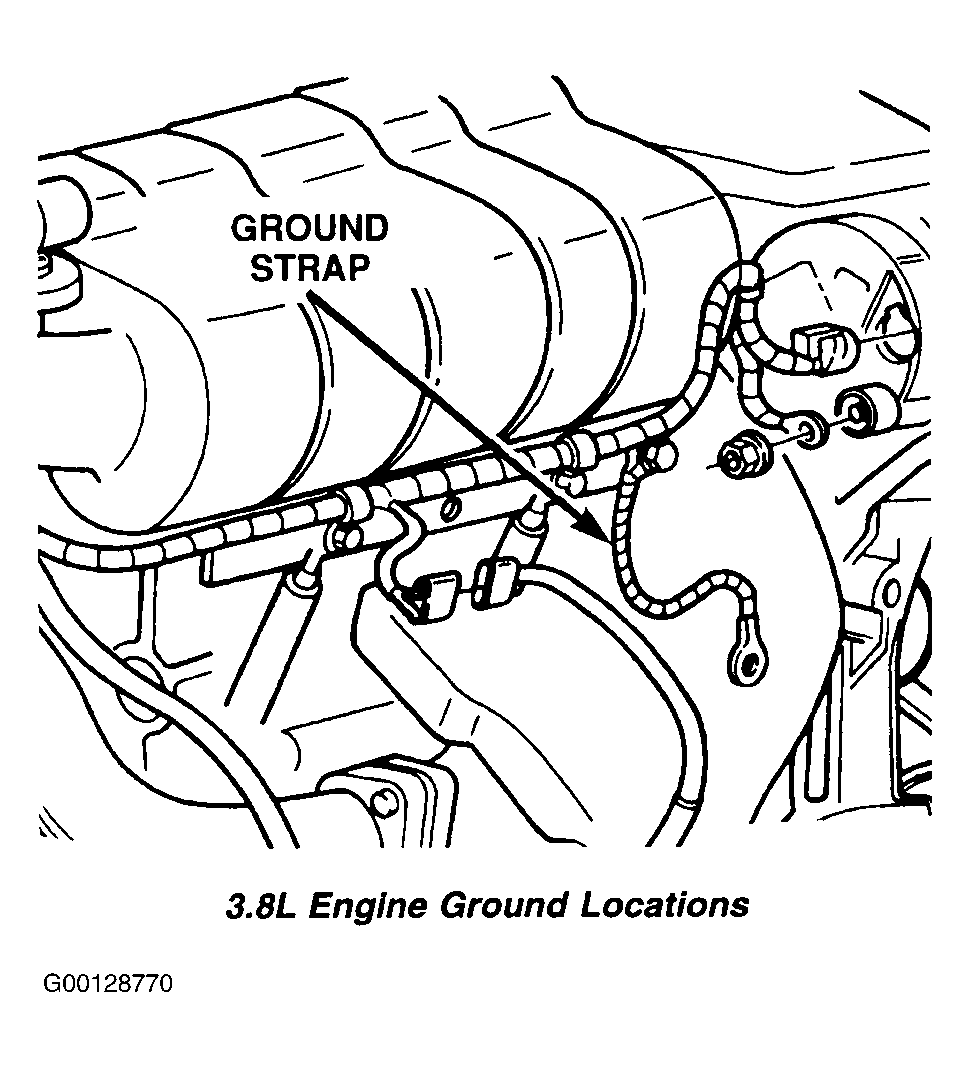

Fig 5: Identifying Ground Locations - 3.3/3.8L

Courtesy of CHRYSLER CORP.
