Junction Block: Notes

NOTE: For JB fuses, see Figure .

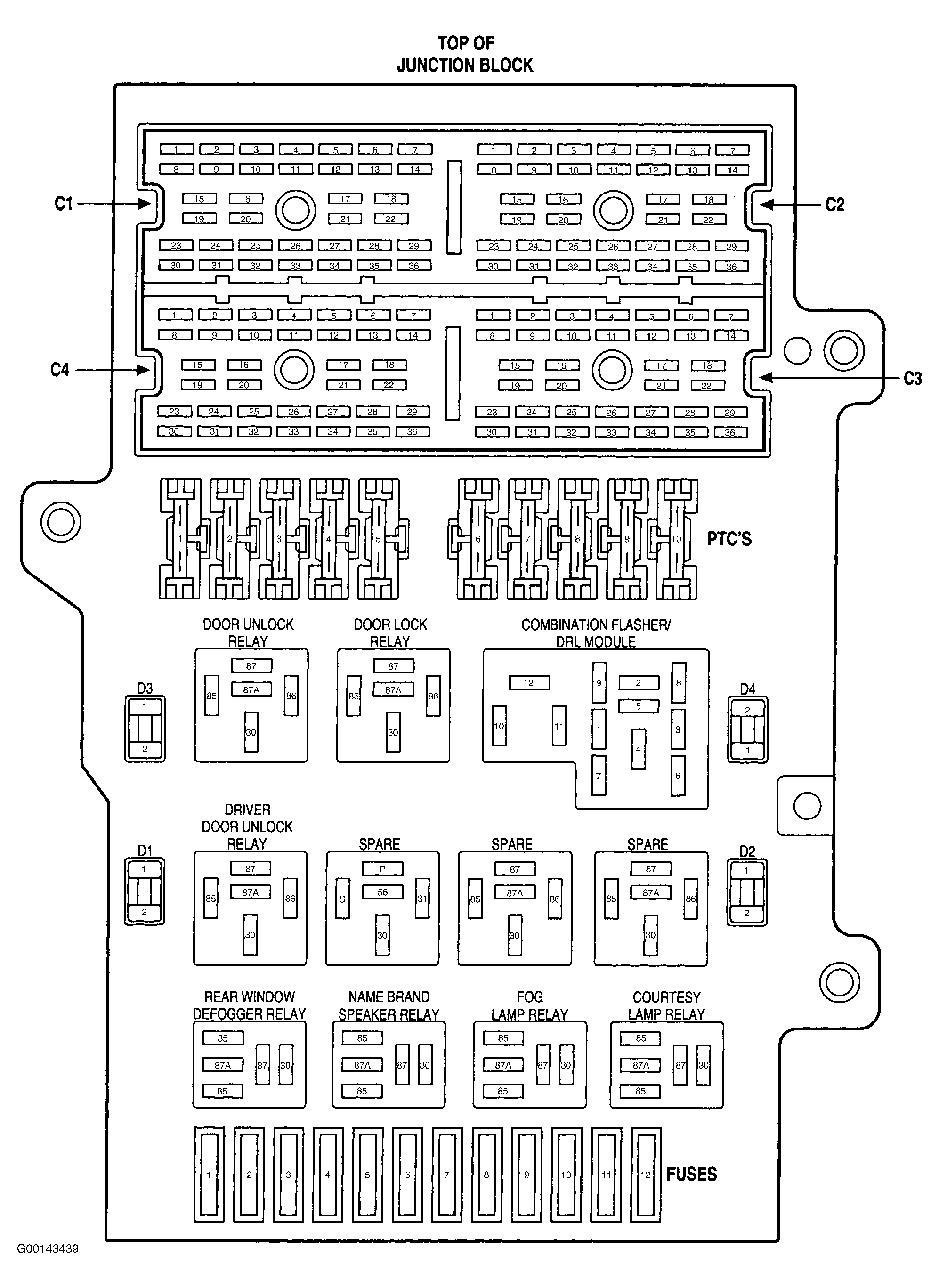

Fig 1: Identifying Junction Block

G00143439

Courtesy of CHRYSLER CORP.
