PDC Fuses: Notes

NOTE: Power Distribution Center (PDC) also contains fuses. See POWER DISTRIBUTION CENTER (PDC) .

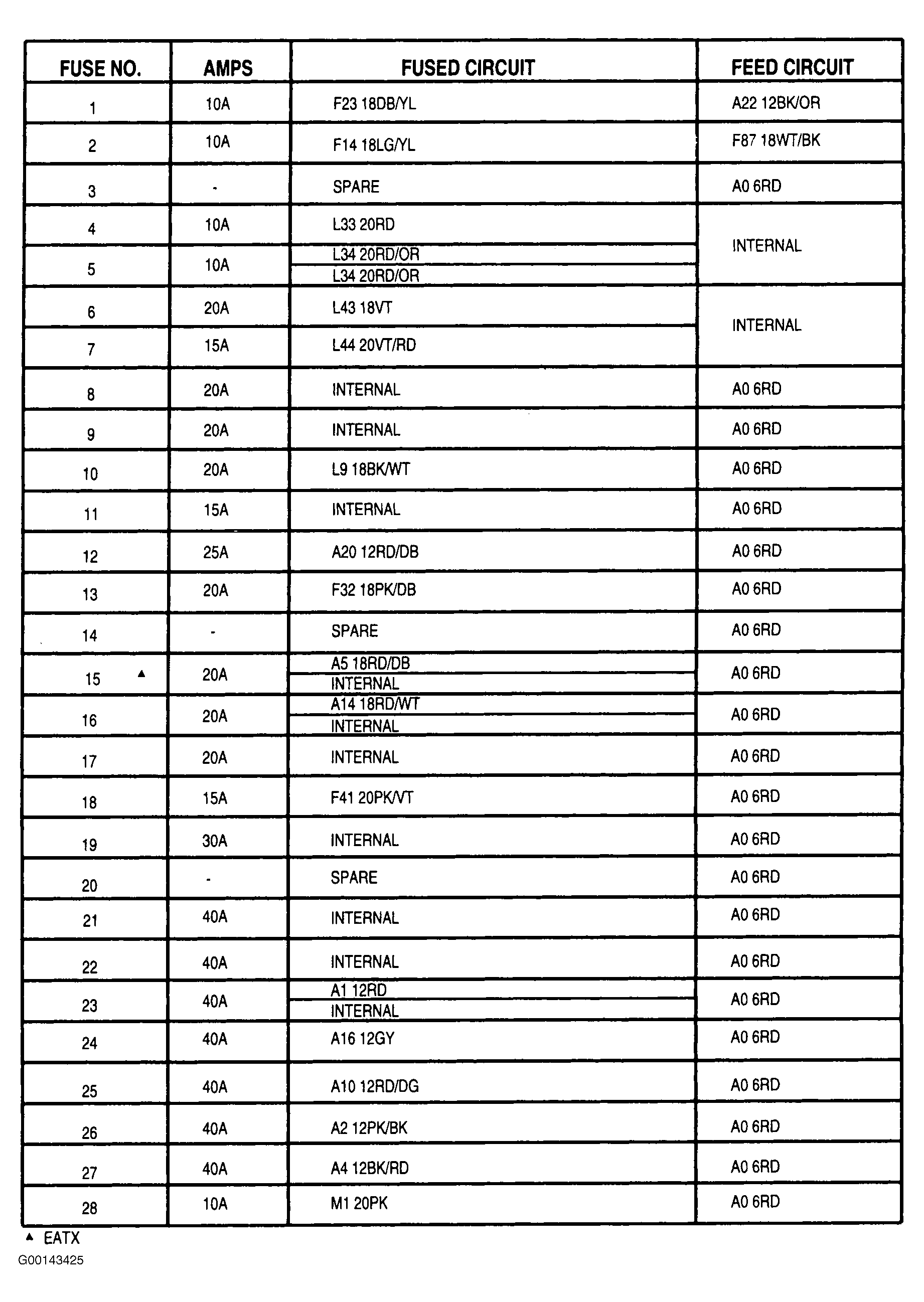

Fig 1: Identifying PDC Fuses (1999)
G00143425Courtesy of CHRYSLER CORP.

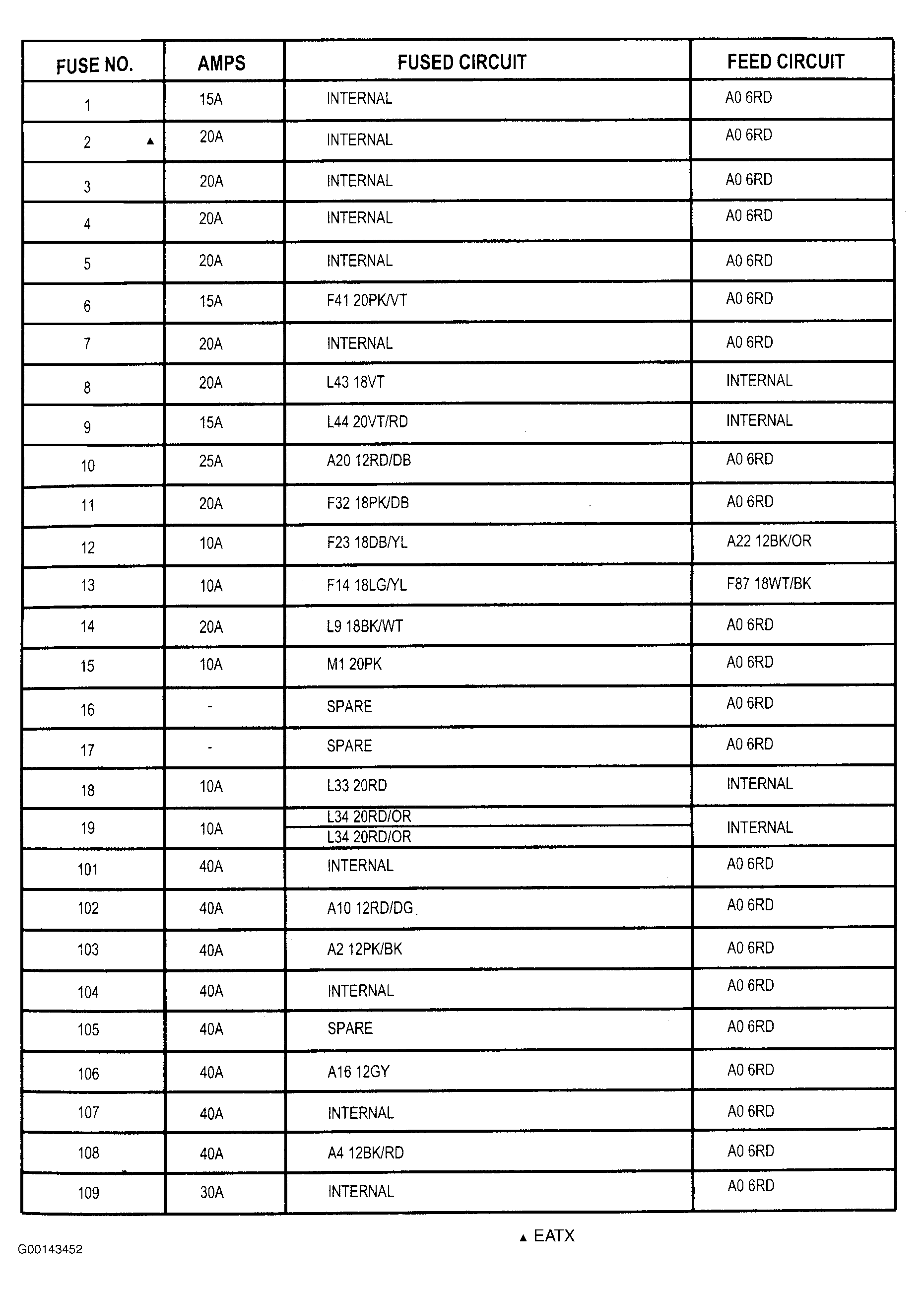

Fig 2: Identifying PDC Fuses (2000)
G00143452Courtesy of CHRYSLER CORP.
