Service Manual Revisions - January, 2000 (26-01-00)

Publication date: 2000-01-01
Reference number: 26-01-00

SERVICE MANUAL REVISIONS - JANUARY, 2000

SERVICE MANUAL REVISIONS - JANUARY, 2000

TECHNICAL SERVICE BULLETIN

Reference Number(s): 26-01-00, Date of Issue:  January, 2000
CHRYSLER: 1999-2000 Town & Country; 1999-2000 Concorde/LHS/300M
DODGE: 1999-2000 Caravan; 1999-2000 Intrepid; 2000 Dakota; 2000 Durango; 1997-2000 Ram Truck; 1995-1997 Ram Van/Wagon
JEEP: 1999-2000 Grand Cherokee; 1997 Cherokee
PLYMOUTH: 1999-2000 Voyager
GROUP: Miscellaneous

SUBJECT

Service Manual Revisions

THIS TECHNICAL SERVICE BULLETIN CONTAINS REVISED SERVICE AND/OR DIAGNOSTIC MANUAL PAGES. THE REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN AND ARE DESCRIBED BELOW. PLEASE INSERT THE PAGES INTO THE APPROPRIATE MANUAL.

2000 Concorde, Intrepid, LHS, 300 M Service Manual - Publication Number 81-270-0040

  1. PAGES
    8W-15-14

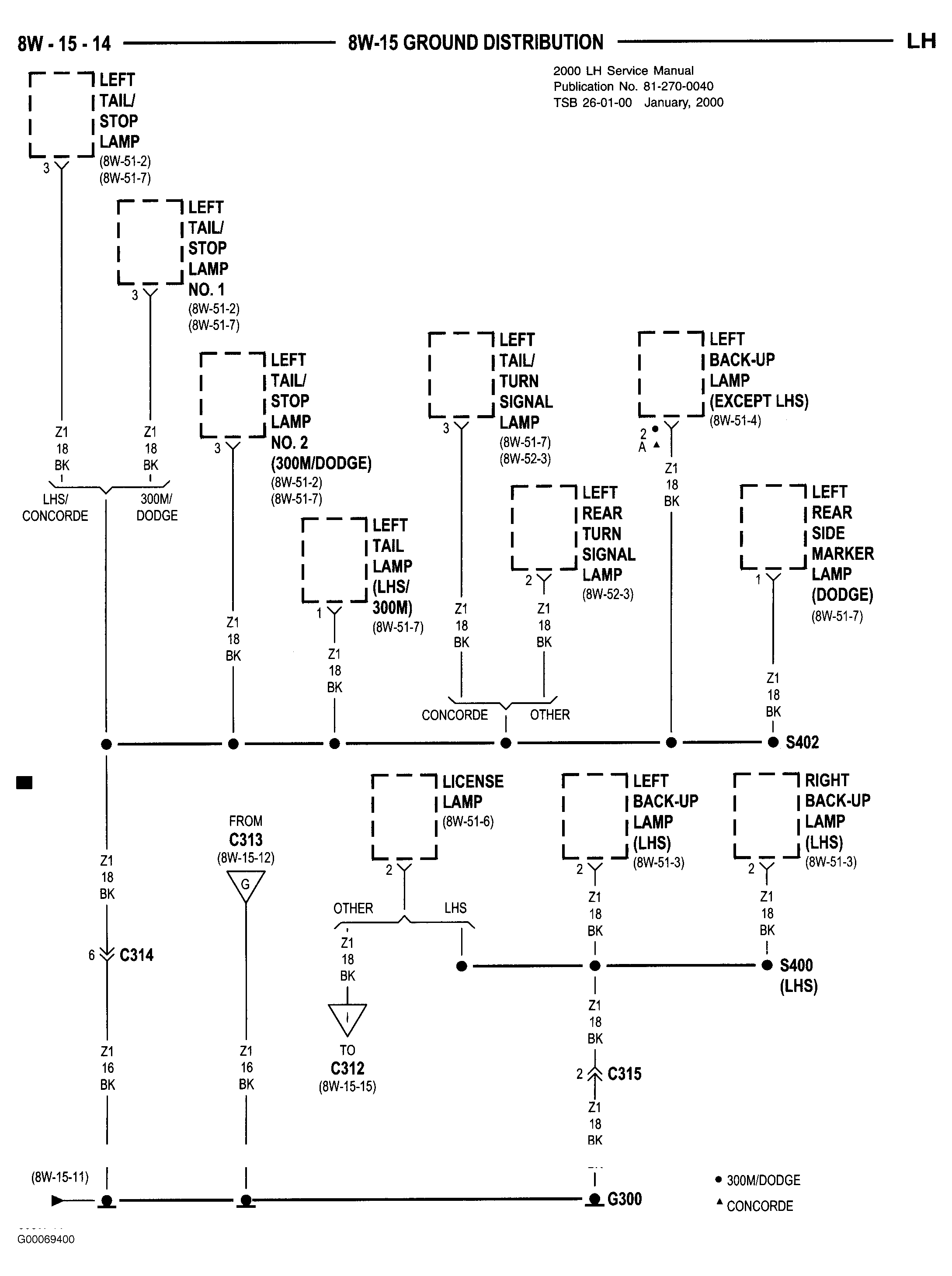

    Fig 1: 2000 LH Service Manual Revision - Page 8W-15-14
    G00069400

  2. DESCRIPTION OF CHANGES
    Revision to the Wiring Schematic

2000 Caravan, Voyager, Town & Country Service Manual - Publication Number 81-370-0005

  1. PAGES
    9-24, 9-92, 9-151, 9,152

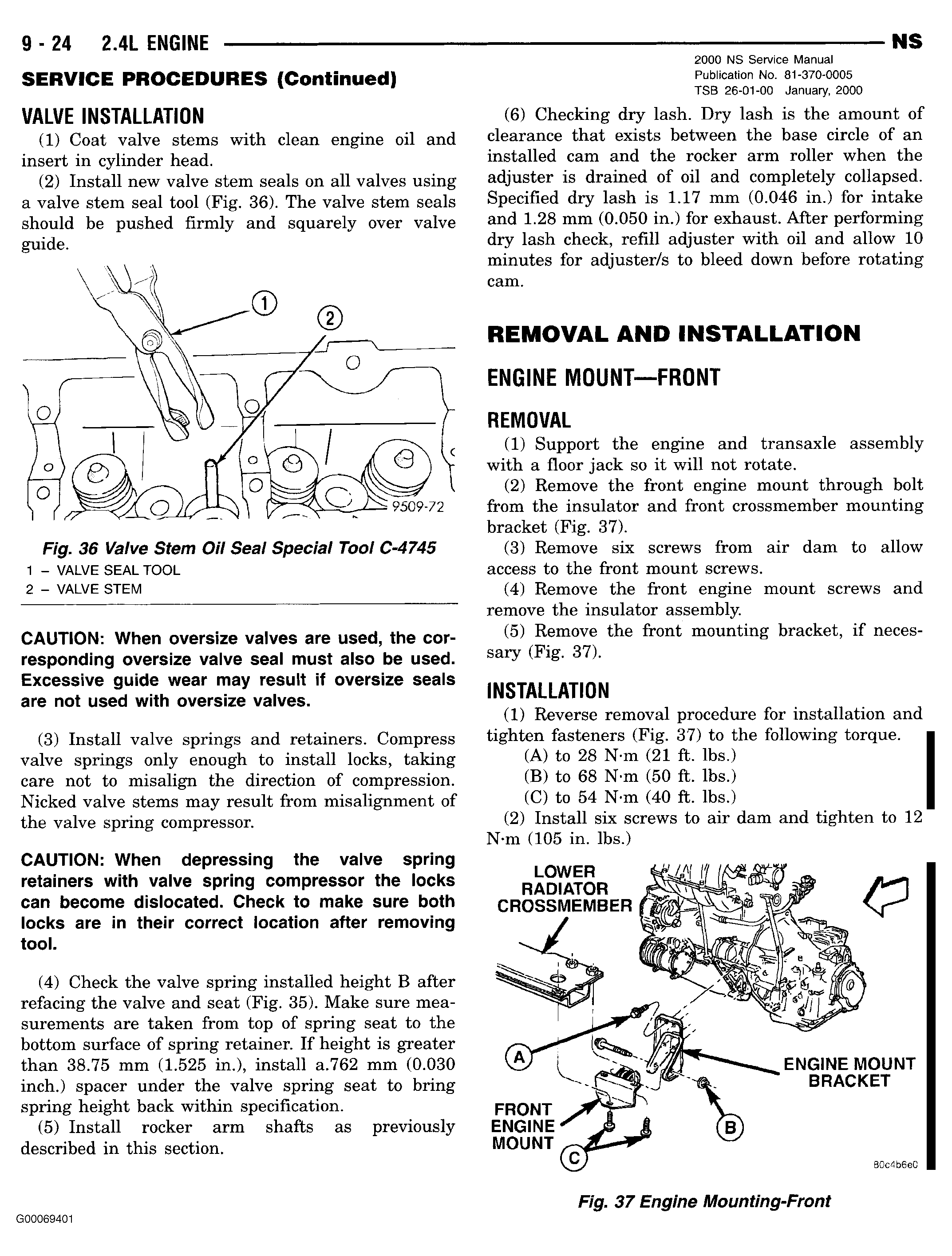

    Fig 2: 2000 NS Service Manual Revision - Page 9-24
    G00069401

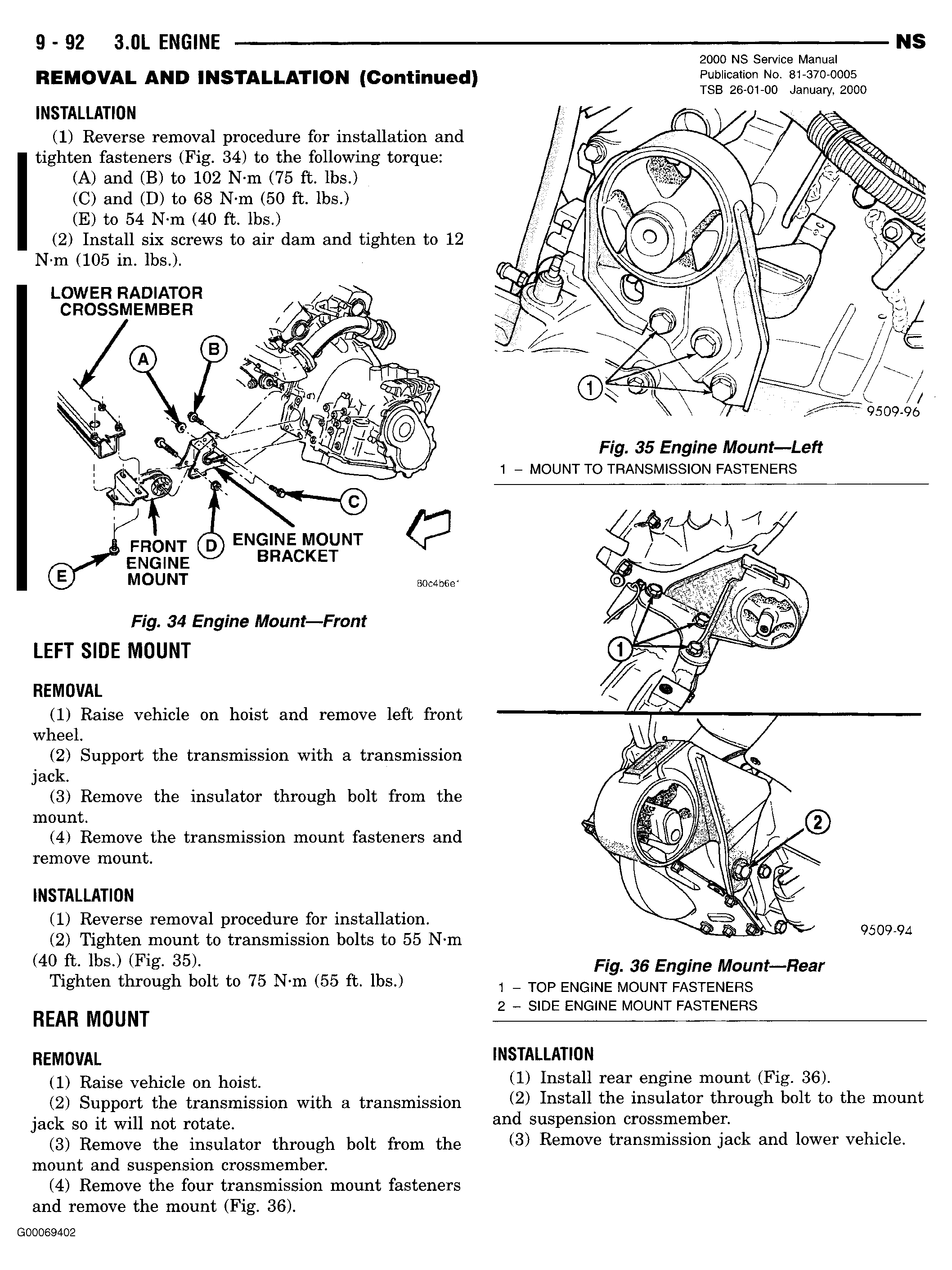

    Fig 3: 2000 NS Service Manual Revision - Page 9-92
    G00069402

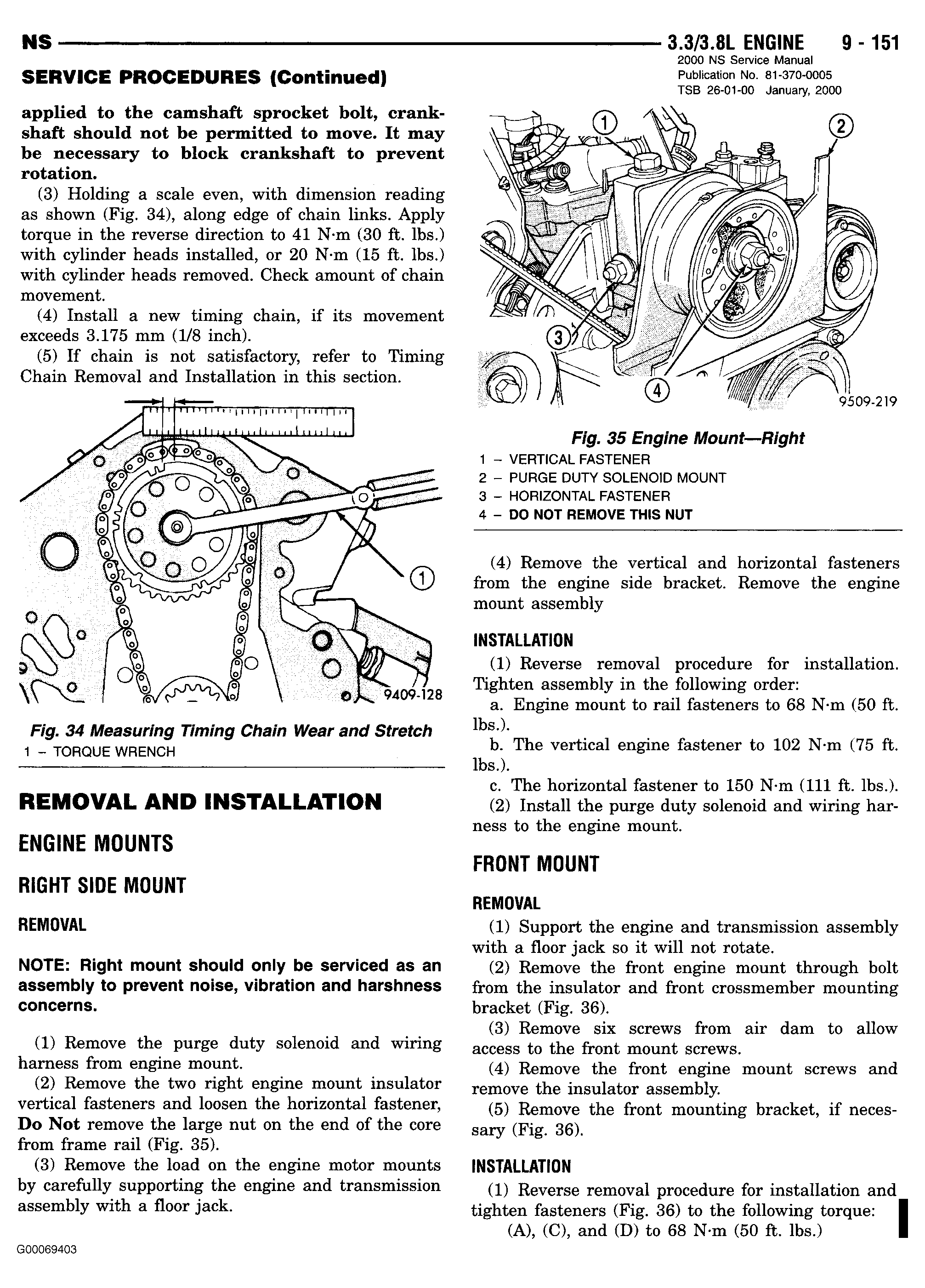

    Fig 4: 2000 NS Service Manual Revision - Page 9-151
    G00069403

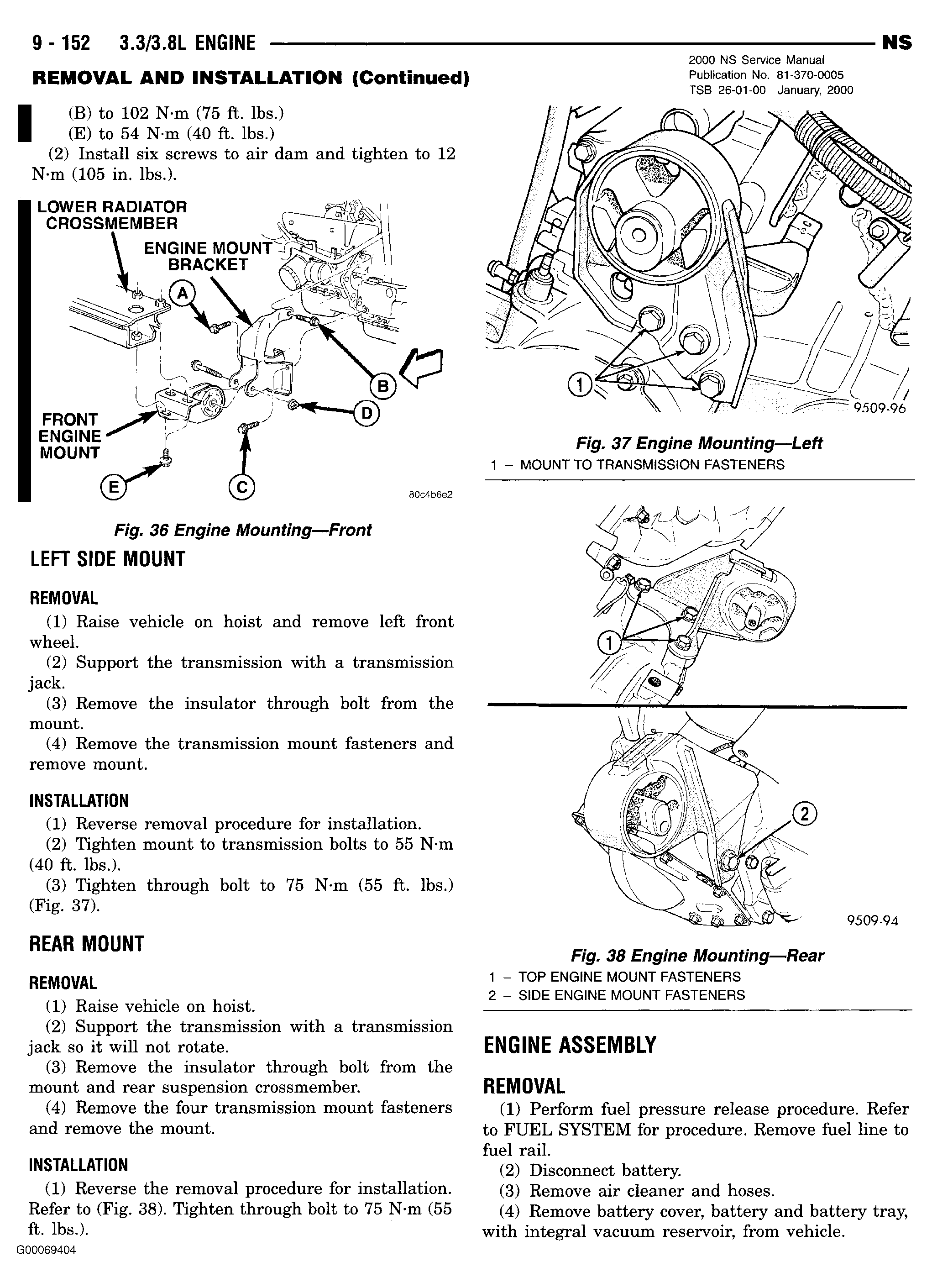

    Fig 5: 2000 NS Service Manual Revision - Page 9-152
    G00069404

  2. DESCRIPTION OF CHANGES
    Revisions to the engine service procedures

  3. PAGES
    8W-01-5, 8W-12-9, 8W-31-5, 8W-33-3, 8W-80-17, 8W-80-45, 8W-90-2, 8W-90-16, 8W-95-1, 8W-95-8

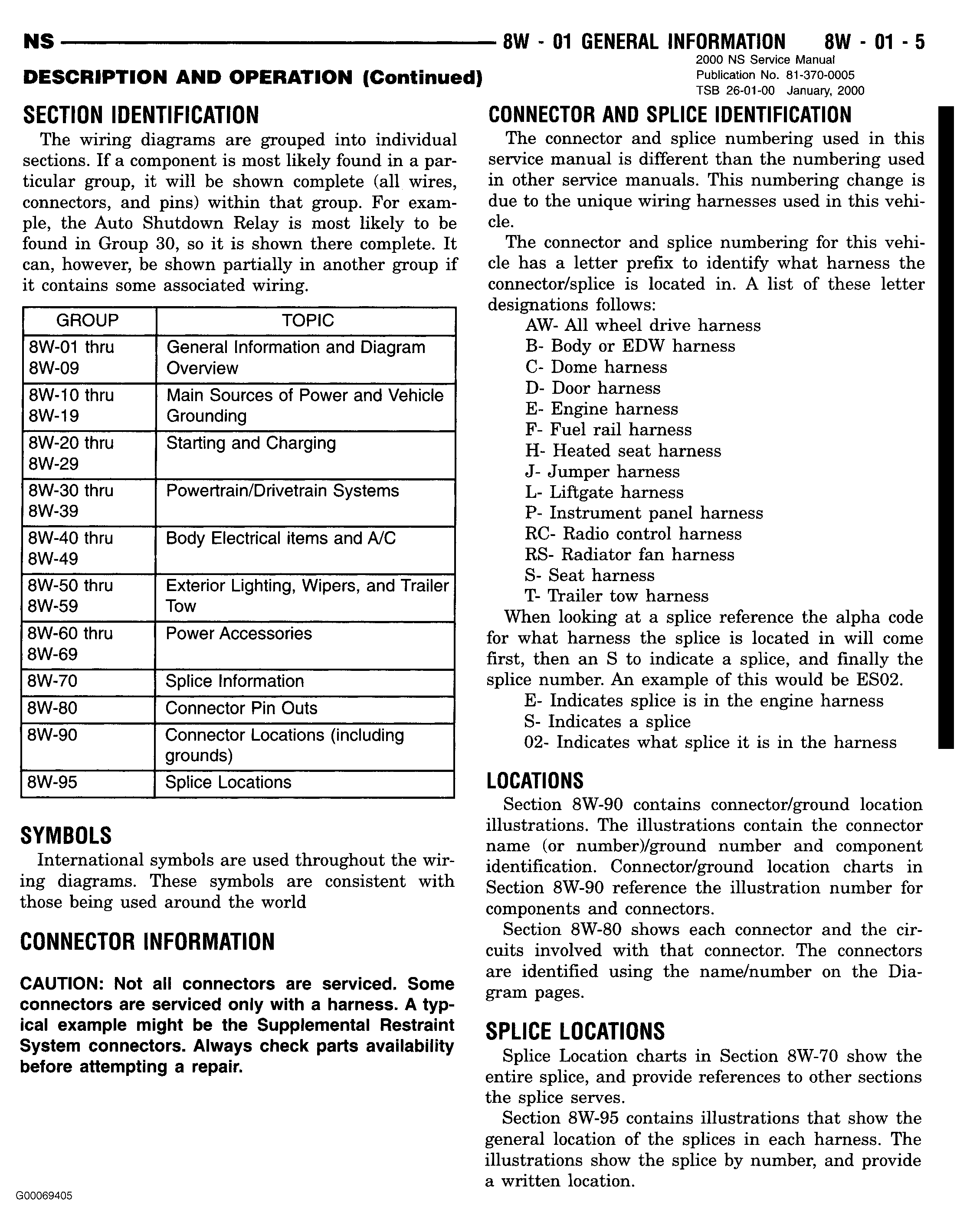

    Fig 6: 2000 NS Service Manual Revision - Page 8W-01-5
    G00069405

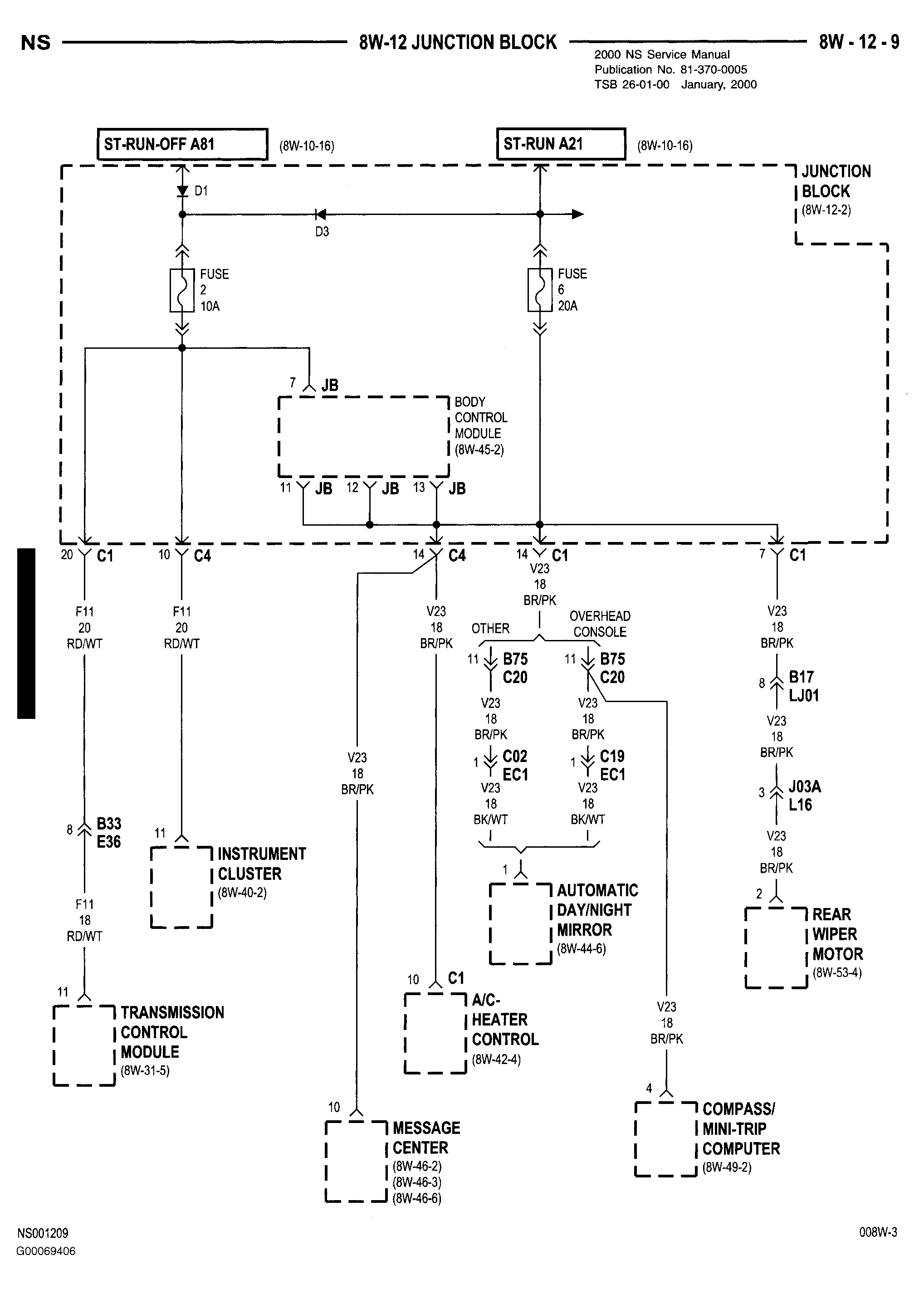

    Fig 7: 2000 NS Service Manual Revision - Page 8W-12-9
    G00069406

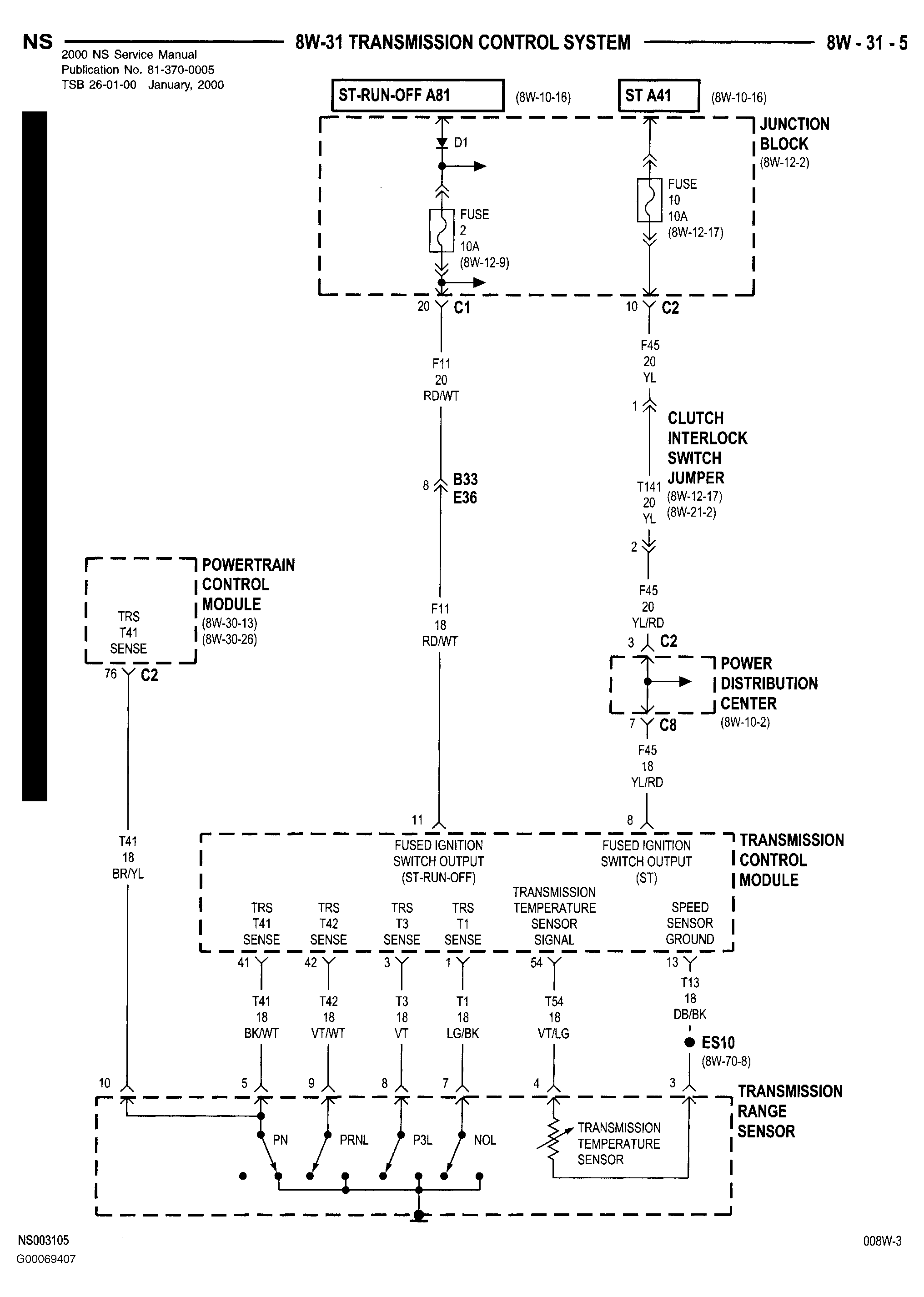

    Fig 8: 2000 NS Service Manual Revision - Page 8W-31-5
    G00069407

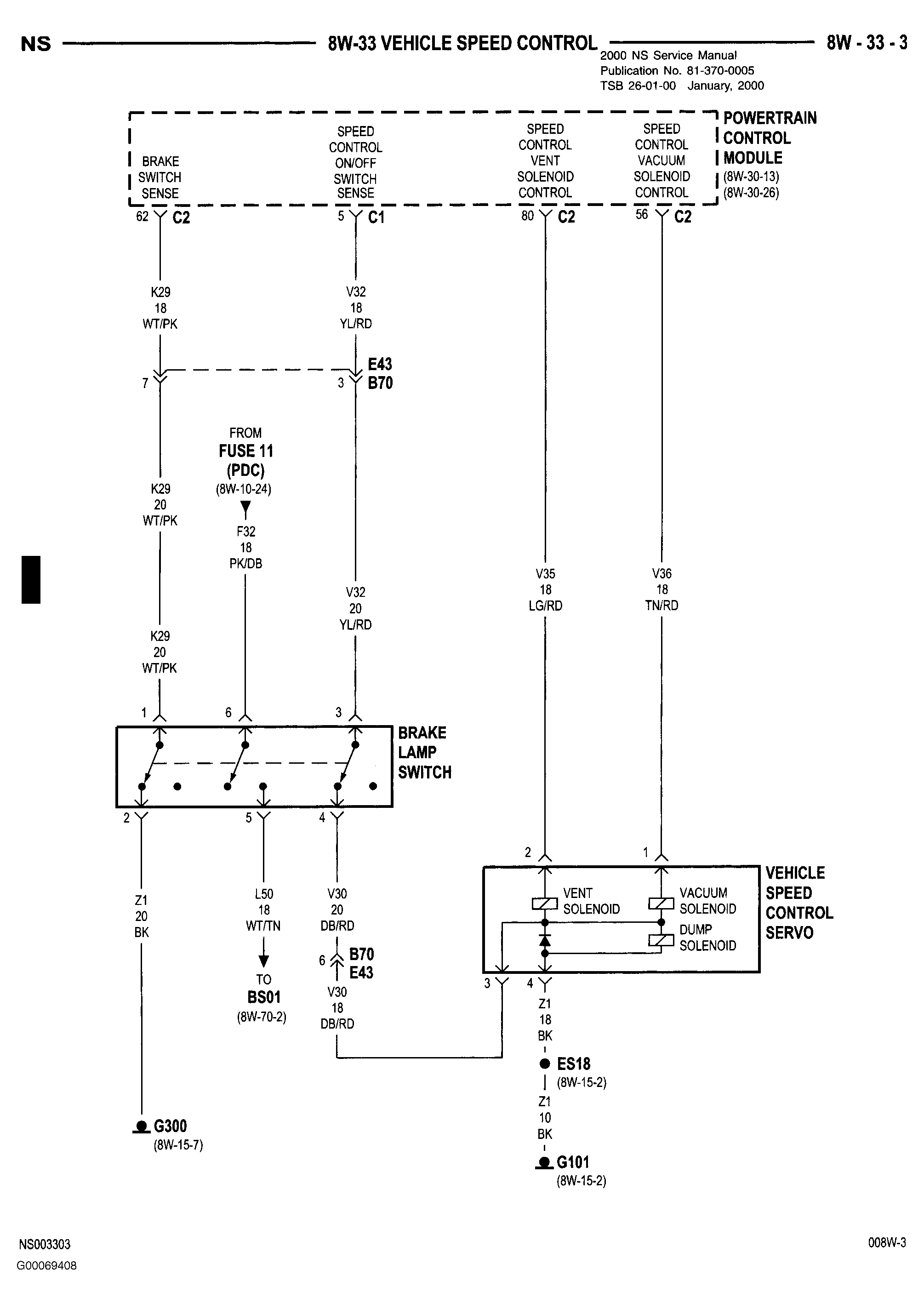

    Fig 9: 2000 NS Service Manual Revision - Page 8W-33-3
    G00069408

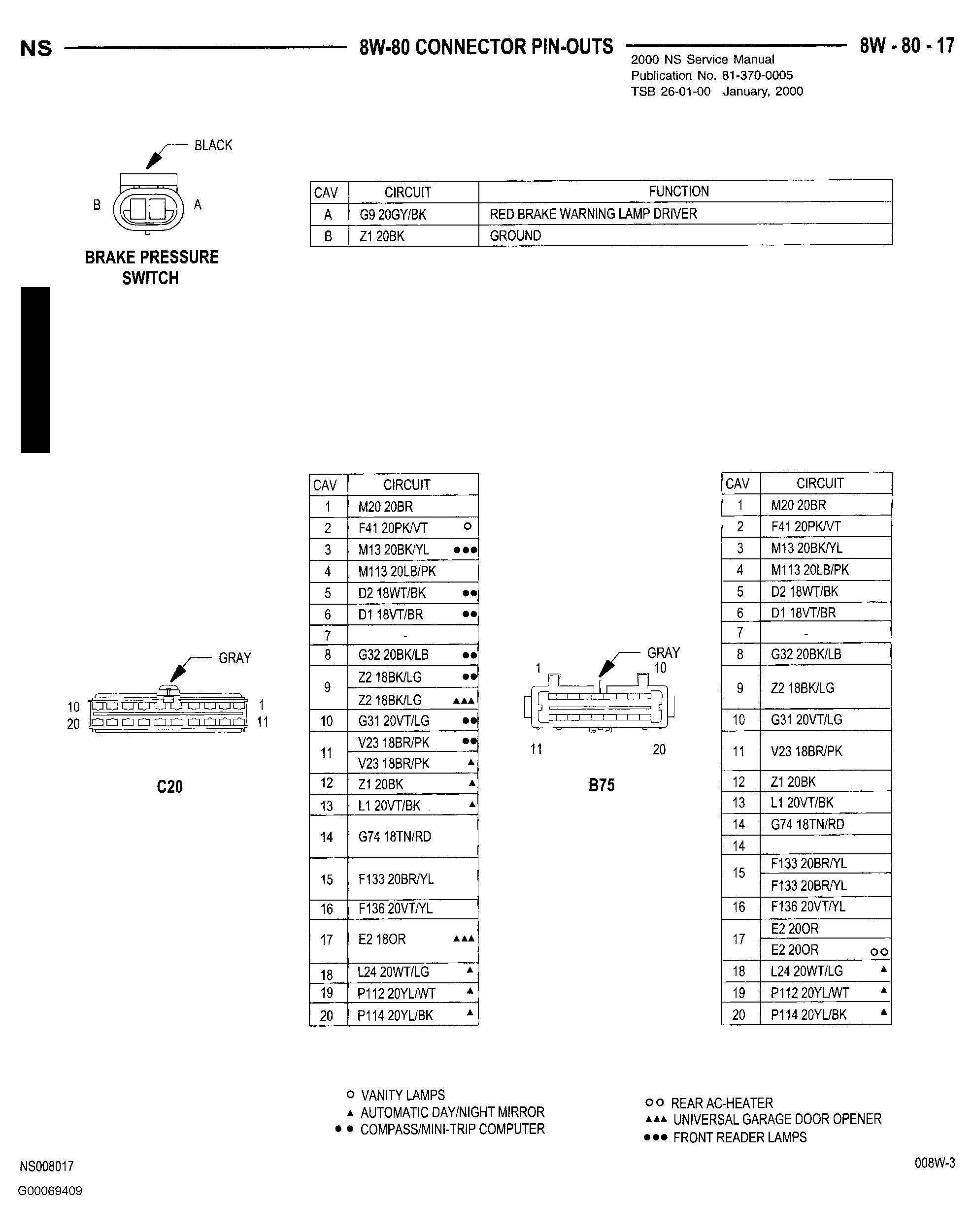

    Fig 10: 2000 NS Service Manual Revision - Page 8W-80-17
    G00069409

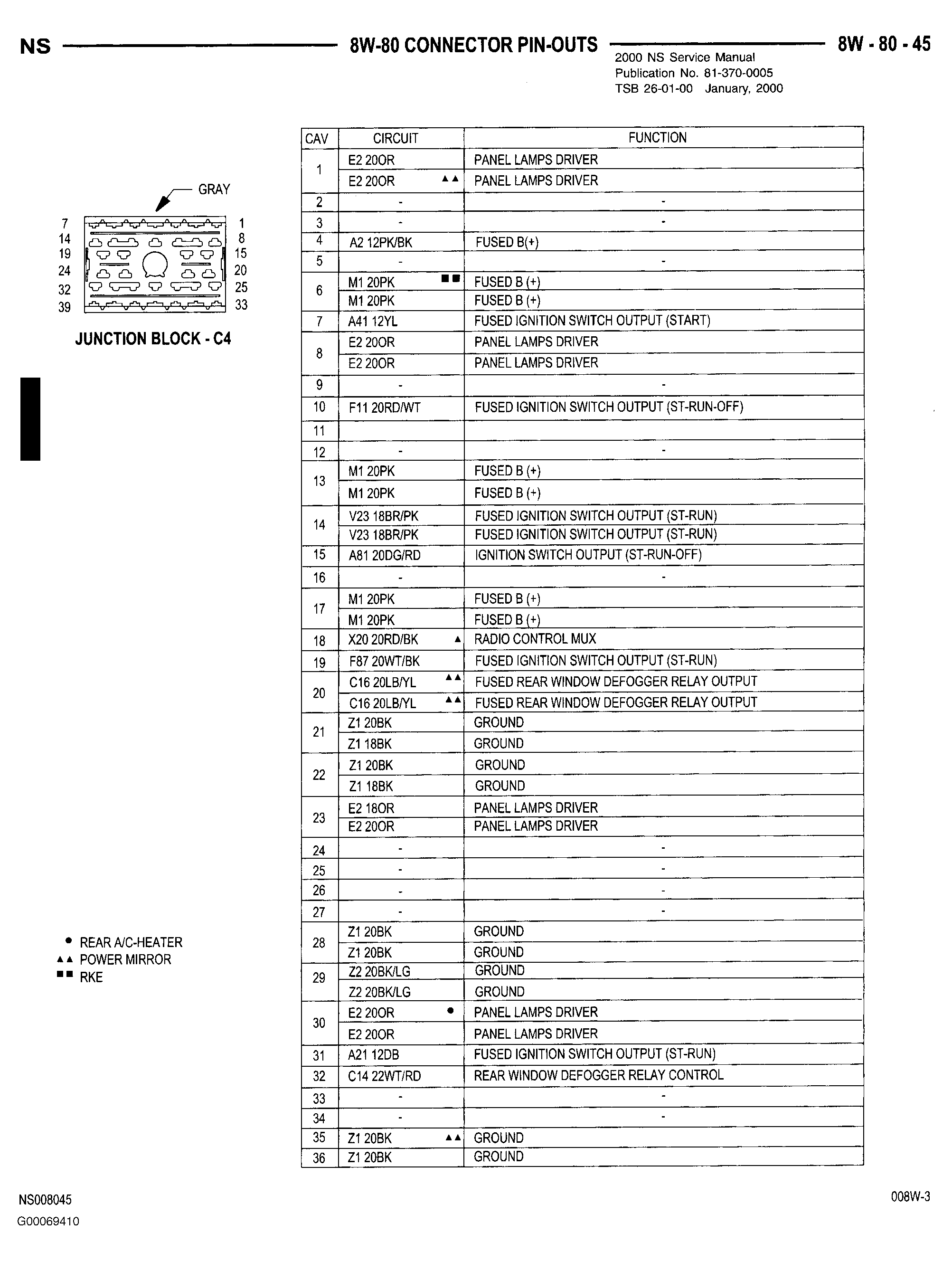

    Fig 11: 2000 NS Service Manual Revision - Page 8W-80-45
    G00069410

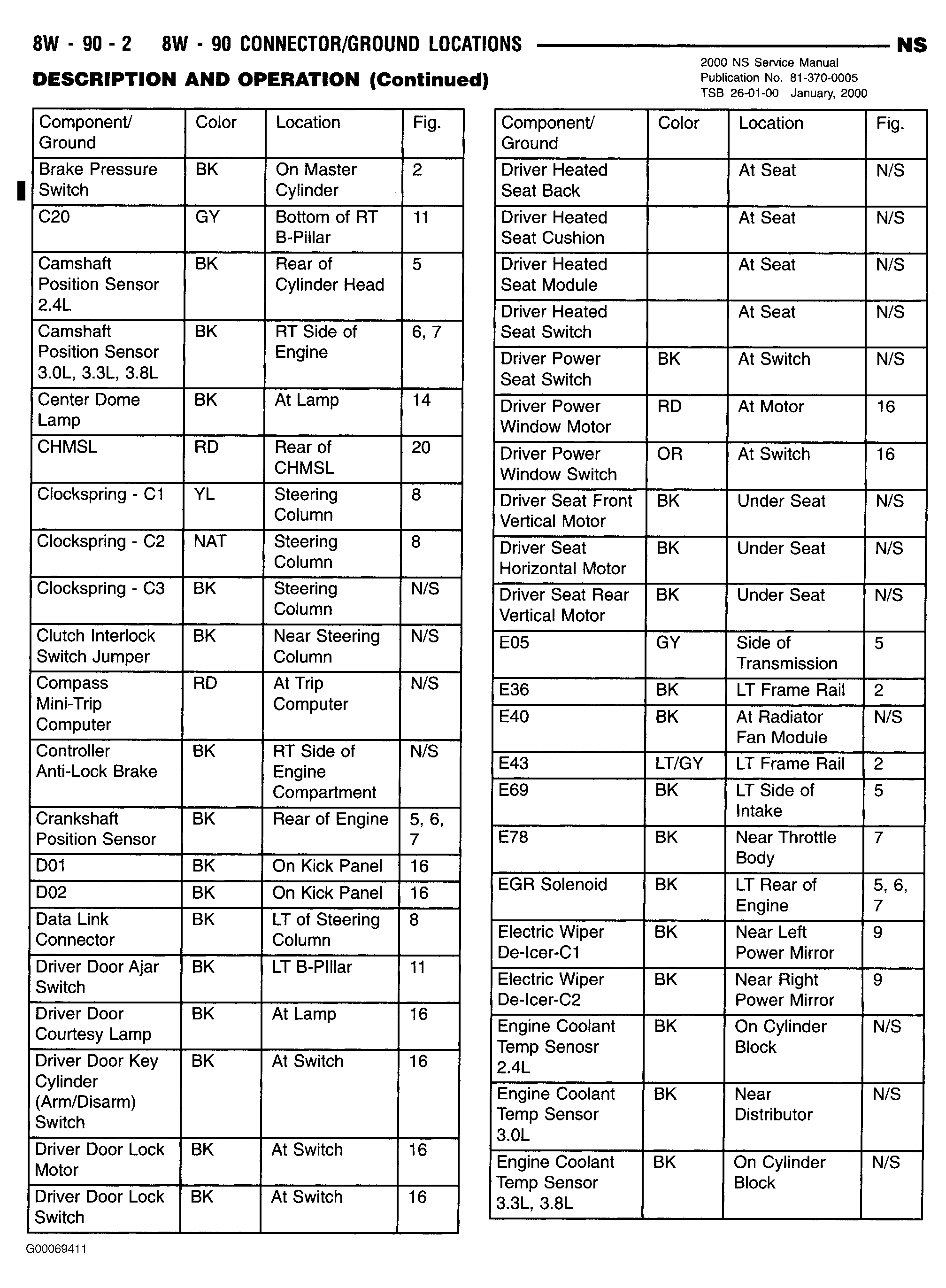

    Fig 12: 2000 NS Service Manual Revision - Page 8W-90-2
    G00069411

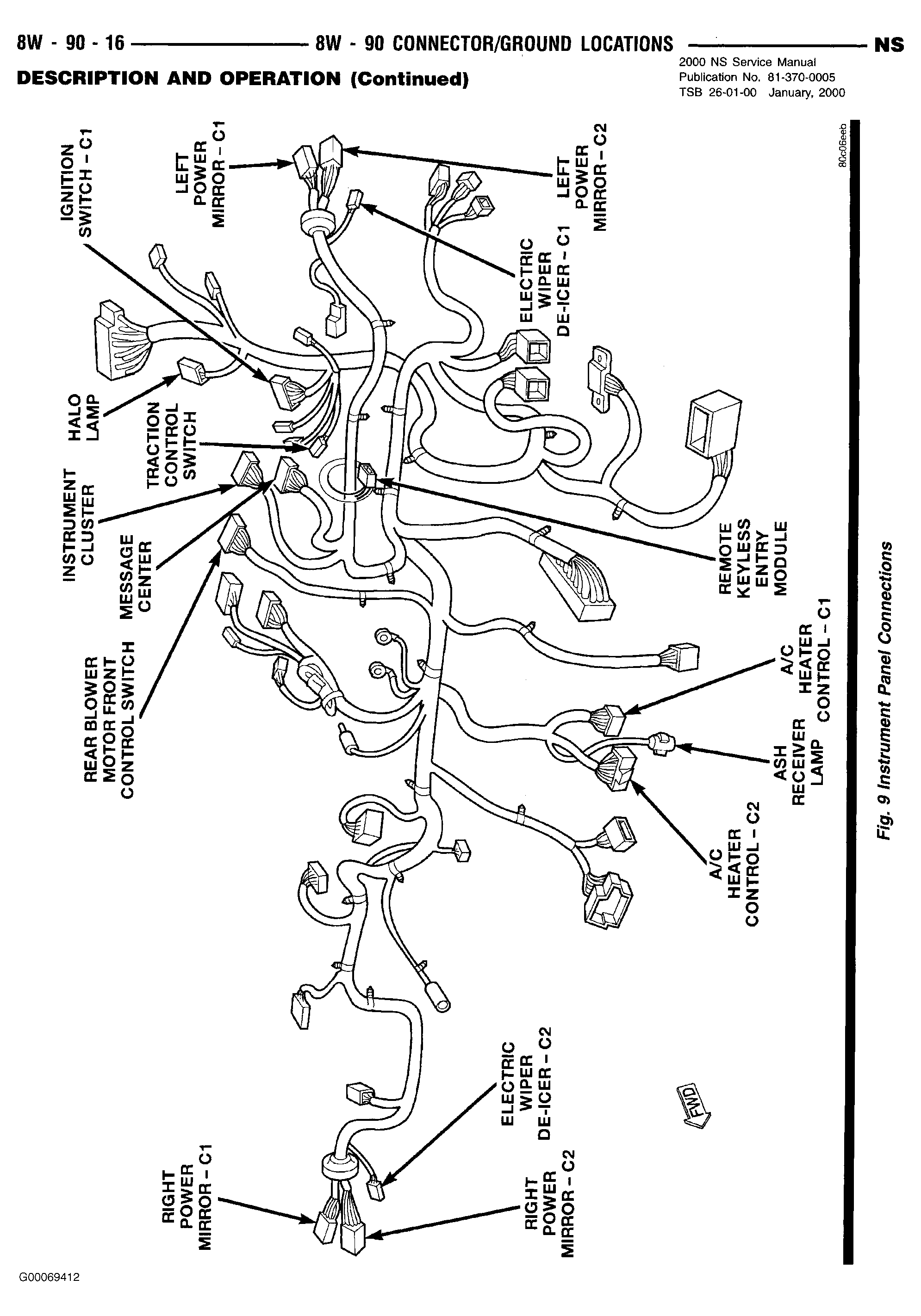

    Fig 13: 2000 NS Service Manual Revision - Page 8W-90-16
    G00069412

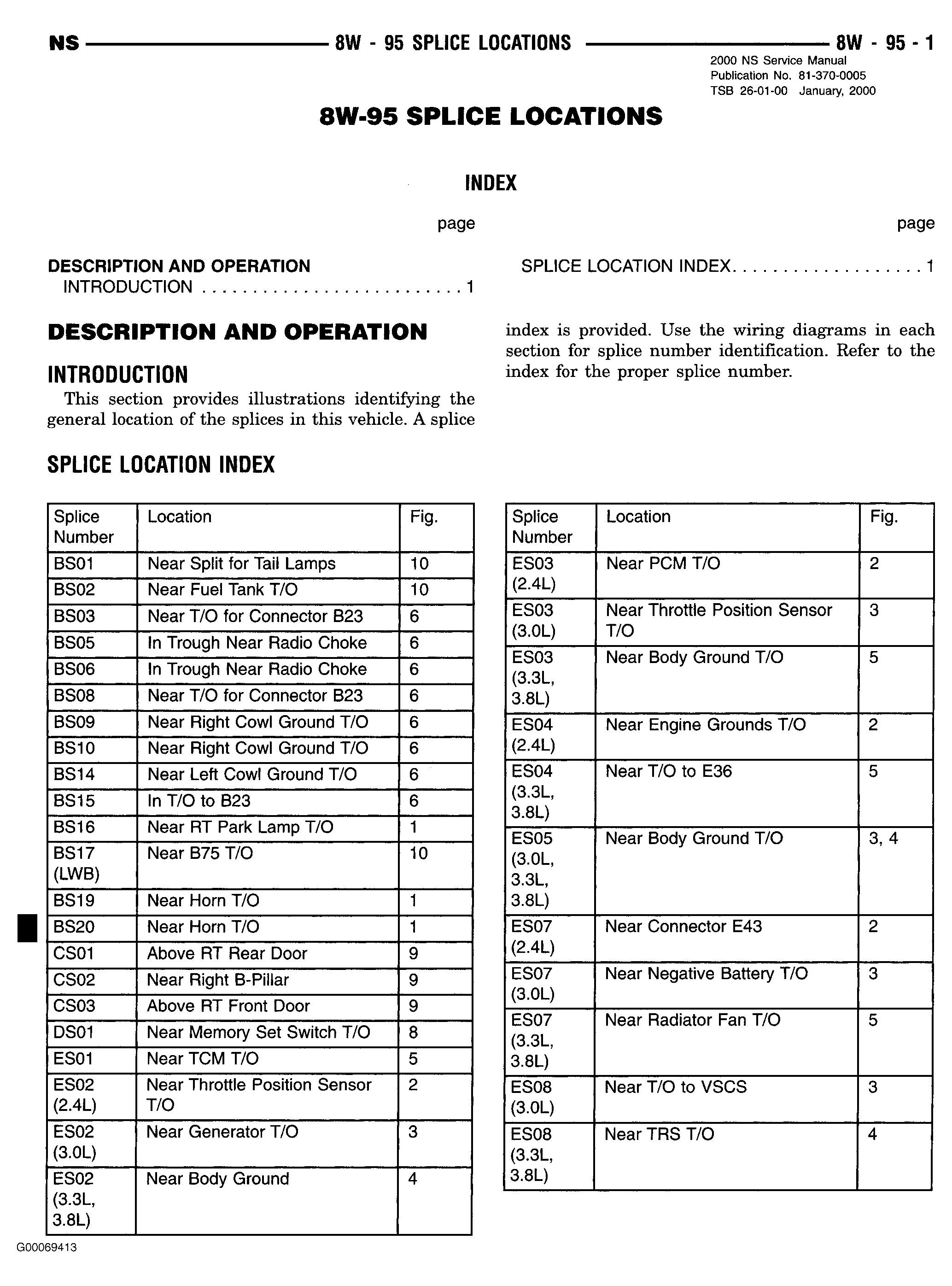

    Fig 14: 2000 NS Service Manual Revision - Page 8W-95-1
    G00069413

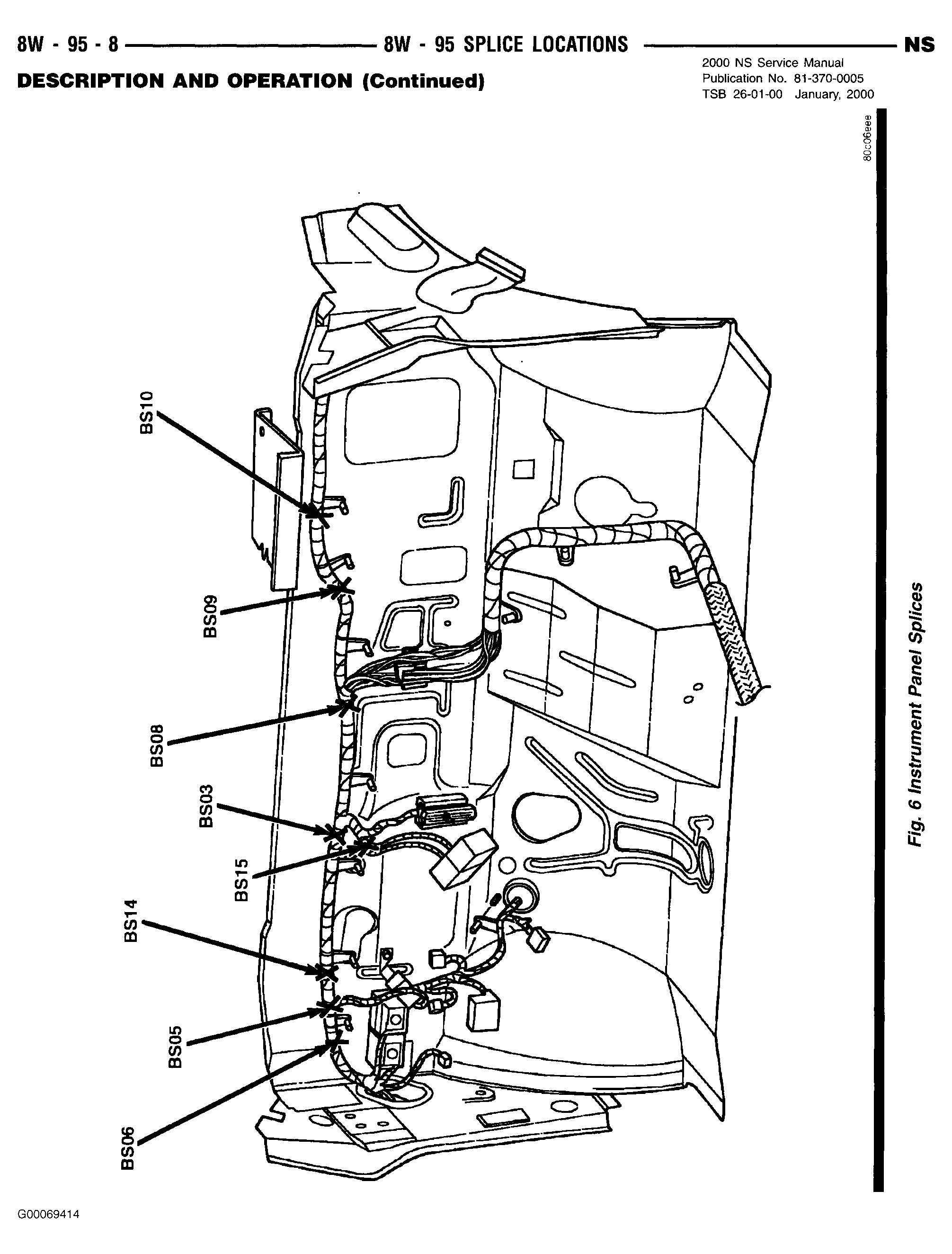

    Fig 15: 2000 NS Service Manual Revision - Page 8W-95-8
    G00069414

  4. DESCRIPTION OF CHANGES
    Revisions to the wiring schematics

2000 Grand Cherokee Service Manual - Publication Number 81-370-0047

  1. PAGES
    3-49, 3-135

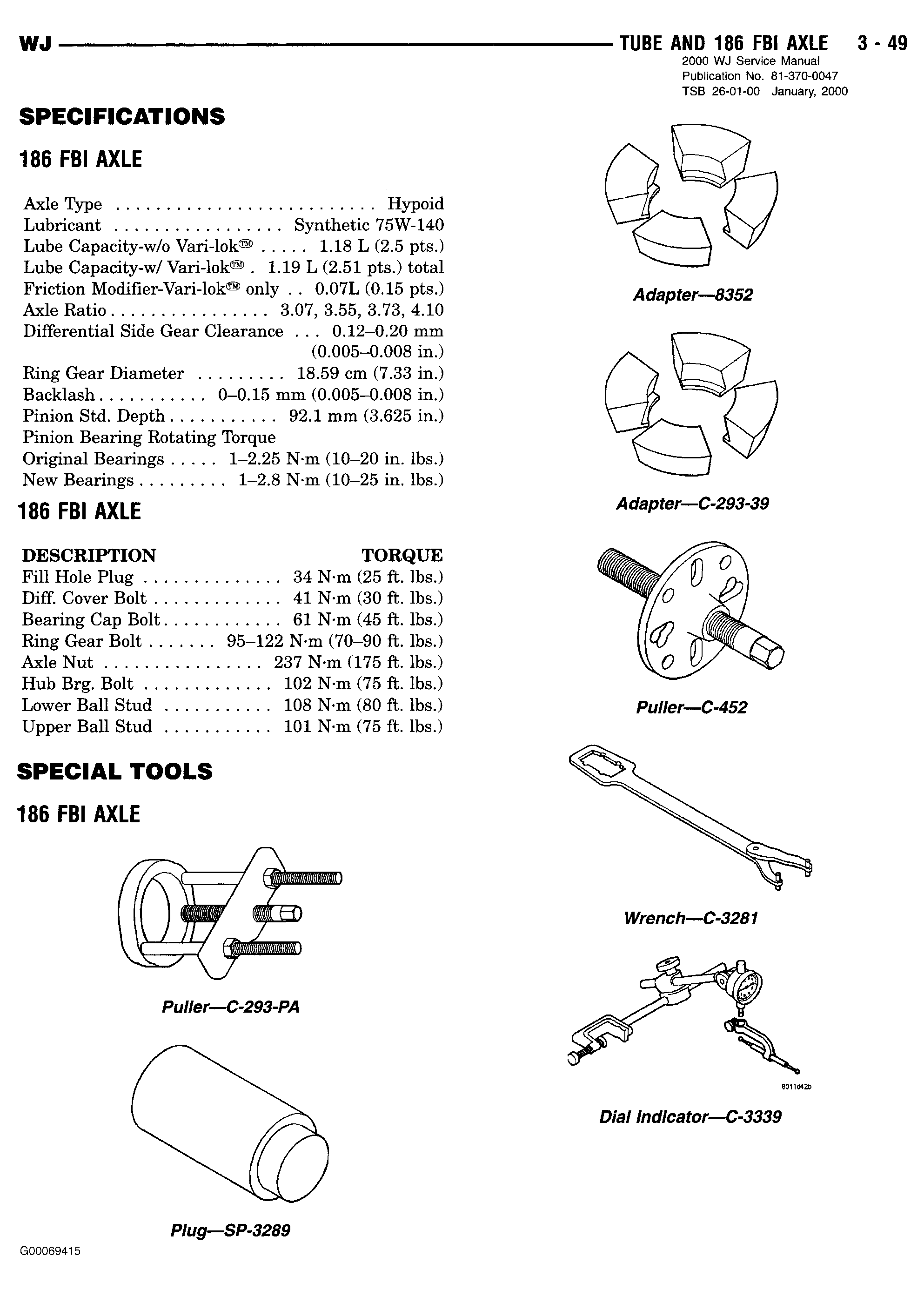

    Fig 16: 2000 WJ Service Manual Revision - Page 3-49
    G00069415

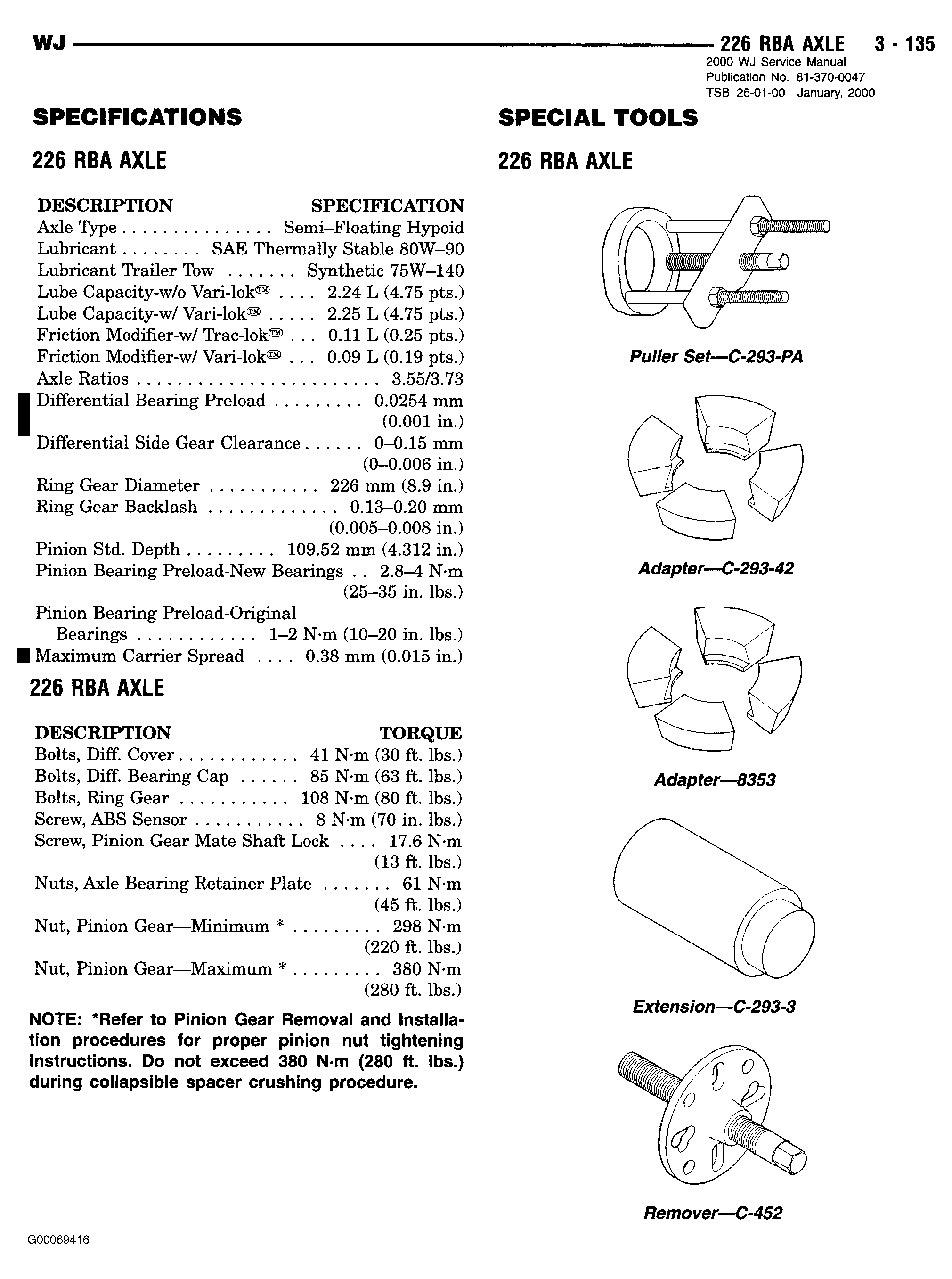

    Fig 17: 2000 WJ Service Manual Revision - Page 3-135
    G00069416

  2. DESCRIPTION OF CHANGES
    Revisions to the axle specifications

  3. PAGES
    8W-30-26, 8W-31-3, 8W-35-2, 8W-39-8, 8W-47-6, 8W-49-2, 8W-60-2, 8W-80-31

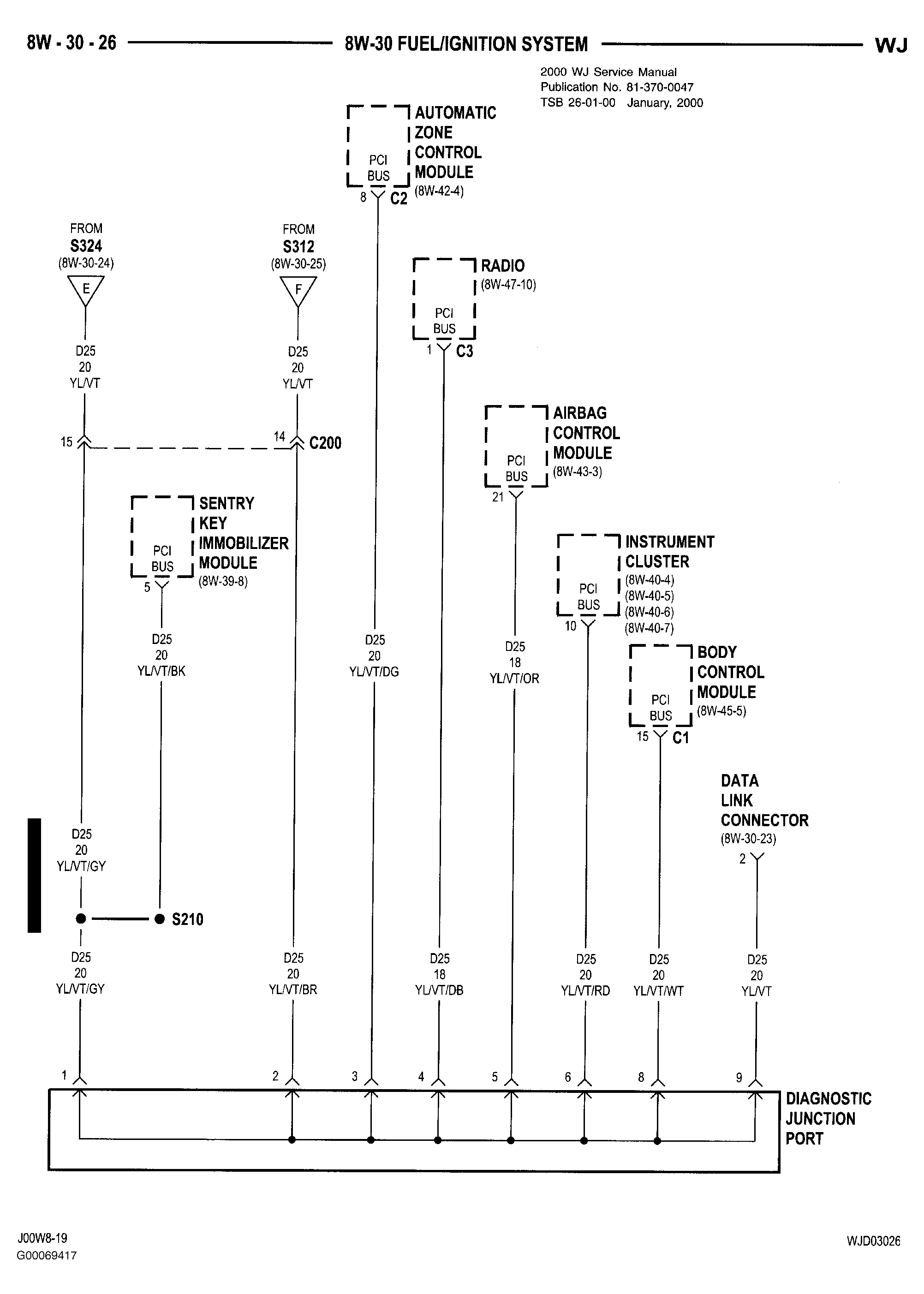

    Fig 18: 2000 WJ Service Manual Revision - Page 8W-30-26
    G00069417

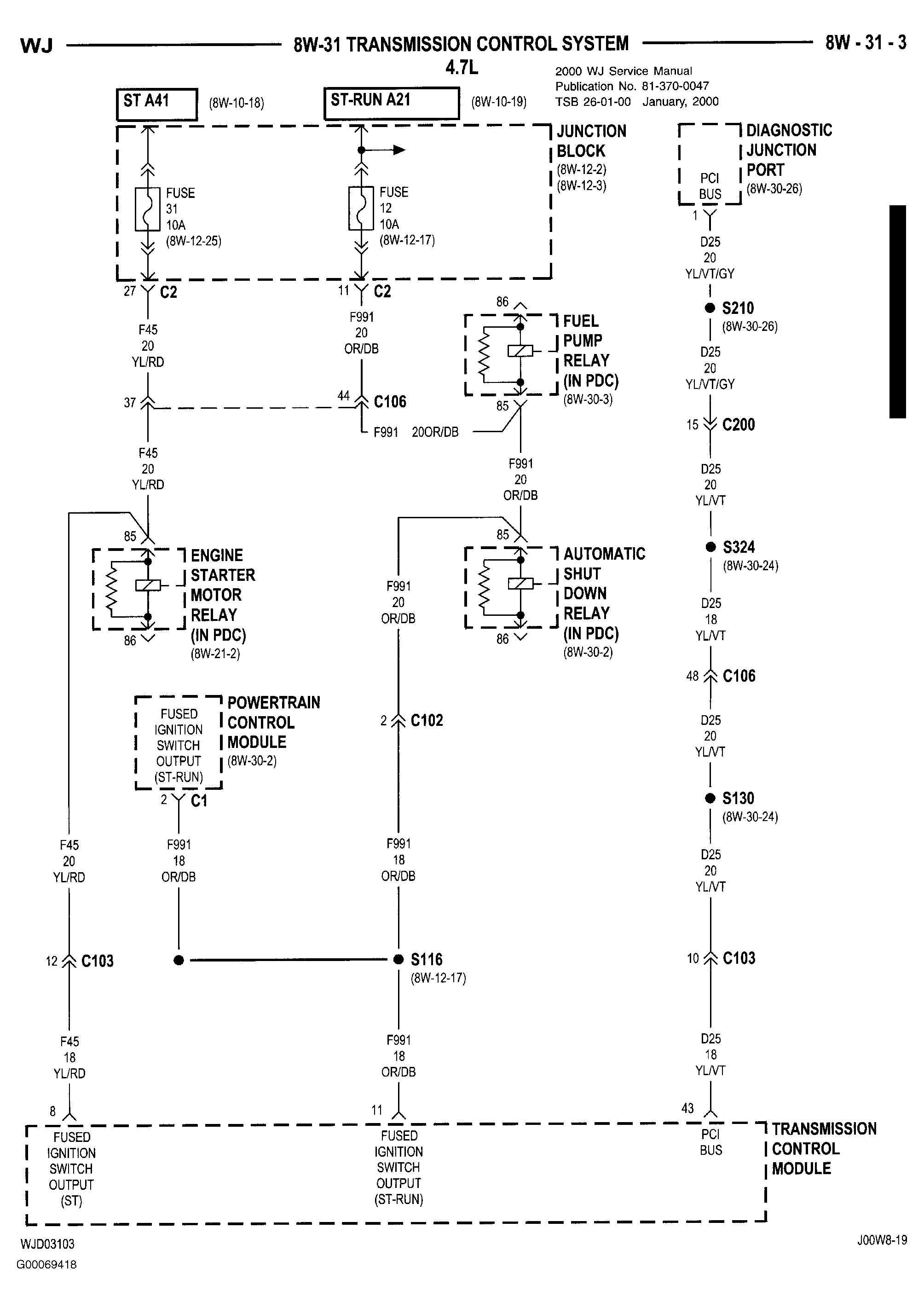

    Fig 19: 2000 WJ Service Manual Revision - Page 8W-31-3
    G00069418

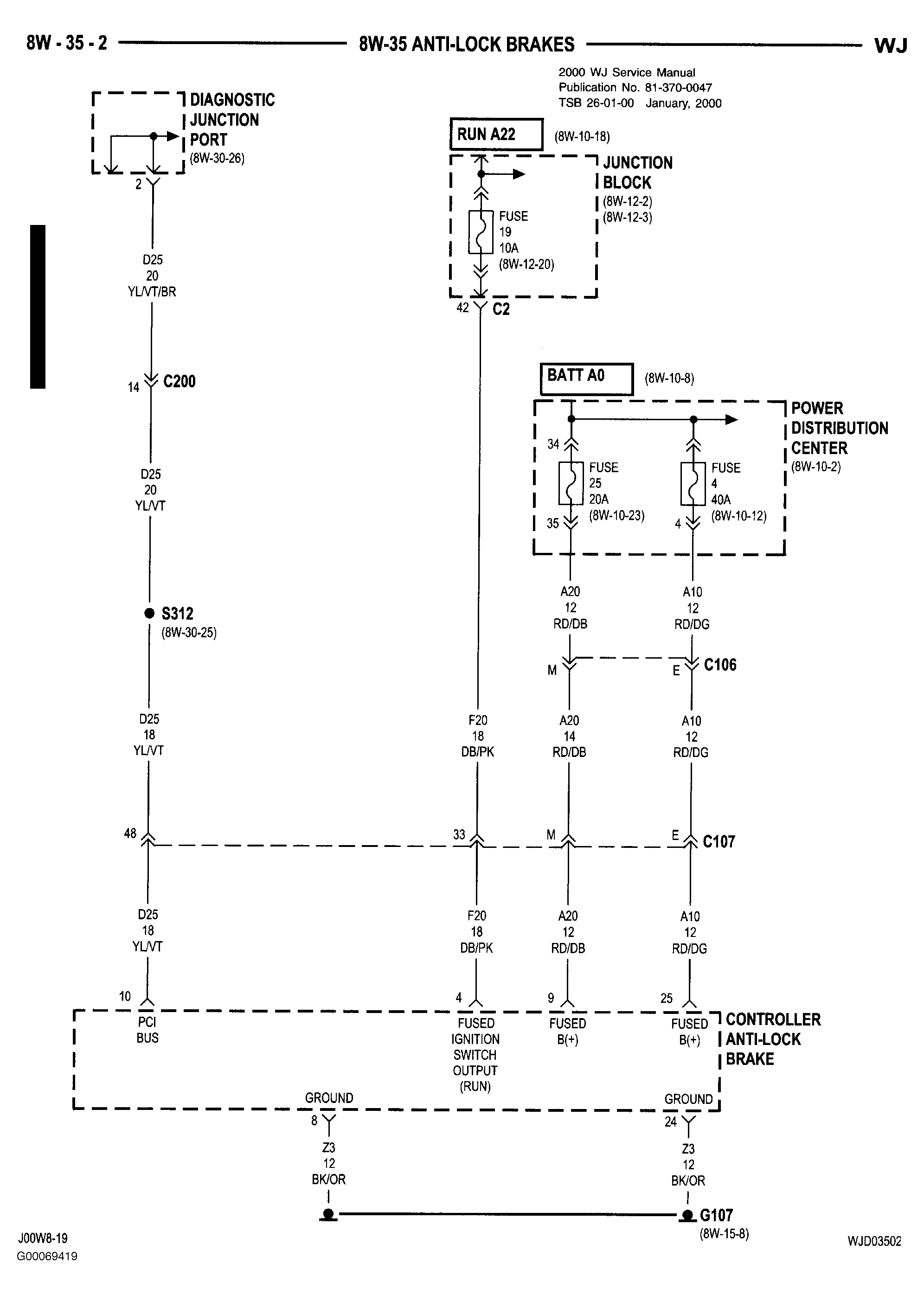

    Fig 20: 2000 WJ Service Manual Revision - Page 8W-35-2
    G00069419

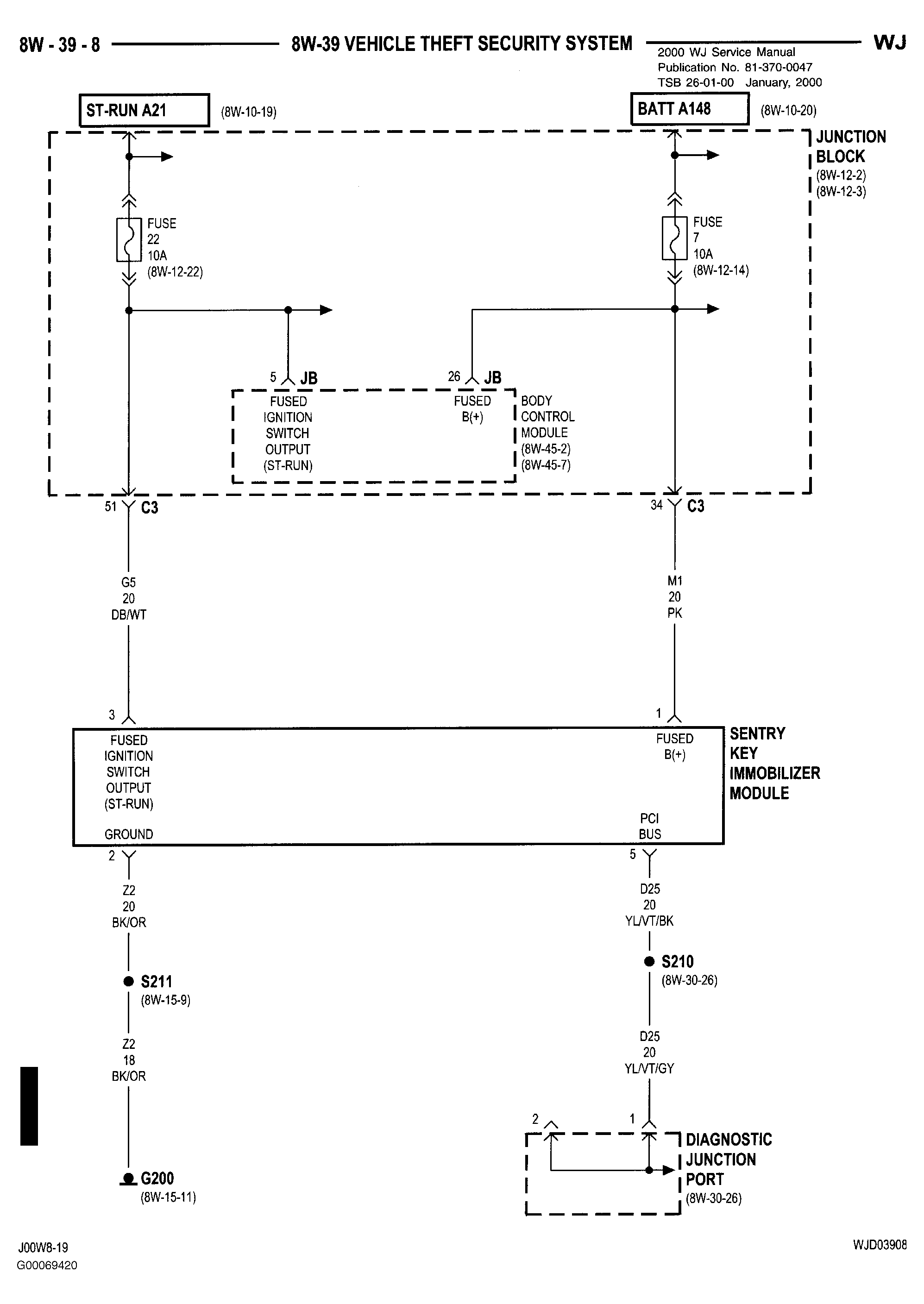

    Fig 21: 2000 WJ Service Manual Revision - Page 8W-39-8
    G00069420

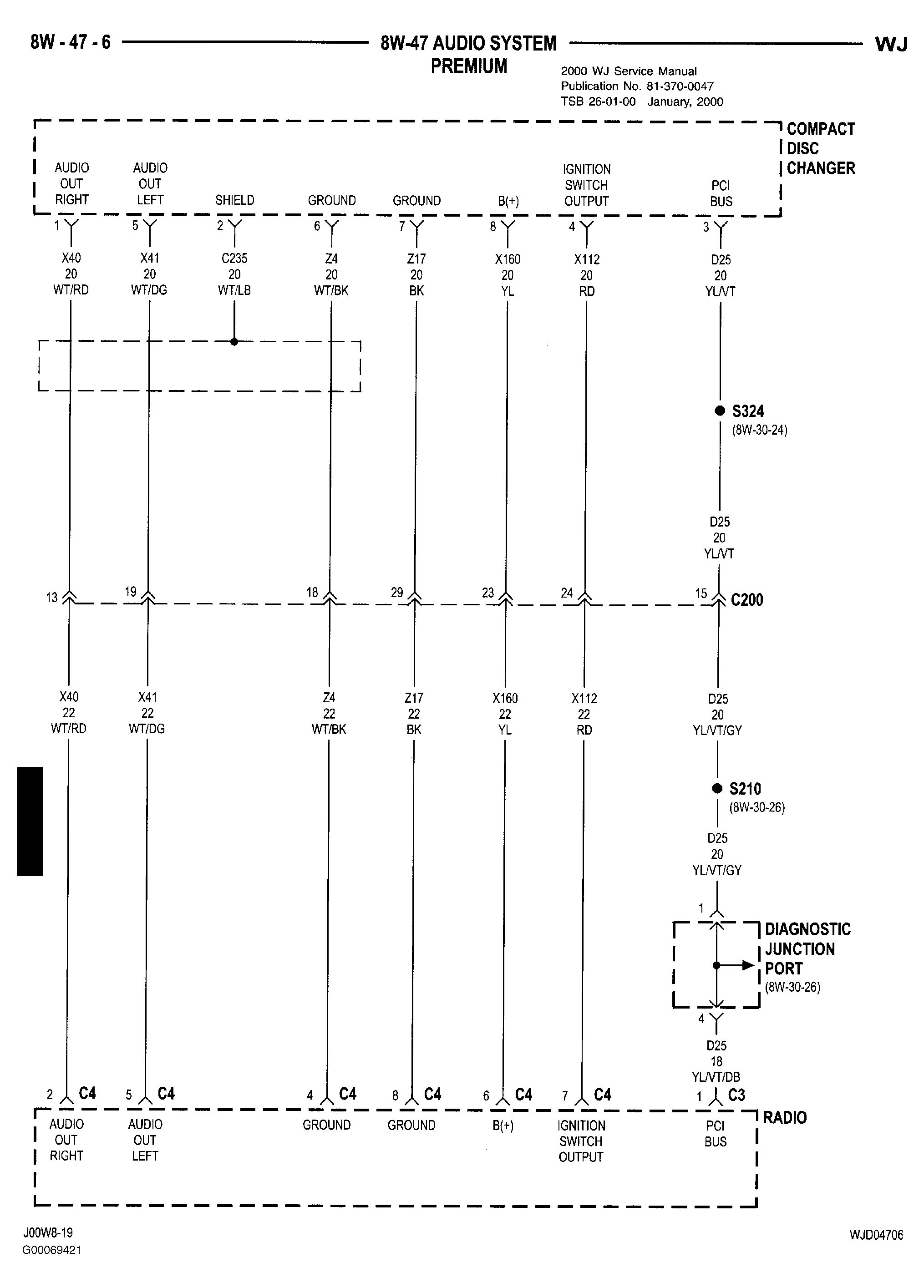

    Fig 22: 2000 WJ Service Manual Revision - Page 8W-47-6
    G00069421

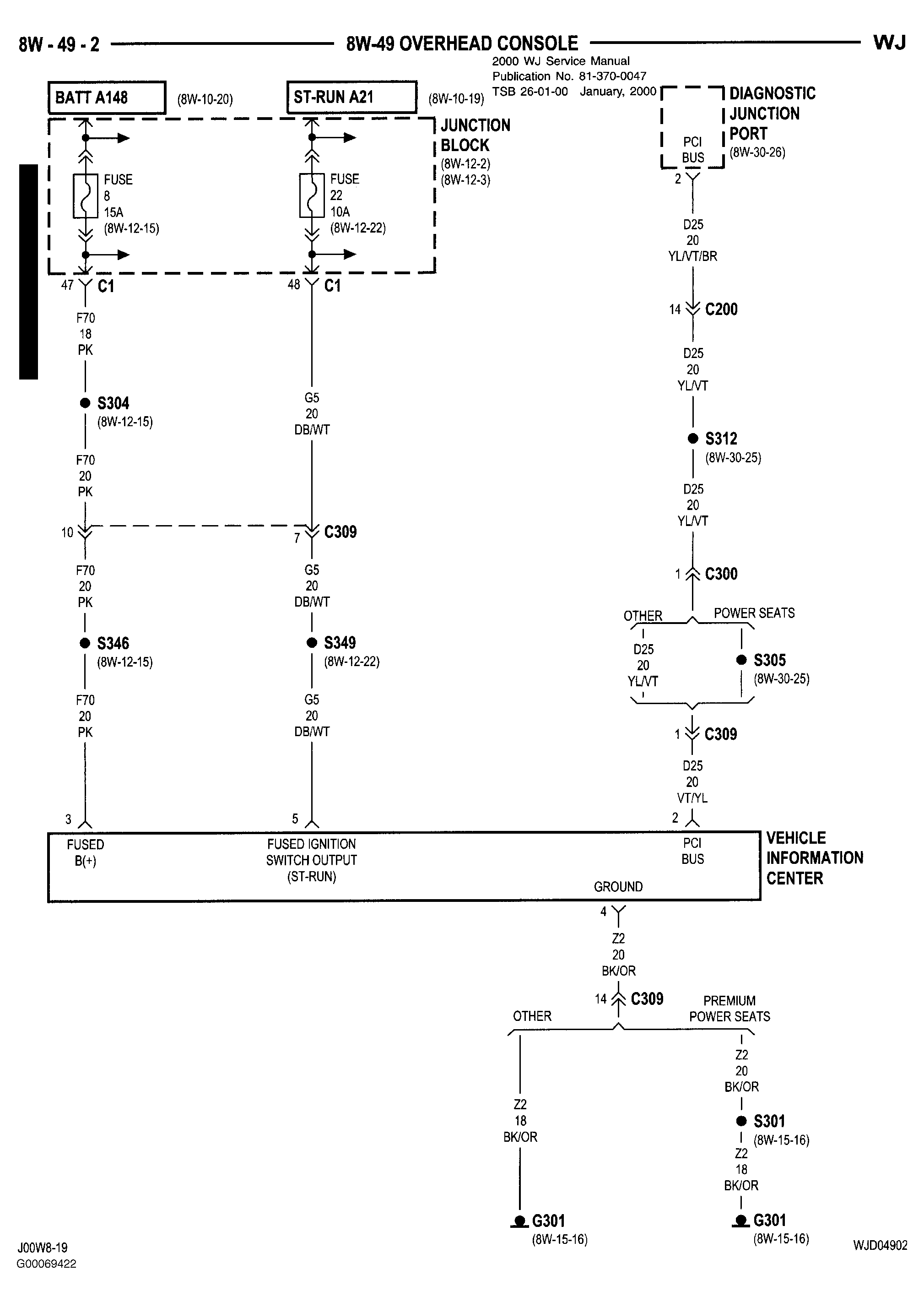

    Fig 23: 2000 WJ Service Manual Revision - Page 8W-49-2
    G00069422

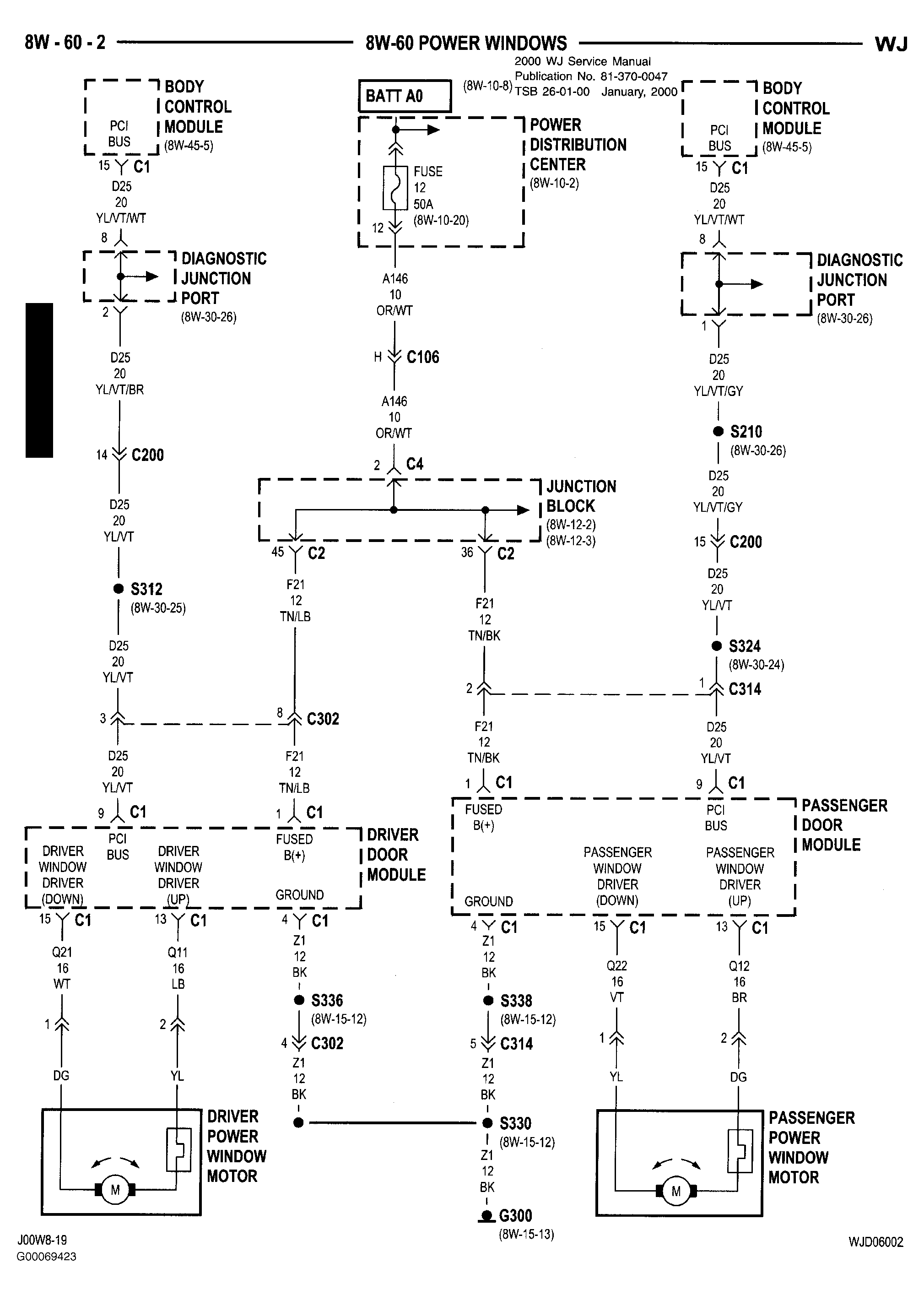

    Fig 24: 2000 WJ Service Manual Revision - Page 8W-60-2
    G00069423

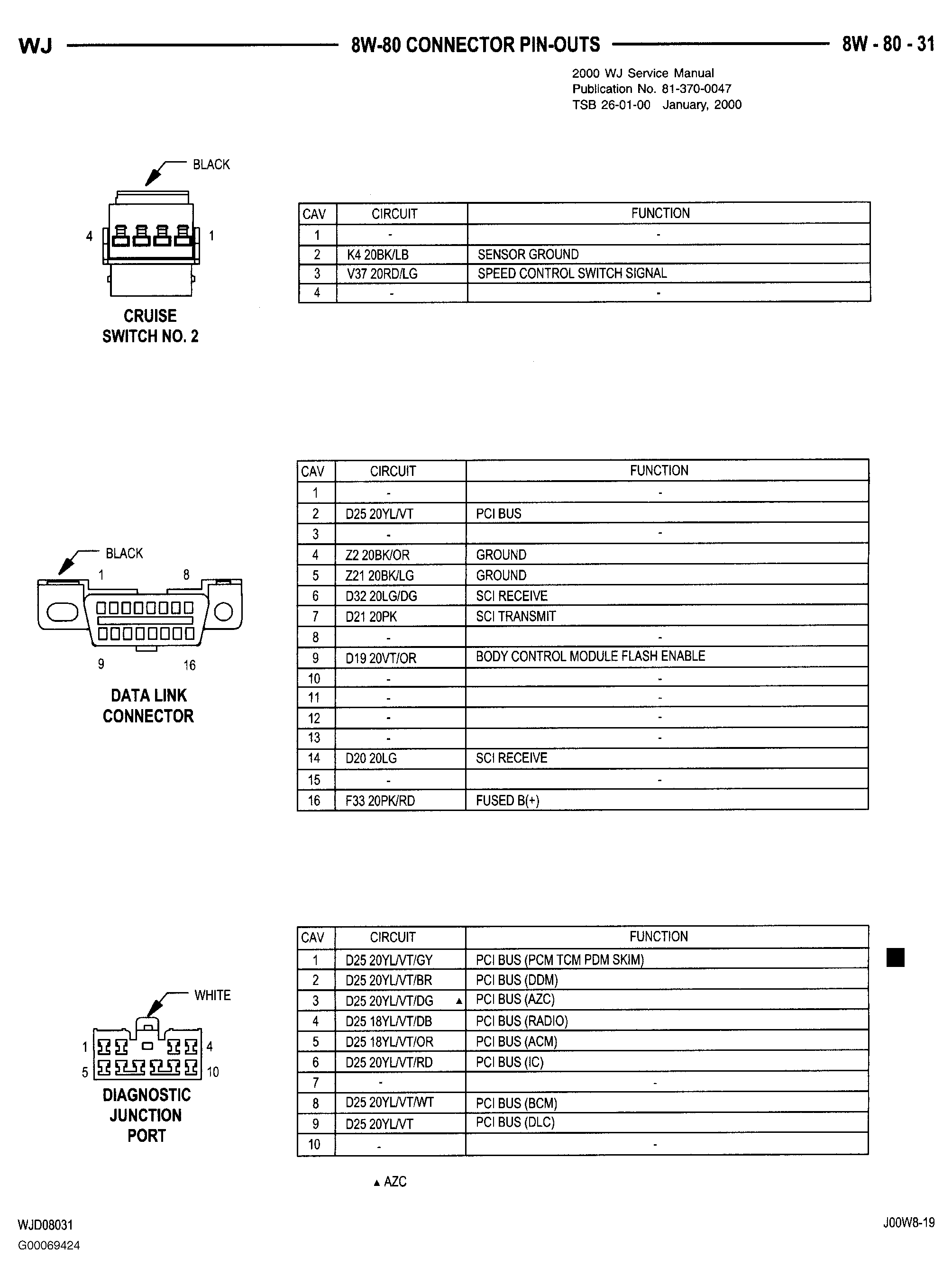

    Fig 25: 2000 WJ Service Manual Revision - Page 8W-80-31
    G00069424

  4. DESCRIPTION OF CHANGES
    Revisions to the wiring schematics

  5. PAGES
    9-137, 9-140

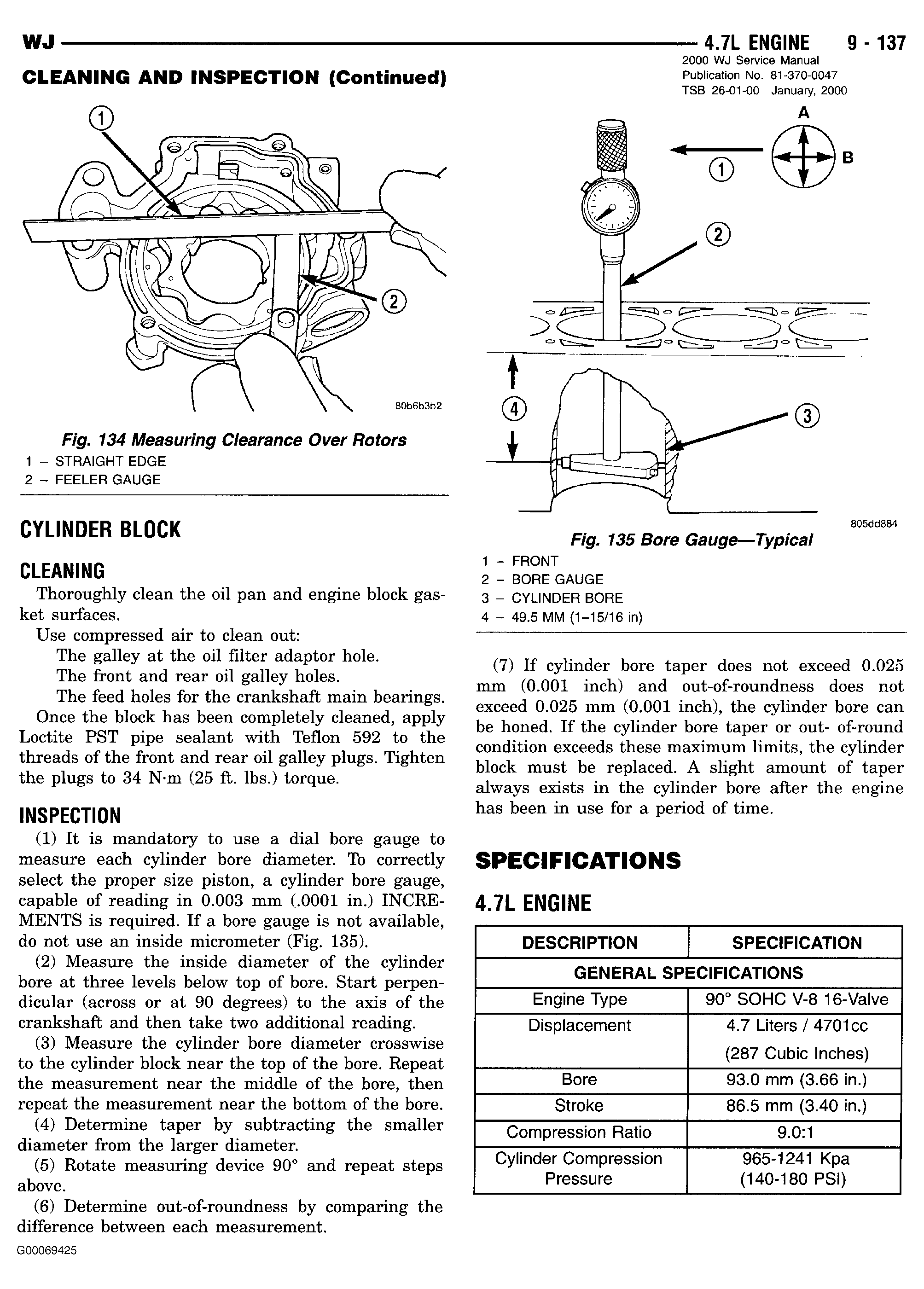

    Fig 26: 2000 WJ Service Manual Revision - Page 9-137
    G00069425

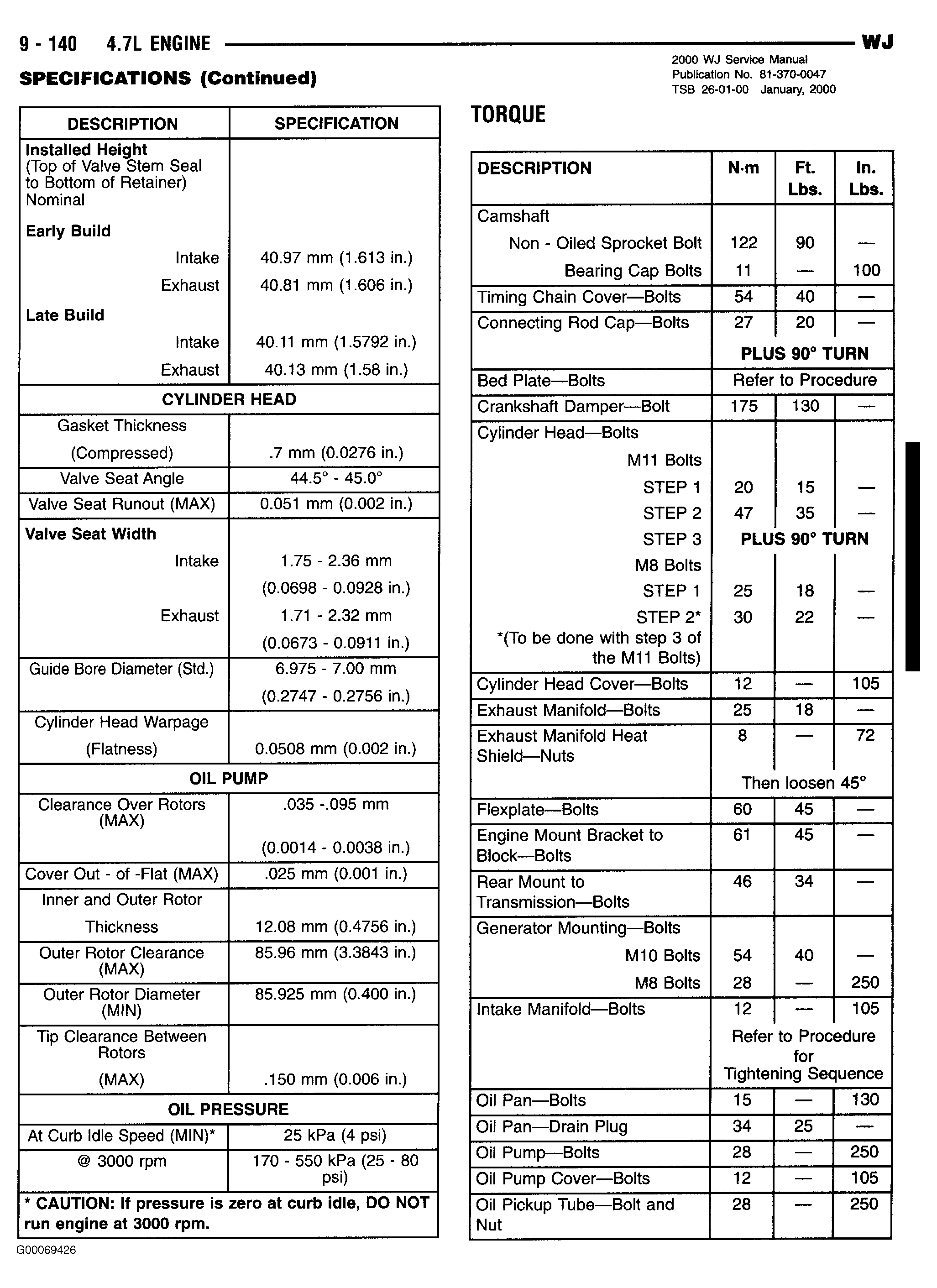

    Fig 27: 2000 WJ Service Manual Revision - Page 9-140
    G00069426

  6. DESCRIPTION OF CHANGES
    Revisions to the engine specification

2000 Dakota Service Manual - Publication Number 81-370-0010

  1. PAGES
    9-196, 9-199

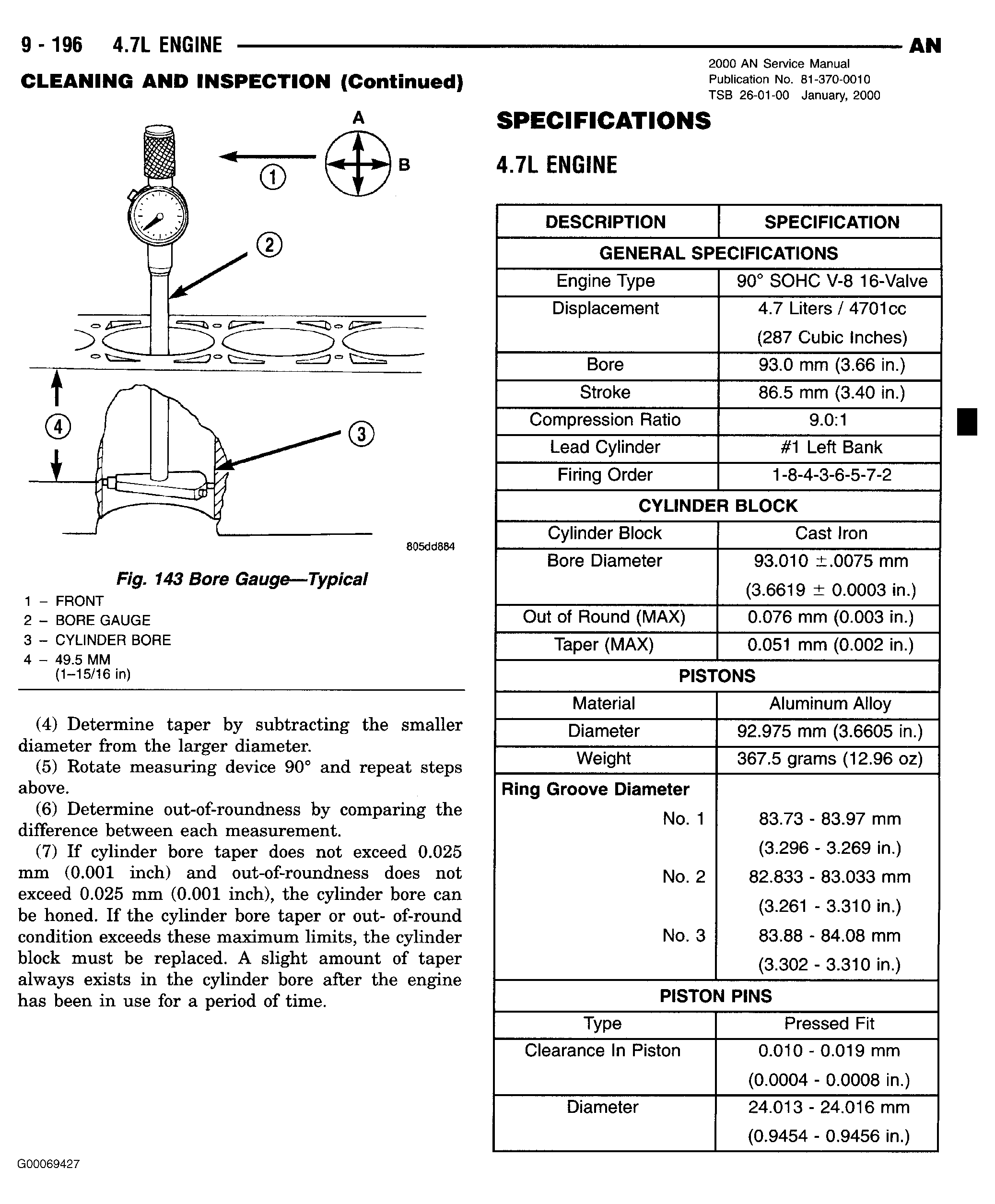

    Fig 28: 2000 AN Service Manual Revision - Page 9-196
    G00069427

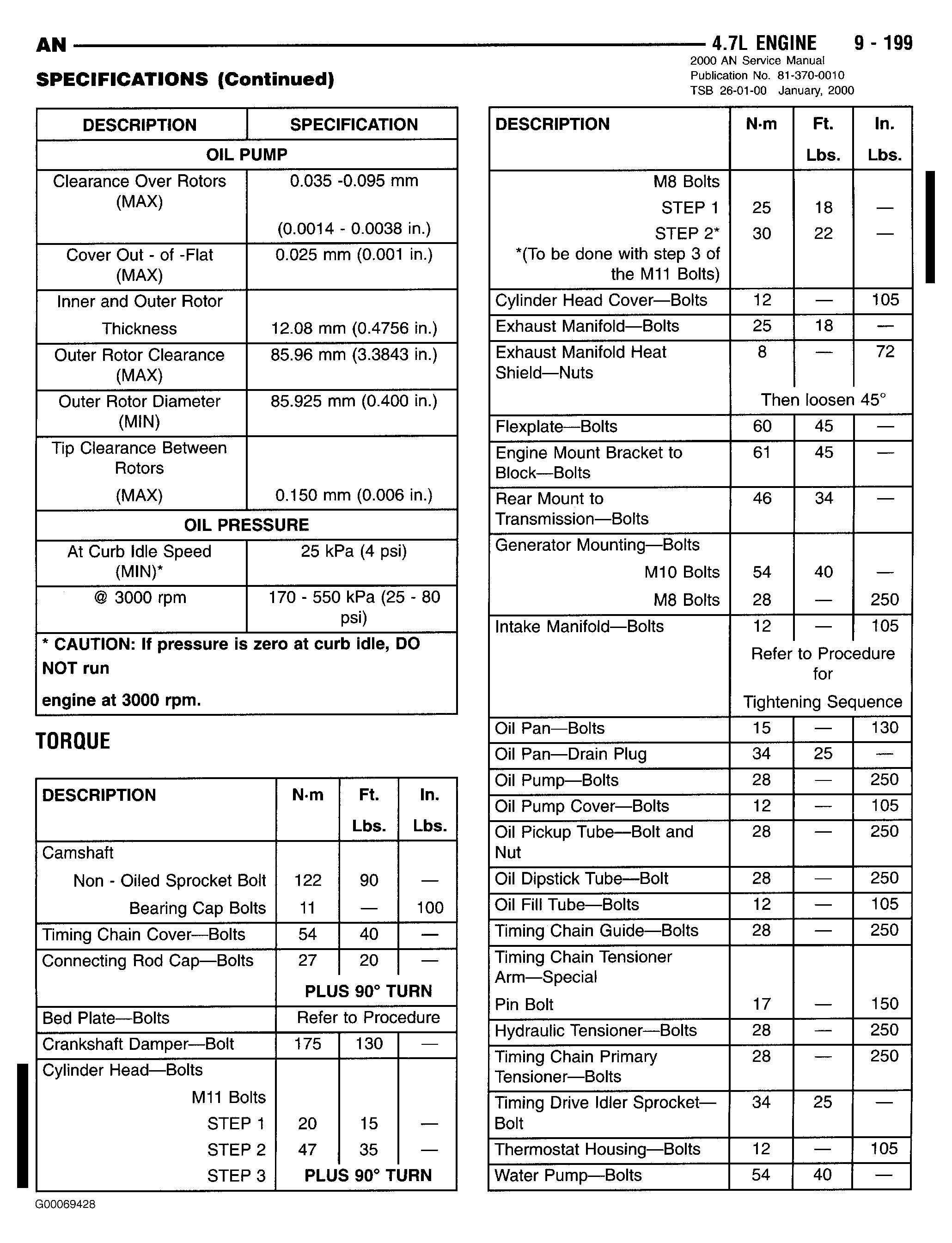

    Fig 29: 2000 AN Service Manual Revision - Page 9-199
    G00069428

  2. DESCRIPTION OF CHANGES
    Revisions to the engine specification

2000 Durango Service Manual - Publication Number 81-370-0016

  1. PAGES
    9-78, 9-81

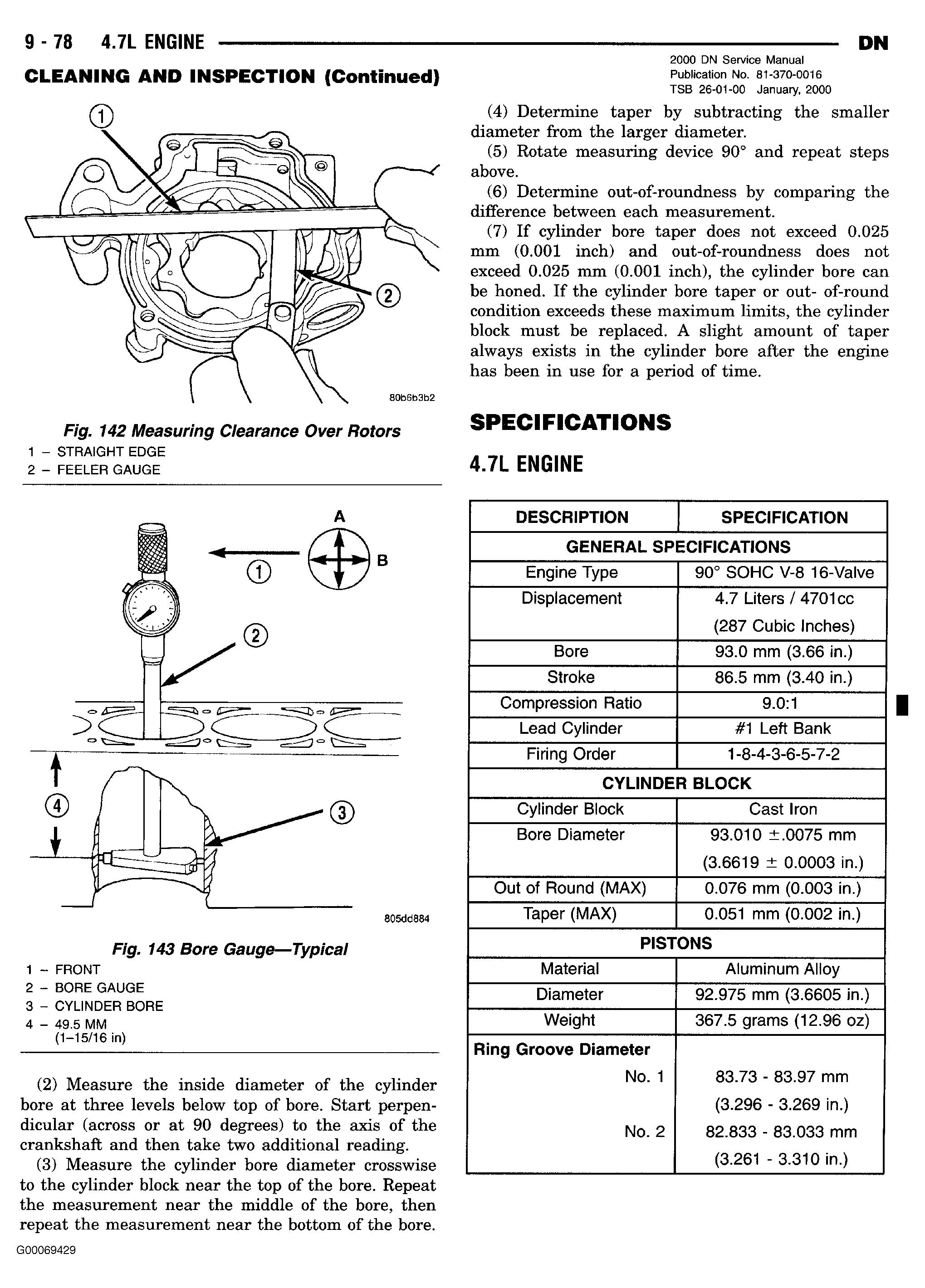

    Fig 30: 2000 DN Service Manual Revision - Page 9-78
    G00069429

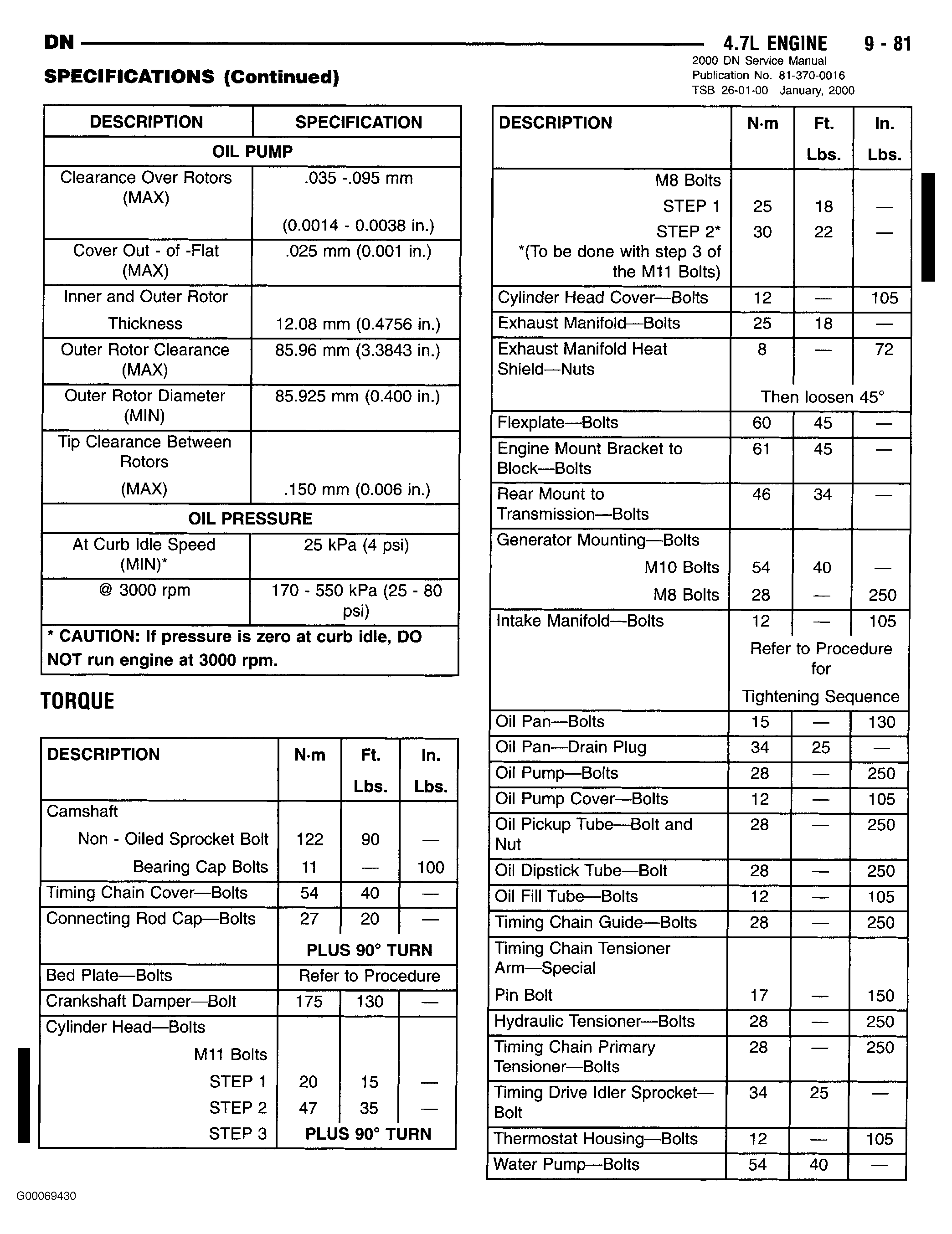

    Fig 31: 2000 DN Service Manual Revision - Page 9-81
    G00069430

  2. DESCRIPTION OF CHANGES
    Revisions to the engine service procedures

2000 Ram Truck Service Manual - Publication Number 81-370-0008

  1. PAGES
    2-22, 2-23, 5-29, 5-44

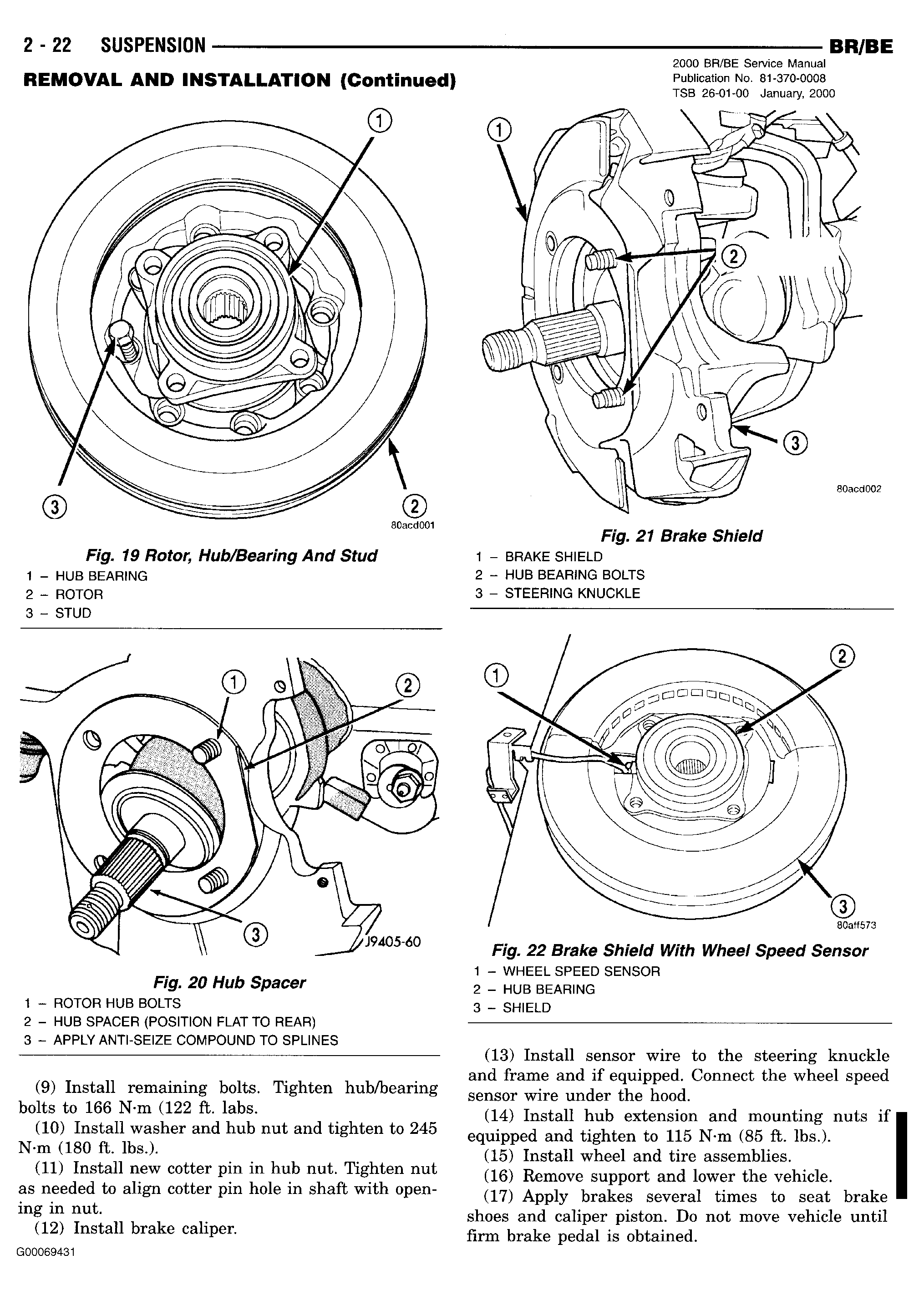

    Fig 32: 2000 BR/BE Service Manual Revision - Page 2-22
    G00069431

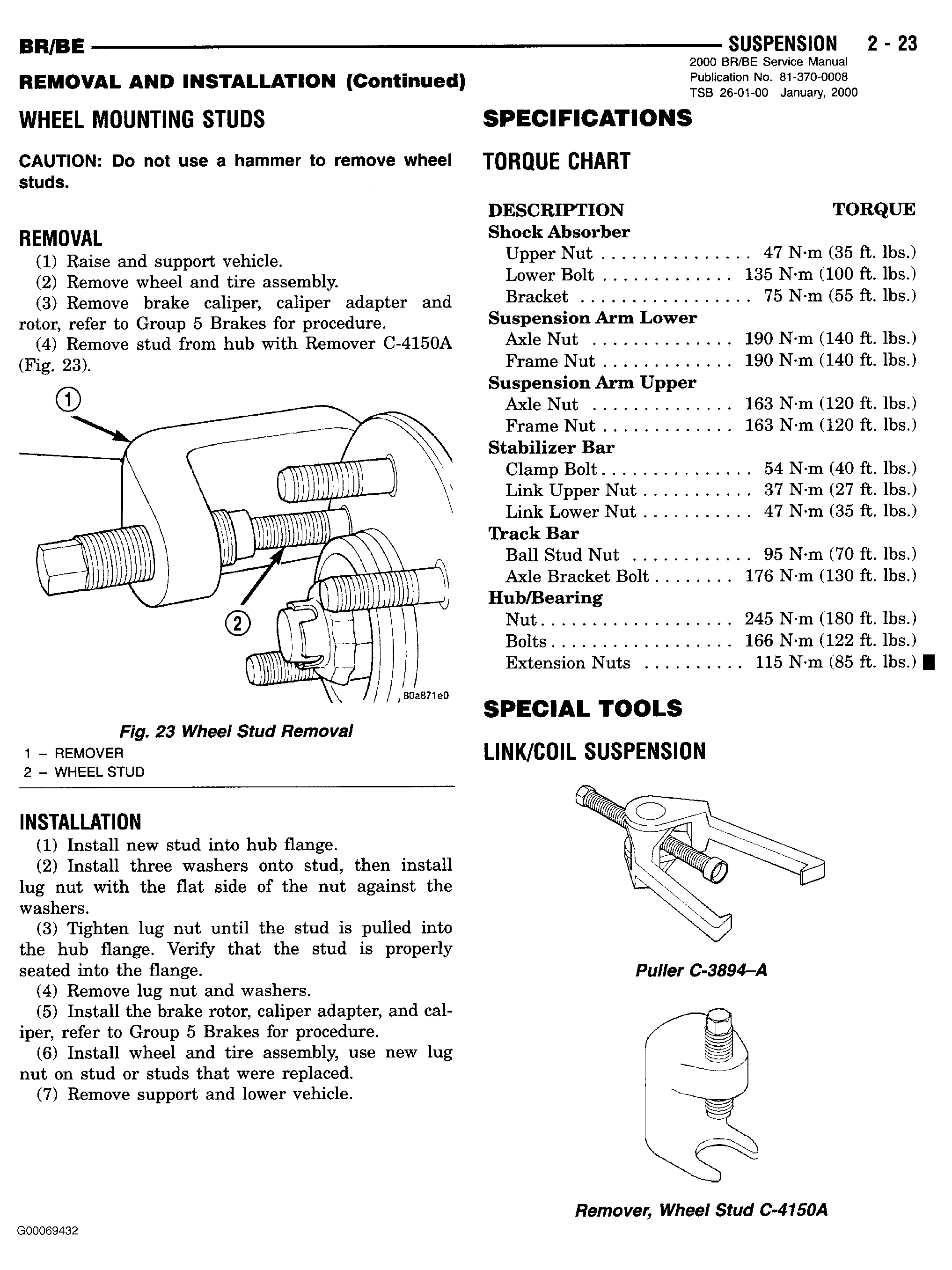

    Fig 33: 2000 BR/BE Service Manual Revision - Page 2-23
    G00069432

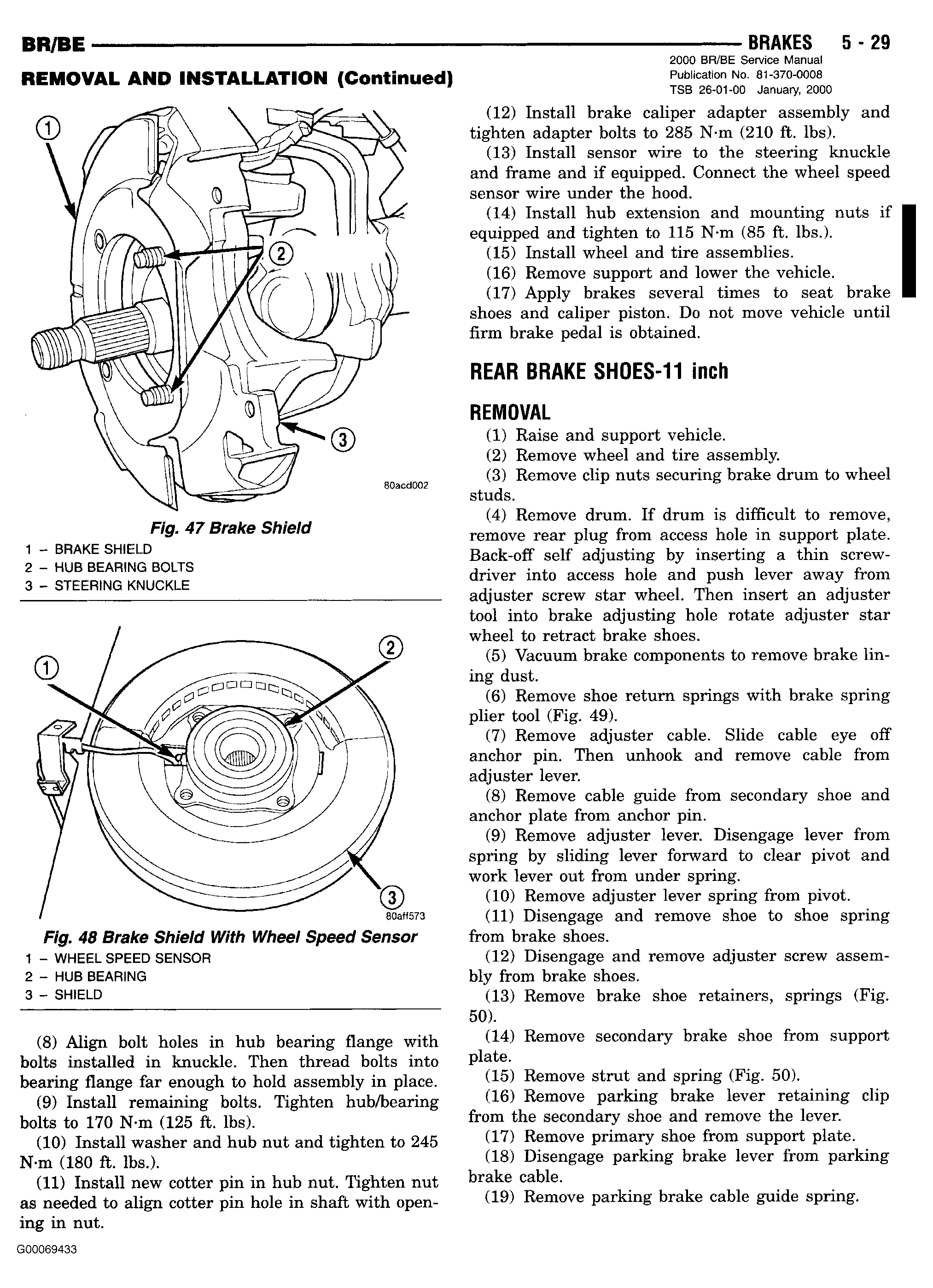

    Fig 34: 2000 BR/BE Service Manual Revision - Page 5-29
    G00069433

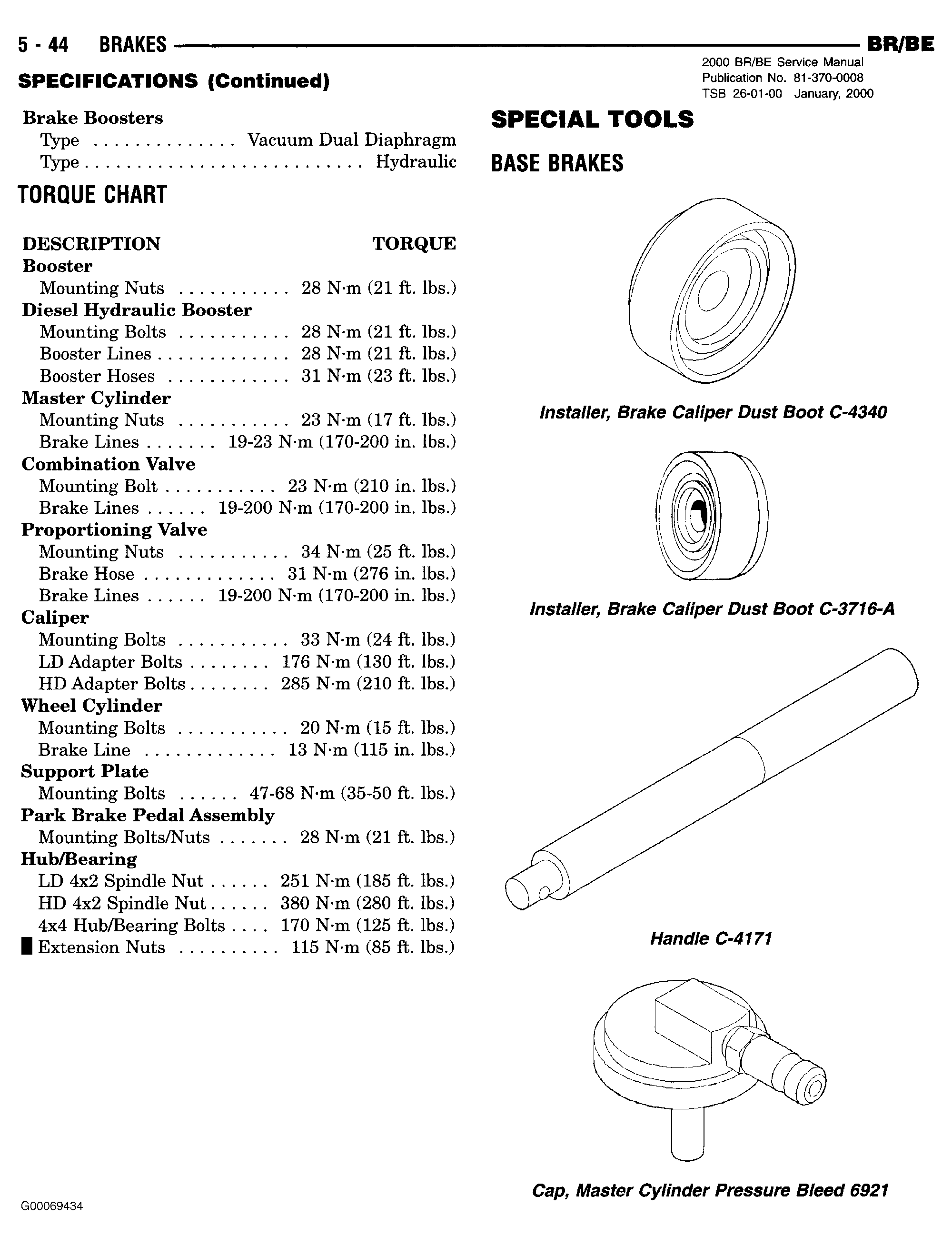

    Fig 35: 2000 BR/BE Service Manual Revision - Page 5-44
    G00069434

  2. DESCRIPTION OF CHANGES
    Revisions to the disc brake/hub service procedures

  3. PAGES
    8W-10-16, 8W-15-8, 8W-20-2, 8W-20-3, 8W-30-12, 8W-30-23, 8W-30-24, 8W-30-29, 8W-30-30, 8W-30-31, 8W-30-32, 8W-30-33, 8W-30-34, 8W-30-37, 8W-30-38, 8W-30-39, 8W-70-6, 8W-80-6, 8W-80-23, 8W-80-33, 8W-80-34, 8W-80-36, 8W-80-40, 8W-80-43, 8W-80-44, 8W-80-56, 8W-80-58, 8W-80-59, 8W-80-65, 8W-80-66, 8W-80-67, 8W-80-68, 8W-80-69, 8W-80-70, 8W-80-80

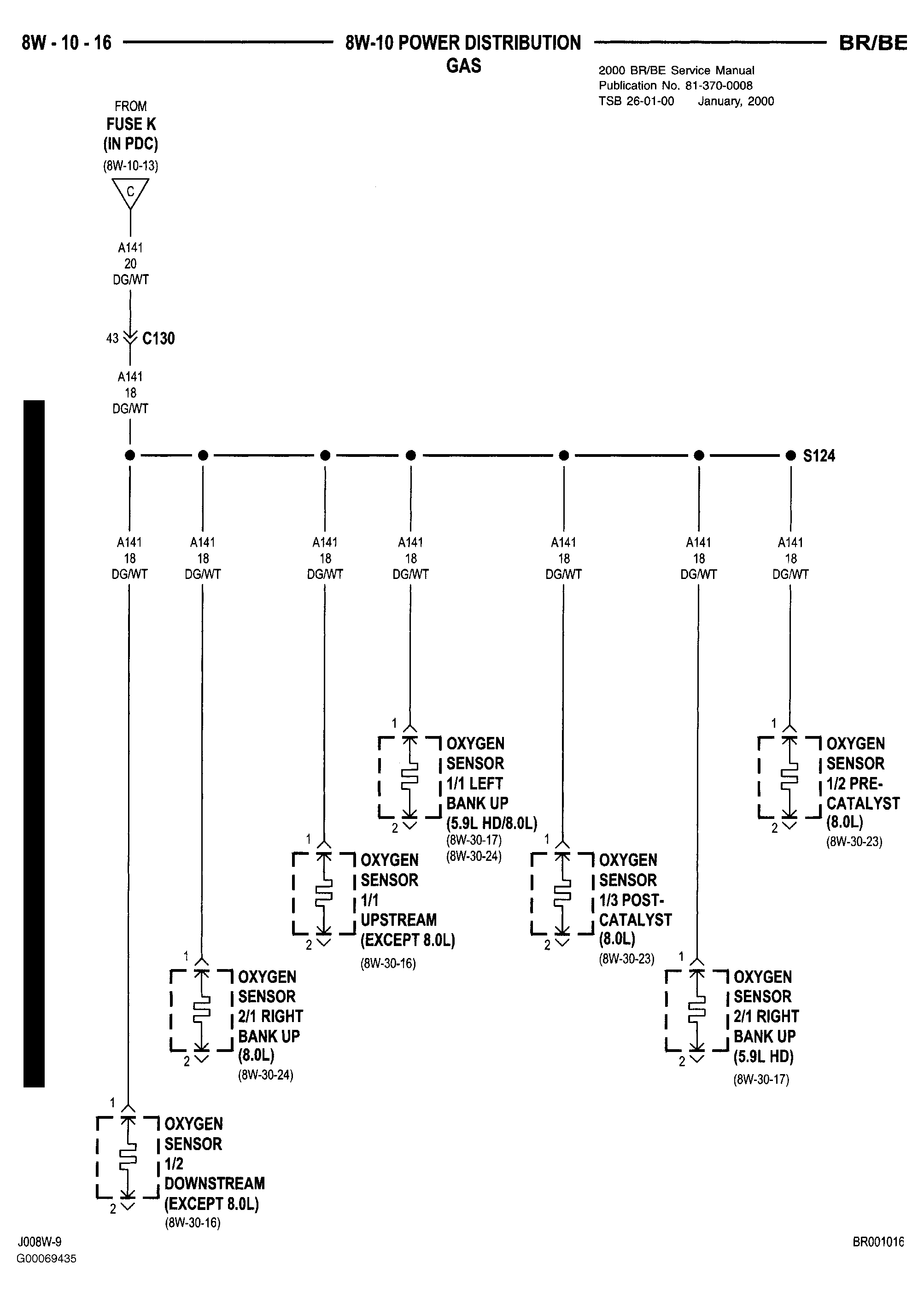

    Fig 36: 2000 BR/BE Service Manual Revision - Page 8W-10-16
    G00069435

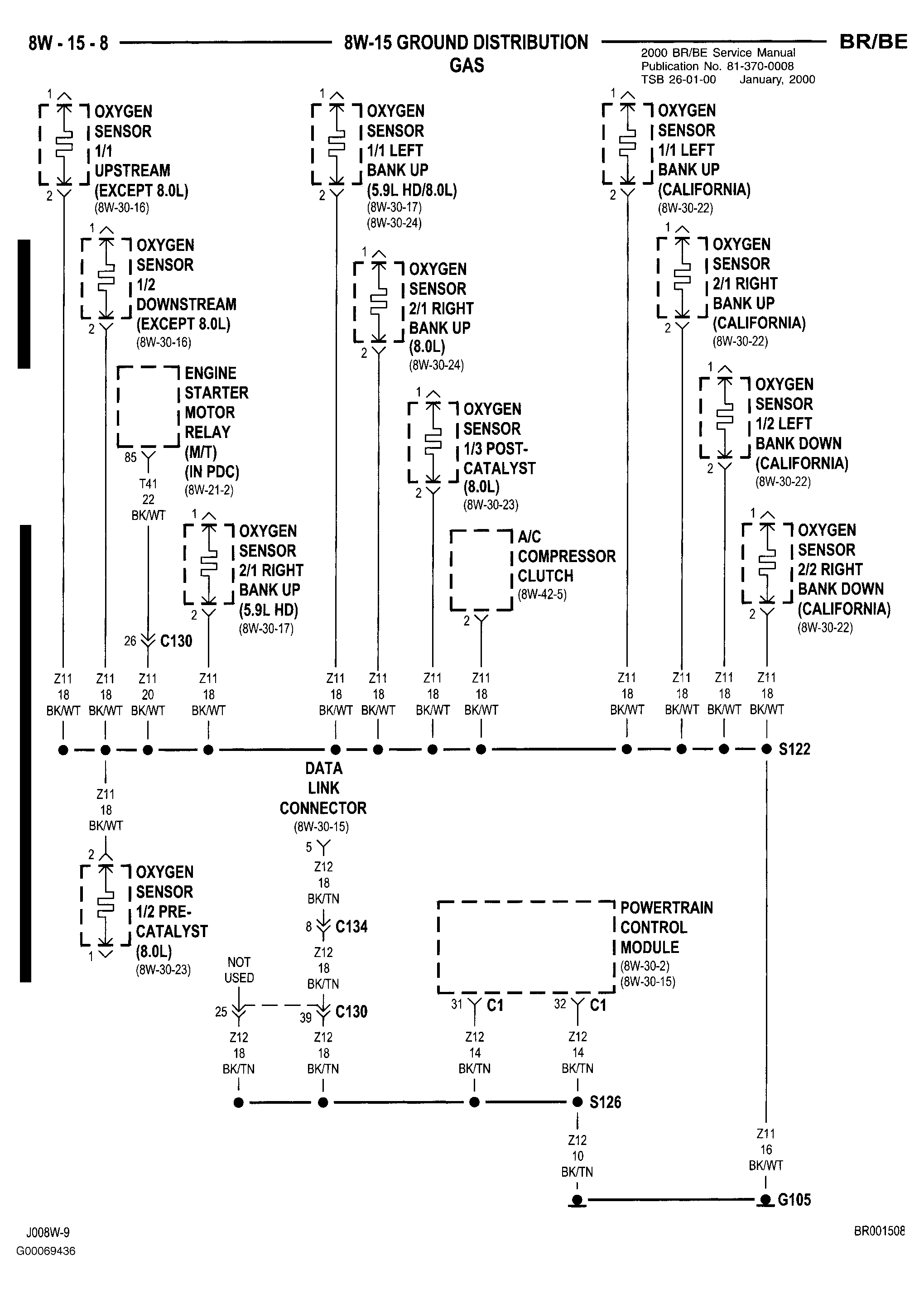

    Fig 37: 2000 BR/BE Service Manual Revision - Page 8W-15-8
    G00069436

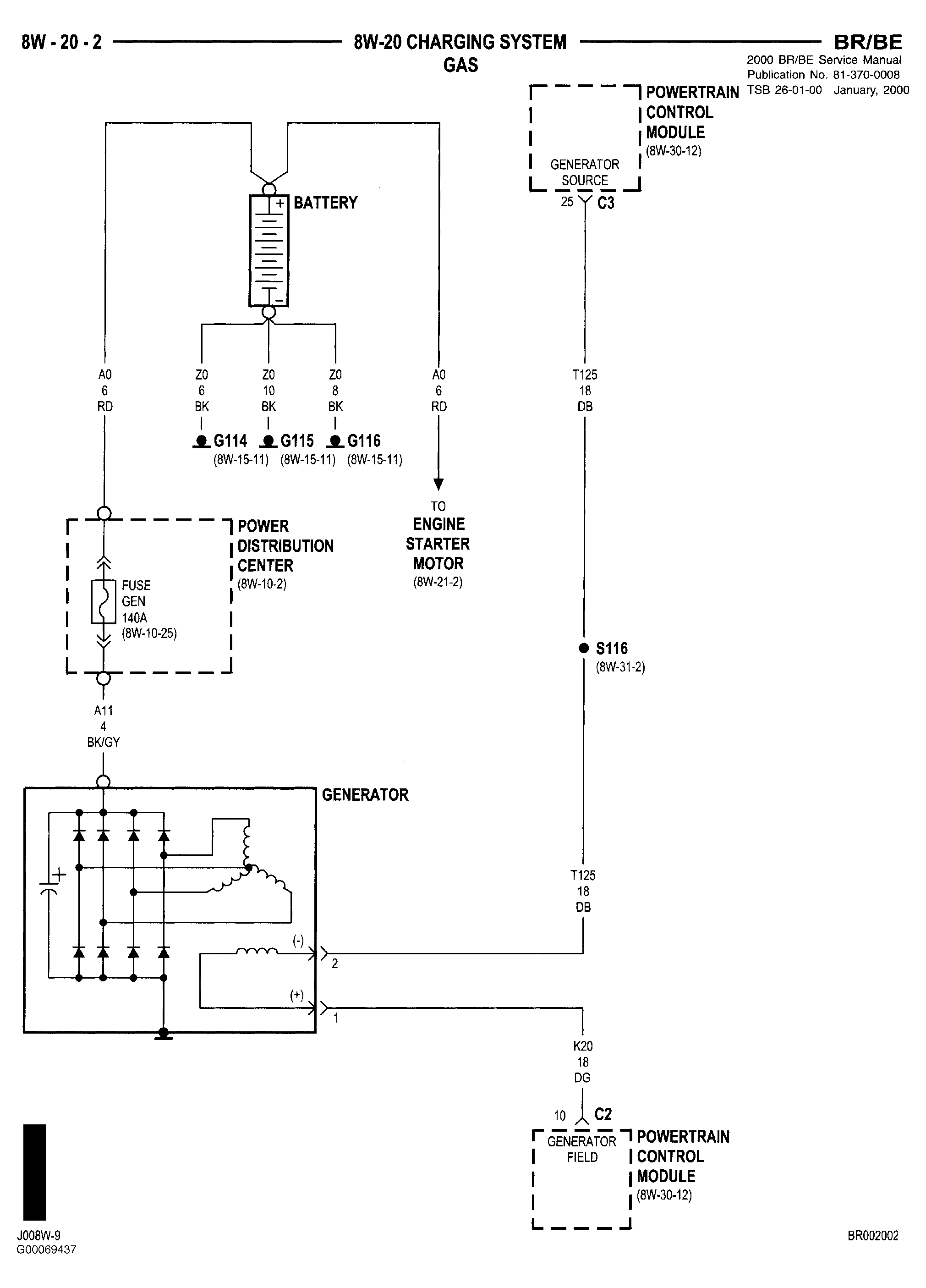

    Fig 38: 2000 BR/BE Service Manual Revision - Page 8W-20-2
    G00069437

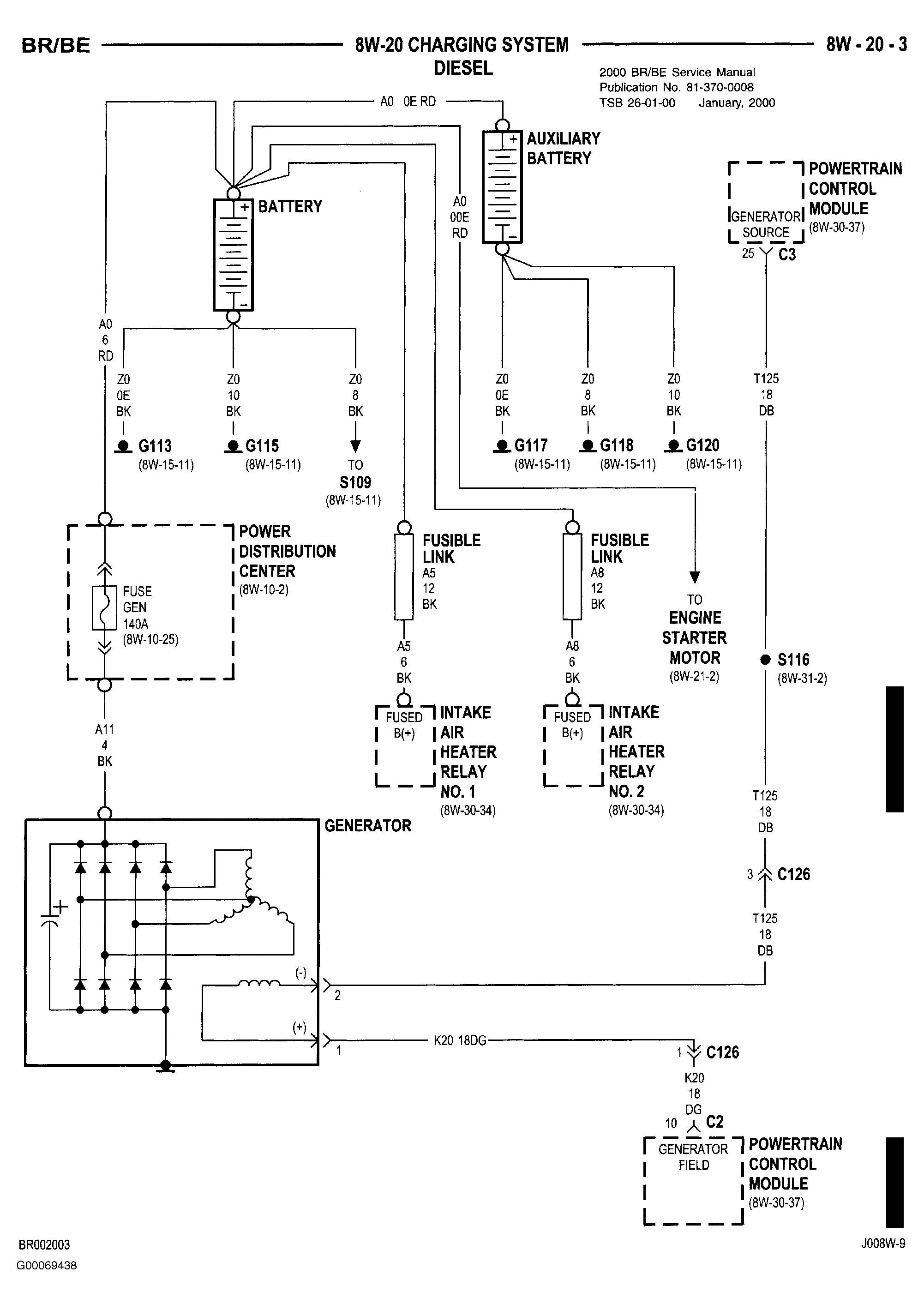

    Fig 39: 2000 BR/BE Service Manual Revision - Page 8W-20-3
    G00069438

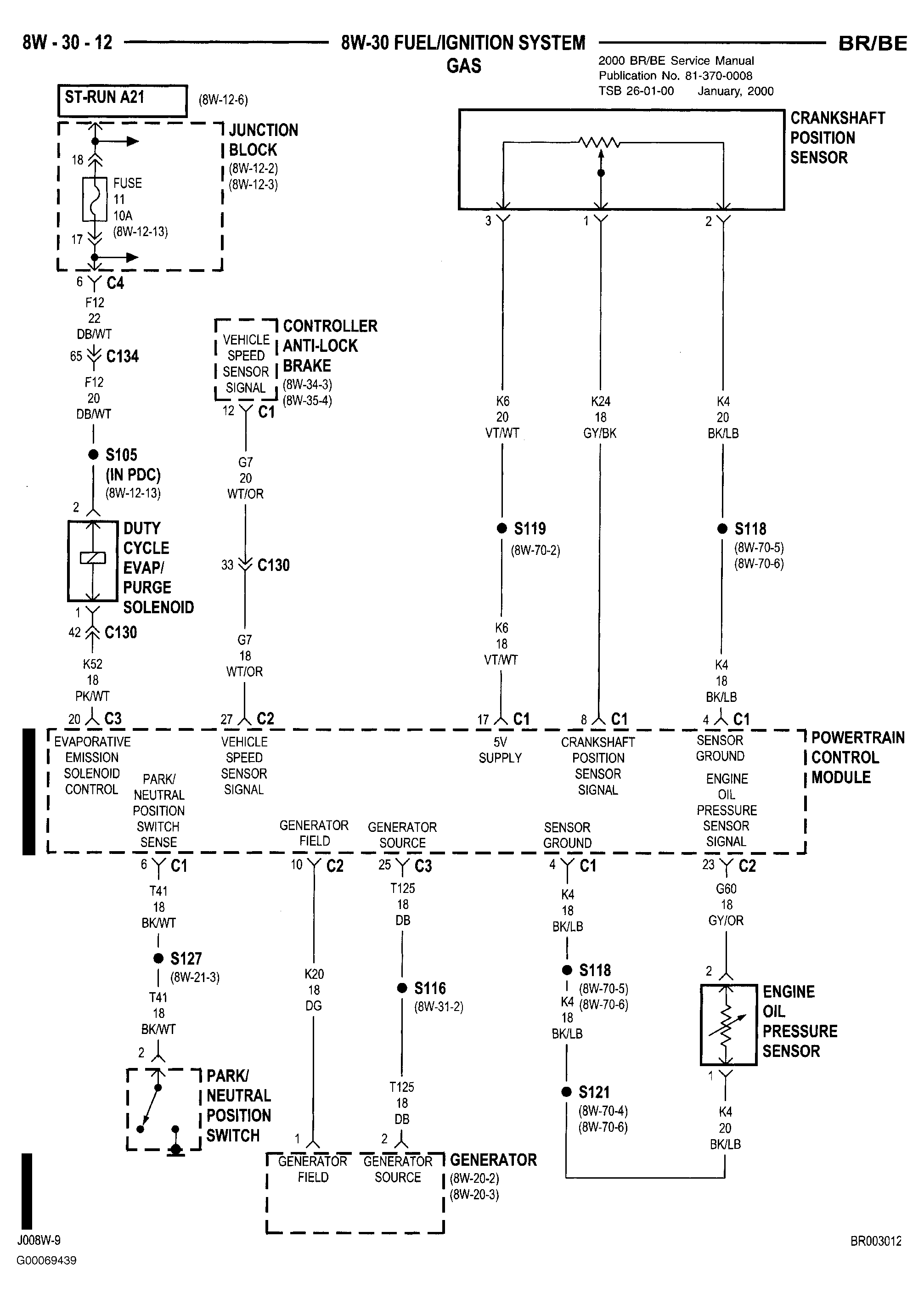

    Fig 40: 2000 BR/BE Service Manual Revision - Page 8W-30-12
    G00069439

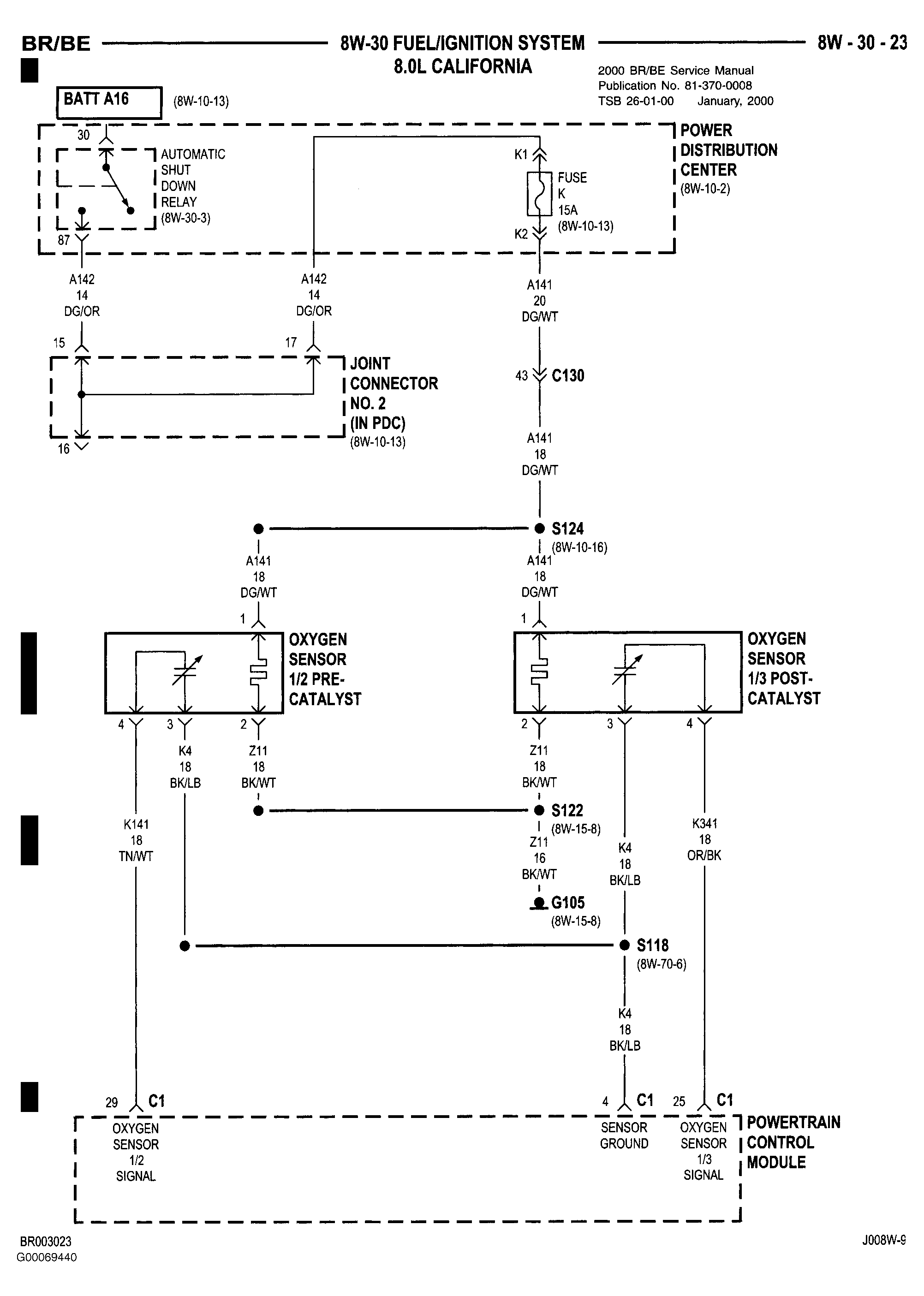

    Fig 41: 2000 BR/BE Service Manual Revision - Page 8W-30-23
    G00069440

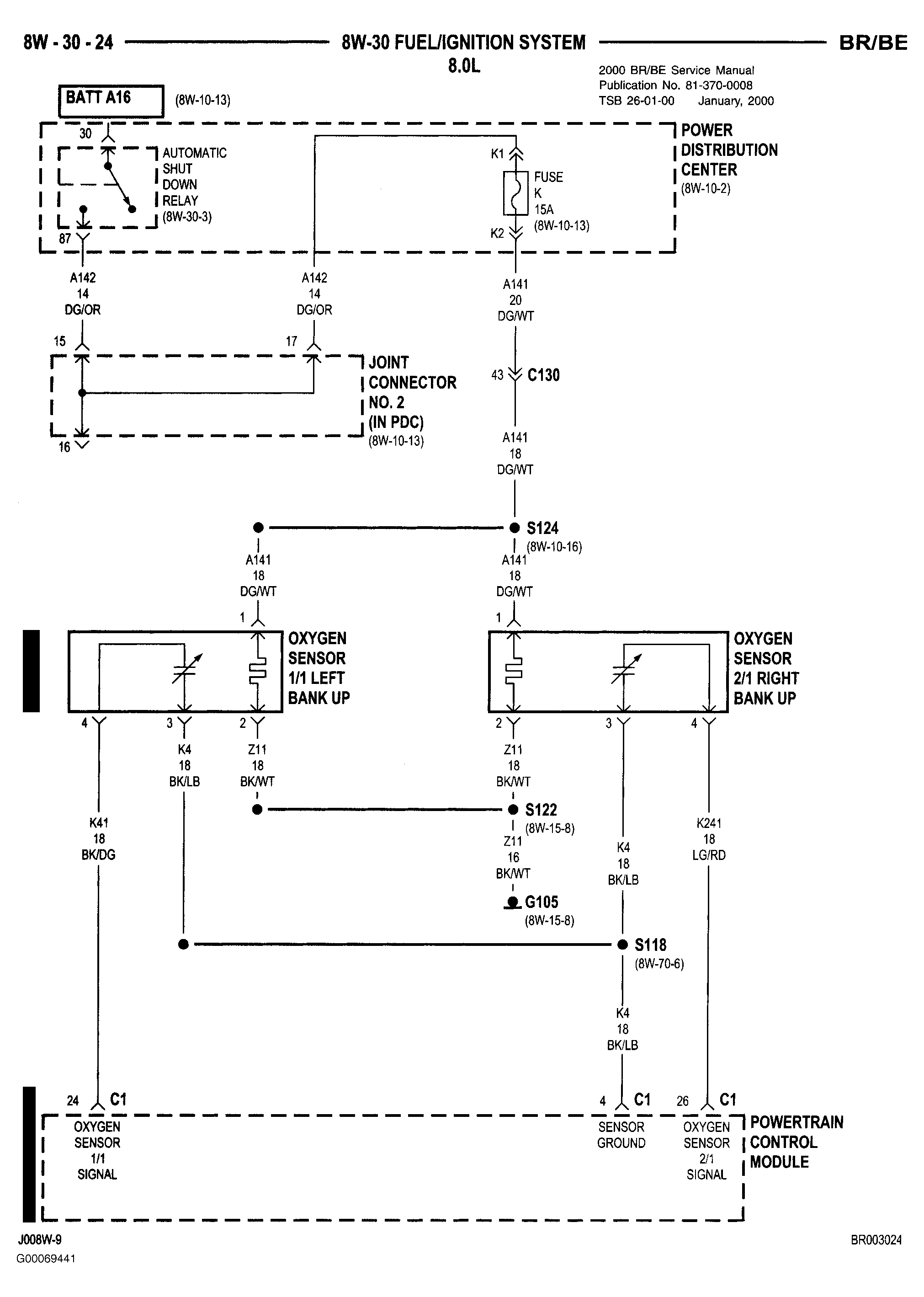

    Fig 42: 2000 BR/BE Service Manual Revision - Page 8W-30-24
    G00069441

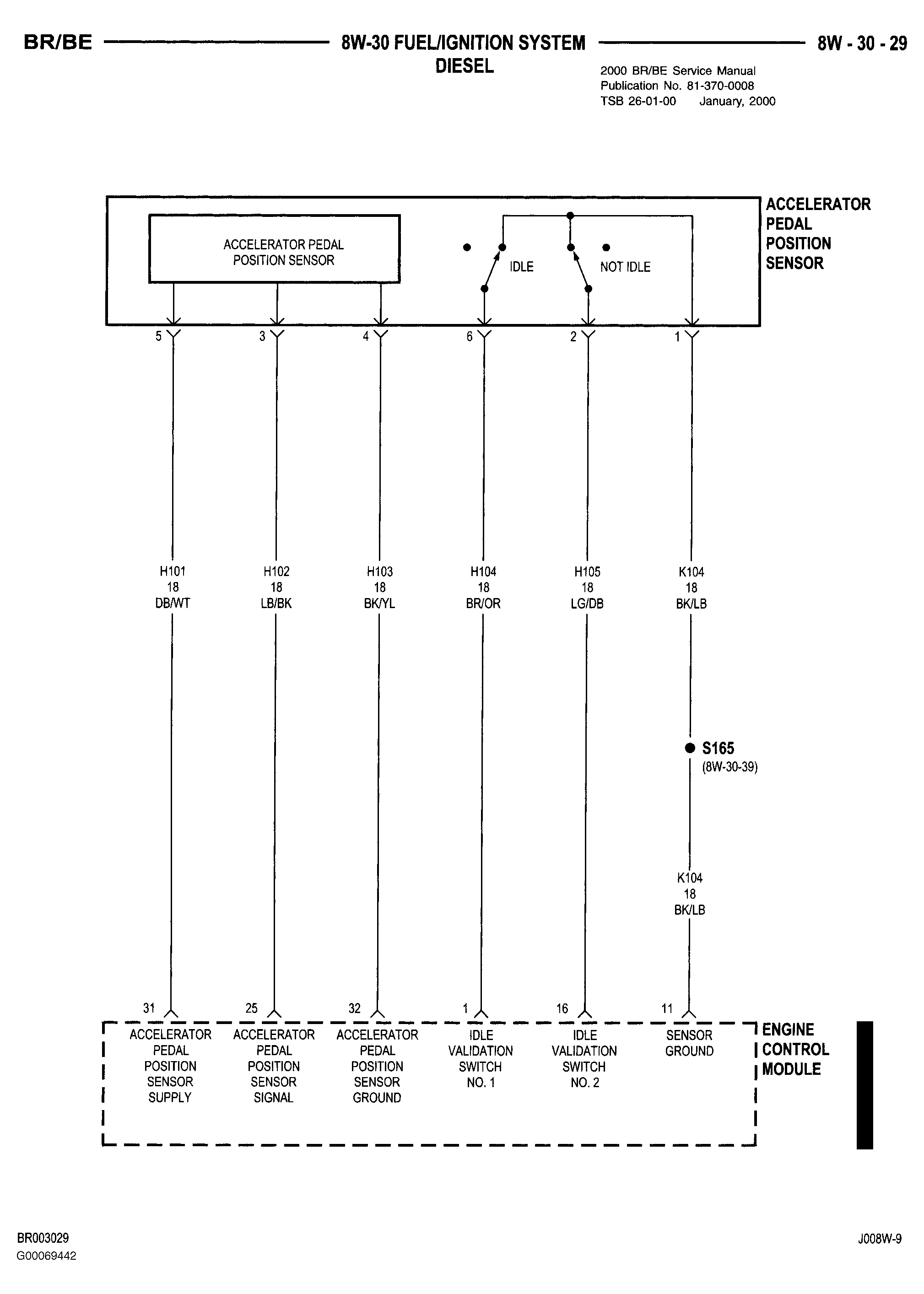

    Fig 43: 2000 BR/BE Service Manual Revision - Page 8W-30-29
    G00069442

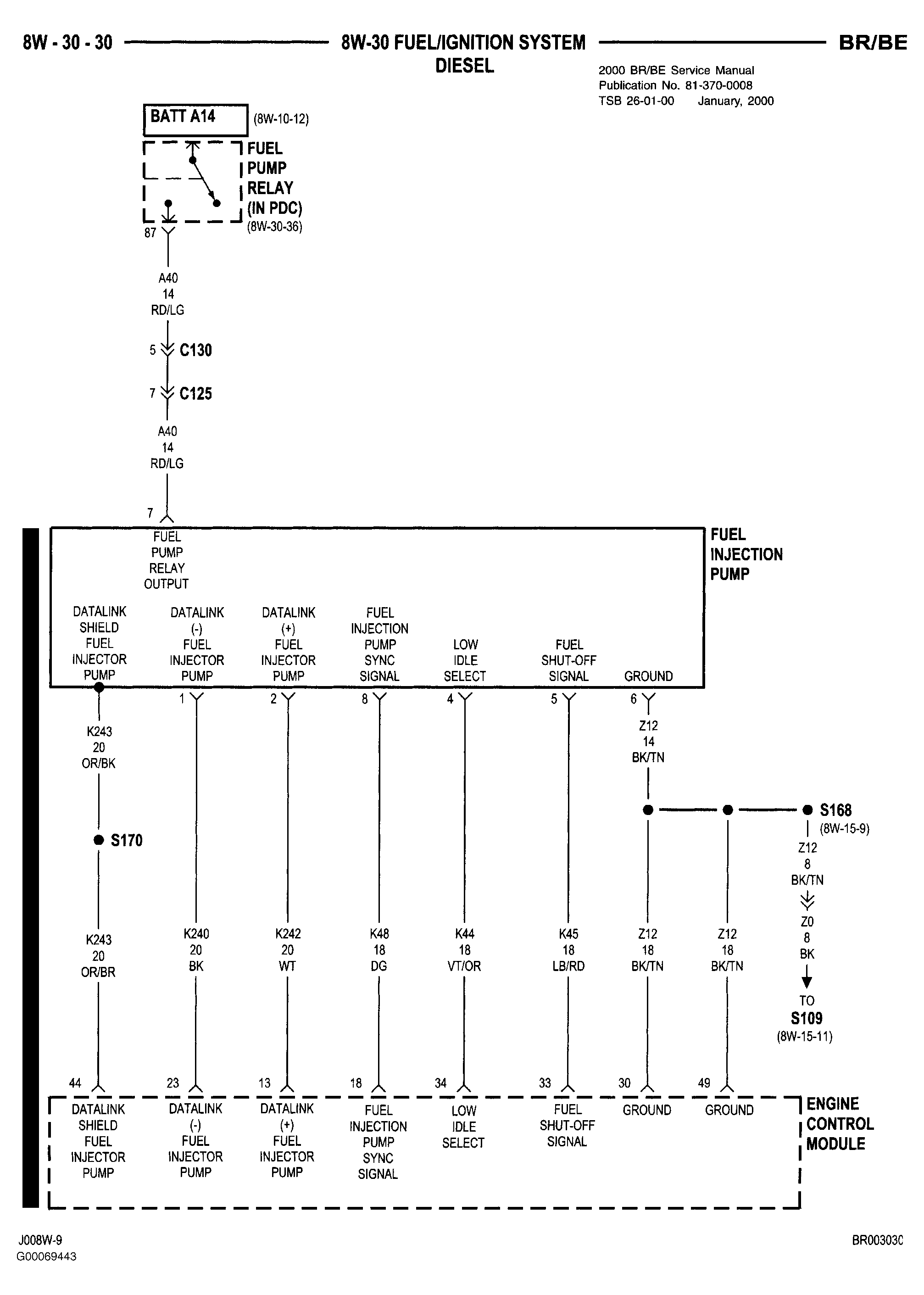

    Fig 44: 2000 BR/BE Service Manual Revision - Page 8W-30-30
    G00069443

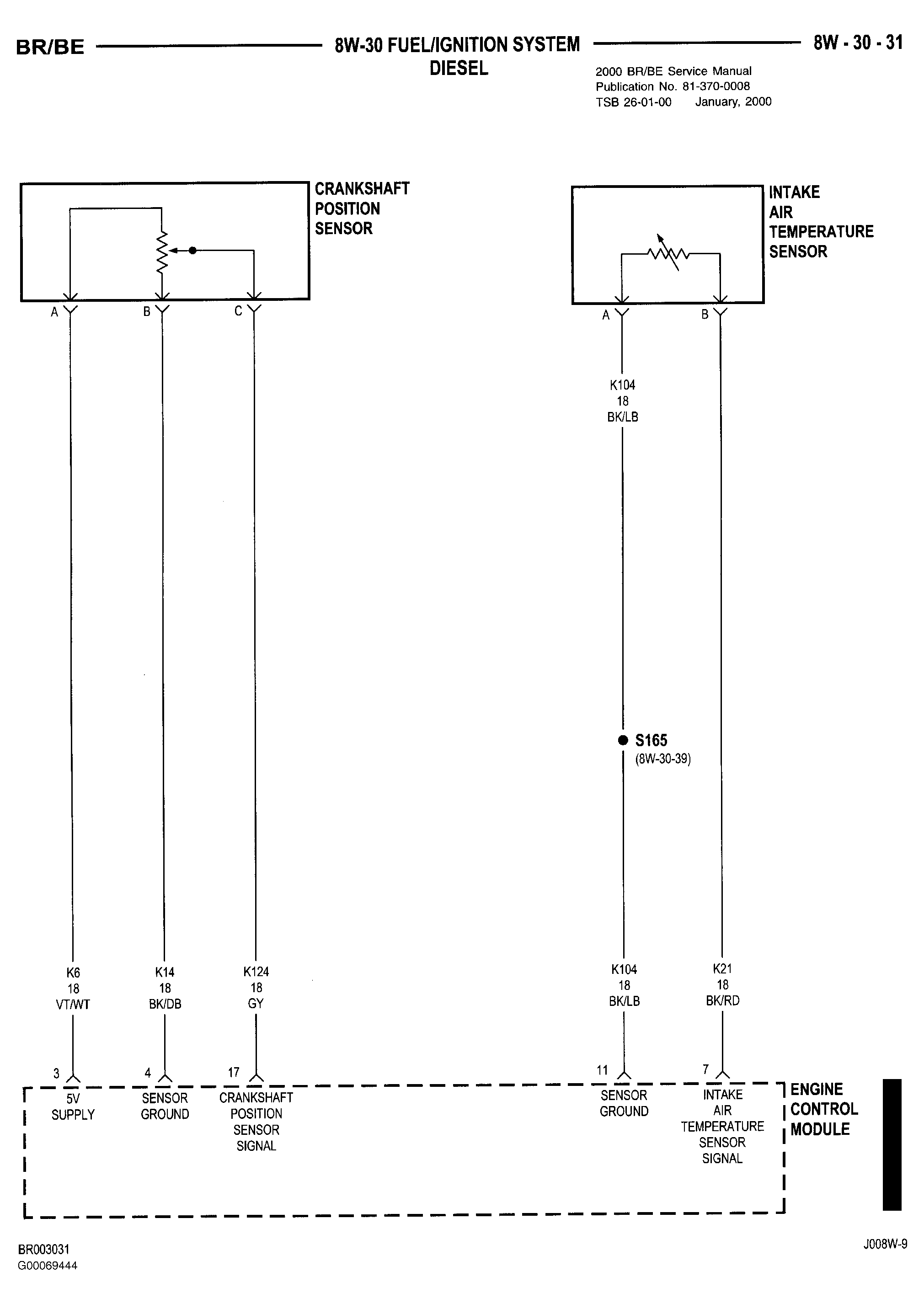

    Fig 45: 2000 BR/BE Service Manual Revision - Page 8W-30-31
    G00069444

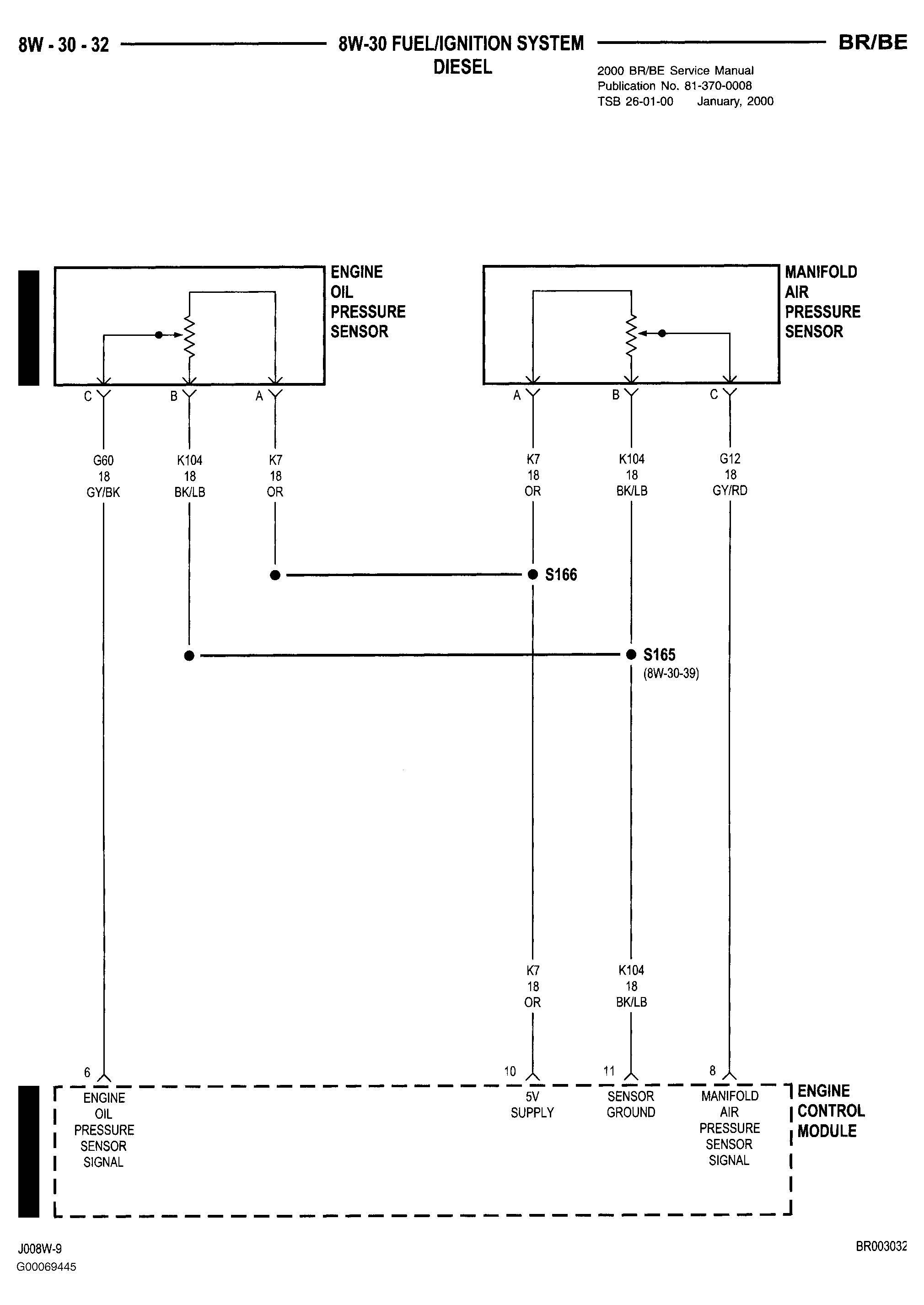

    Fig 46: 2000 BR/BE Service Manual Revision - Page 8W-30-32
    G00069445

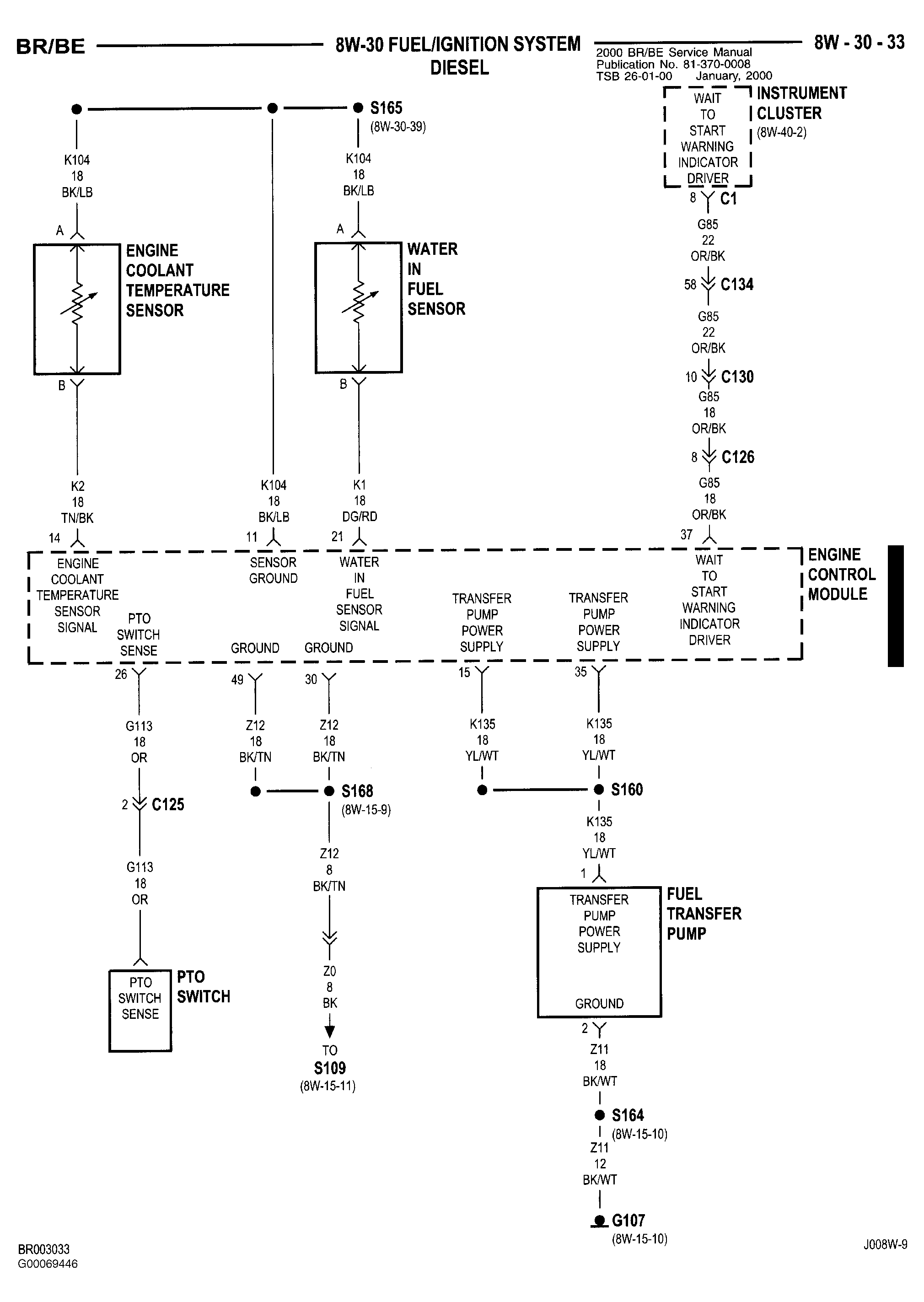

    Fig 47: 2000 BR/BE Service Manual Revision - Page 8W-30-33
    G00069446

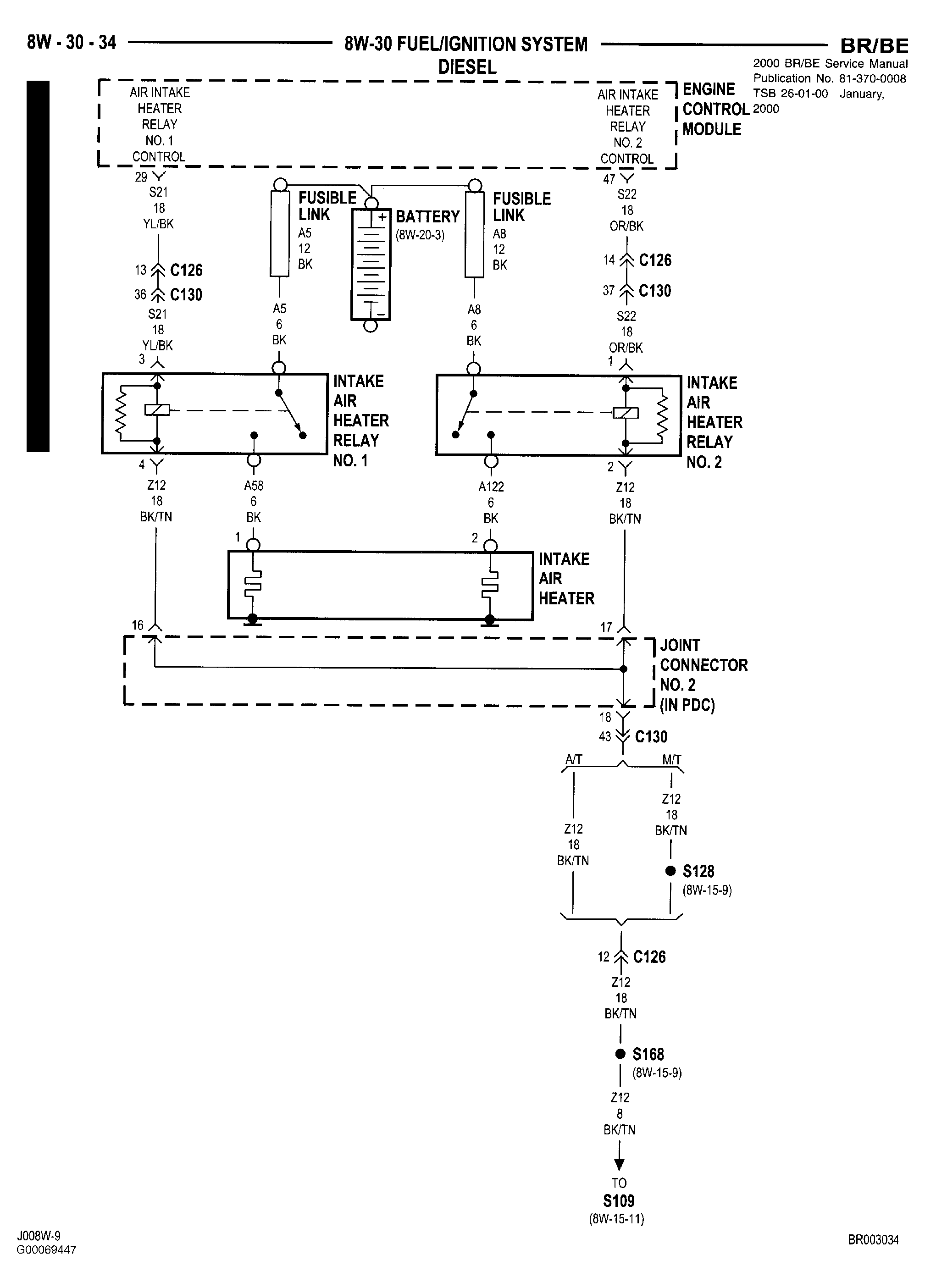

    Fig 48: 2000 BR/BE Service Manual Revision - Page 8W-30-34
    G00069447

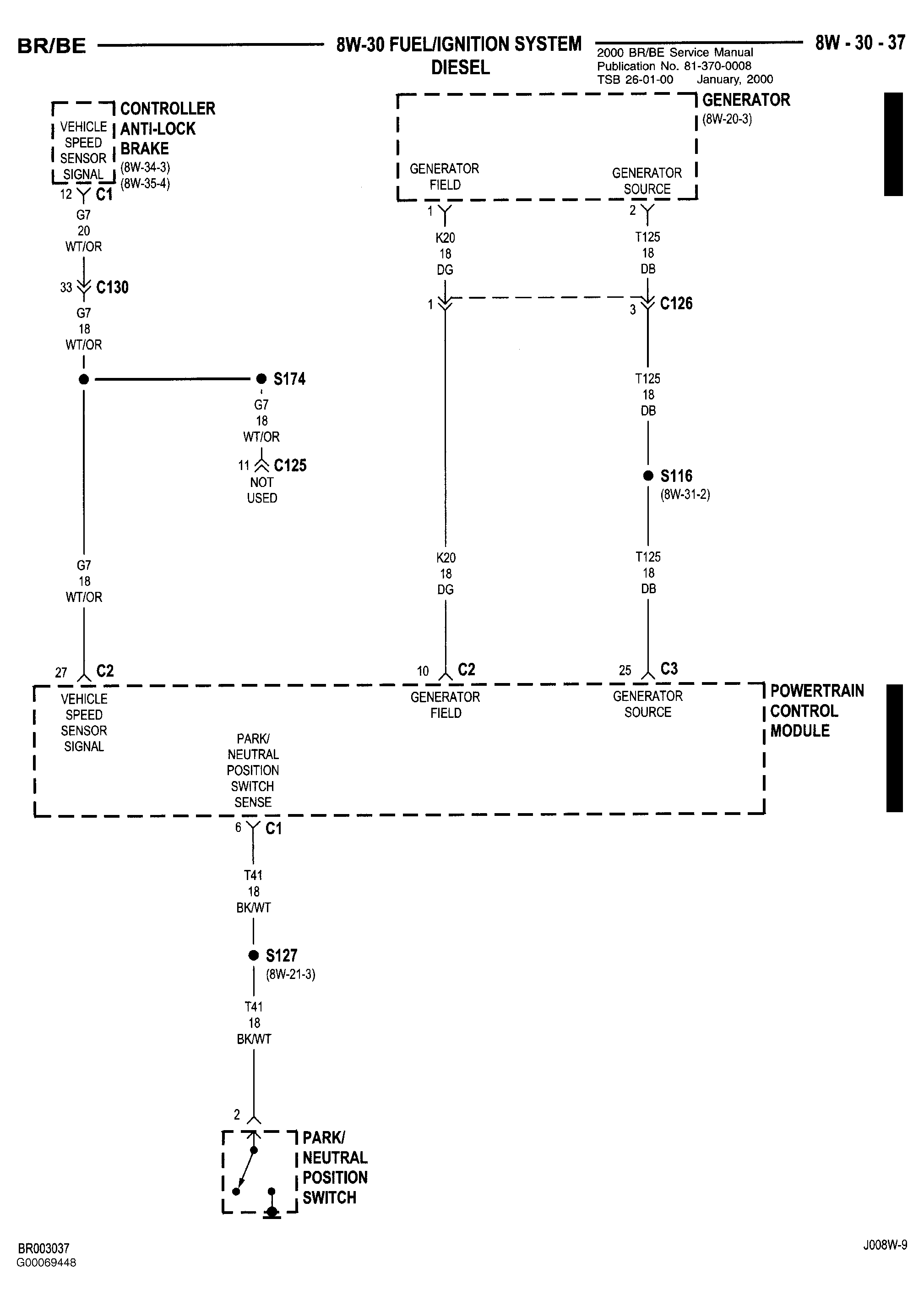

    Fig 49: 2000 BR/BE Service Manual Revision - Page 8W-30-37
    G00069448

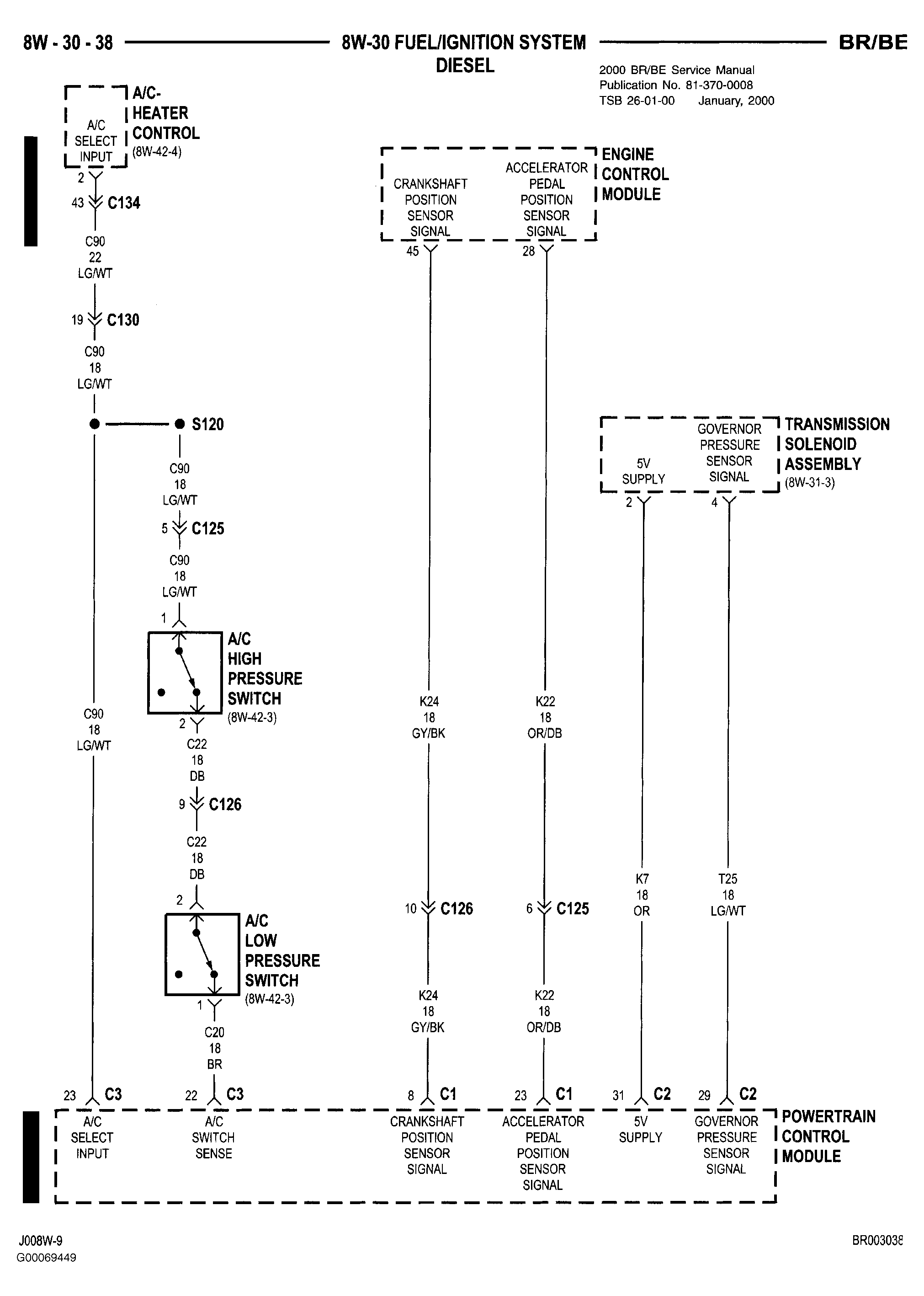

    Fig 50: 2000 BR/BE Service Manual Revision - Page 8W-30-38
    G00069449

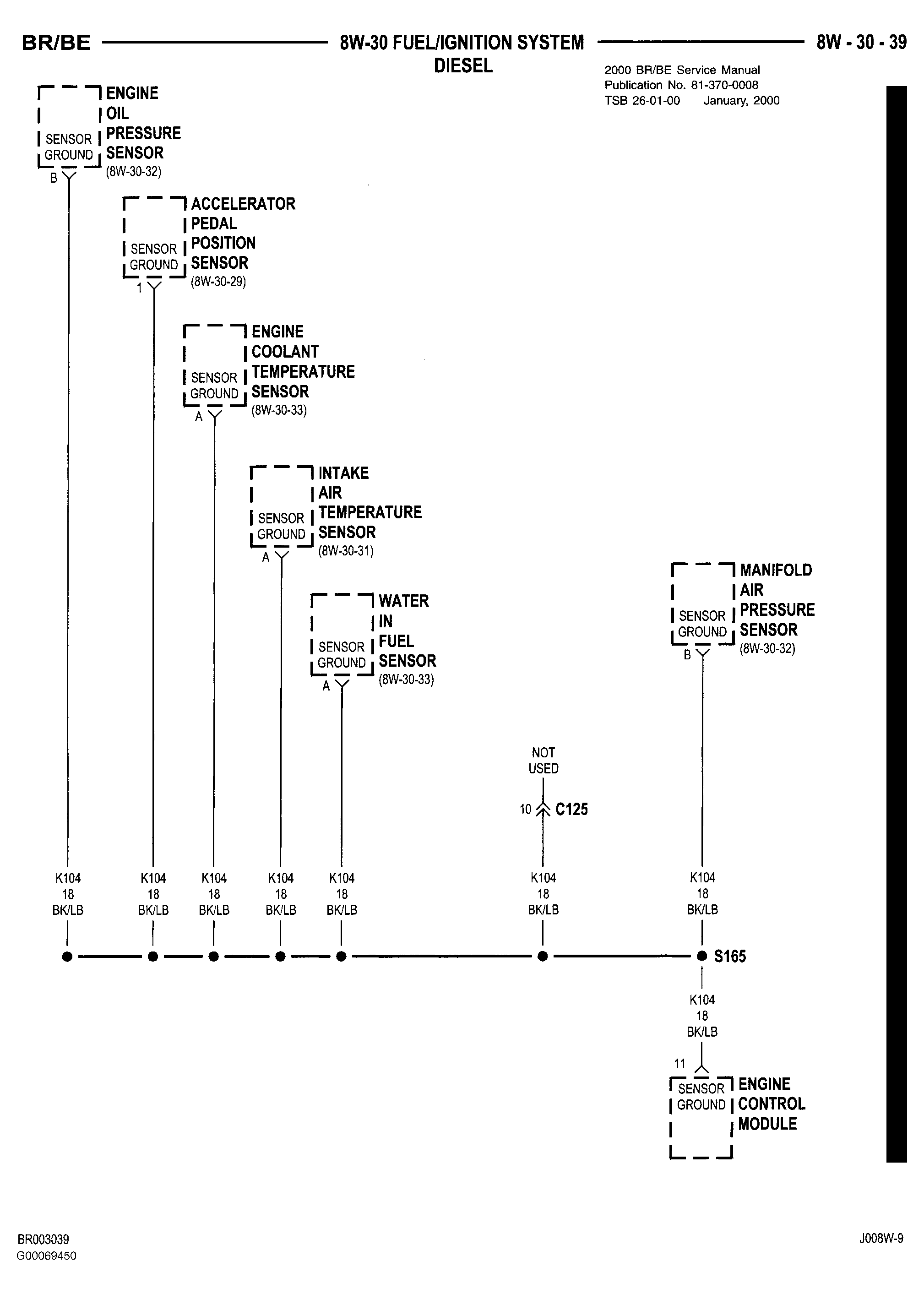

    Fig 51: 2000 BR/BE Service Manual Revision - Page 8W-30-39
    G00069450

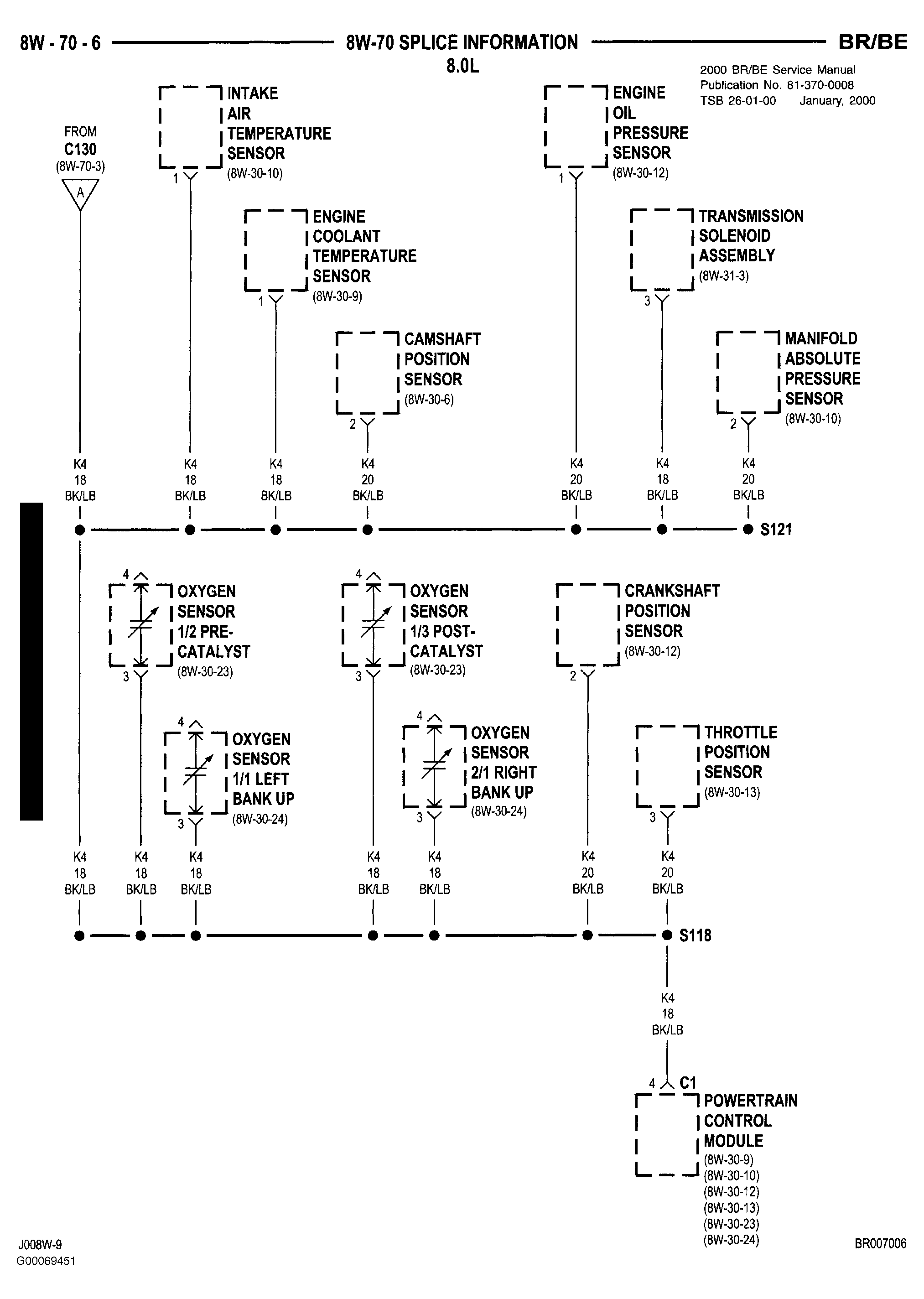

    Fig 52: 2000 BR/BE Service Manual Revision - Page 8W-70-6
    G00069451

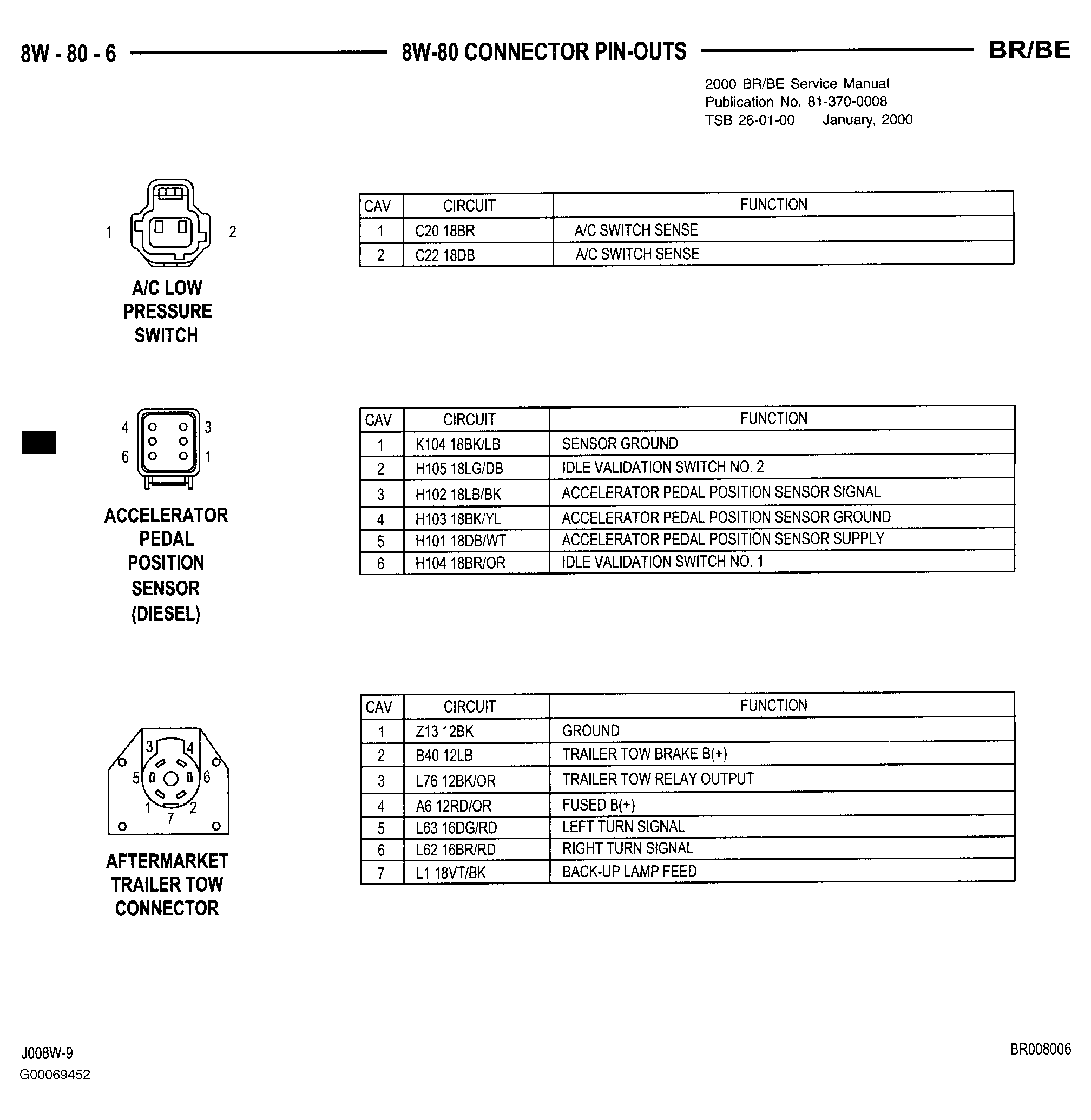

    Fig 53: 2000 BR/BE Service Manual Revision - Page 8W-80-6
    G00069452

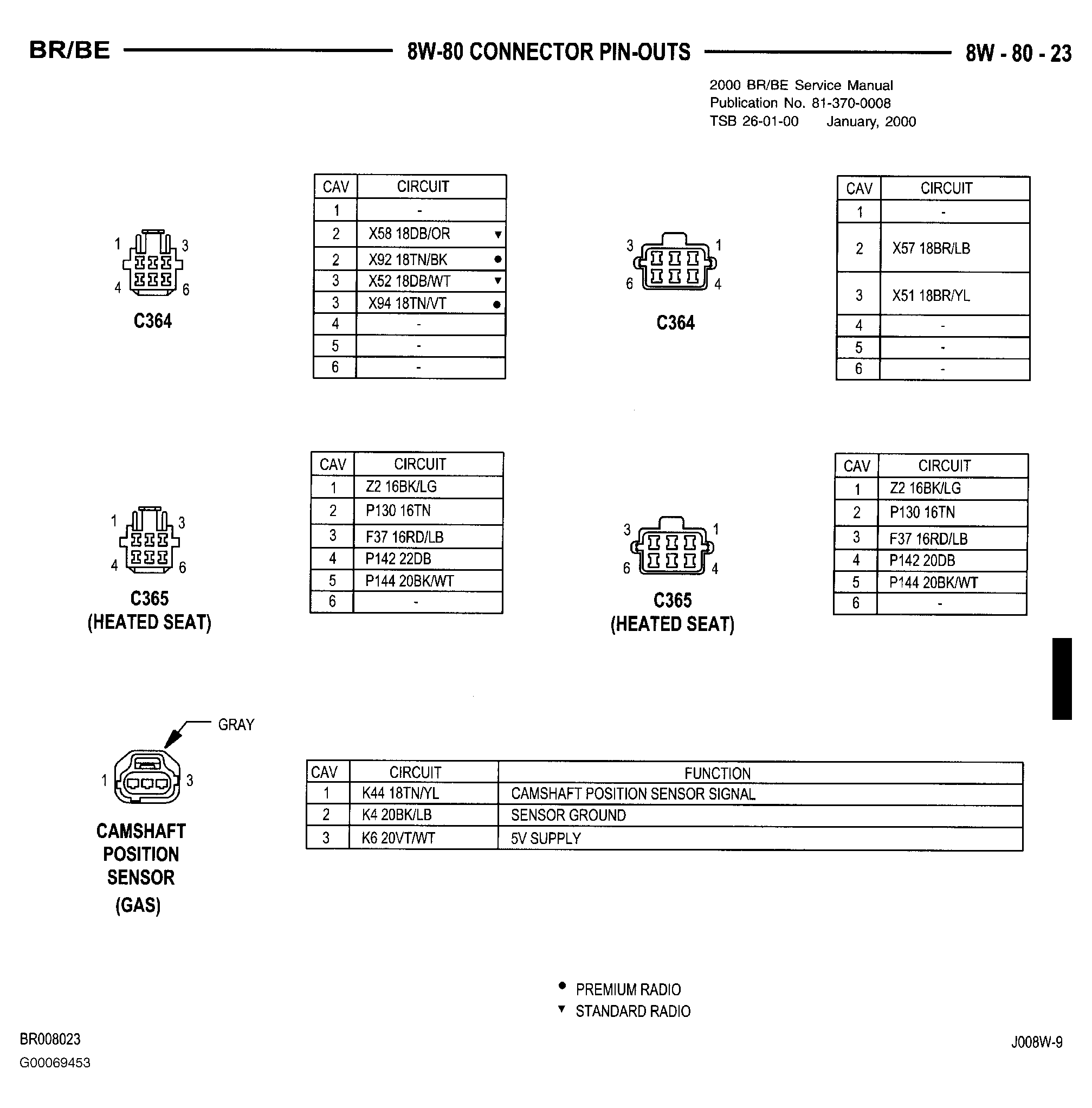

    Fig 54: 2000 BR/BE Service Manual Revision - Page 8W-80-23
    G00069453

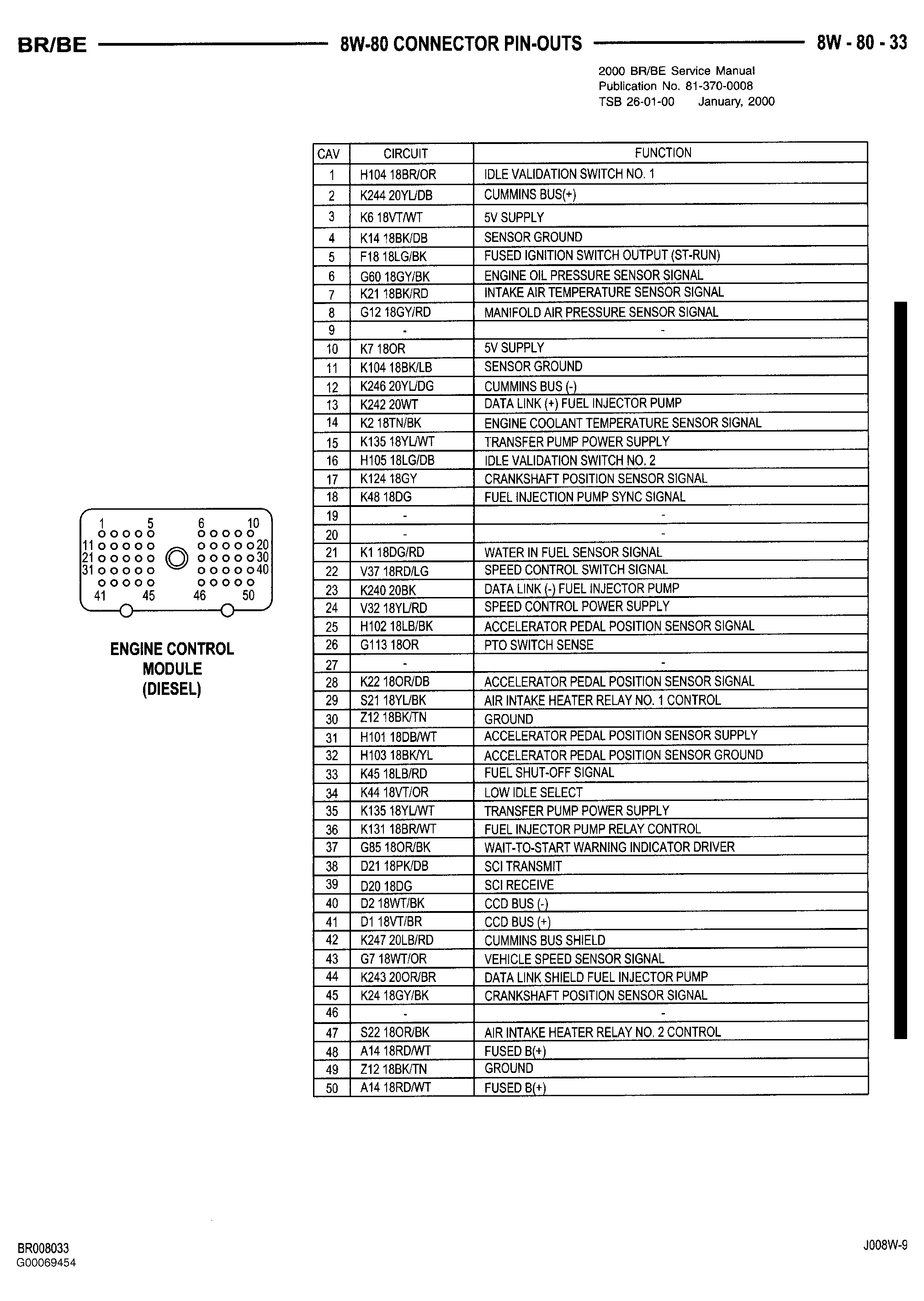

    Fig 55: 2000 BR/BE Service Manual Revision - Page 8W-80-33
    G00069454

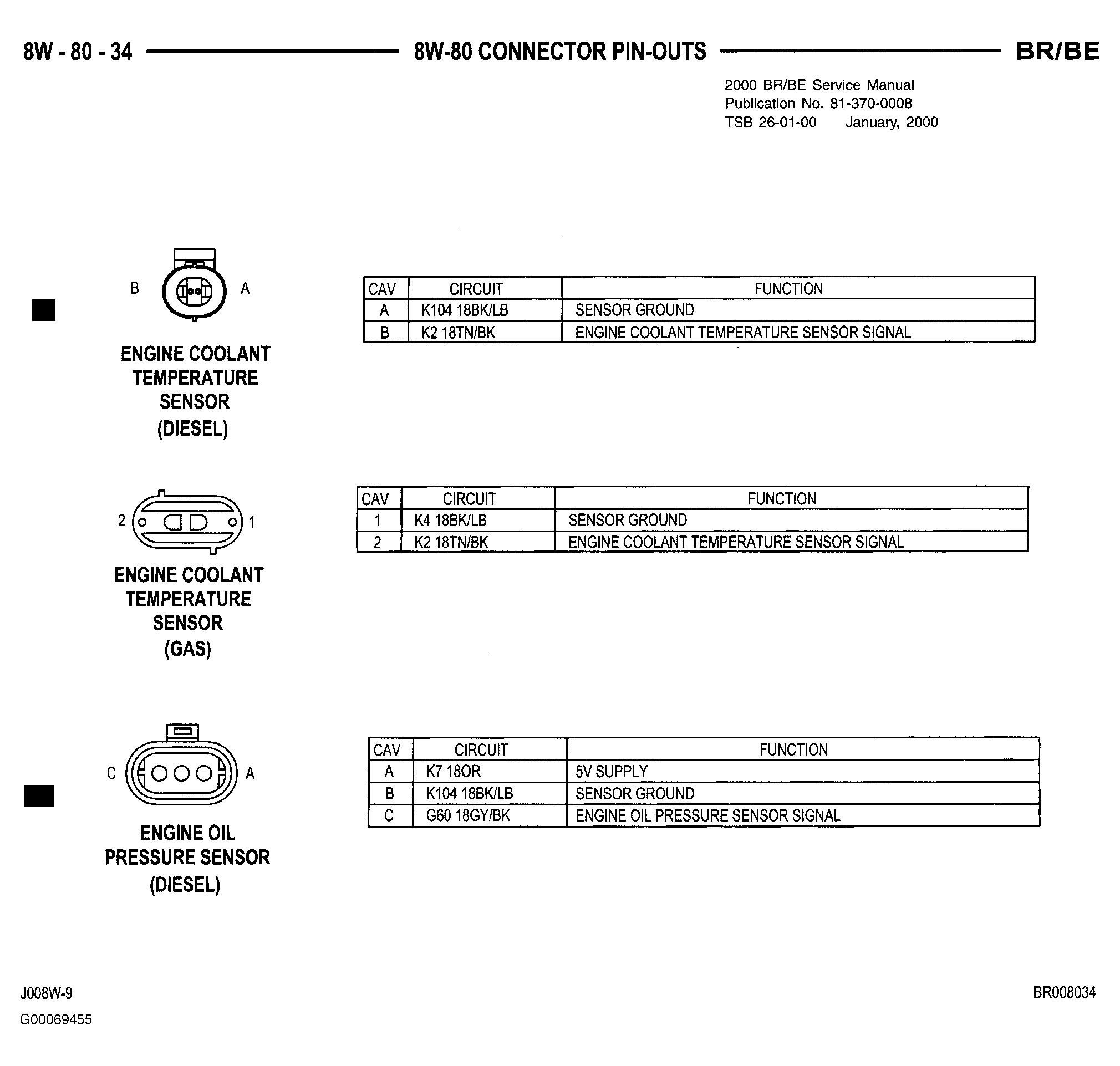

    Fig 56: 2000 BR/BE Service Manual Revision - Page 8W-80-34
    G00069455

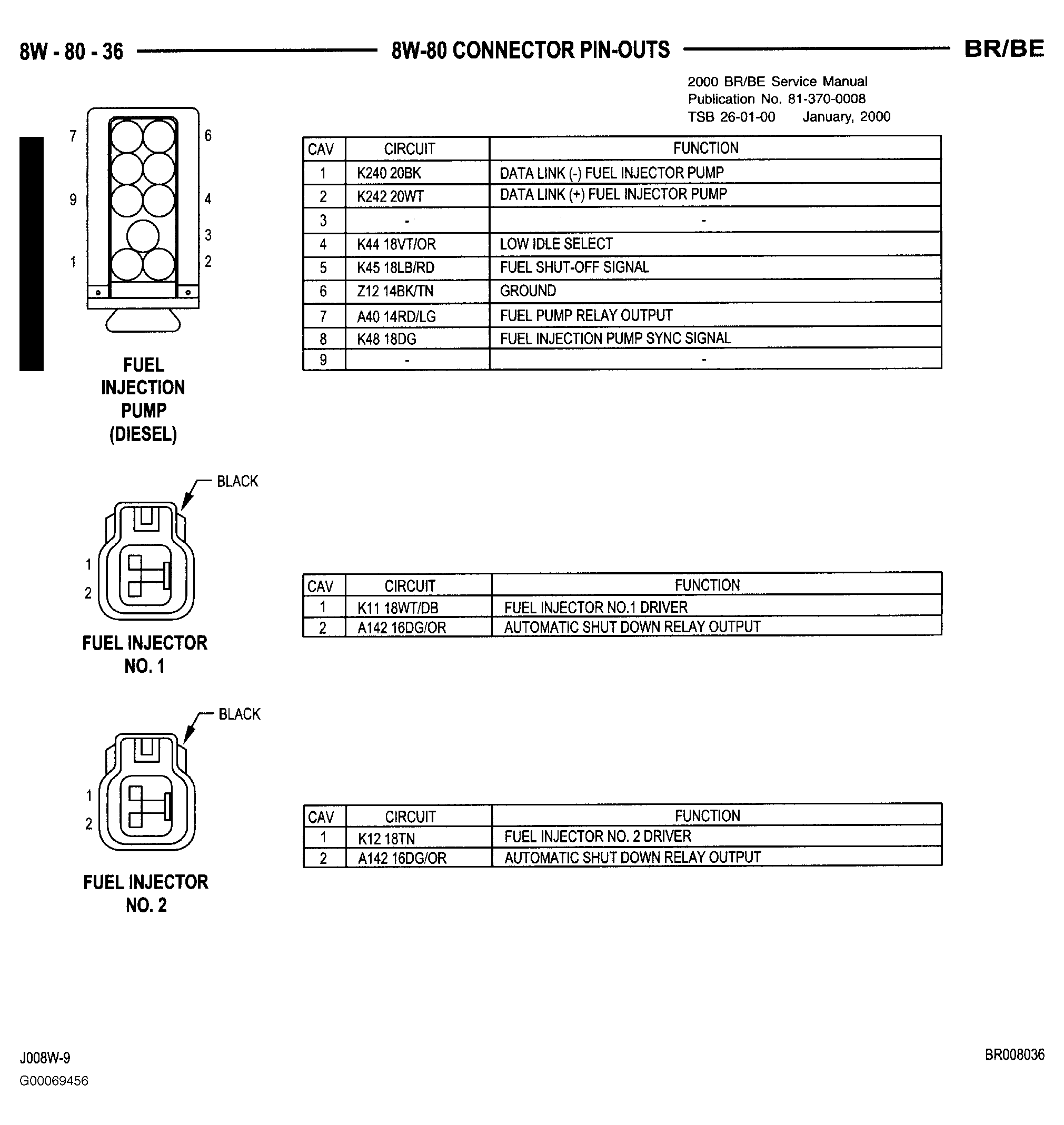

    Fig 57: 2000 BR/BE Service Manual Revision - Page 8W-80-36
    G00069456

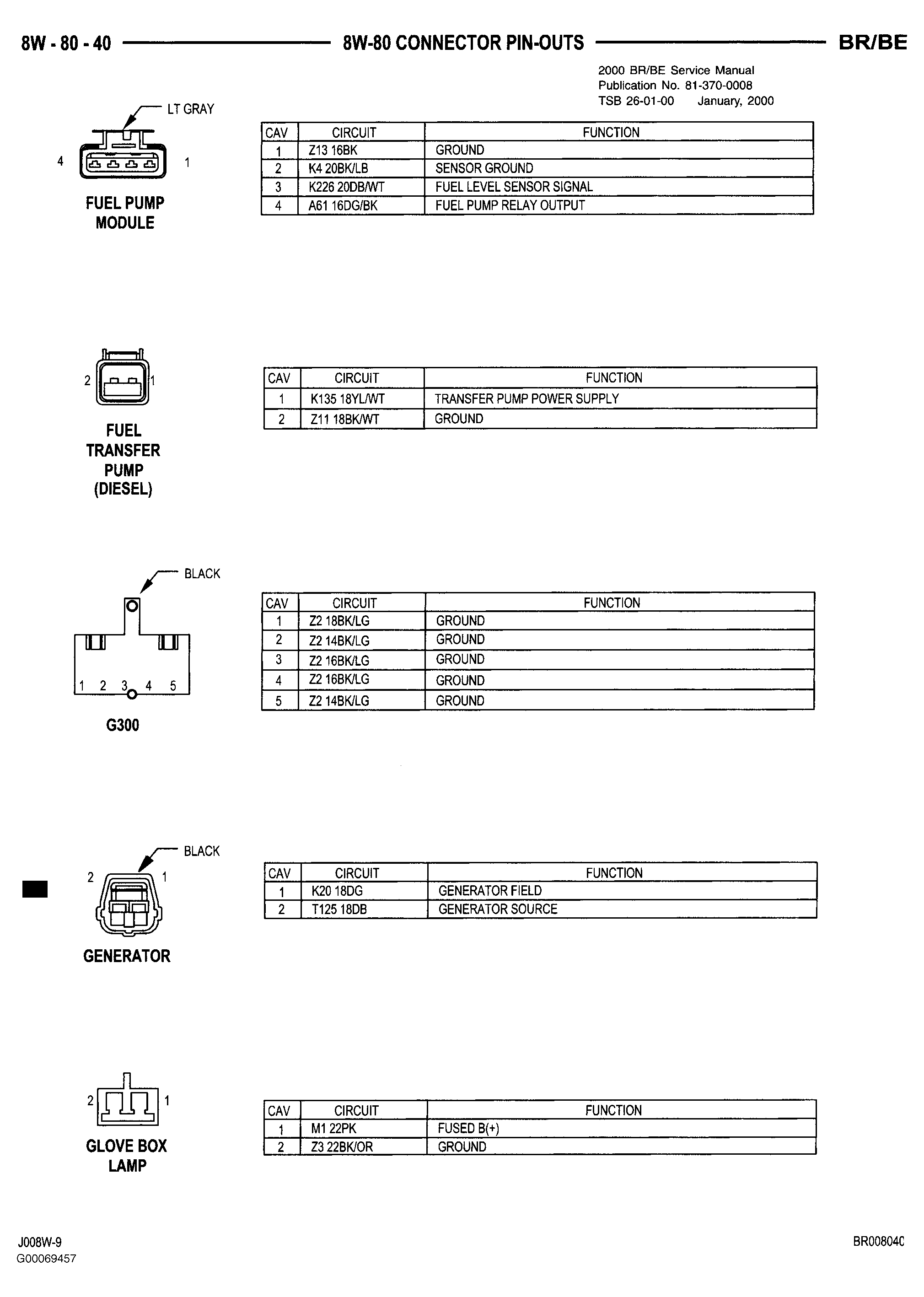

    Fig 58: 2000 BR/BE Service Manual Revision - Page 8W-80-40
    G00069457

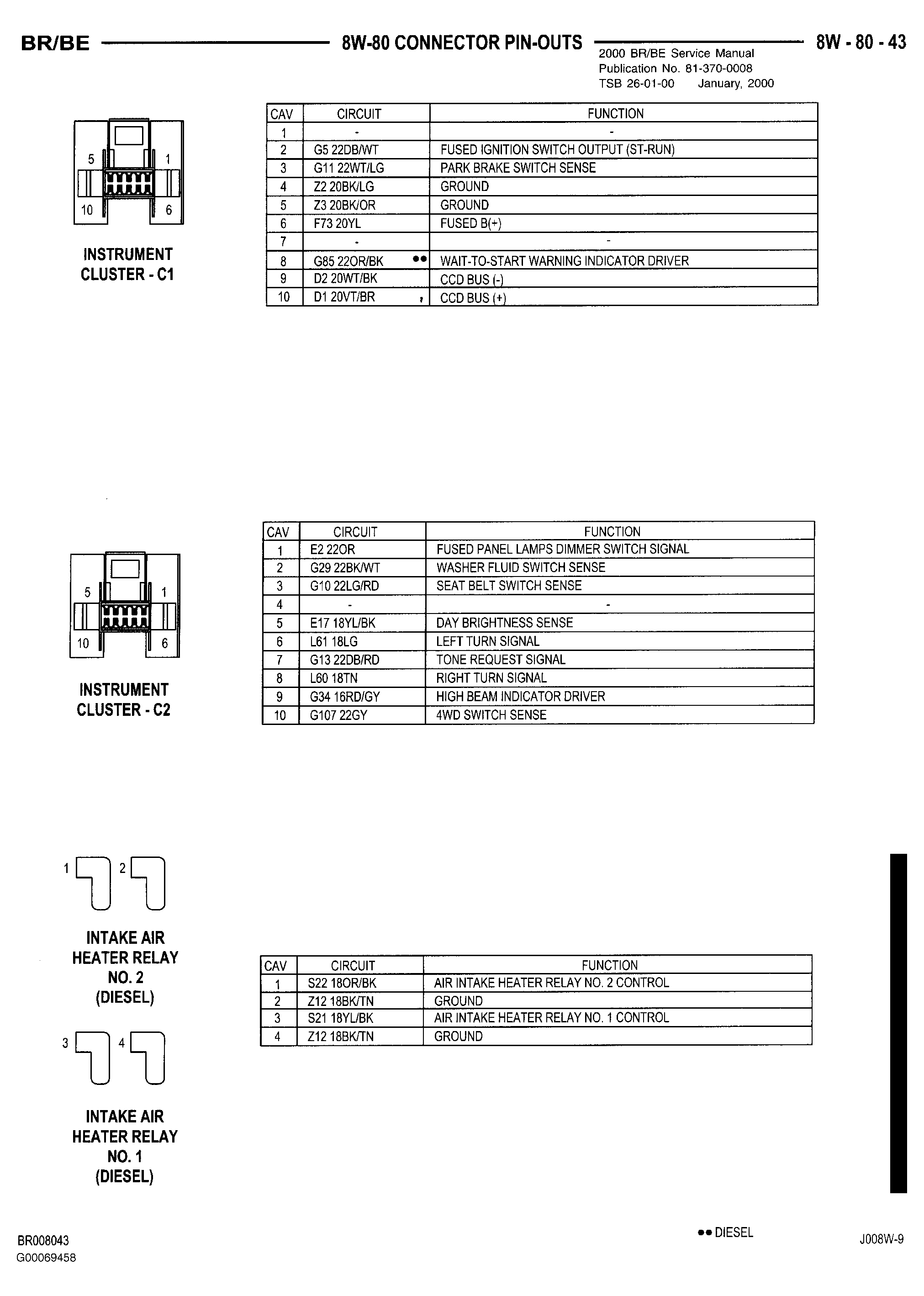

    Fig 59: 2000 BR/BE Service Manual Revision - Page 8W-80-43
    G00069458

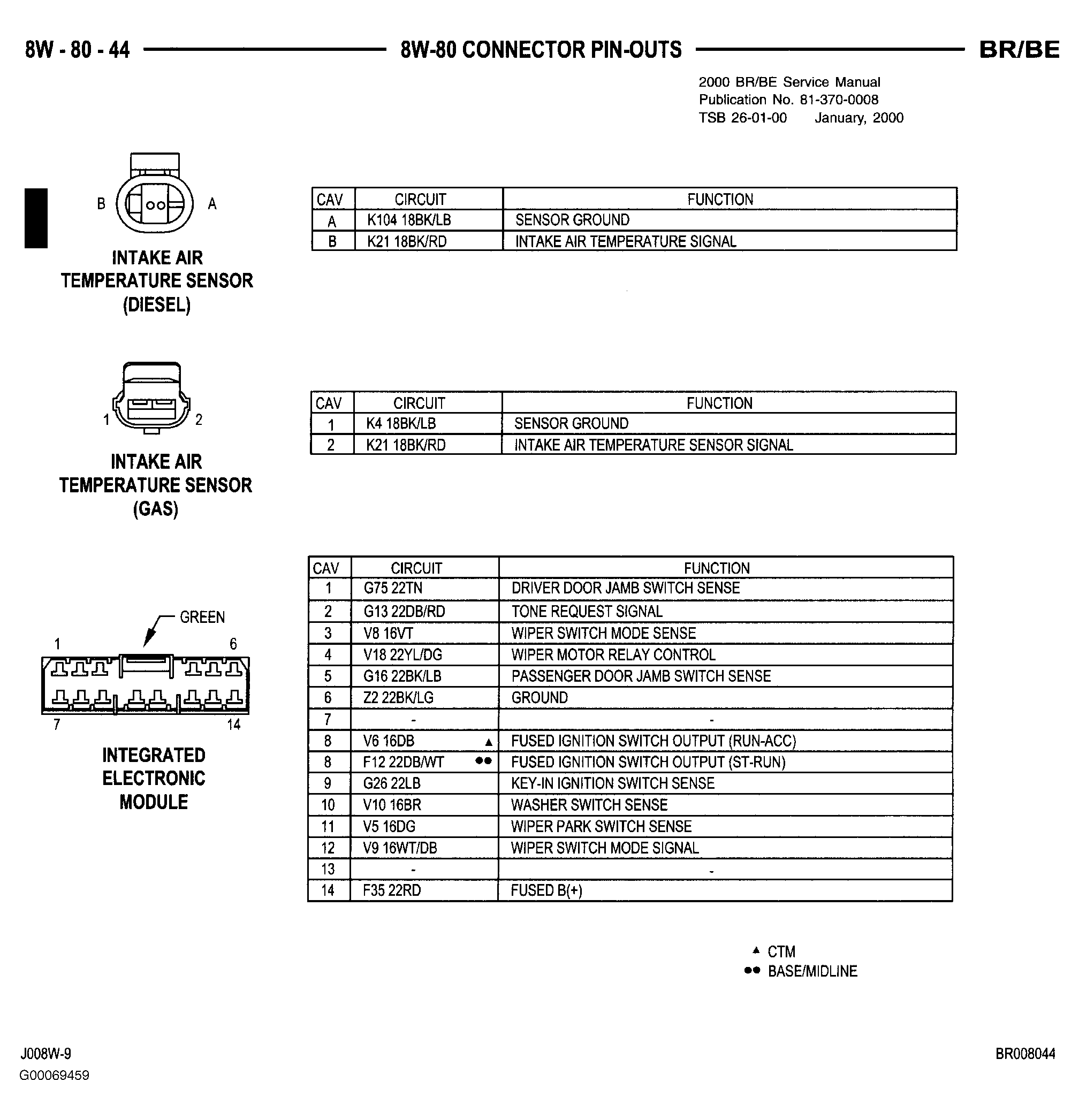

    Fig 60: 2000 BR/BE Service Manual Revision - Page 8W-80-44
    G00069459

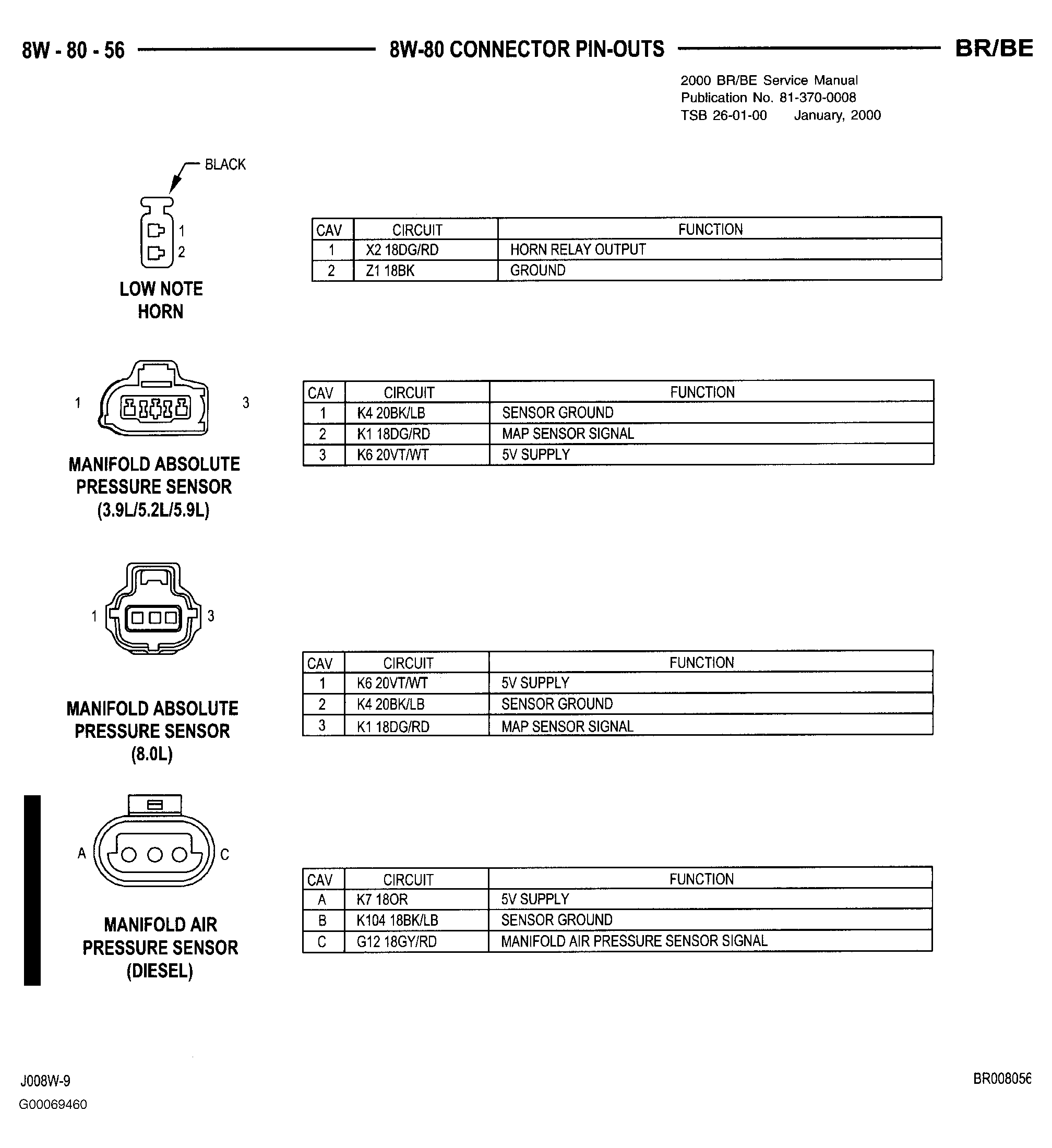

    Fig 61: 2000 BR/BE Service Manual Revision - Page 8W-80-56
    G00069460

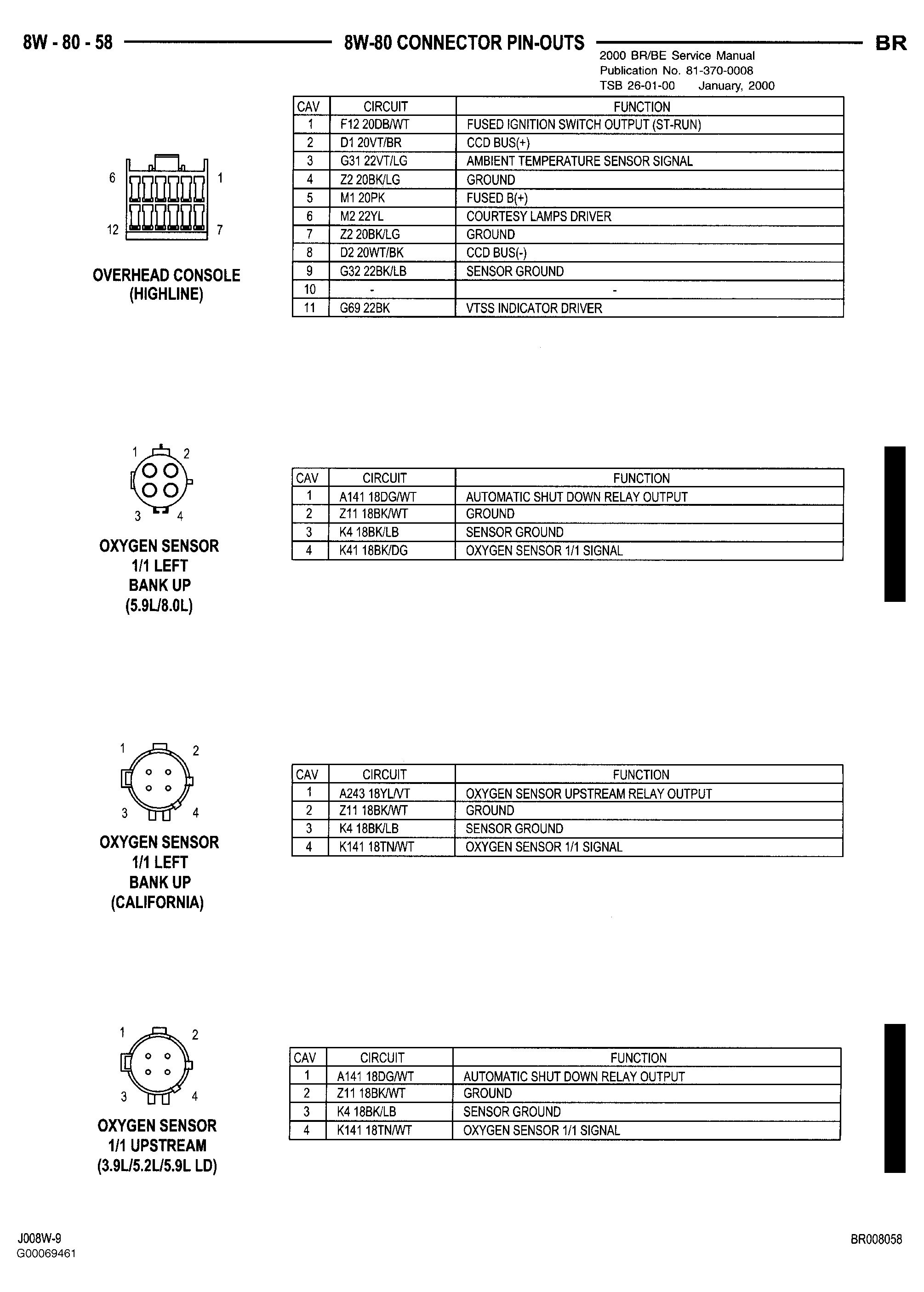

    Fig 62: 2000 BR/BE Service Manual Revision - Page 8W-80-58
    G00069461

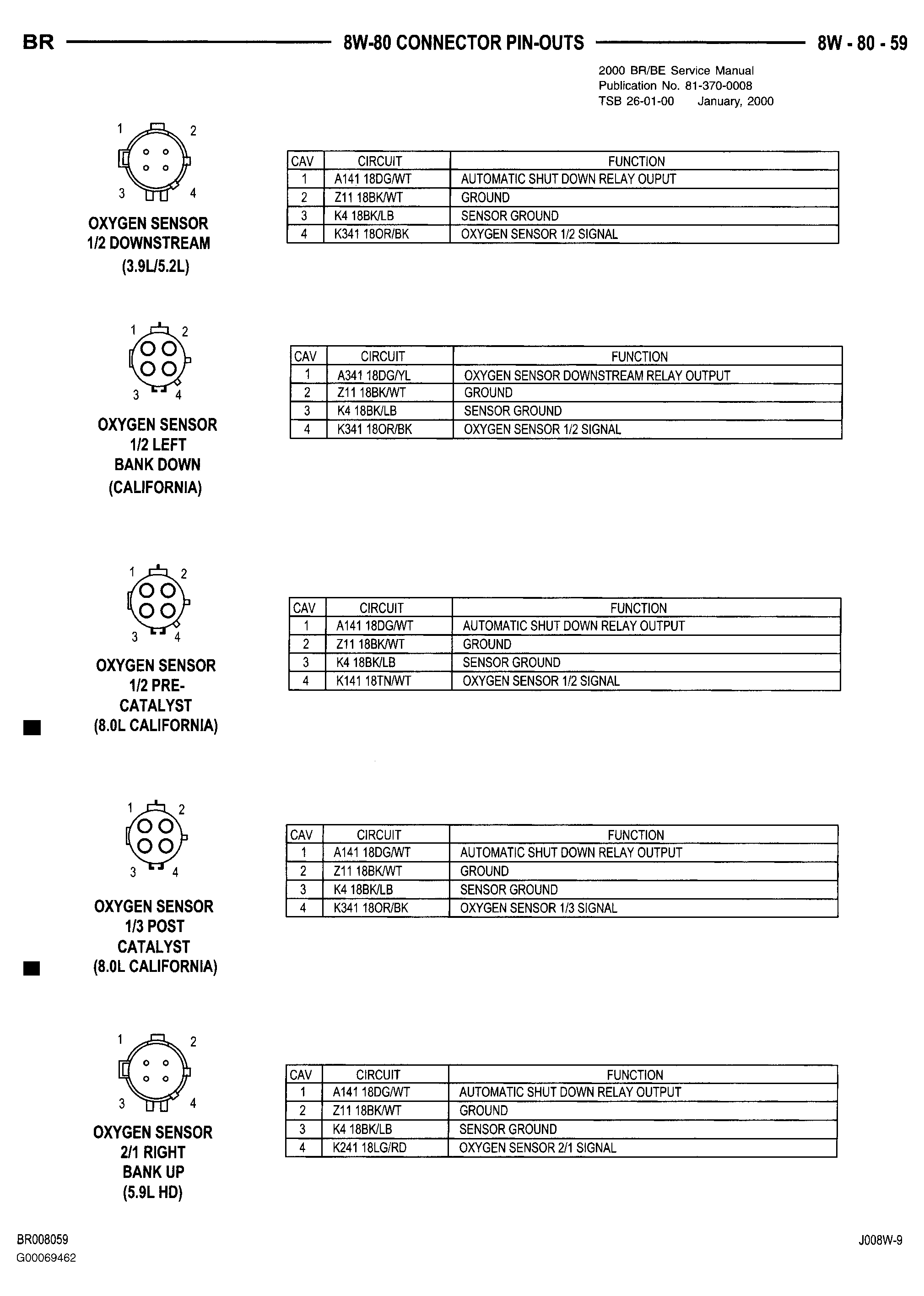

    Fig 63: 2000 BR/BE Service Manual Revision - Page 8W-80-59
    G00069462

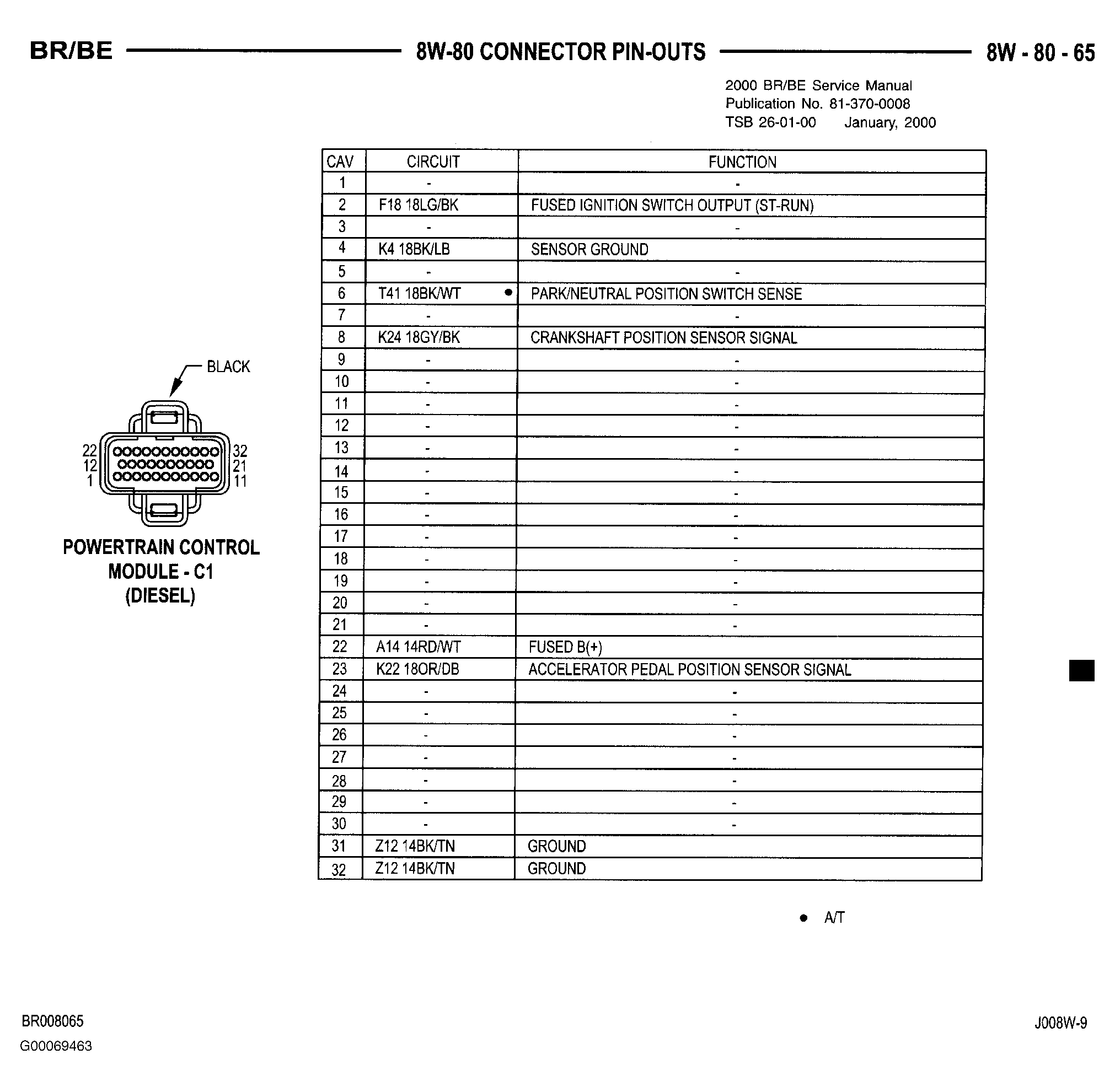

    Fig 64: 2000 BR/BE Service Manual Revision - Page 8W-80-65
    G00069463

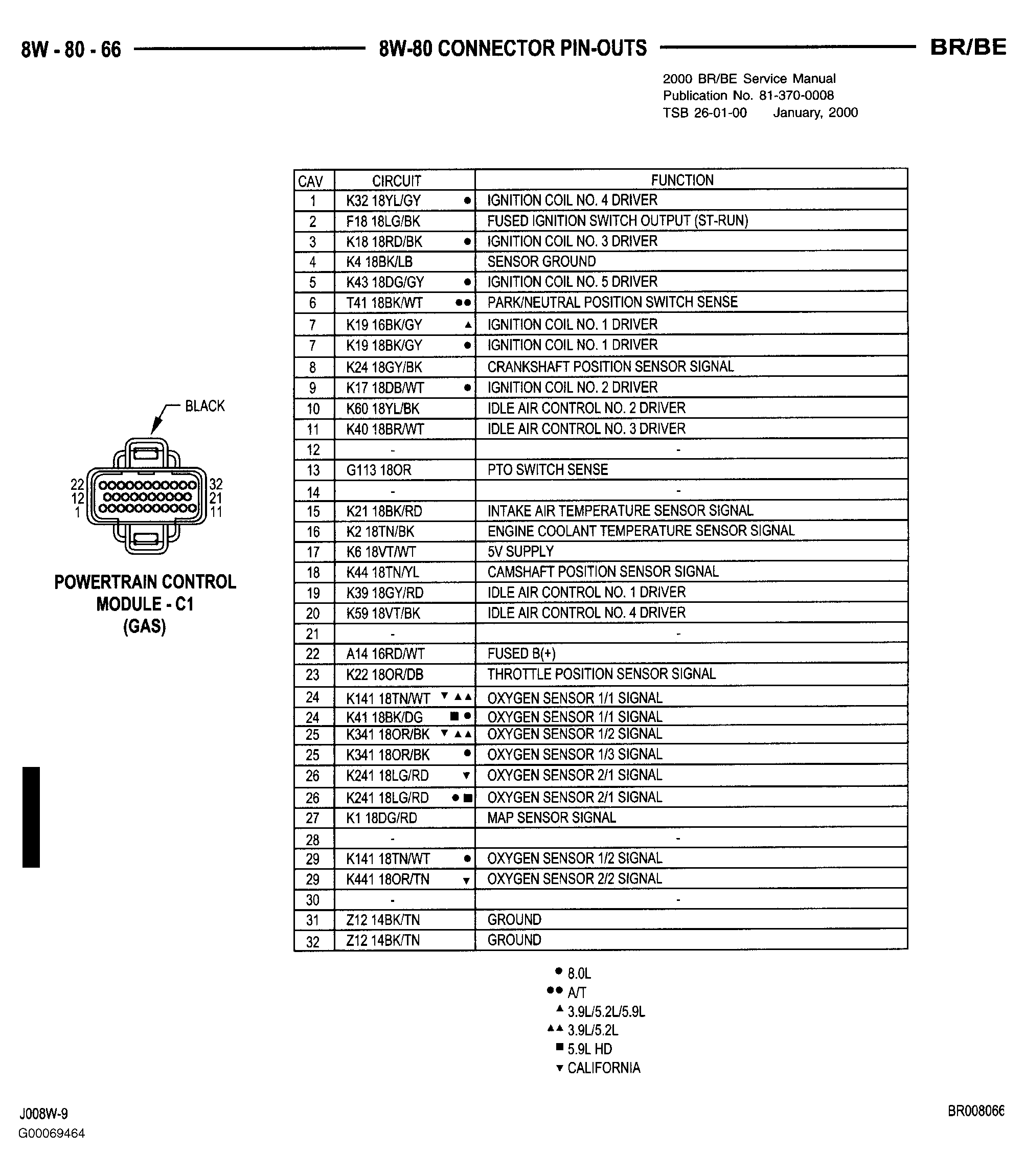

    Fig 65: 2000 BR/BE Service Manual Revision - Page 8W-80-66
    G00069464

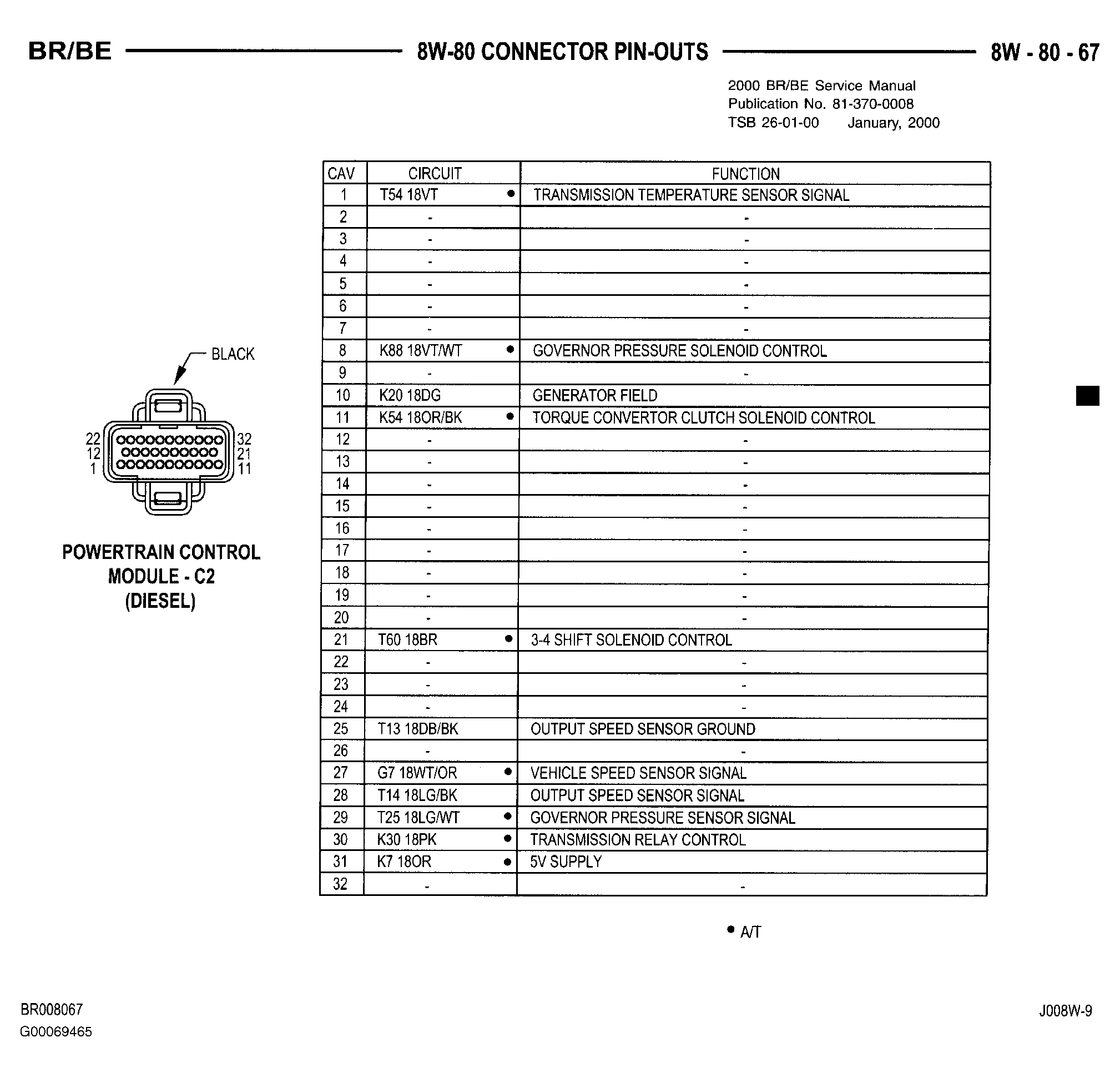

    Fig 66: 2000 BR/BE Service Manual Revision - Page 8W-80-67
    G00069465

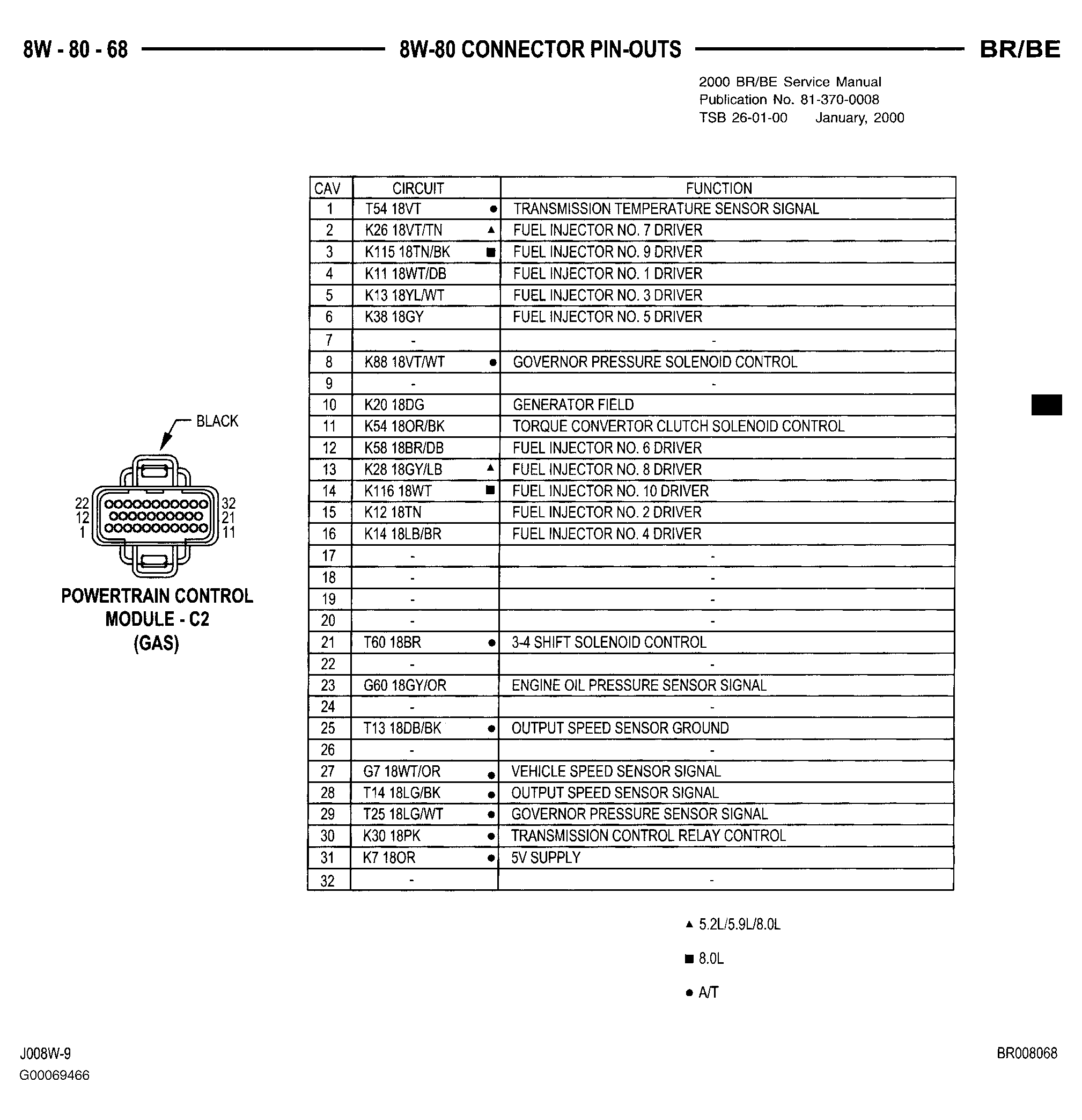

    Fig 67: 2000 BR/BE Service Manual Revision - Page 8W-80-68
    G00069466

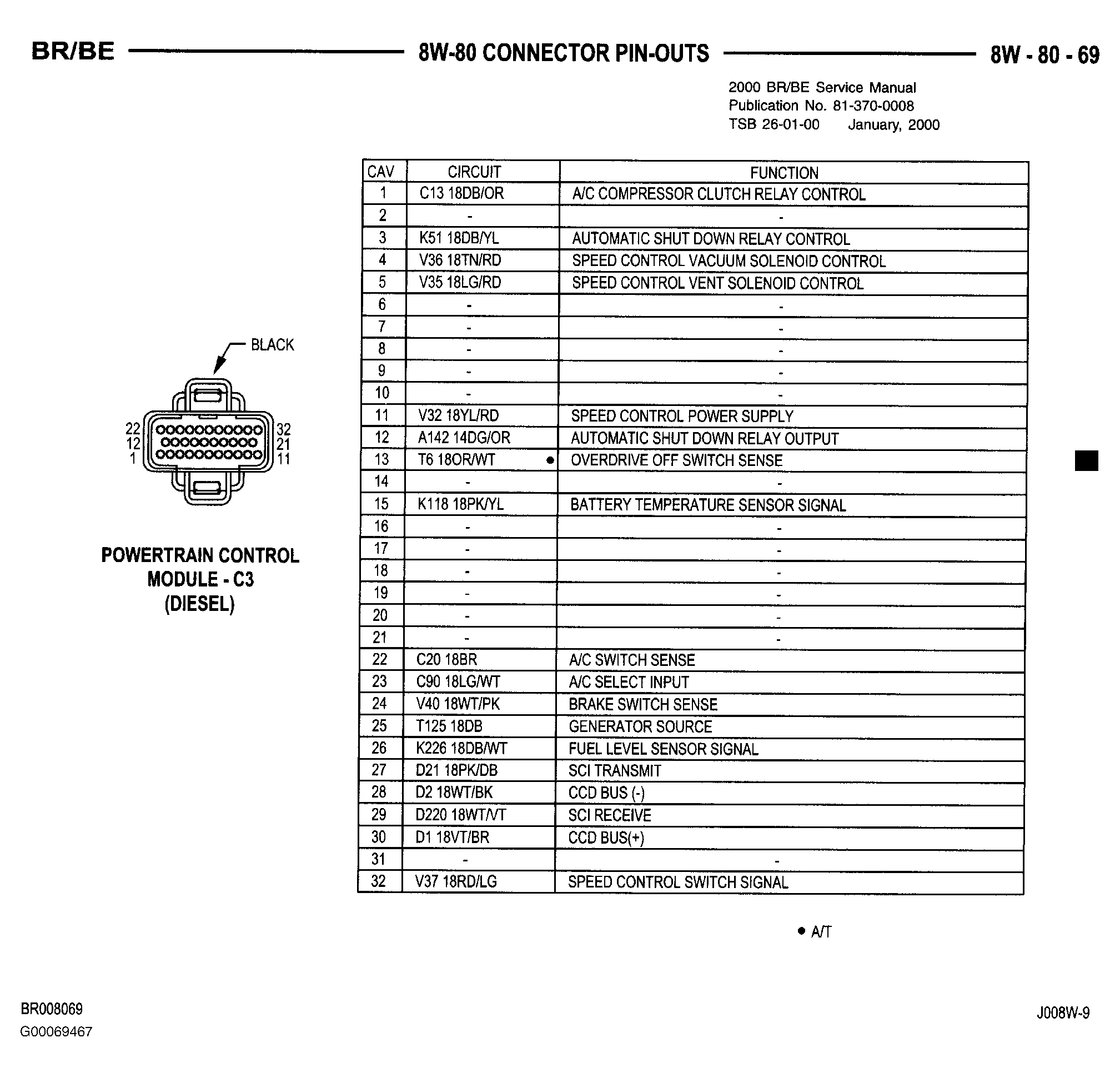

    Fig 68: 2000 BR/BE Service Manual Revision - Page 8W-80-69
    G00069467

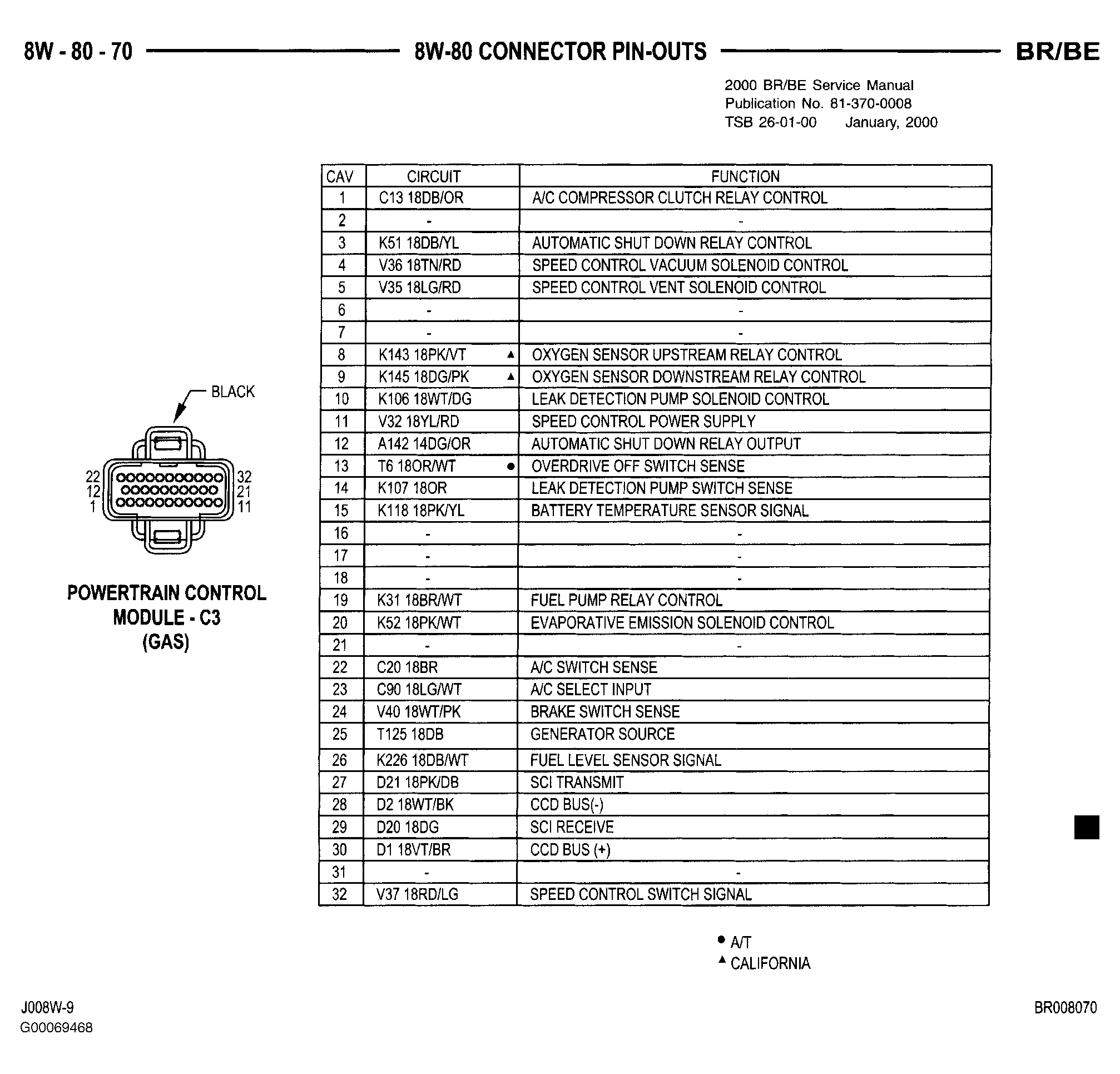

    Fig 69: 2000 BR/BE Service Manual Revision - Page 8W-80-70
    G00069468

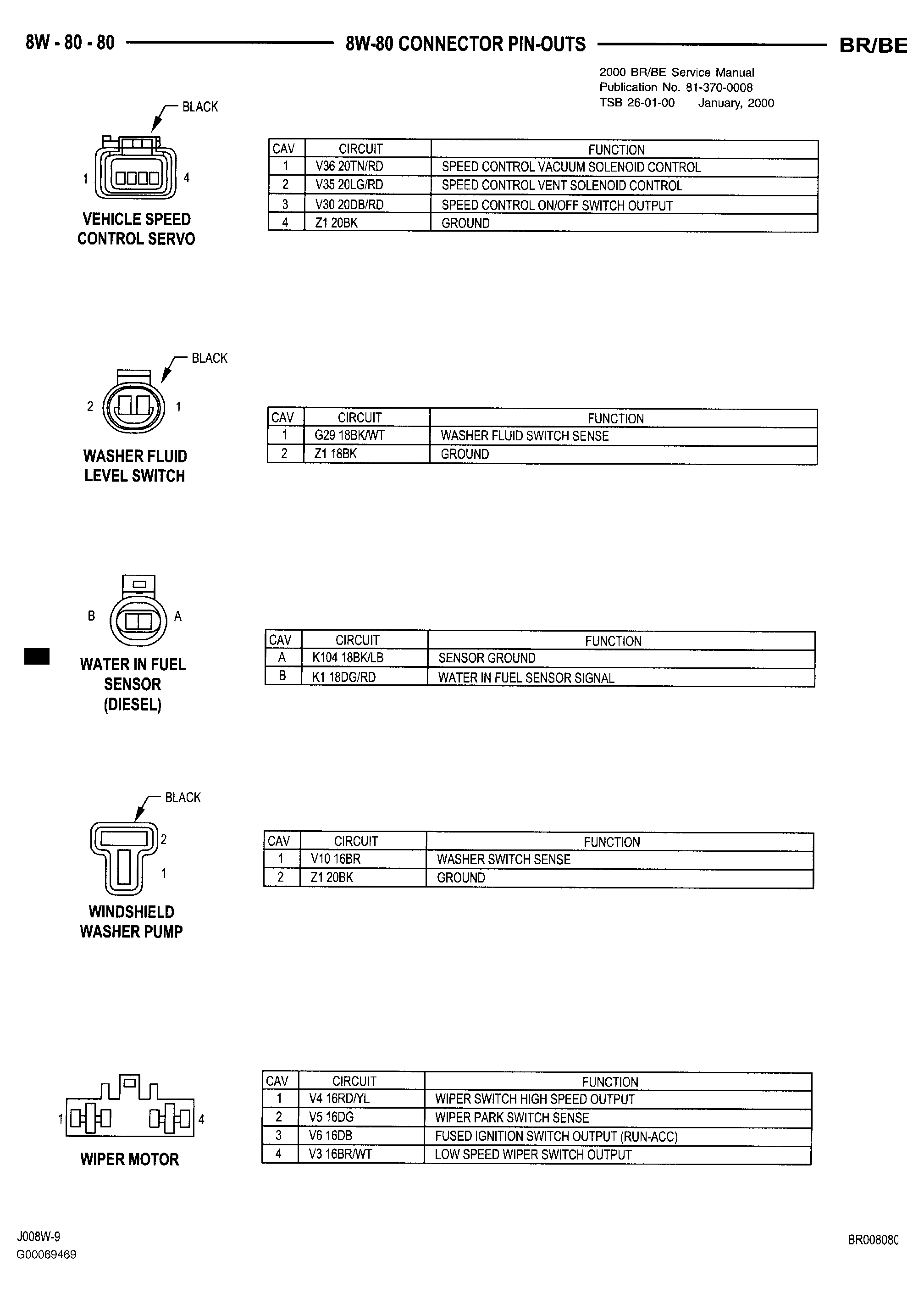

    Fig 70: 2000 BR/BE Service Manual Revision - Page 8W-80-80
    G00069469

  4. DESCRIPTION OF CHANGES
    Revisions to the wiring schematics

2000 Caravan, Voyager, Town & Country Powertrain Diagnostic Manual - Publication Number 81-699-99046

  1. PAGES
    334

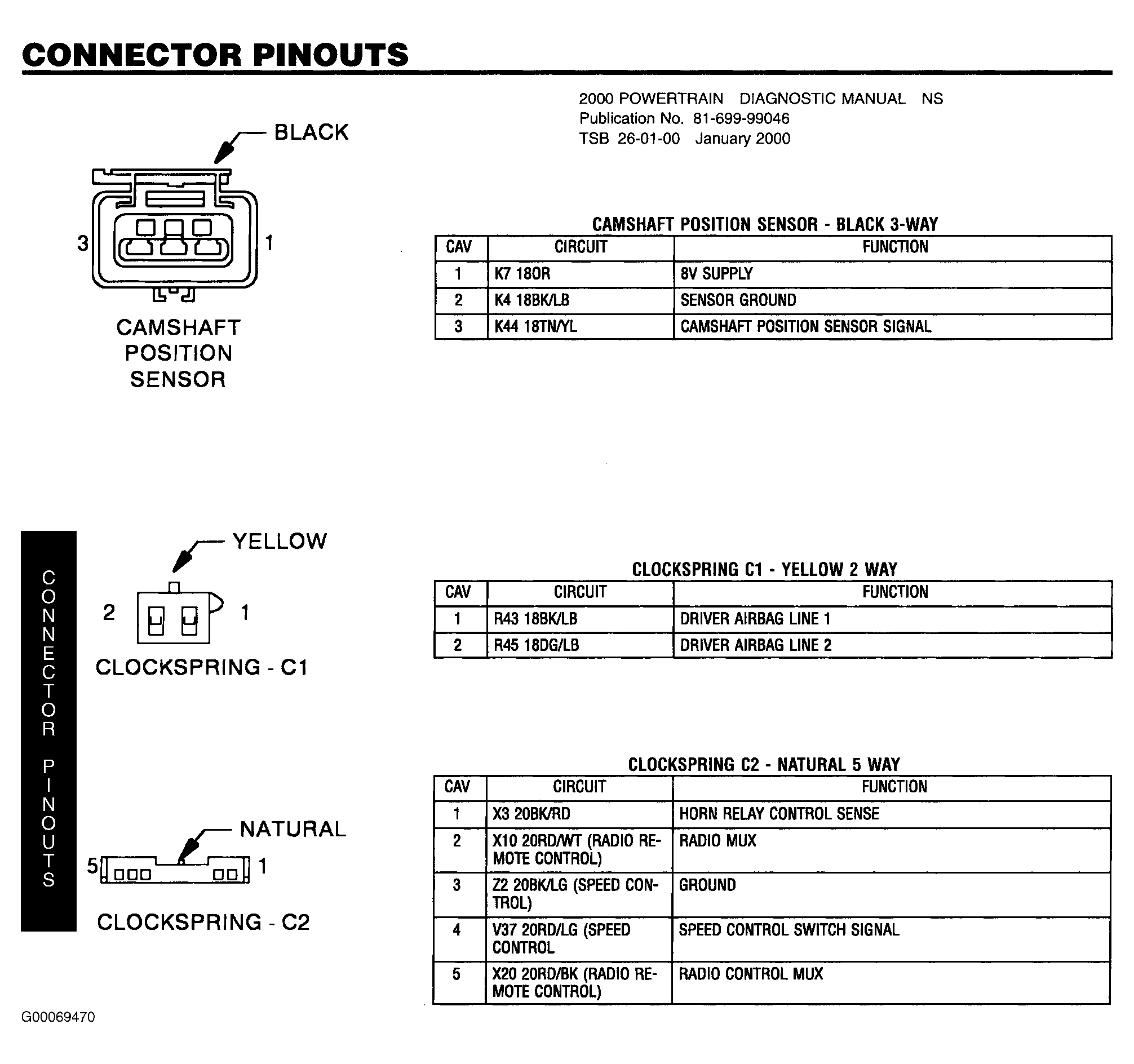

    Fig 71: 2000 NS Powertrain Diagnostic Manual Revision - Page 334
    G00069470

  2. DESCRIPTION OF CHANGES
    Revision to connector pinouts

1999 Concorde, Intrepid, LHS, 300 M Service Manual - Publication Number 81-270- 9140

  1. PAGES
    8W-42-8

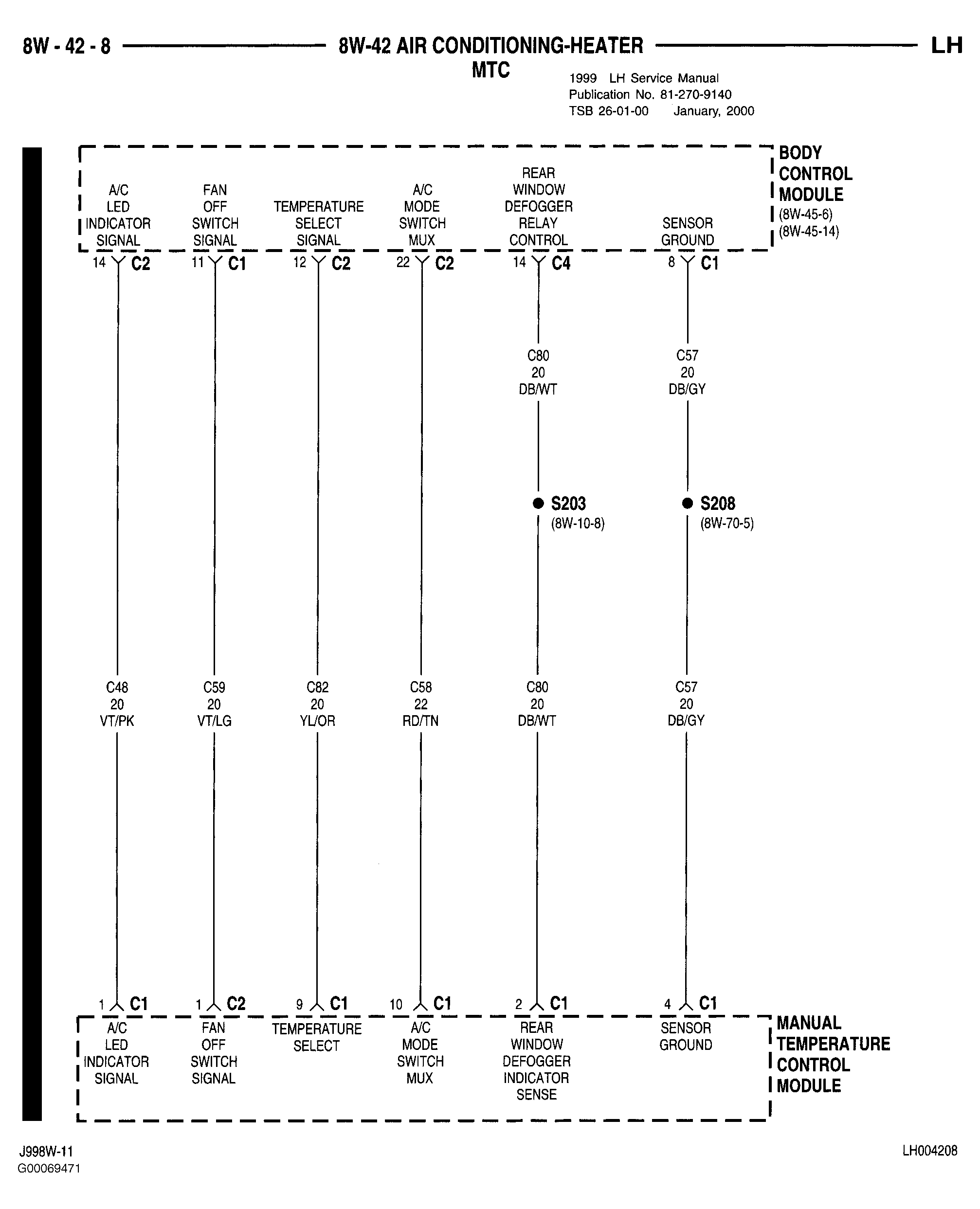

    Fig 72: 1999 LH Service Manual Revision - Page 8W-42-8
    G00069471

  2. DESCRIPTION OF CHANGES
    Revision to the wiring schematic

1999 Caravan, Voyager, Town & Country Service Manual - Publication Number 81-370-9105

  1. PAGES
    9-25, 9-71, 9-72, 9-112, 9-113

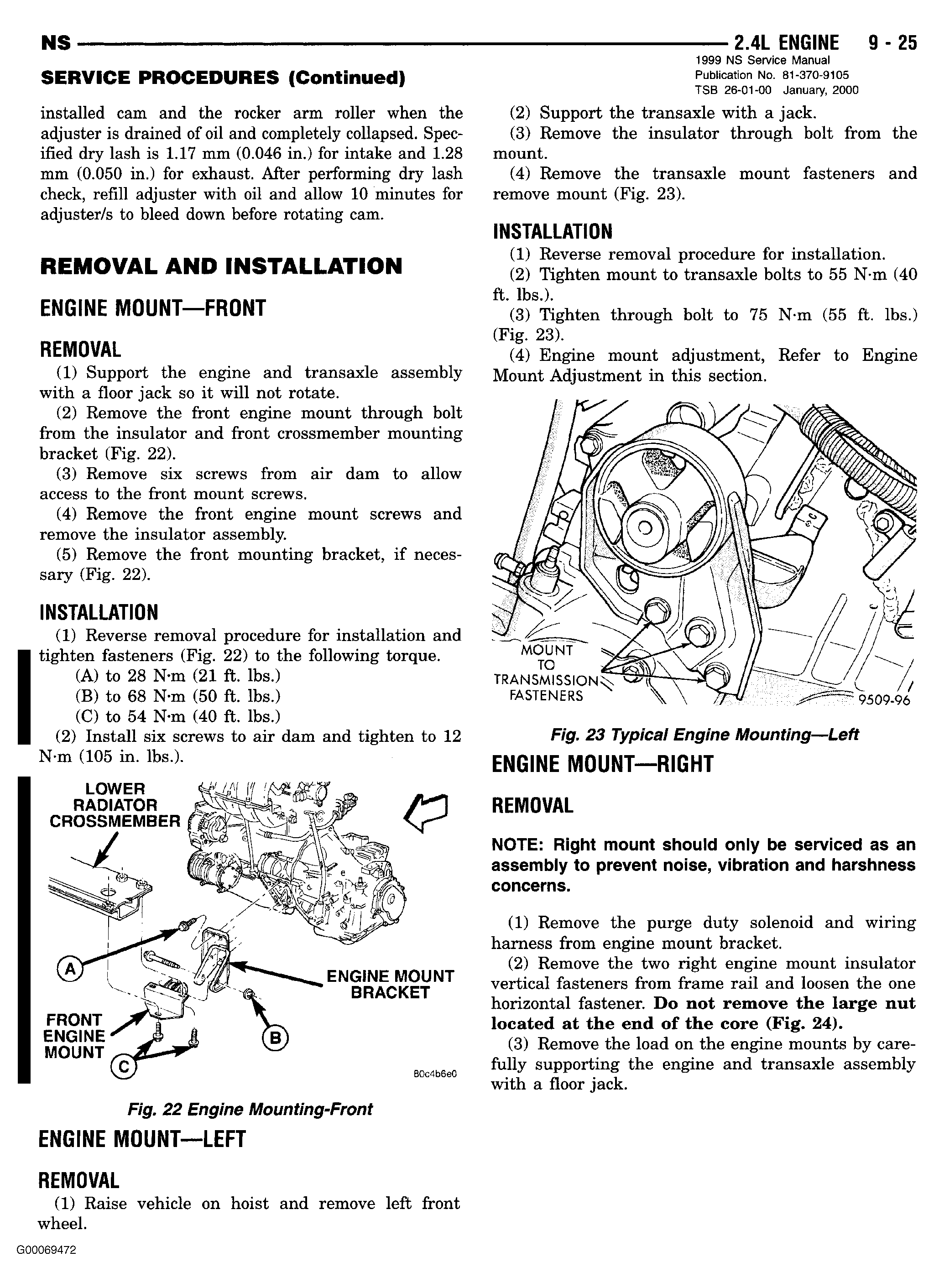

    Fig 73: 1999 NS Service Manual Revision - Page 9-25
    G00069472

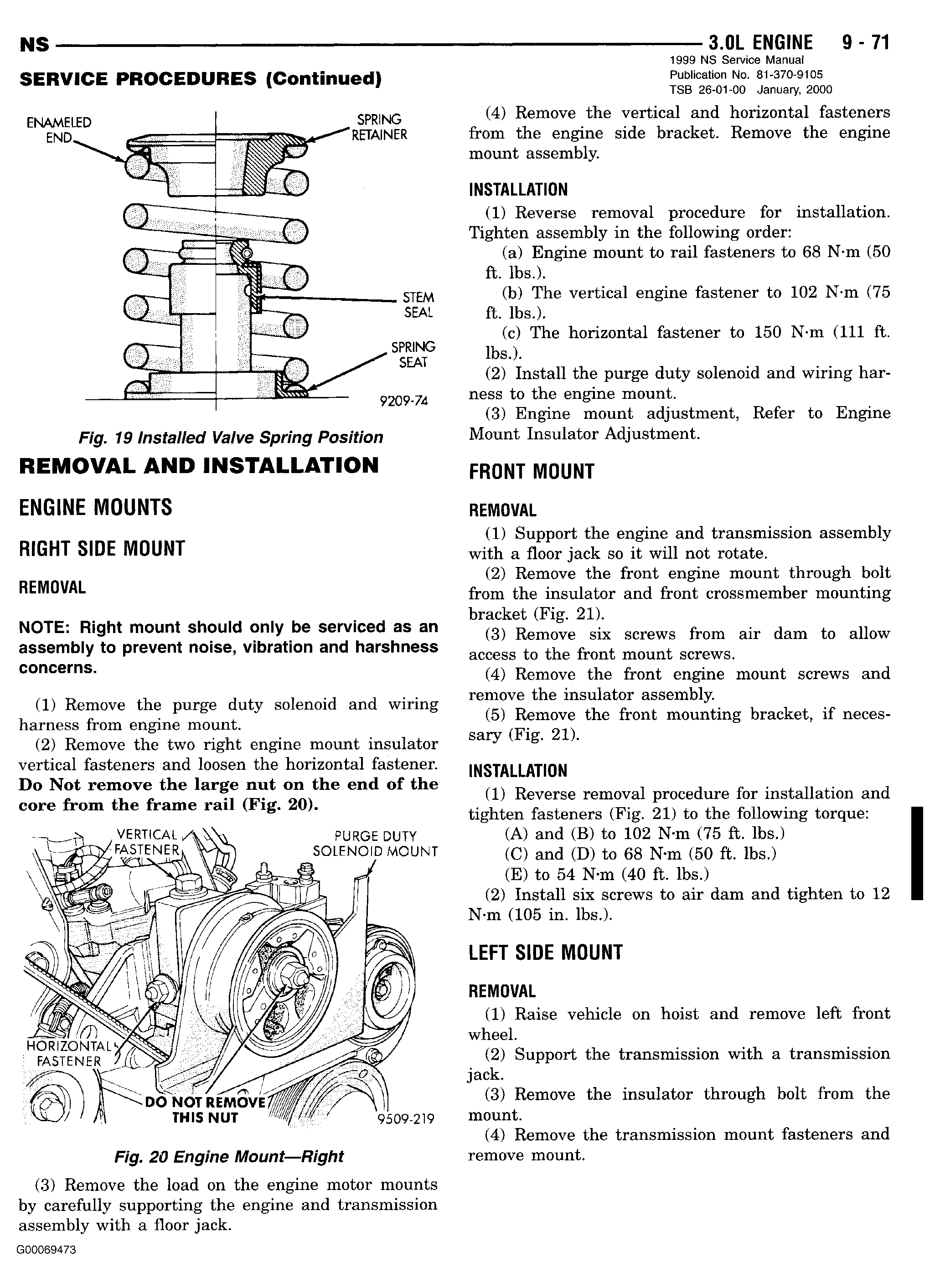

    Fig 74: 1999 NS Service Manual Revision - Page 9-71
    G00069473

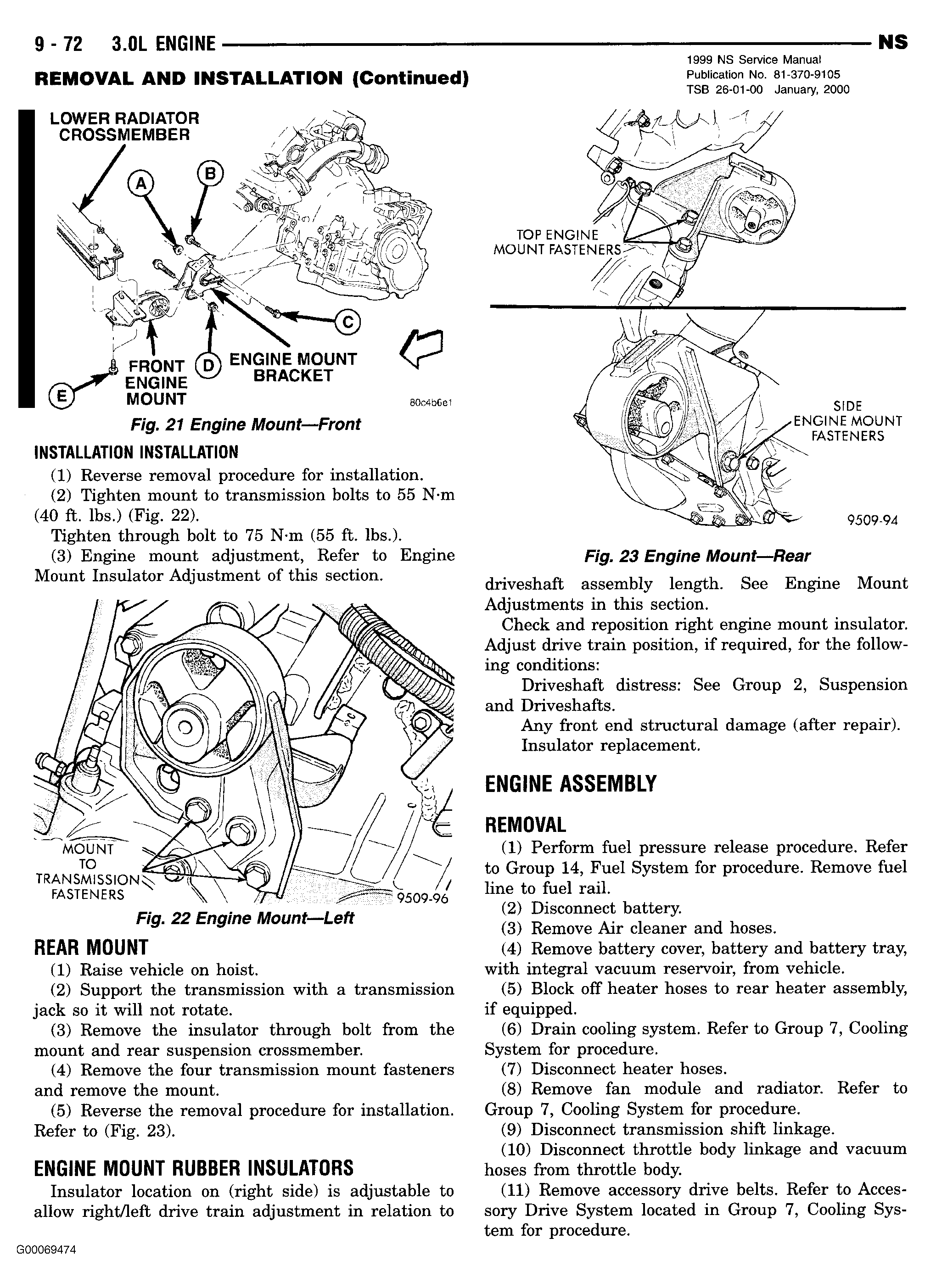

    Fig 75: 1999 NS Service Manual Revision - Page 9-72
    G00069474

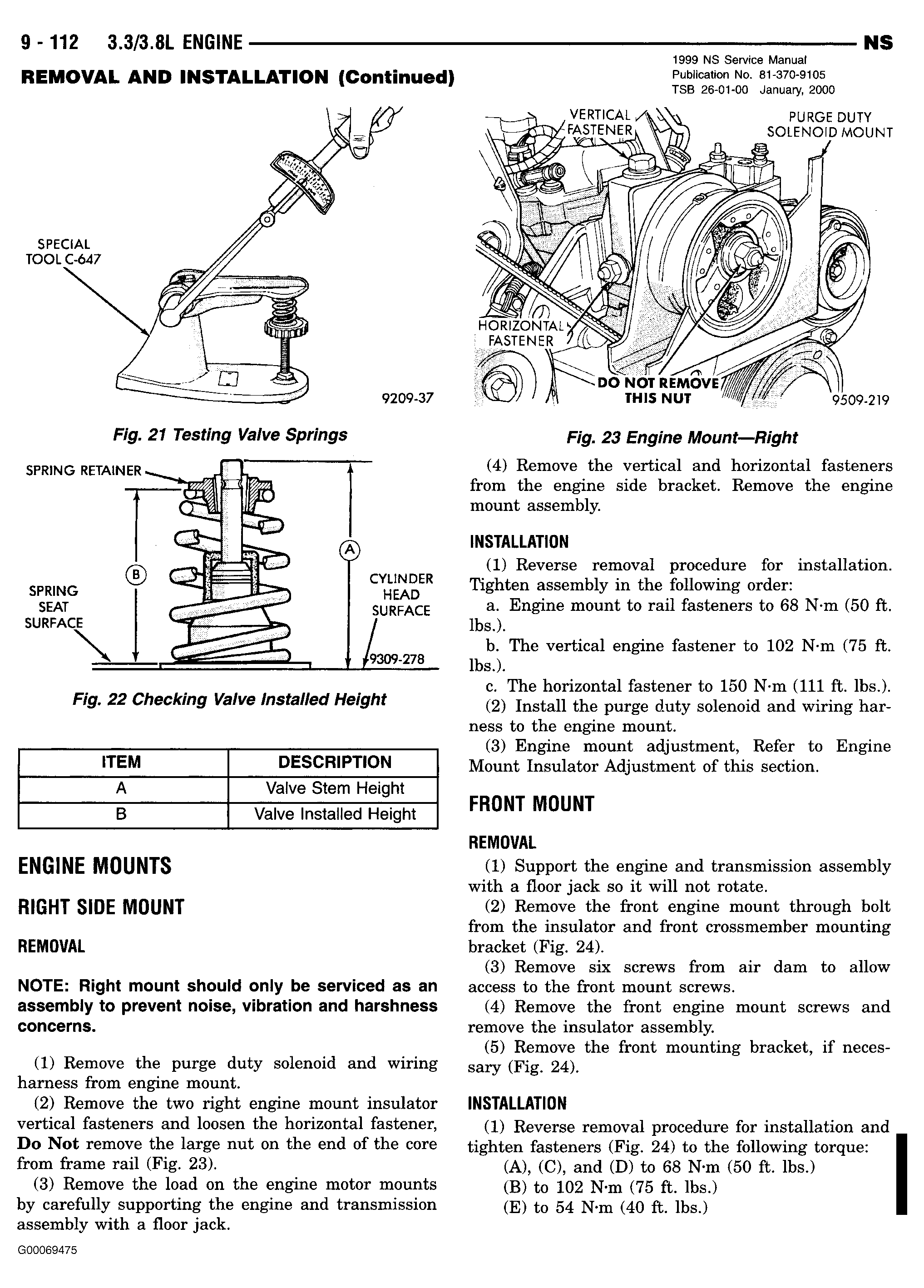

    Fig 76: 1999 NS Service Manual Revision - Page 9-112
    G00069475

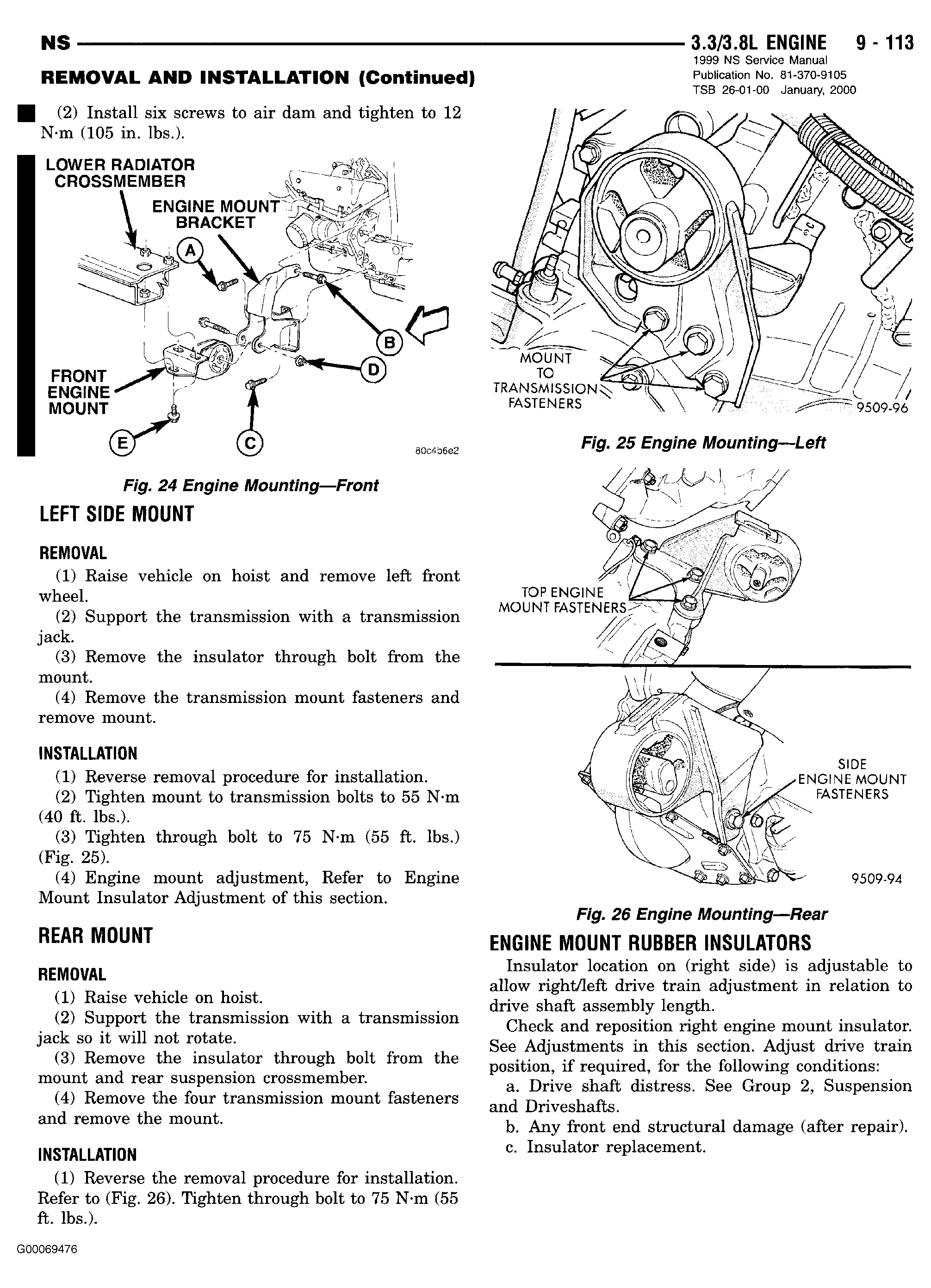

    Fig 77: 1999 NS Service Manual Revision - Page 9-113
    G00069476

  2. DESCRIPTION OF CHANGES
    Revision to the engine service procedures

1999 Grand Cherokee Service Manual - Publication Number 81-370-9147

  1. PAGES
    3-42, 3-118

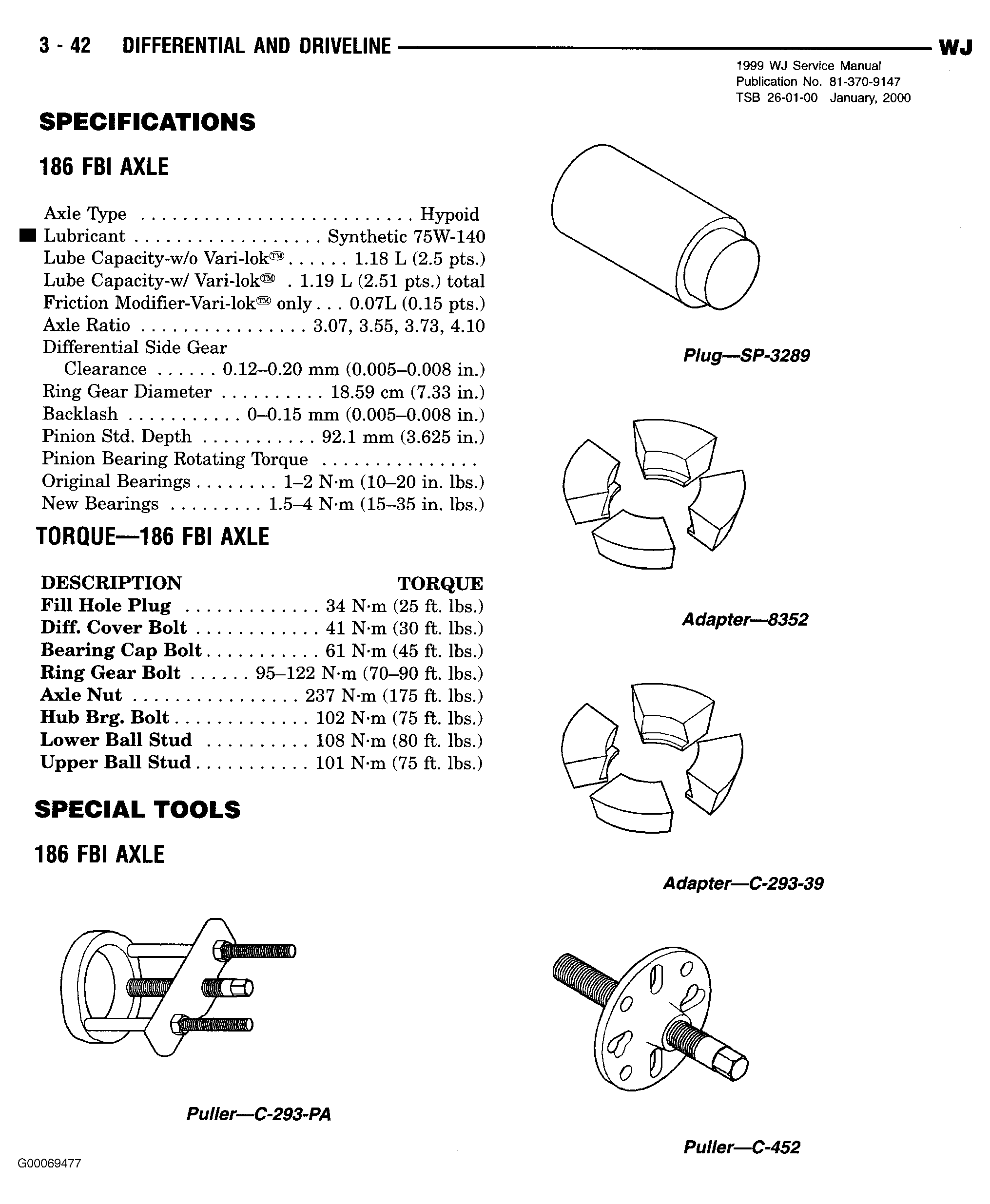

    Fig 78: 1999 WJ Service Manual Revision - Page 3-42
    G00069477

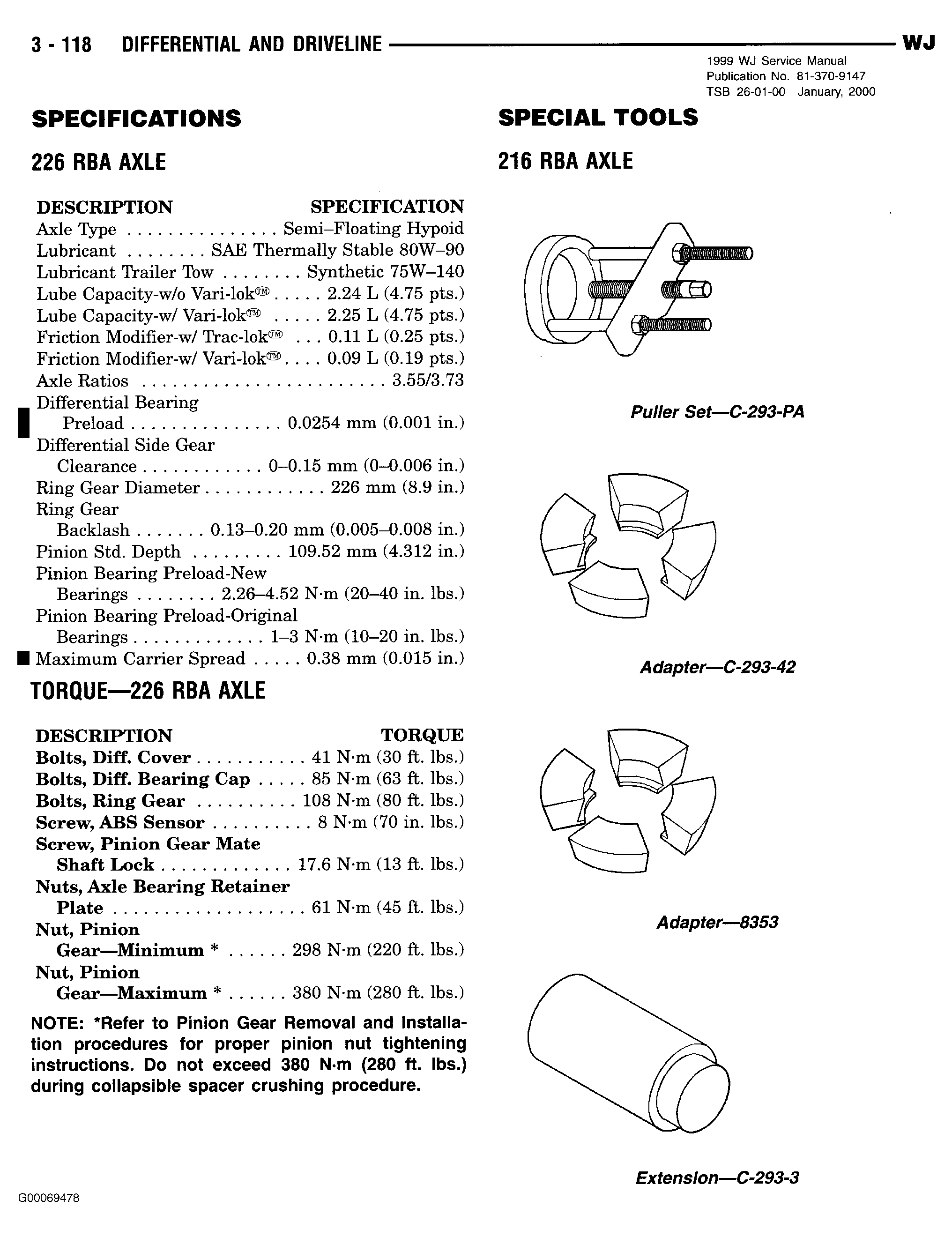

    Fig 79: 1999 WJ Service Manual Revision - Page 3-118
    G00069478

  2. DESCRIPTION OF CHANGES
    Revision to the axle specifications

  3. PAGES
    8W-30-23, 8W-30-24, 8W-31-3, 8W-35-2, 8W-39-8, 8W-49-2, 8W-60-2, 8W-61-2, 8W-61-3, 8W-62-2, 8W-80-31

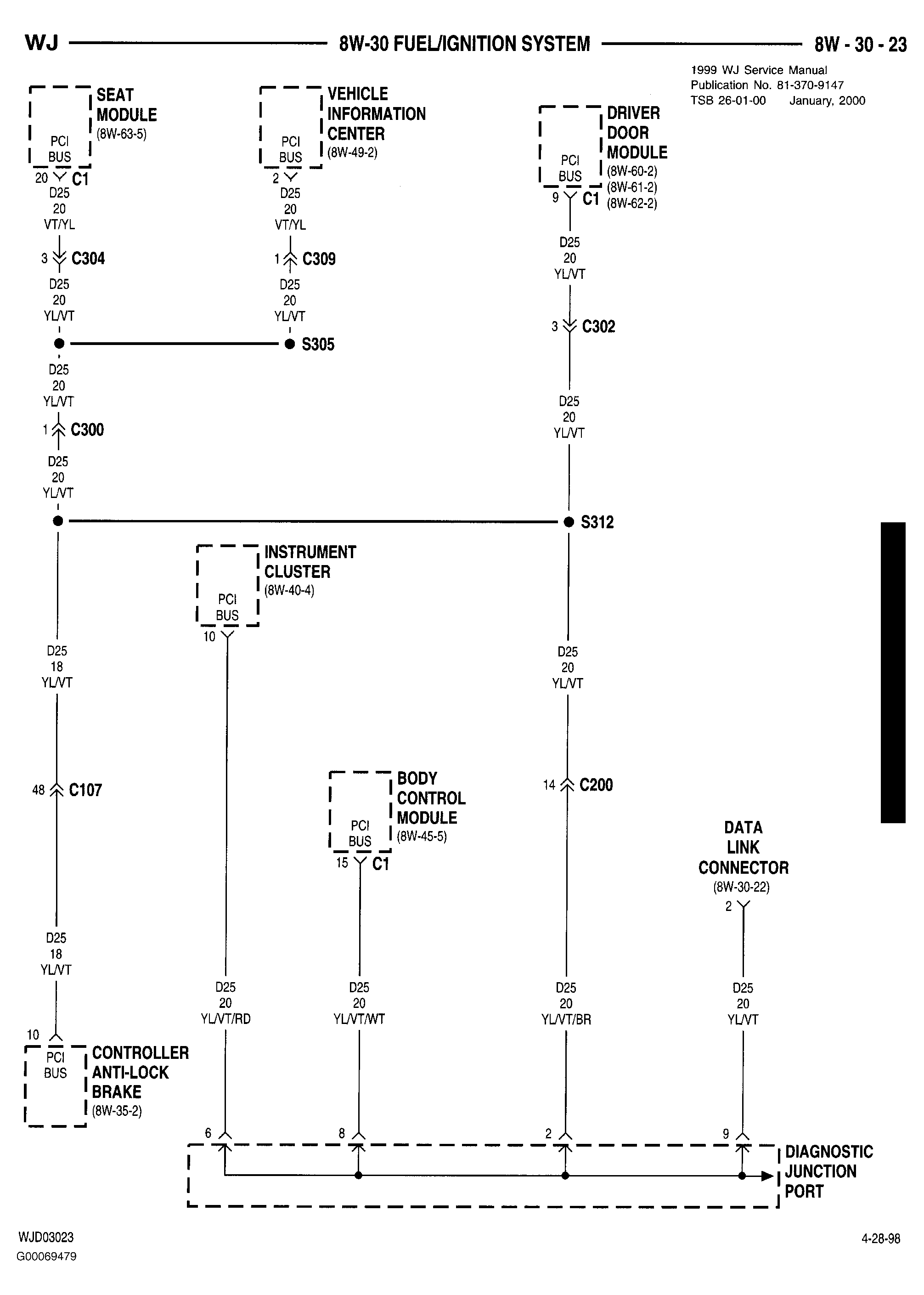

    Fig 80: 1999 WJ Service Manual Revision - Page 8W-30-23
    G00069479

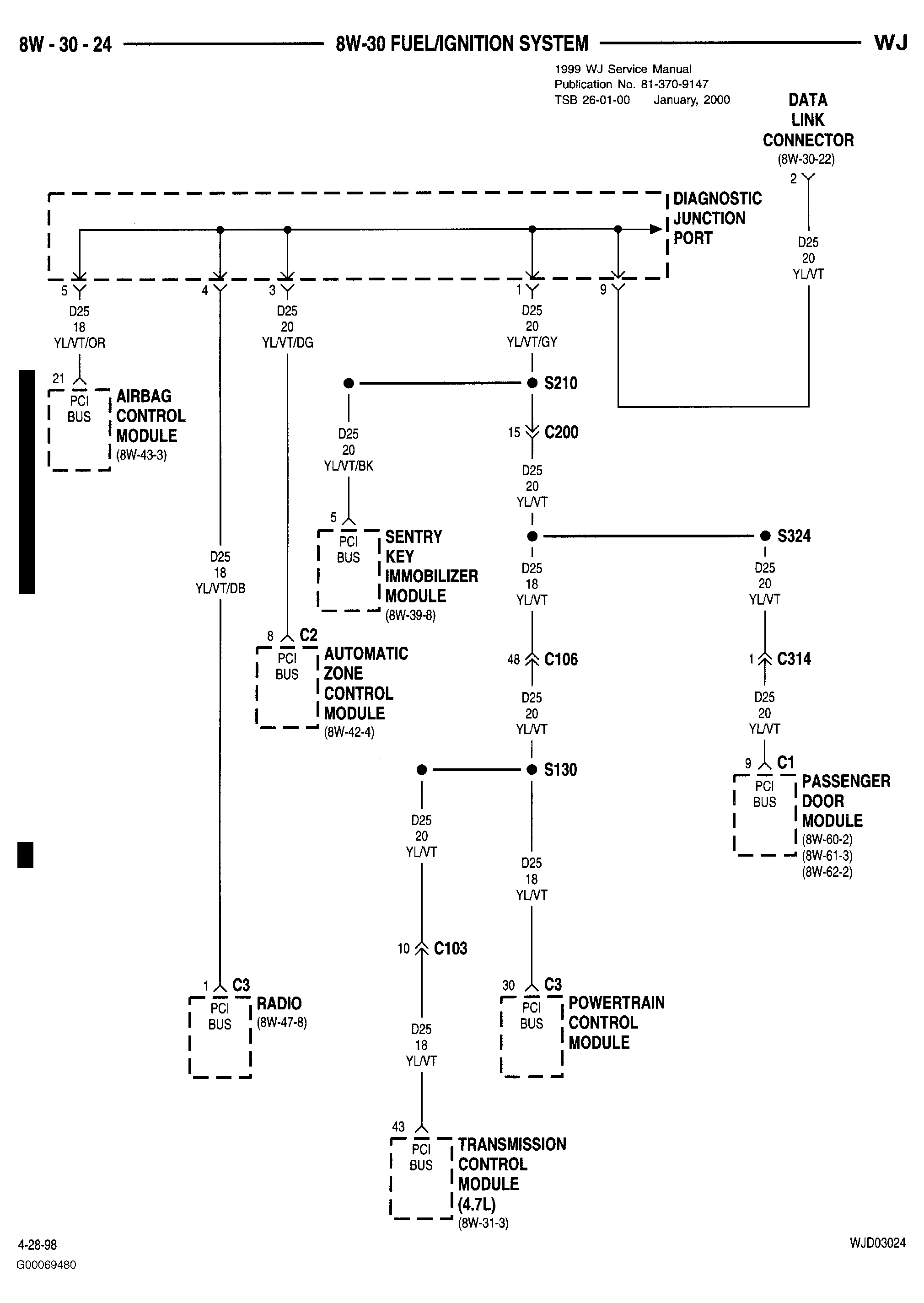

    Fig 81: 1999 WJ Service Manual Revision - Page 8W-30-24
    G00069480

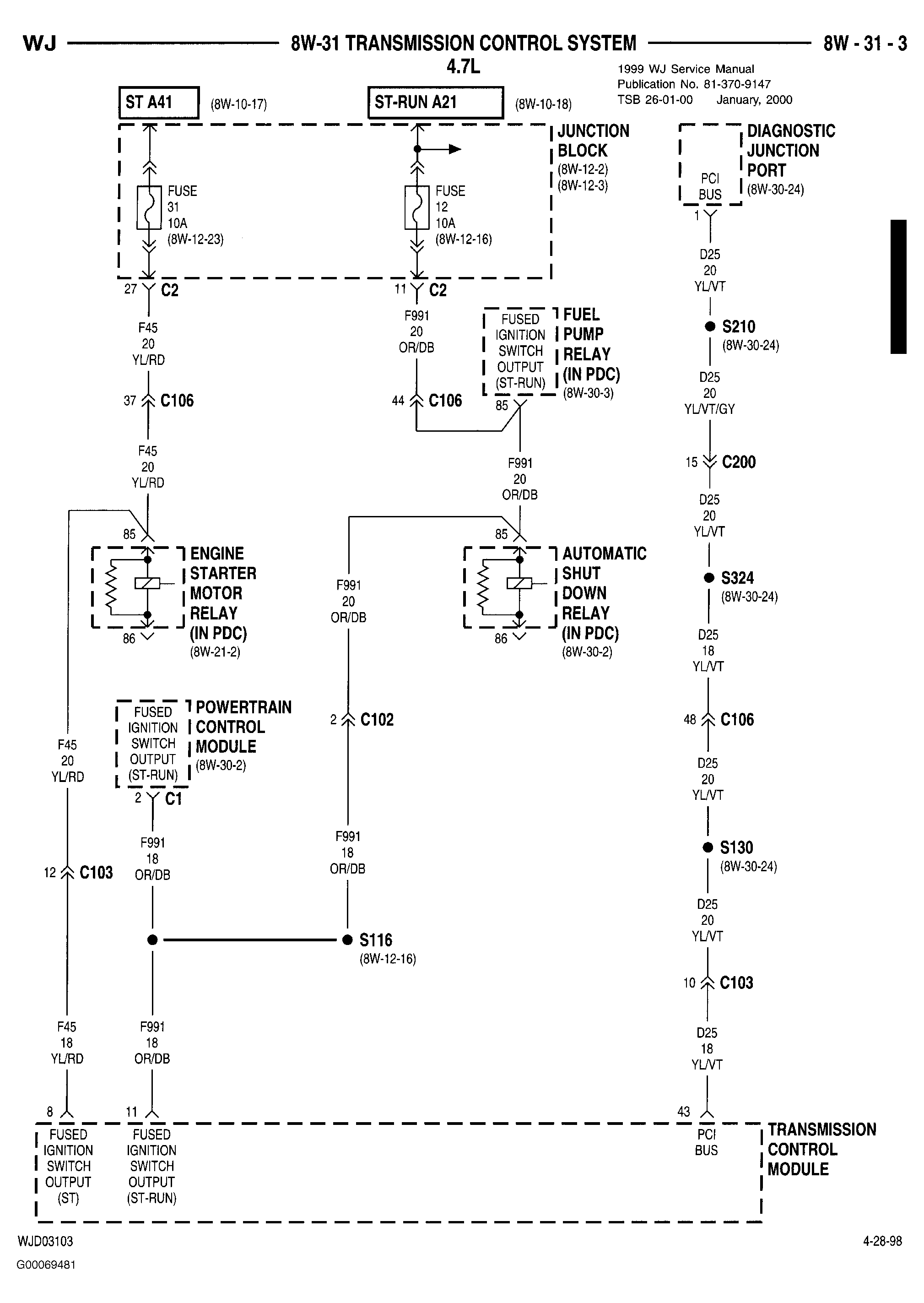

    Fig 82: 1999 WJ Service Manual Revision - Page 8W-31-3
    G00069481

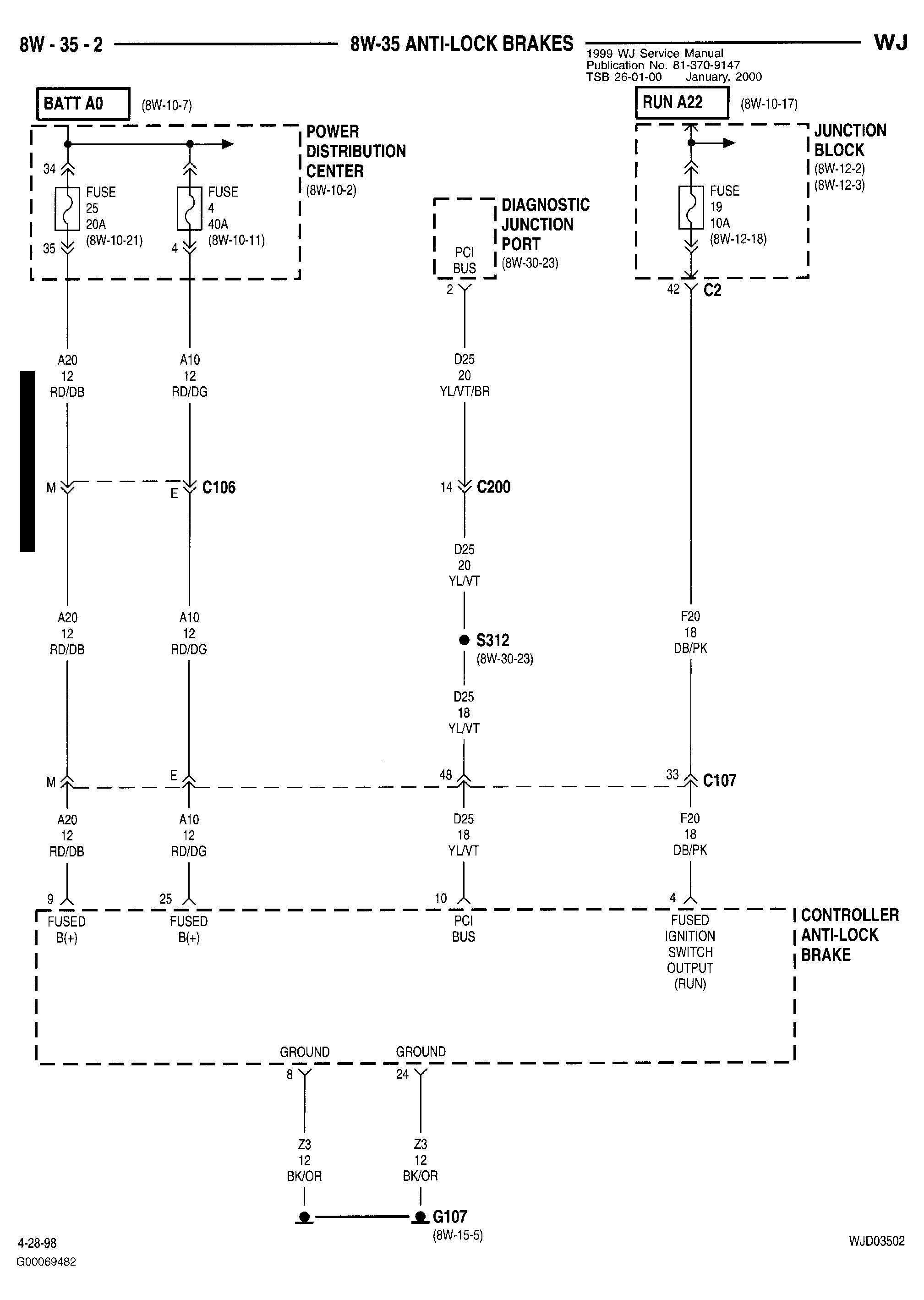

    Fig 83: 1999 WJ Service Manual Revision - Page 8W-35-2
    G00069482

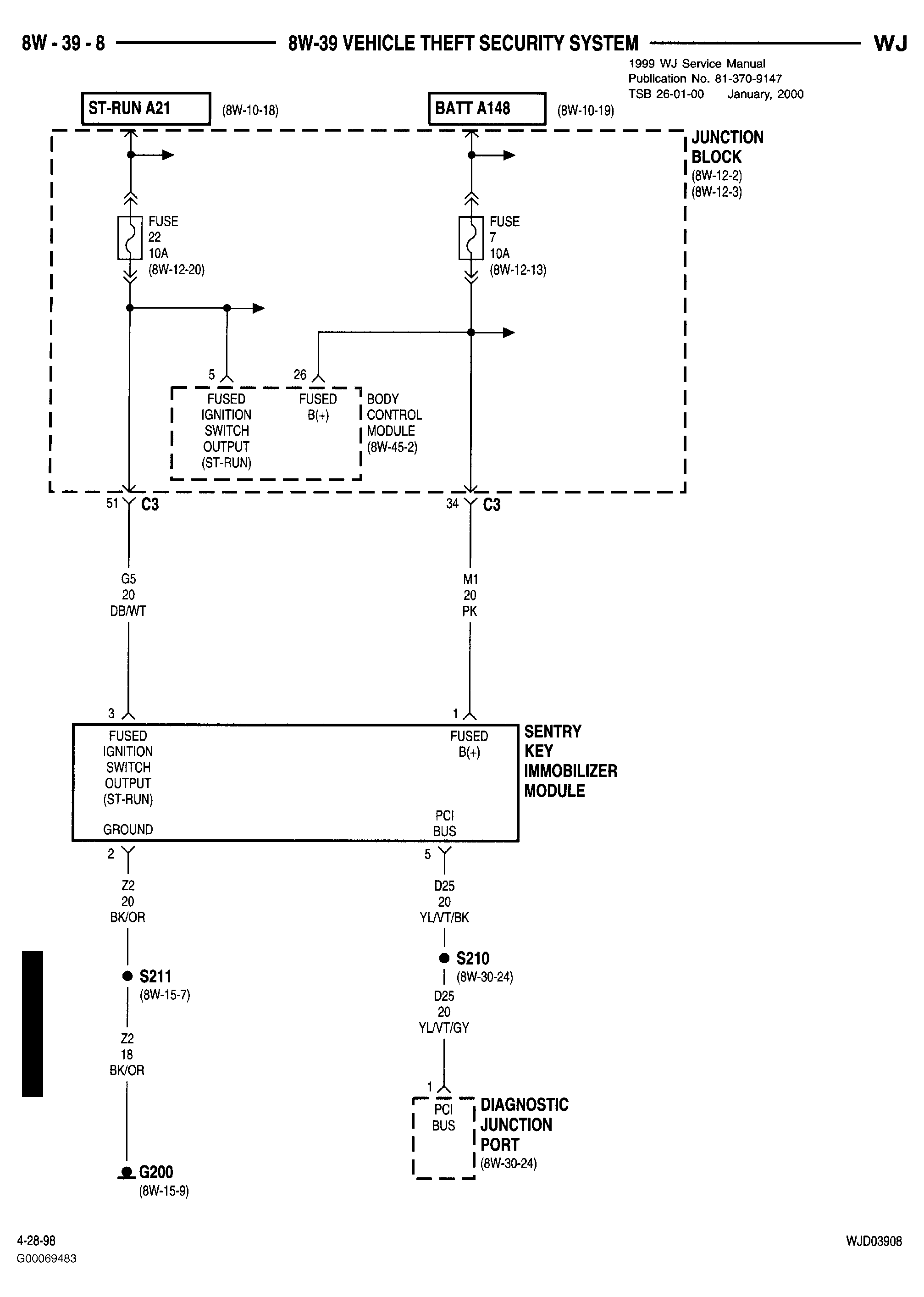

    Fig 84: 1999 WJ Service Manual Revision - Page 8W-39-8
    G00069483

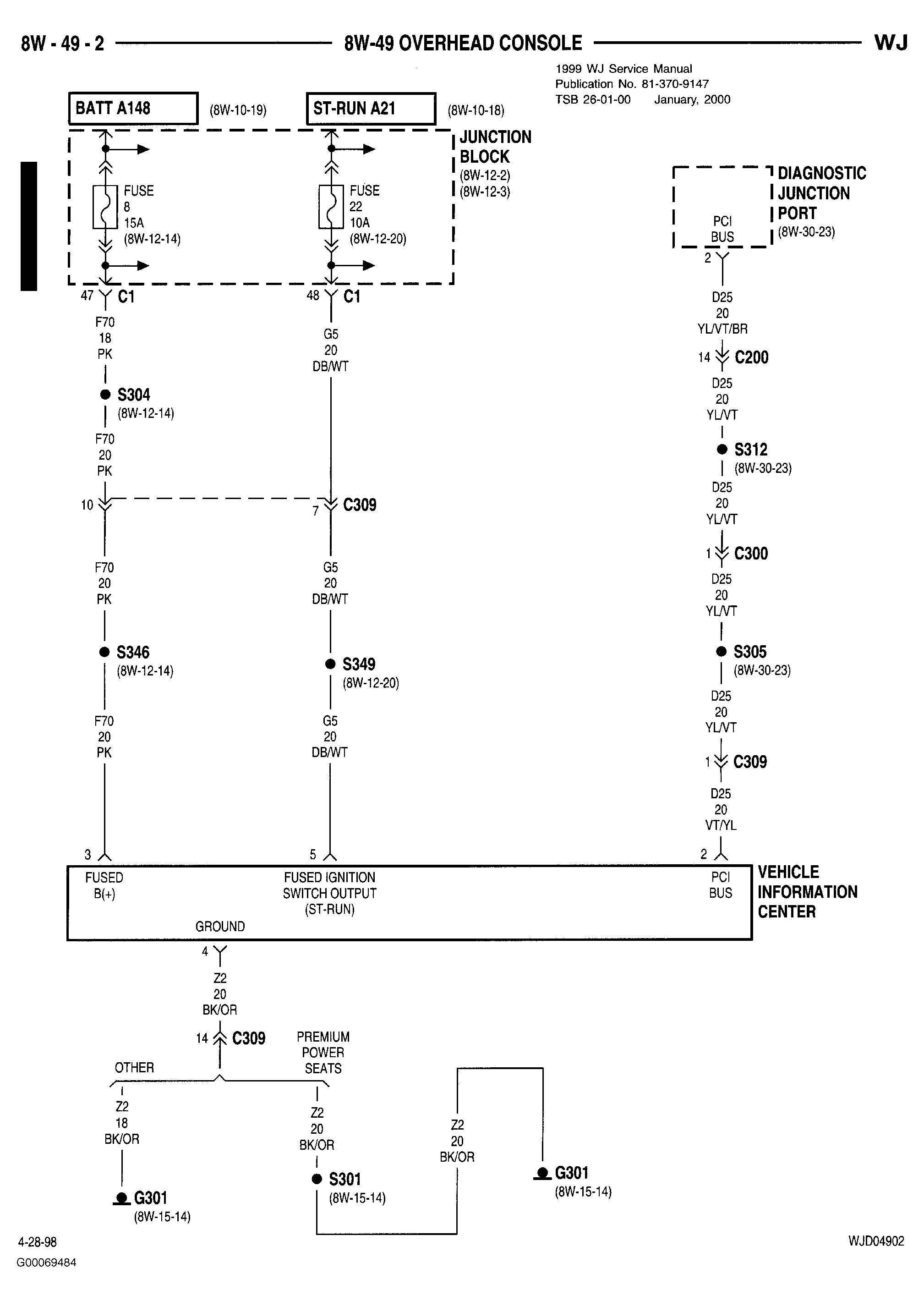

    Fig 85: 1999 WJ Service Manual Revision - Page 8W-49-2
    G00069484

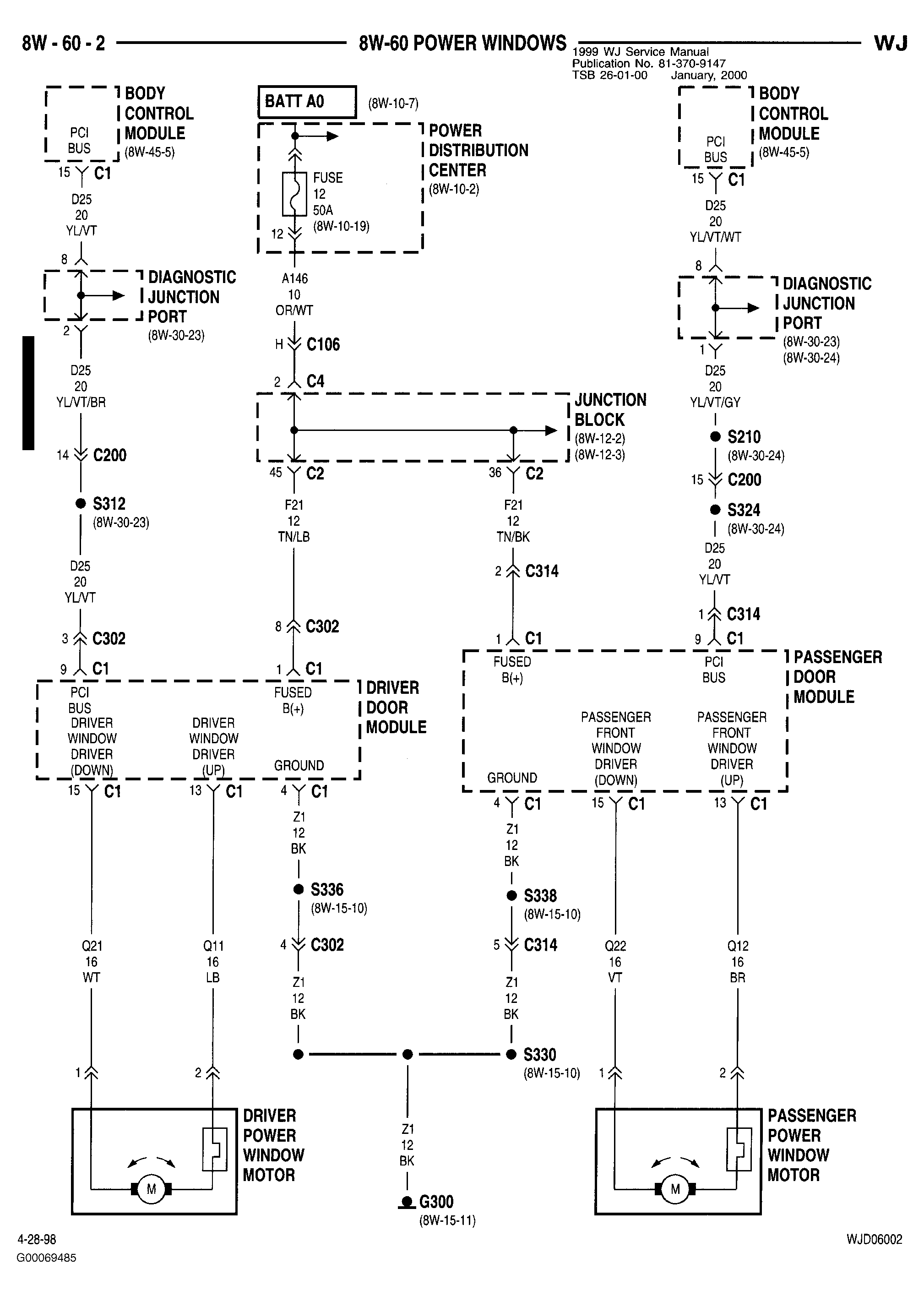

    Fig 86: 1999 WJ Service Manual Revision - Page 8W-60-2
    G00069485

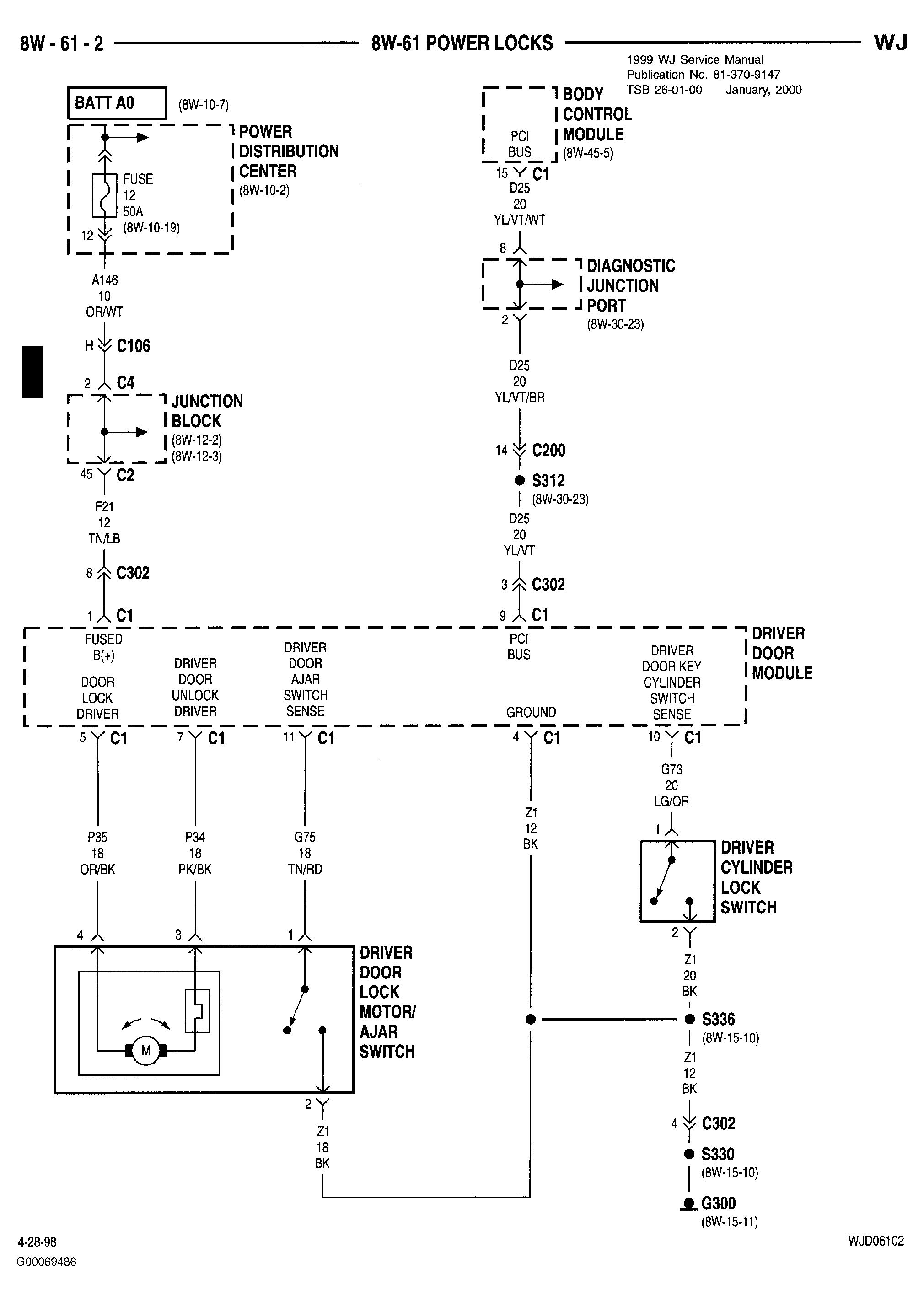

    Fig 87: 1999 WJ Service Manual Revision - Page 8W-61-2
    G00069486

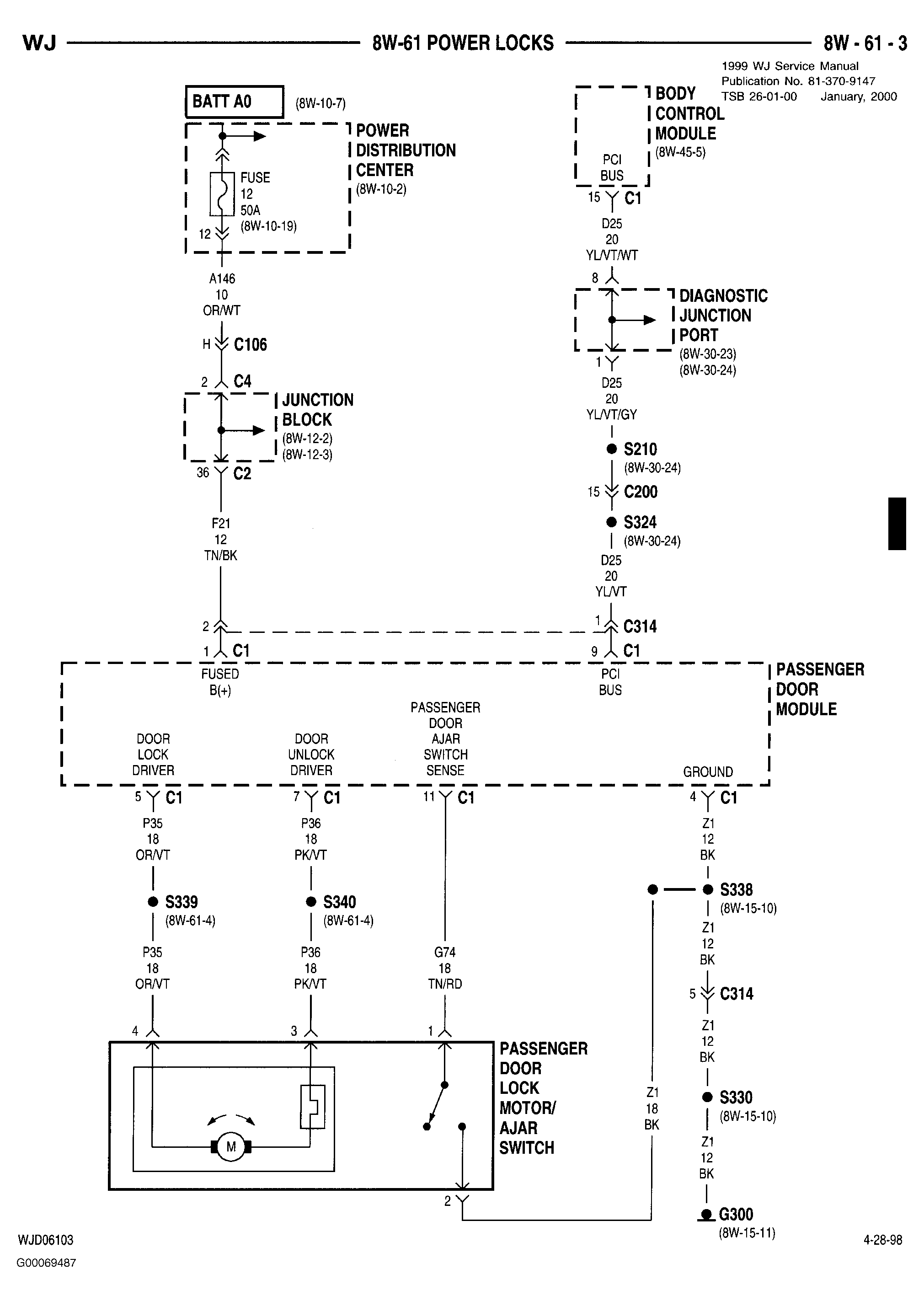

    Fig 88: 1999 WJ Service Manual Revision - Page 8W-61-3
    G00069487

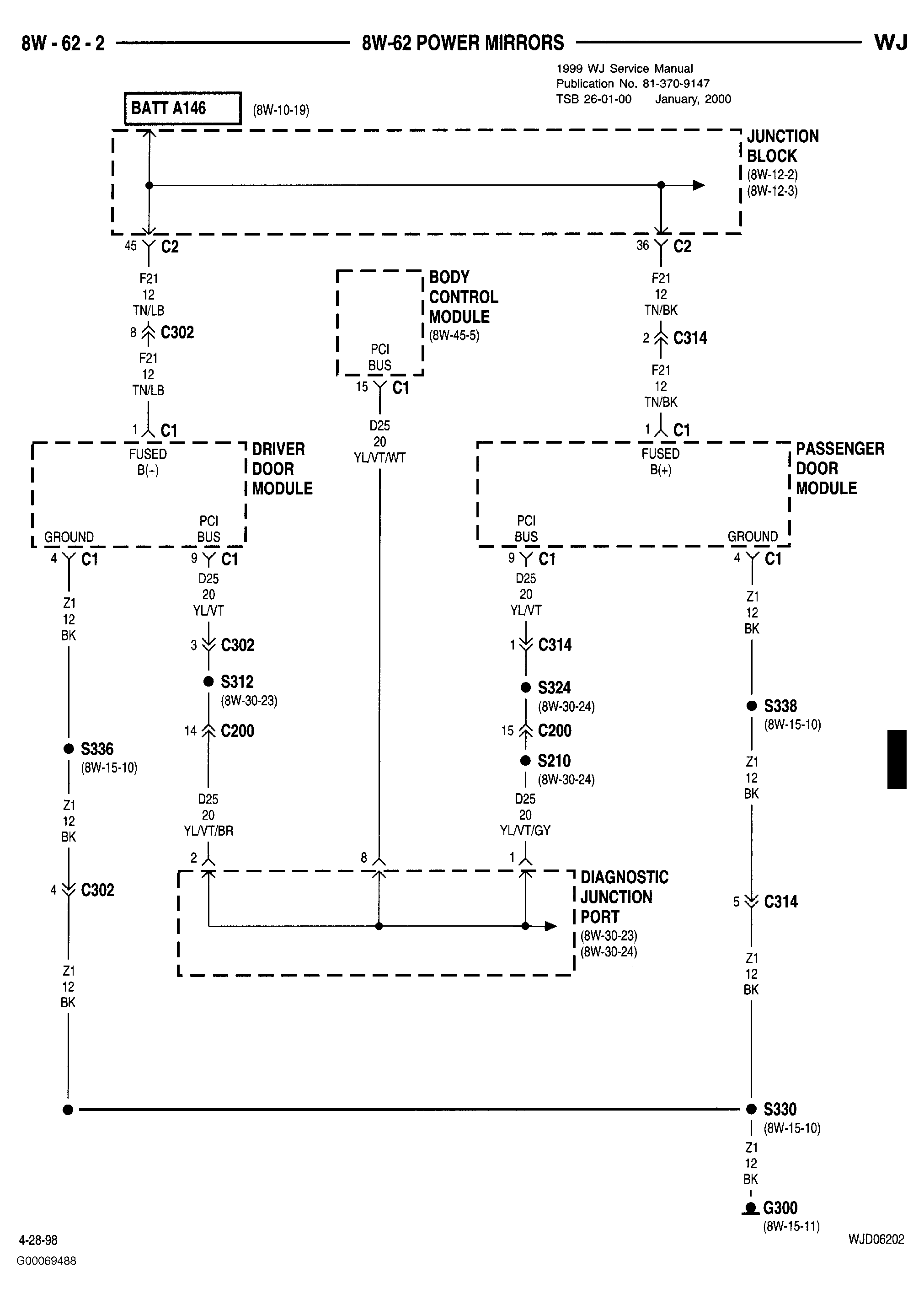

    Fig 89: 1999 WJ Service Manual Revision - Page 8W-62-2
    G00069488

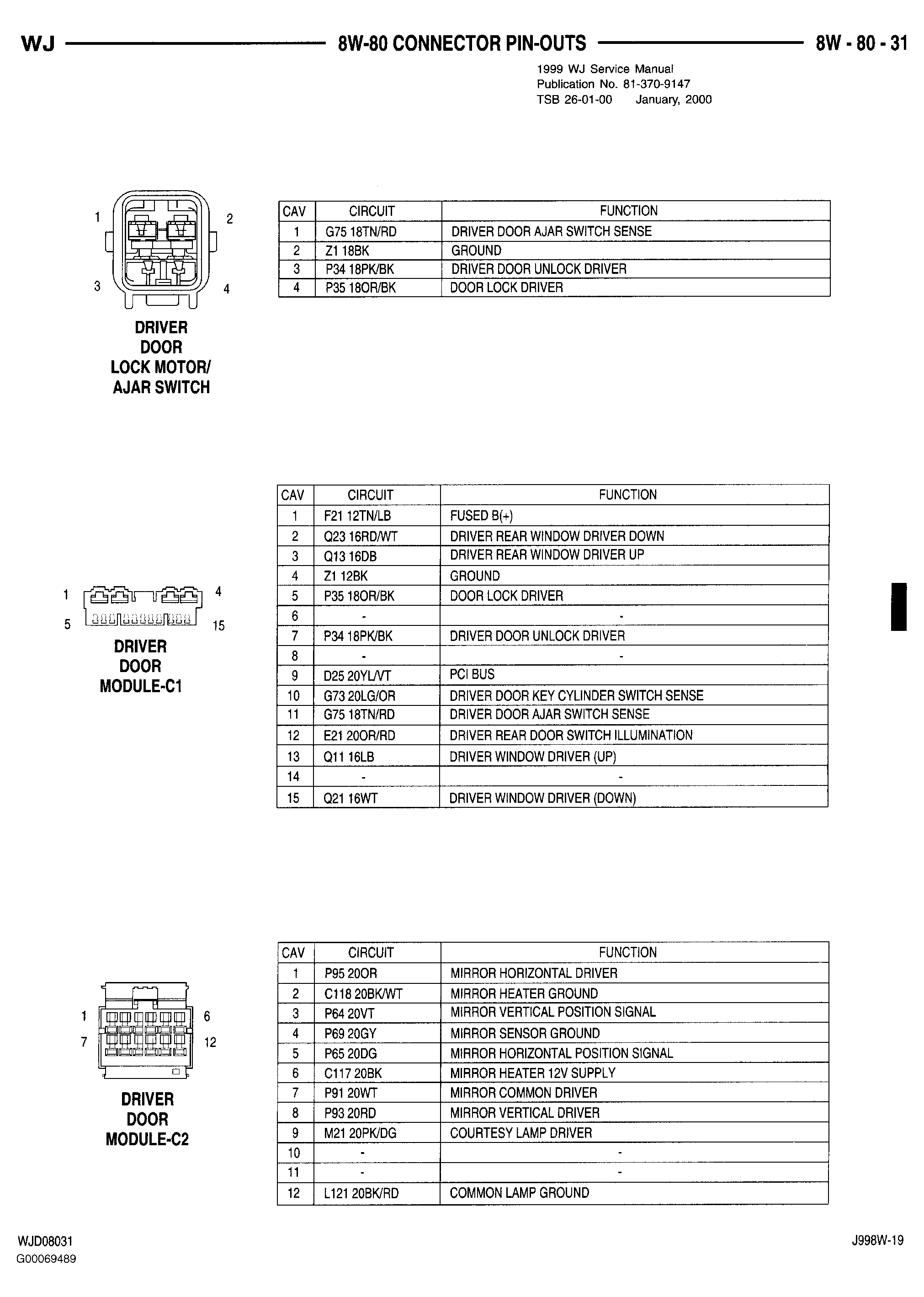

    Fig 90: 1999 WJ Service Manual Revision - Page 8W-80-31
    G00069489

  4. DESCRIPTION OF CHANGES
    Revisions to the wiring schematics

1999 Ram Truck Service Manual - Publication Number 81-370-9108

  1. PAGES
    5-2

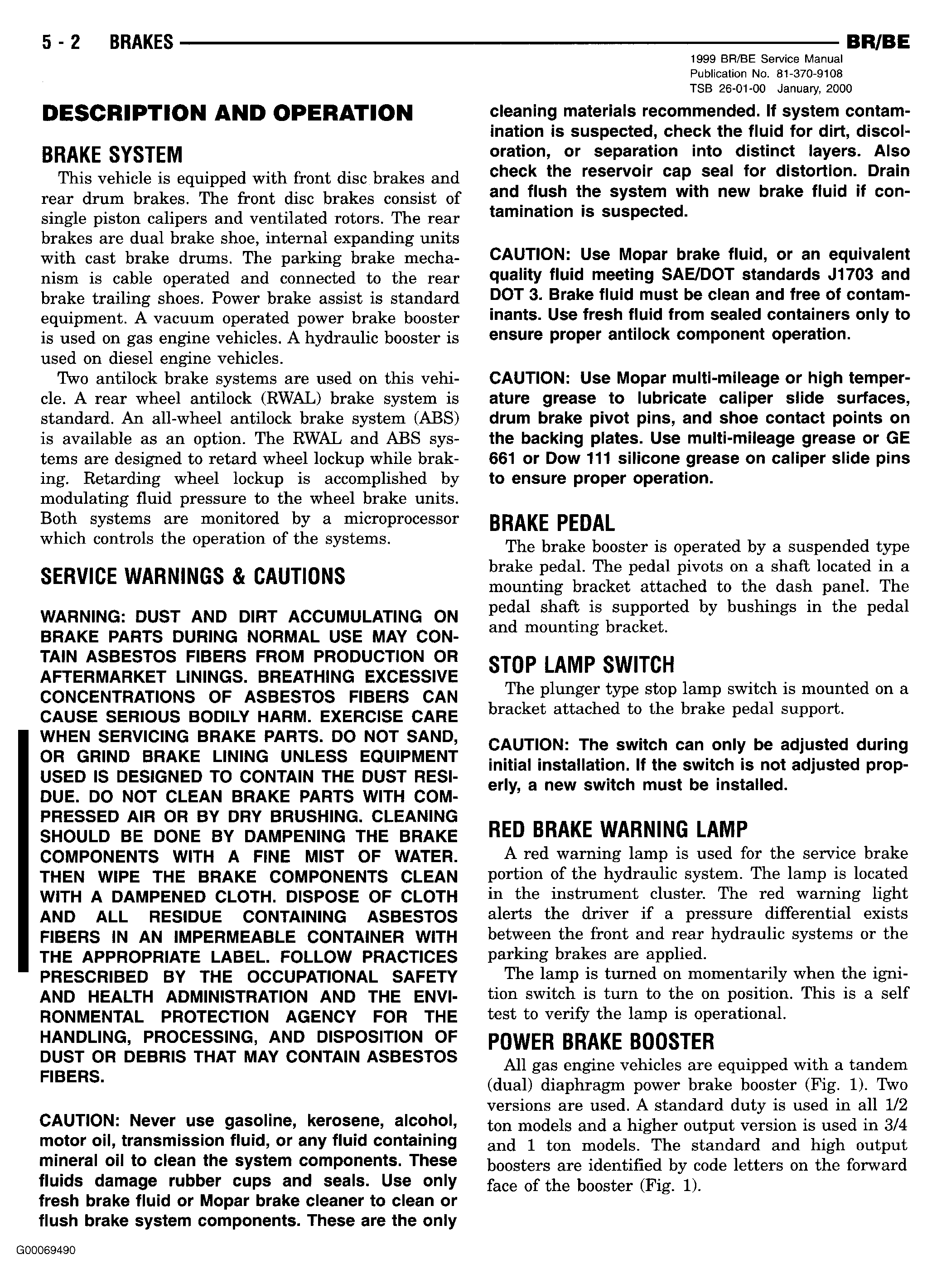

    Fig 91: 1999 BR/BE Service Manual Revision - Page 5-2
    G00069490

  2. DESCRIPTION OF CHANGES
    Revisions to the warnings and cautions relating to brake dust

  3. PAGES
    PAGES - 8W-10-17, 8W-15-8, 8W-20-3, 8W-30-7, 8W-30-16, 8W-30-17, 8W-30-21, 8W-30-22, 8W-30-26, 8W-30-28, 8W-30-30, 8W-30-31, 8W-30-35, 8W-30-36, 8W-30-39, 8W-31-4, 8W-45-7, 8W-45-9, 8W-70-5, 8W-80-6, 8W-80-23, 8W-80-33, 8W-80-34, 8W-80-36, 8W-80-40, 8W-80-41, 8W-80-44, 8W-80-48, 8W-80-56, 8W-80-58, 8W-80-59, 8W-80-62, 8W-80-63, 8W-80-65, 8W-80-67, 8W-80-77

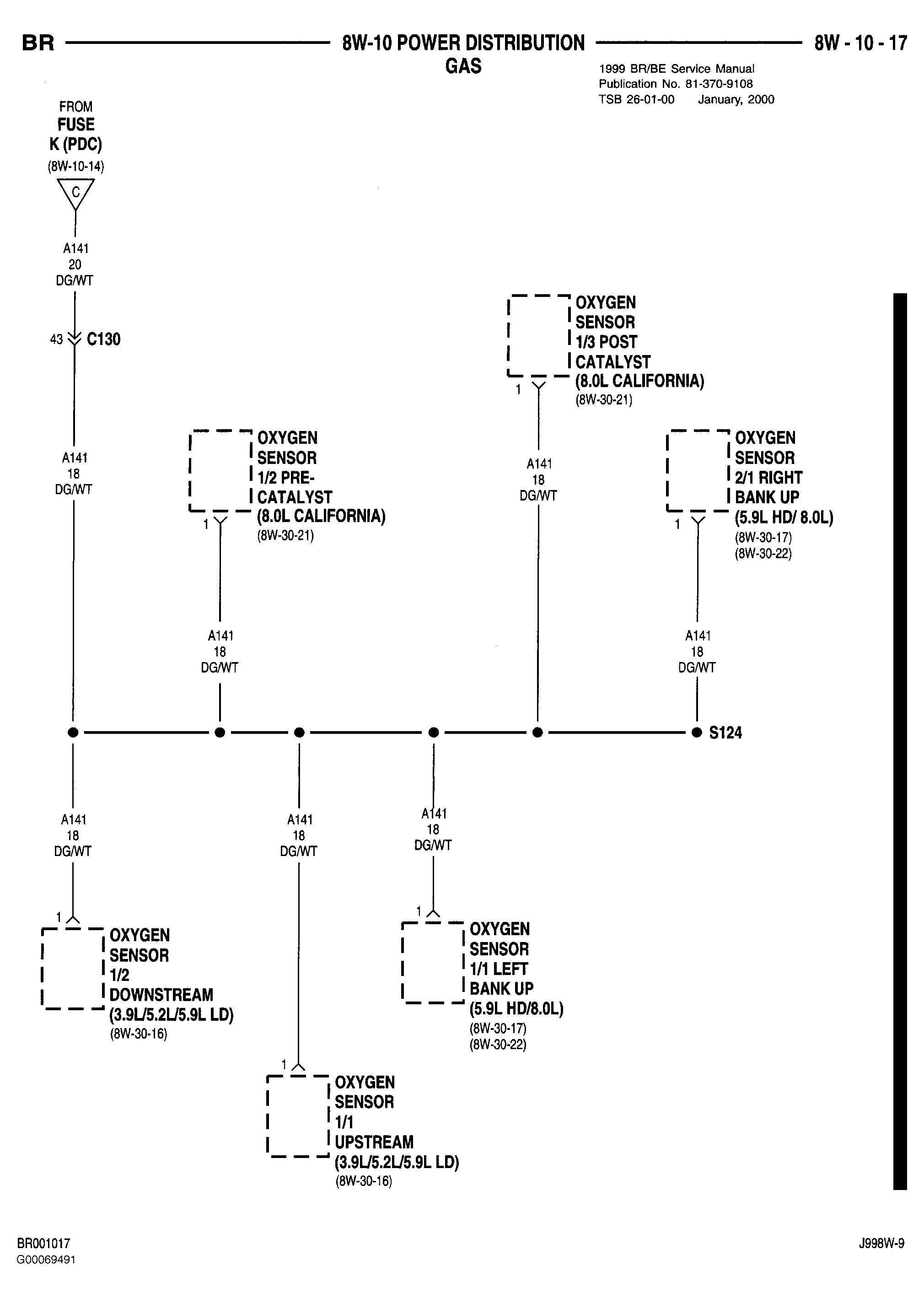

    Fig 92: 1999 BR Service Manual Revision - Page 8W-10-17
    G00069491

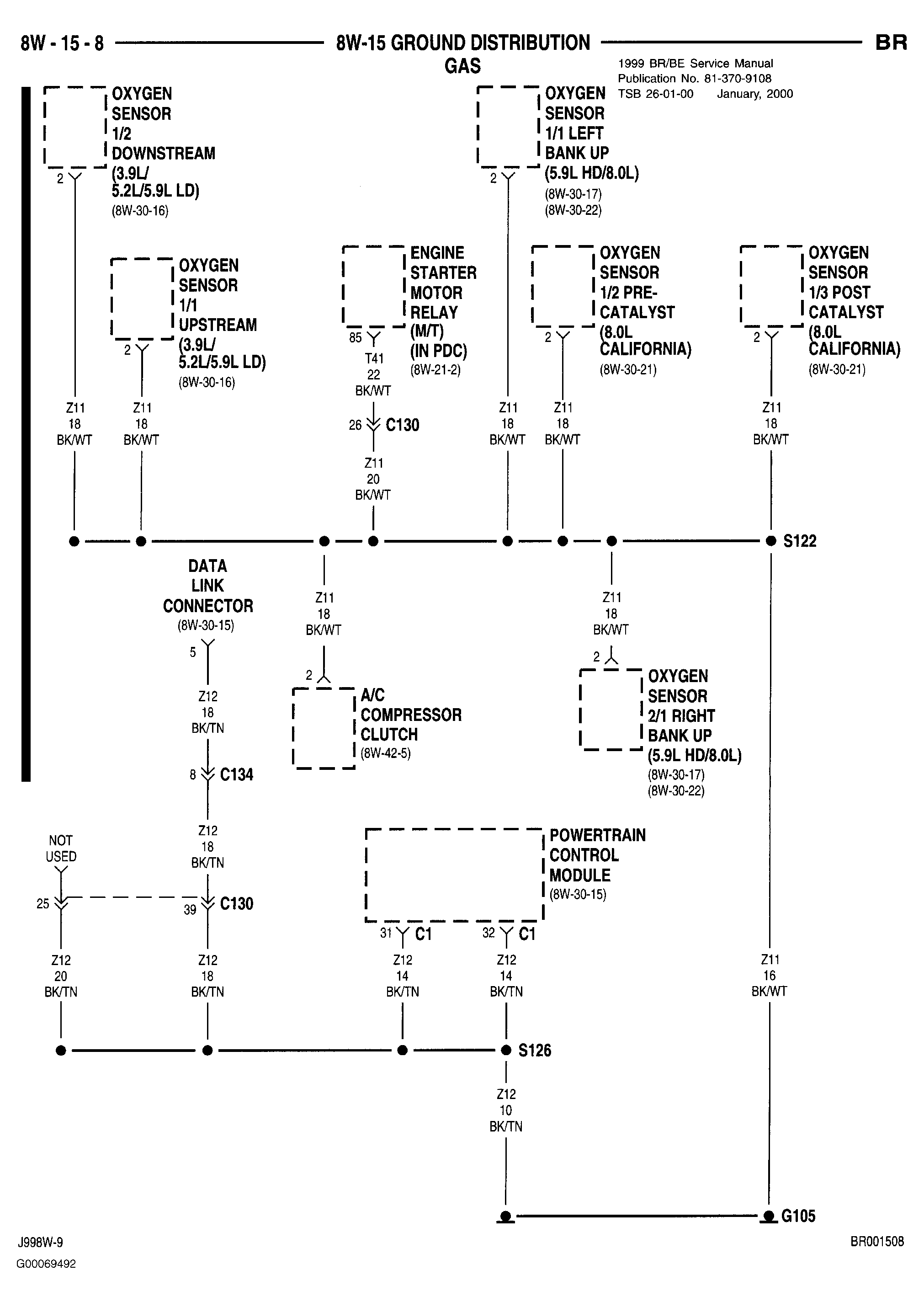

    Fig 93: 1999 BR Service Manual Revision - Page 8W-15-8
    G00069492

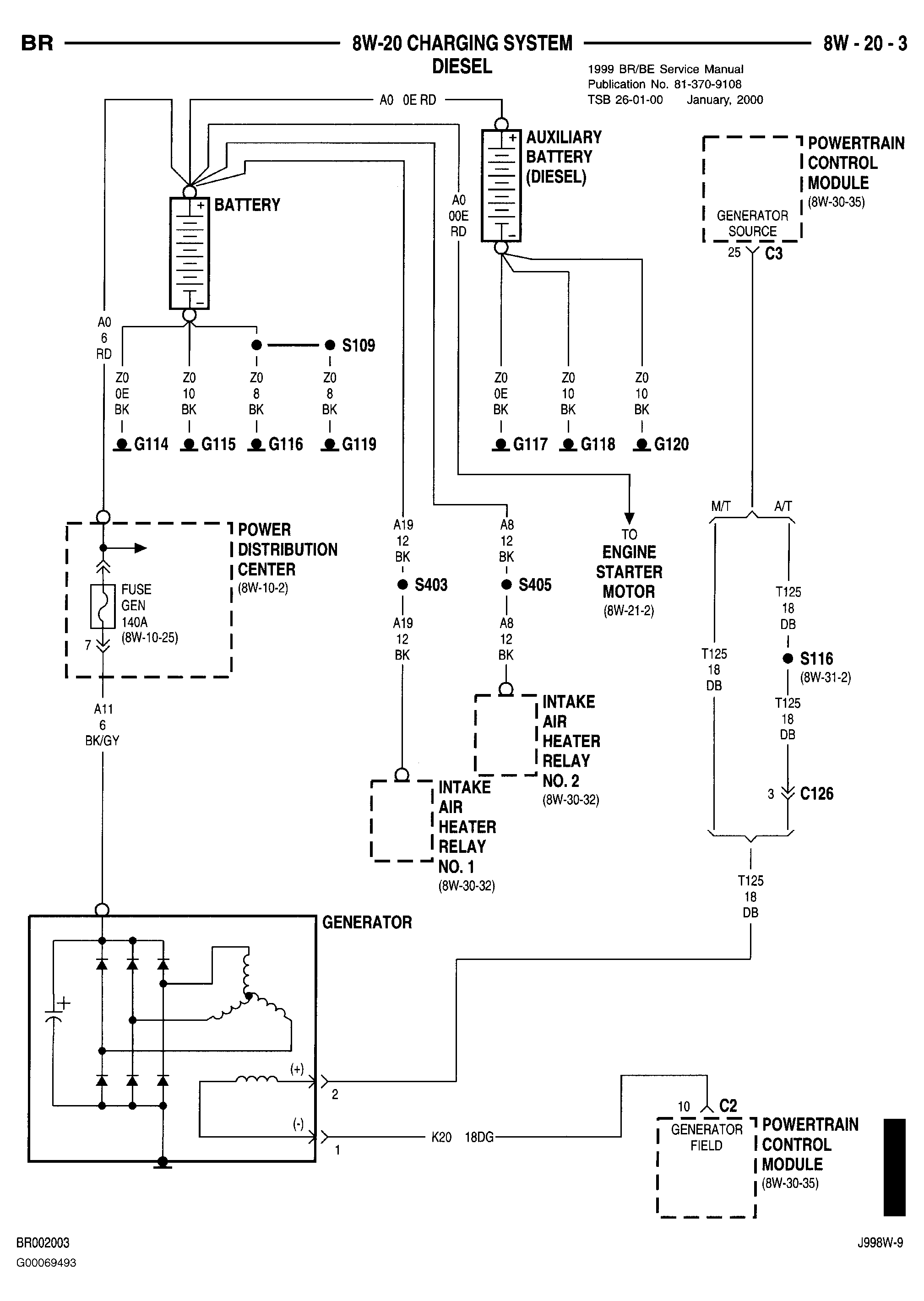

    Fig 94: 1999 BR Service Manual Revision - Page 8W-20-3
    G00069493

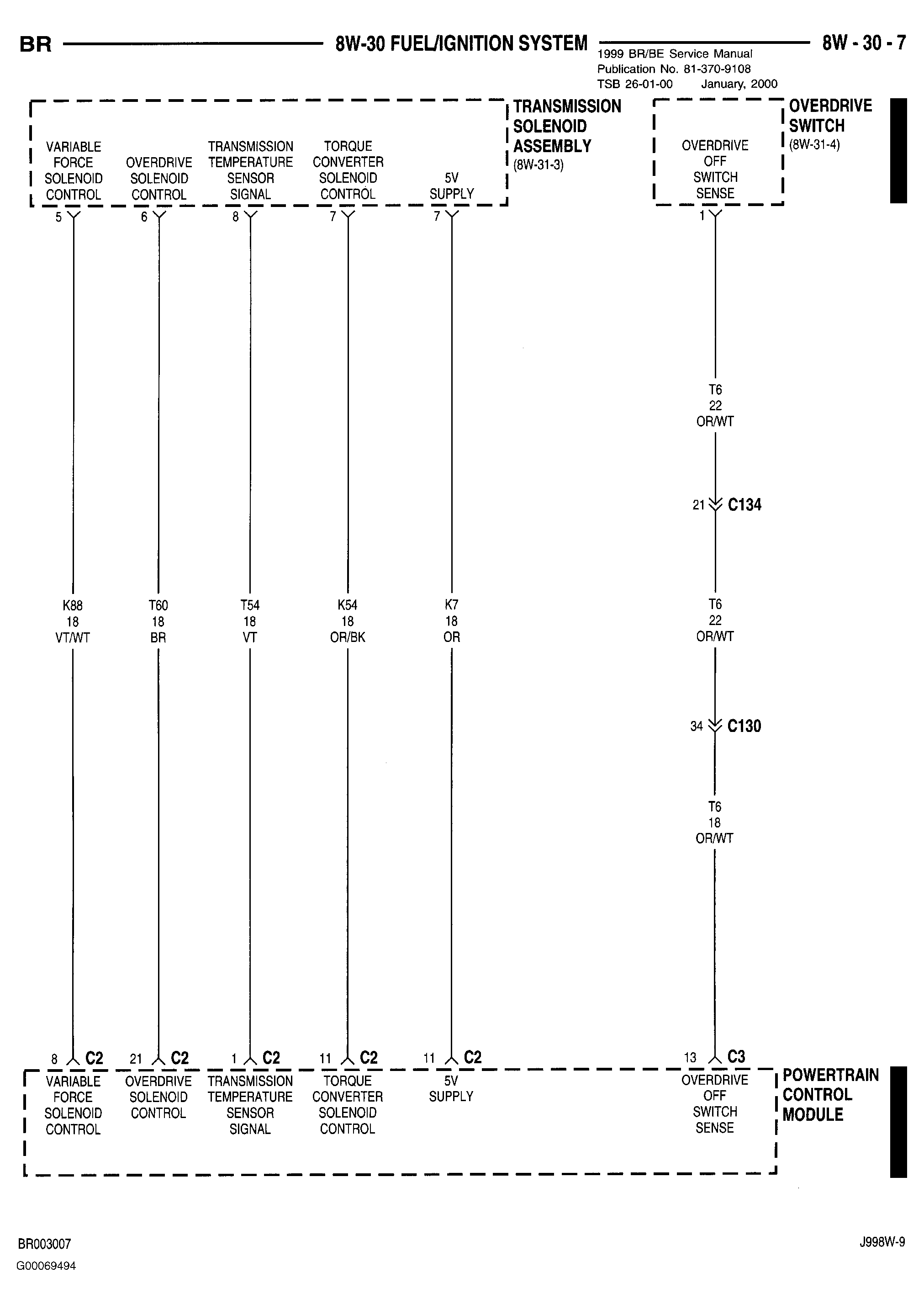

    Fig 95: 1999 BR Service Manual Revision - Page 8W-30-7
    G00069494

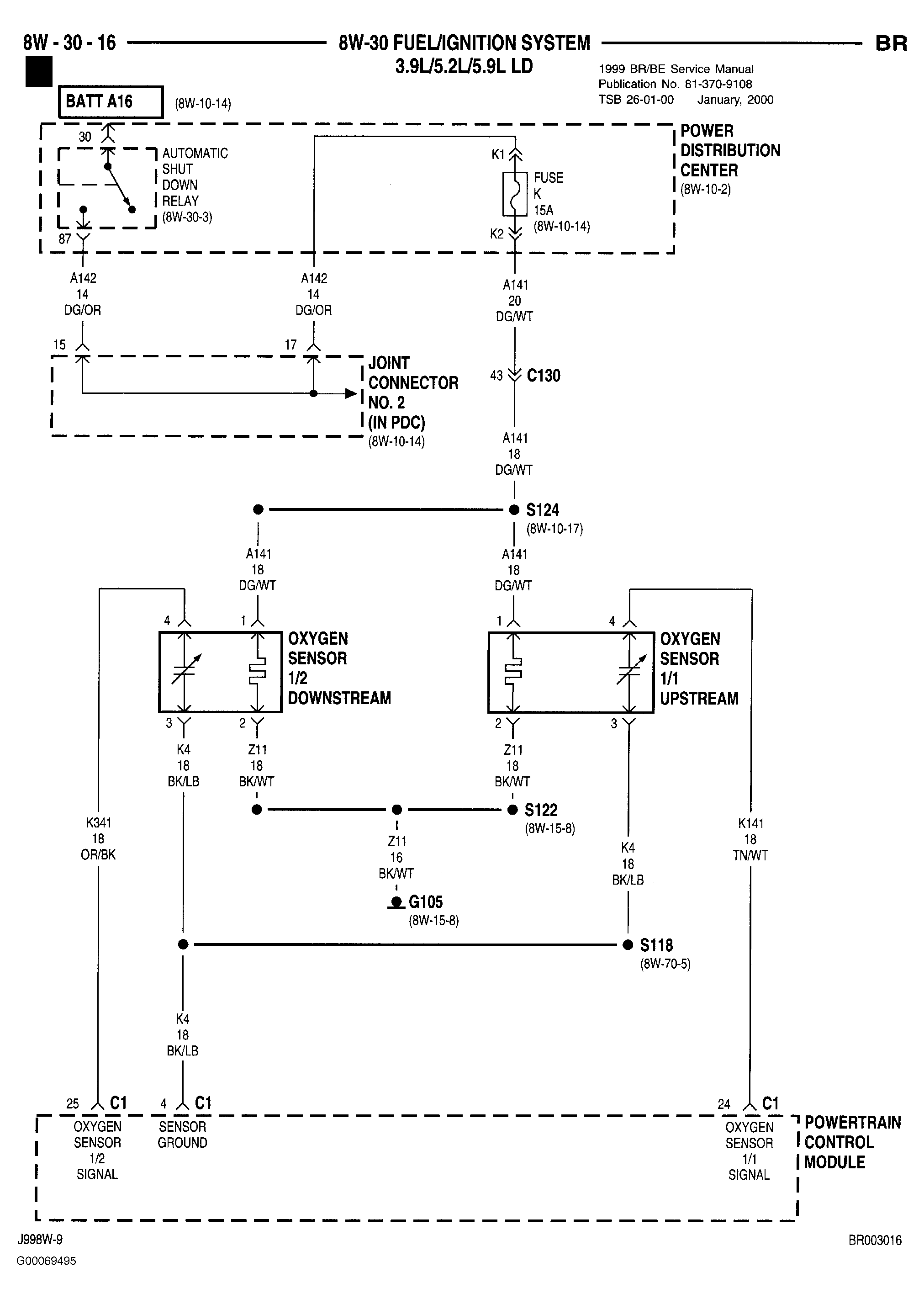

    Fig 96: 1999 BR Service Manual Revision - Page 8W-30-16
    G00069495

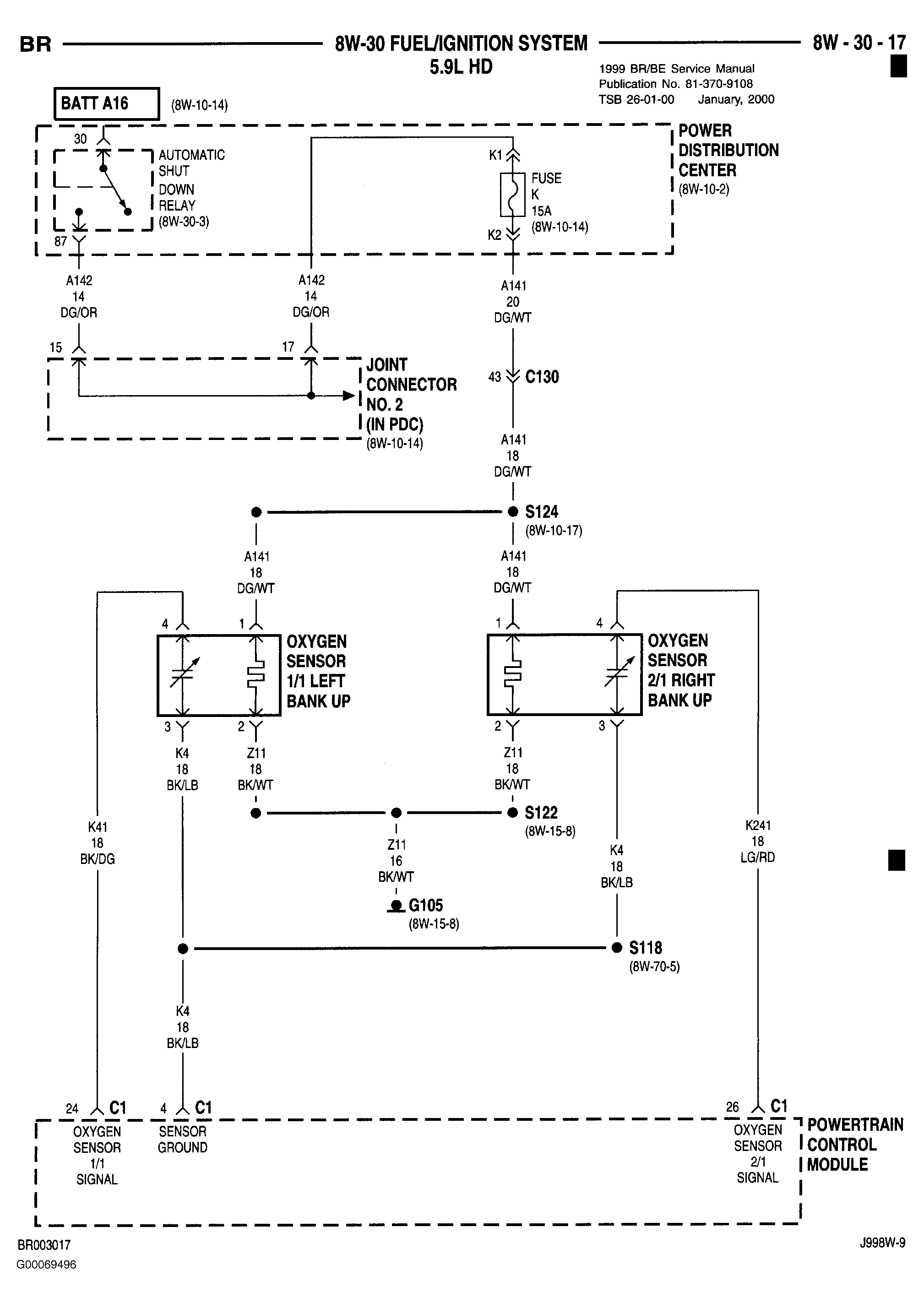

    Fig 97: 1999 BR Service Manual Revision - Page 8W-30-17
    G00069496

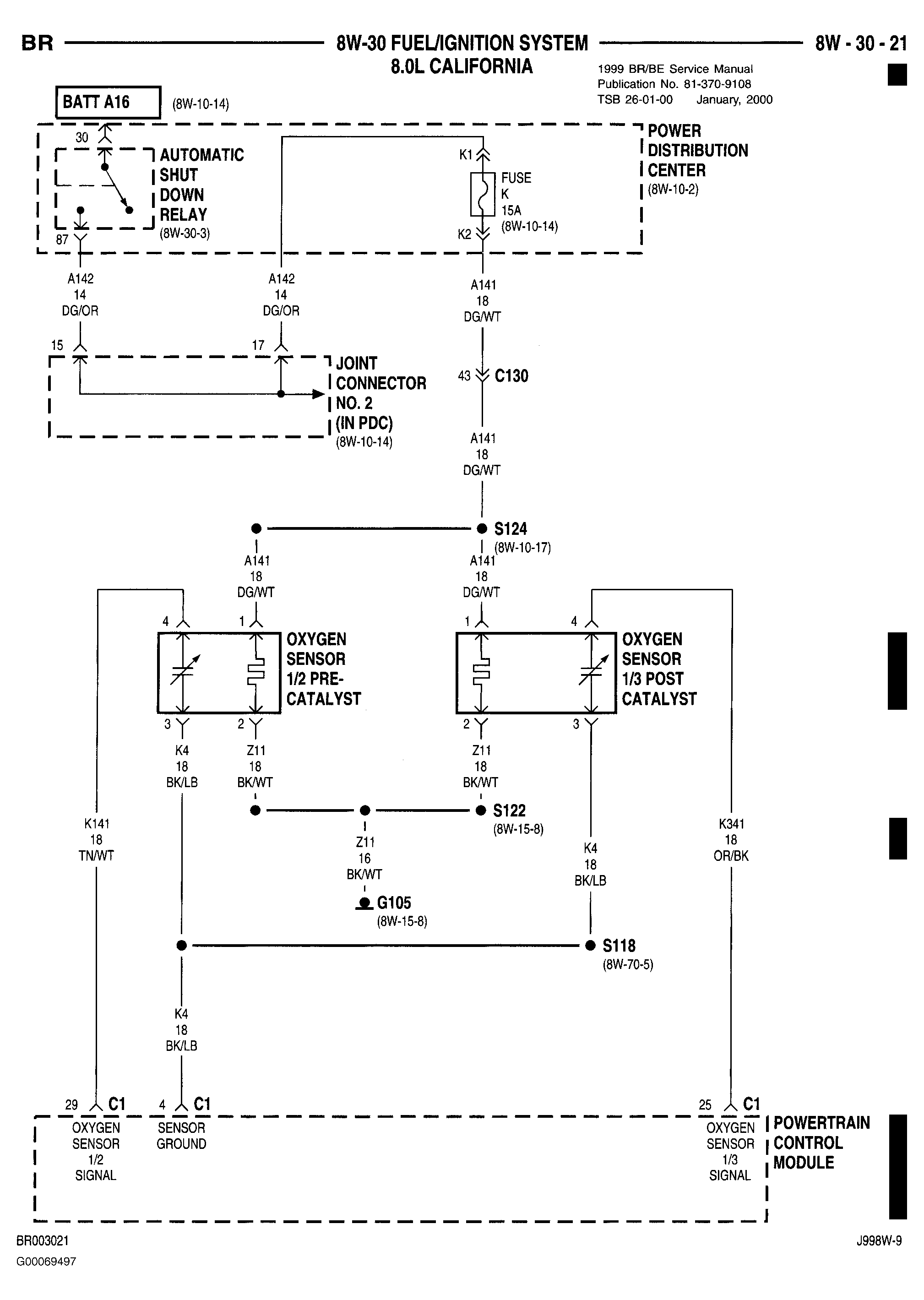

    Fig 98: 1999 BR Service Manual Revision - Page 8W-30-21
    G00069497

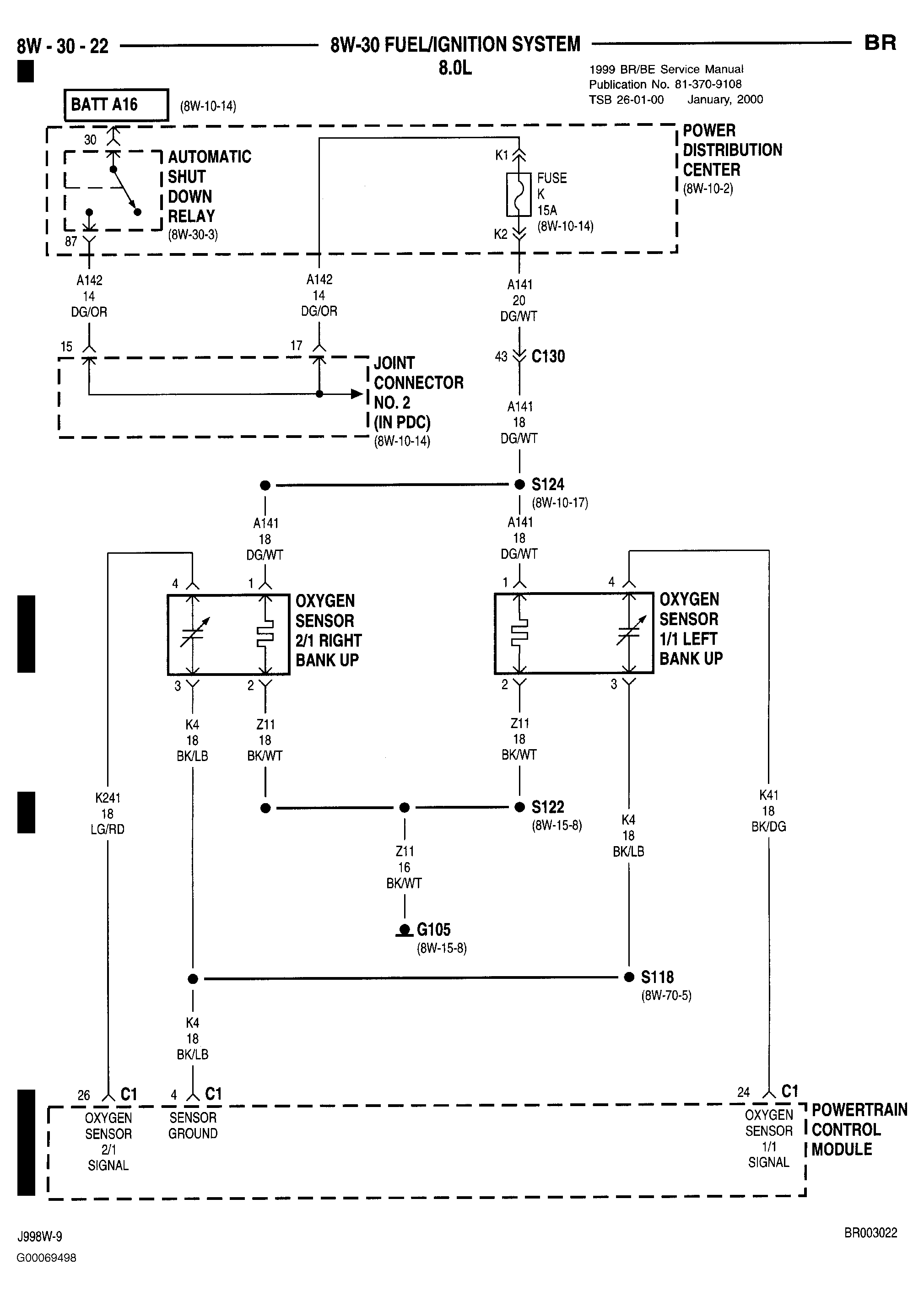

    Fig 99: 1999 BR Service Manual Revision - Page 8W-30-22
    G00069498

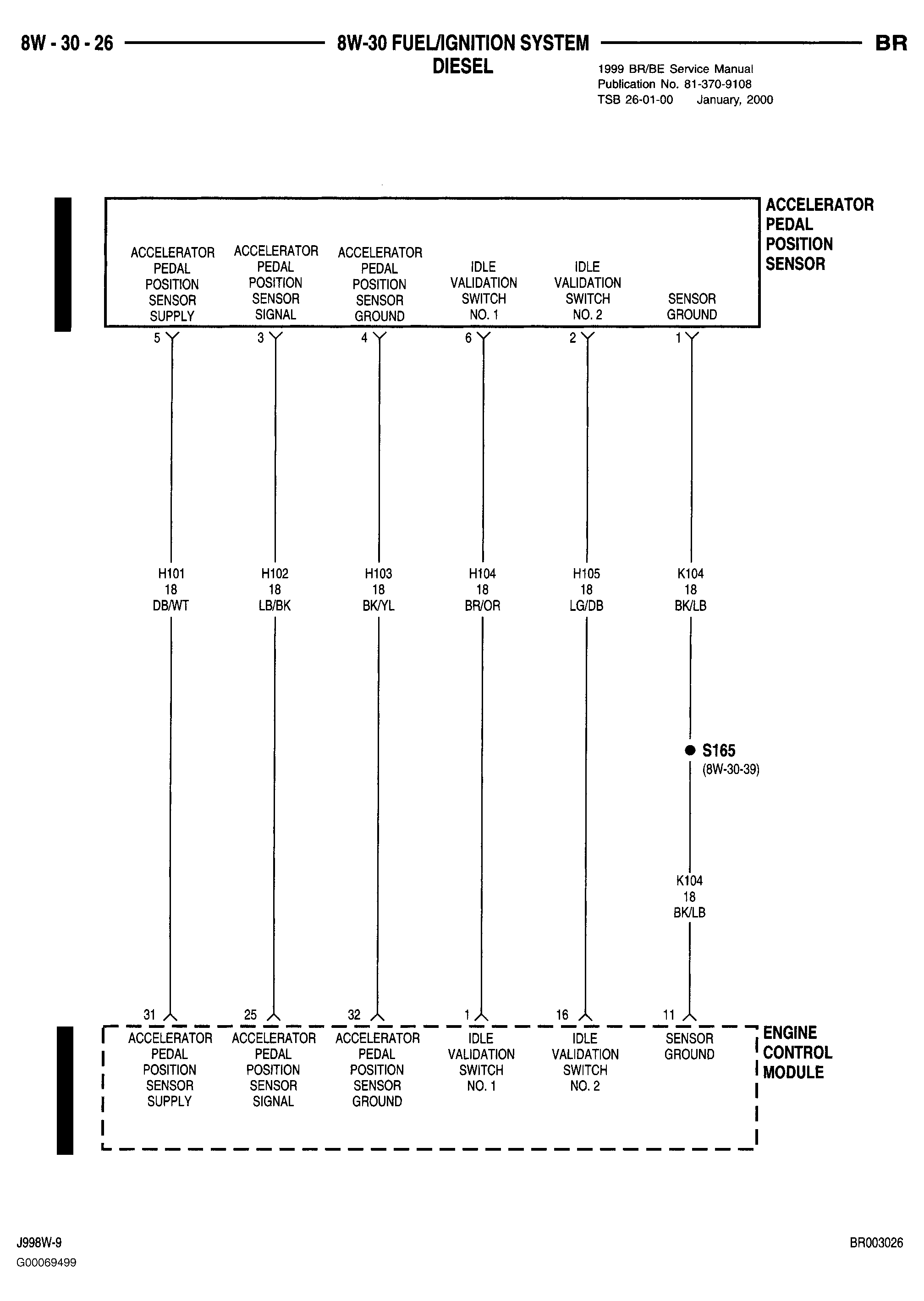

    Fig 100: 1999 BR Service Manual Revision - Page 8W-30-26
    G00069499

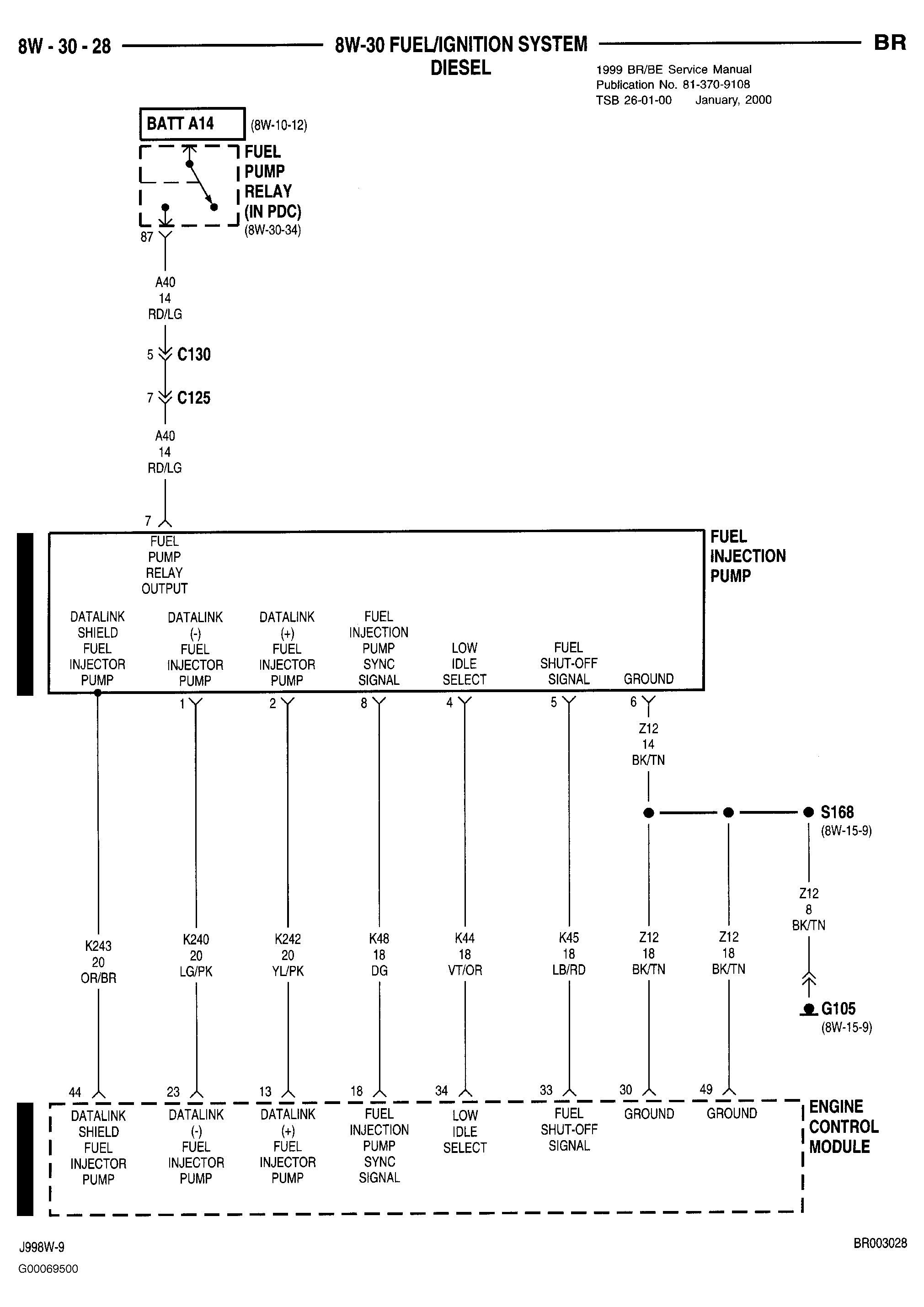

    Fig 101: 1999 BR Service Manual Revision - Page 8W-30-28
    G00069500

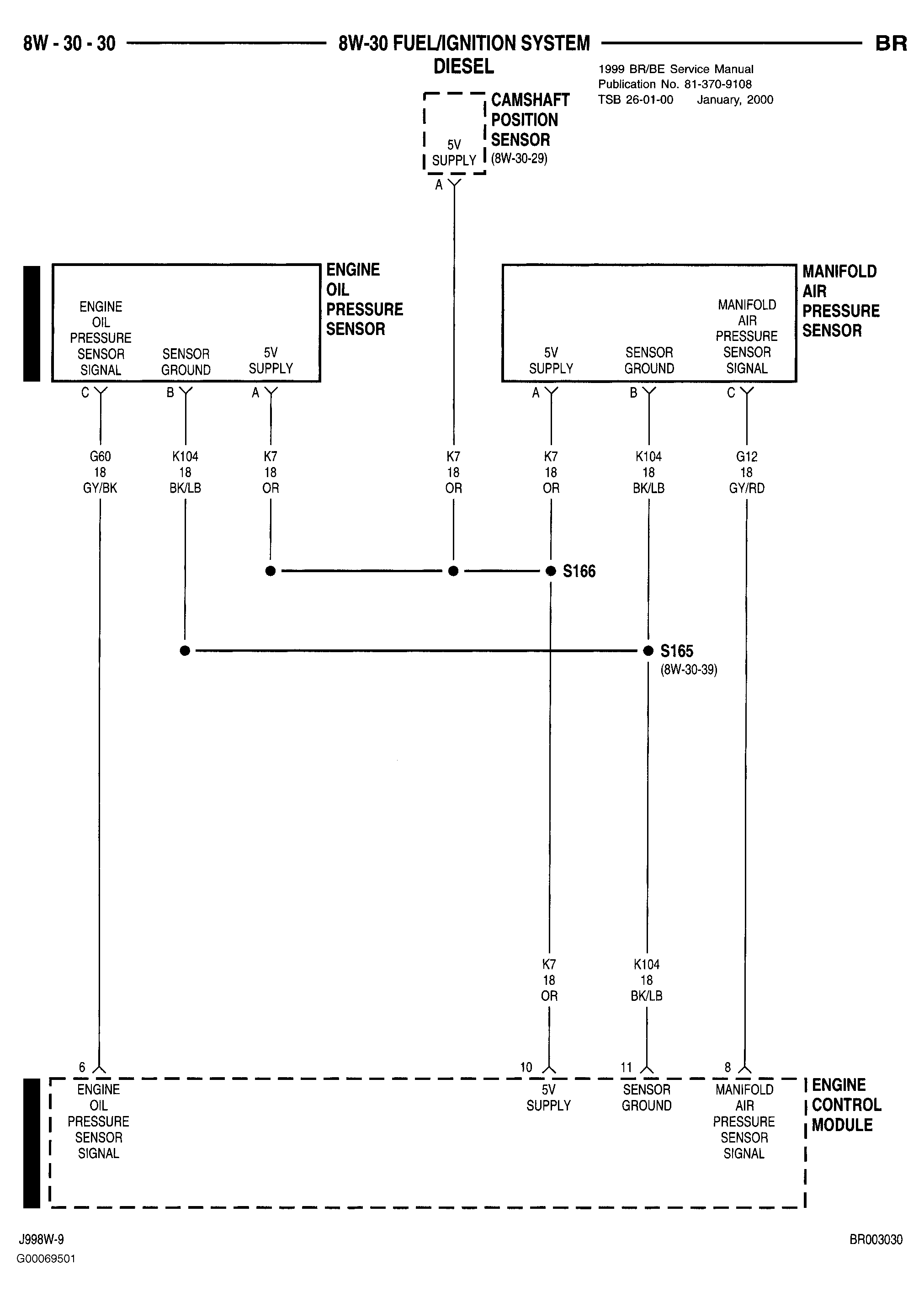

    Fig 102: 1999 BR Service Manual Revision - Page 8W-30-30
    G00069501

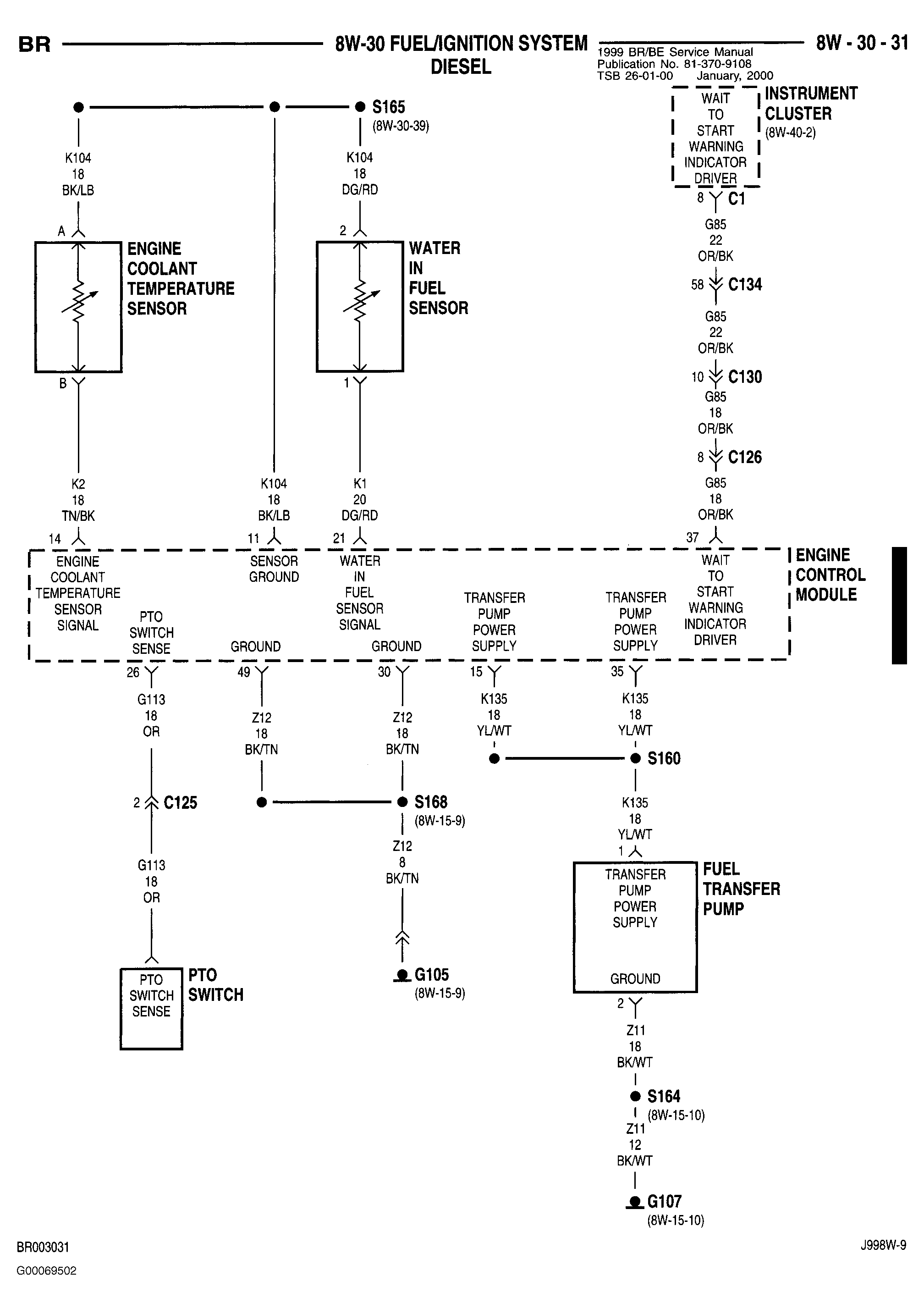

    Fig 103: 1999 BR Service Manual Revision - Page 8W-30-31
    G00069502

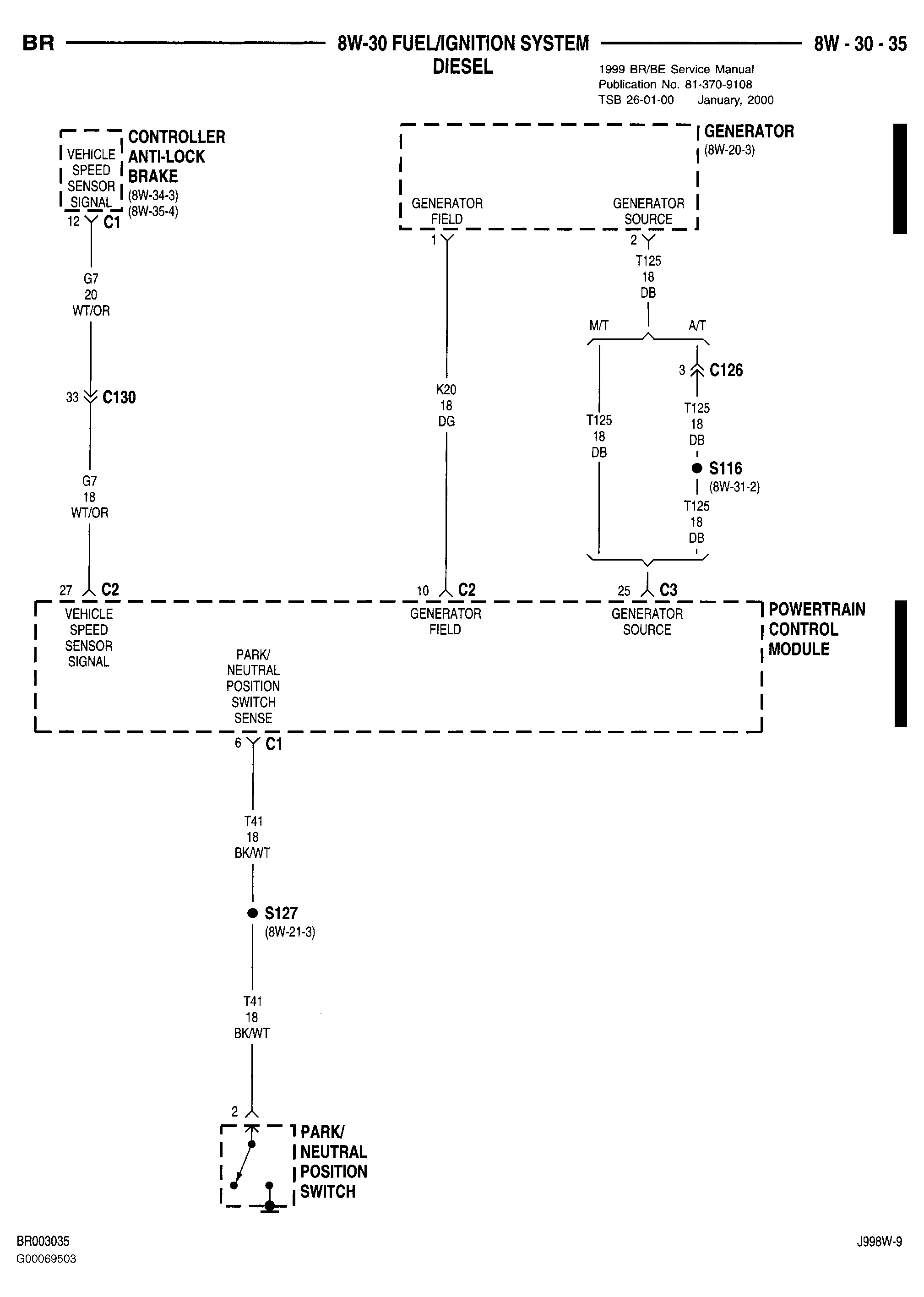

    Fig 104: 1999 BR Service Manual Revision - Page 8W-30-35
    G00069503

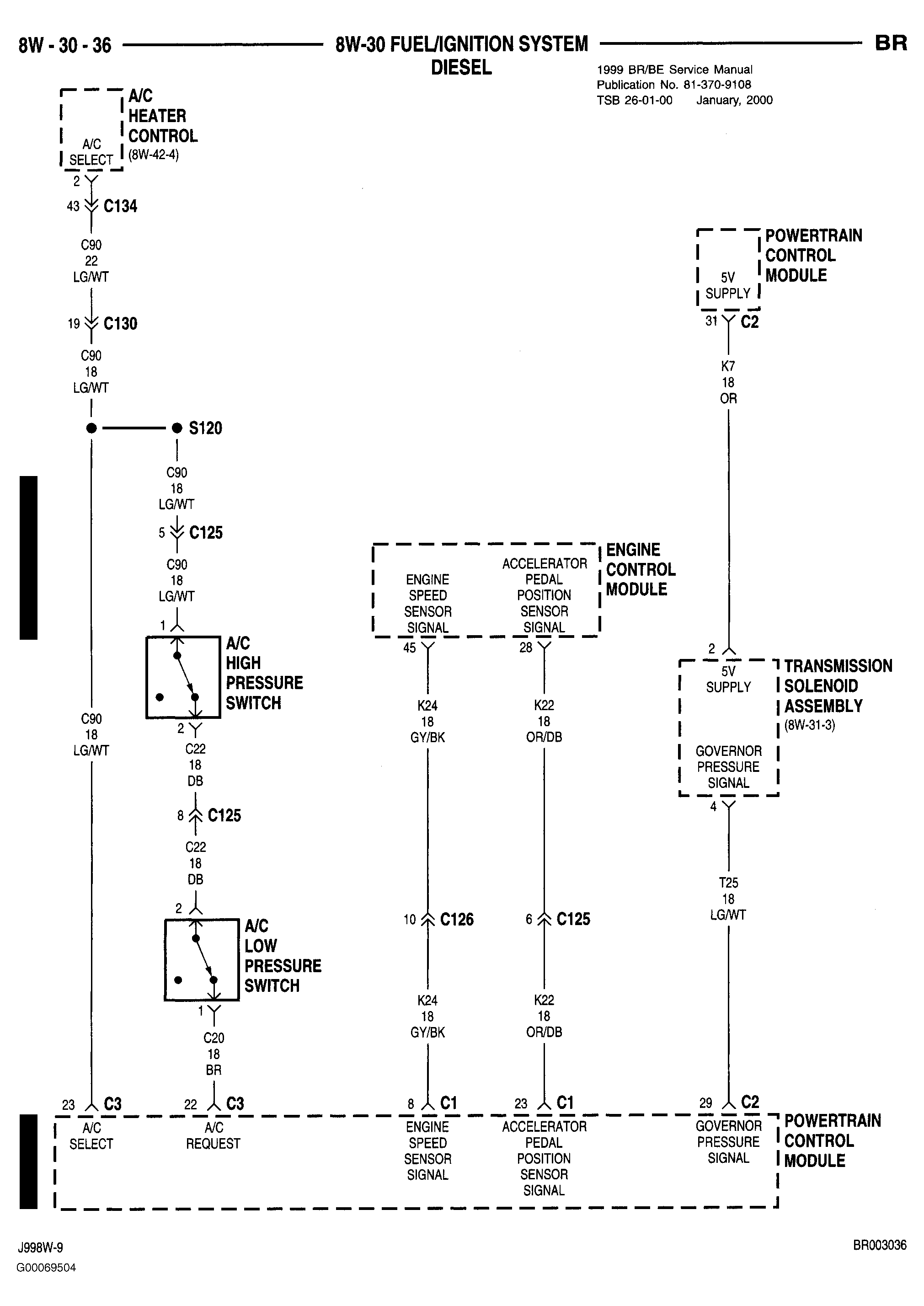

    Fig 105: 1999 BR Service Manual Revision - Page 8W-30-36
    G00069504

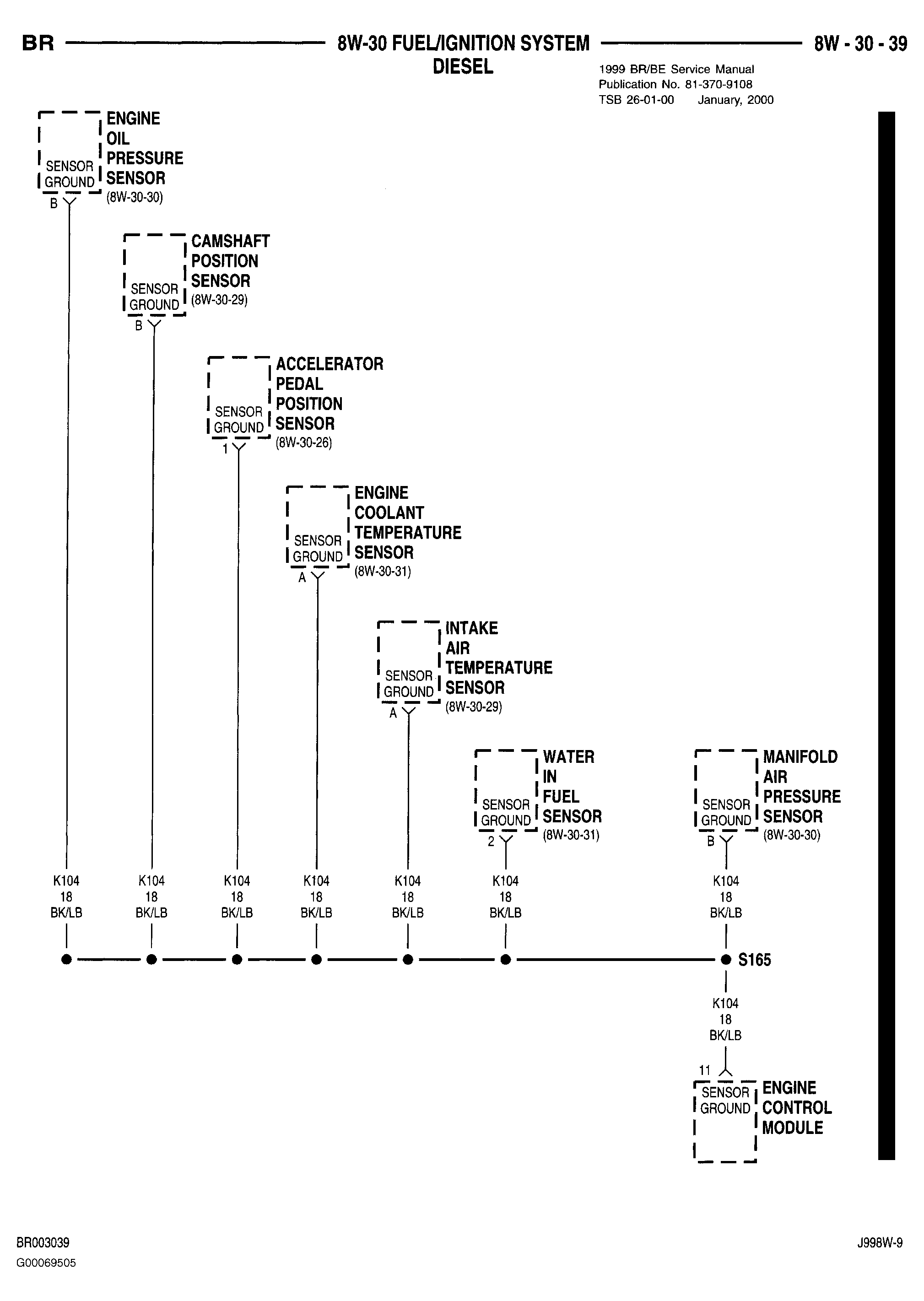

    Fig 106: 1999 BR Service Manual Revision - Page 8W-30-39
    G00069505

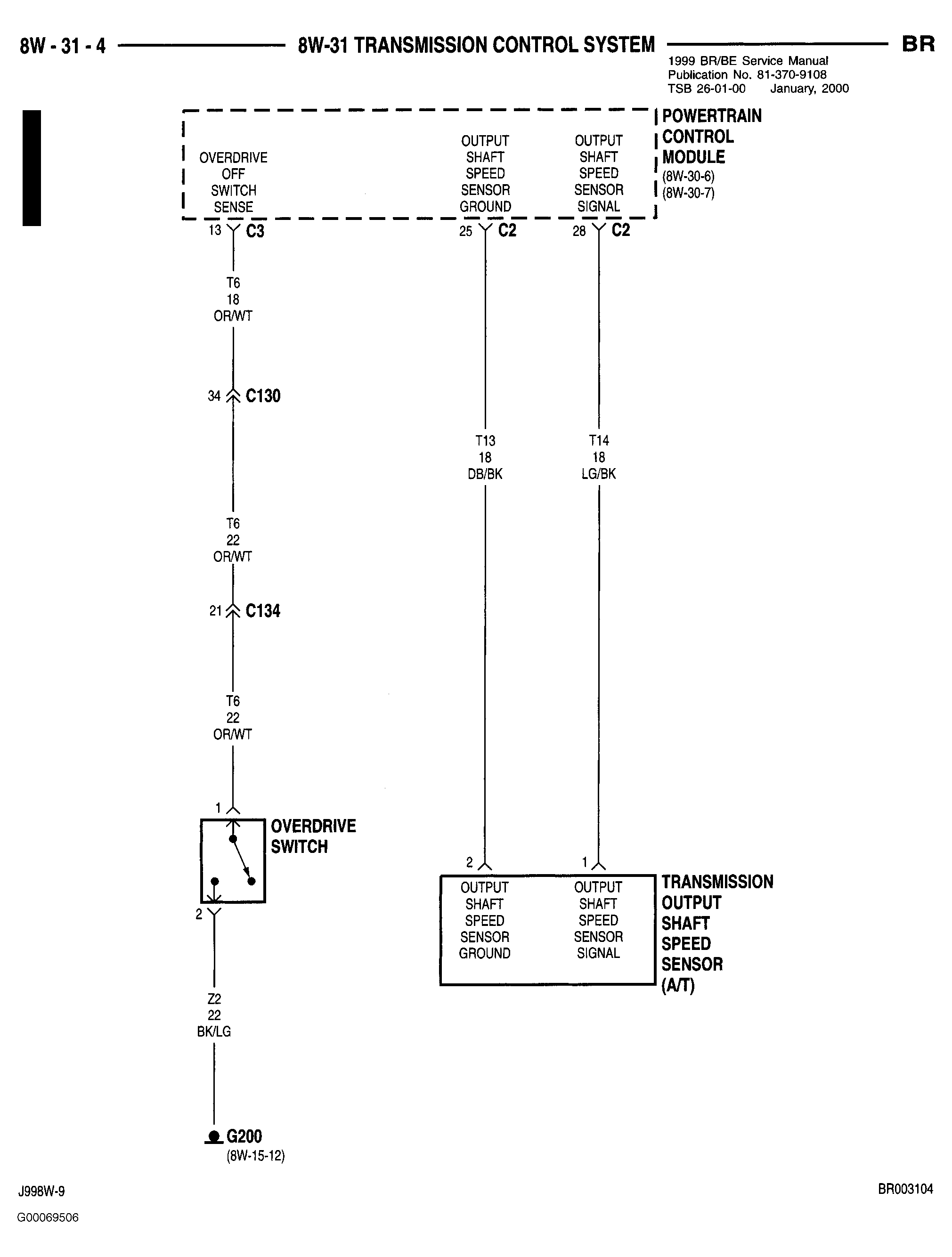

    Fig 107: 1999 BR Service Manual Revision - Page 8W-31-4
    G00069506

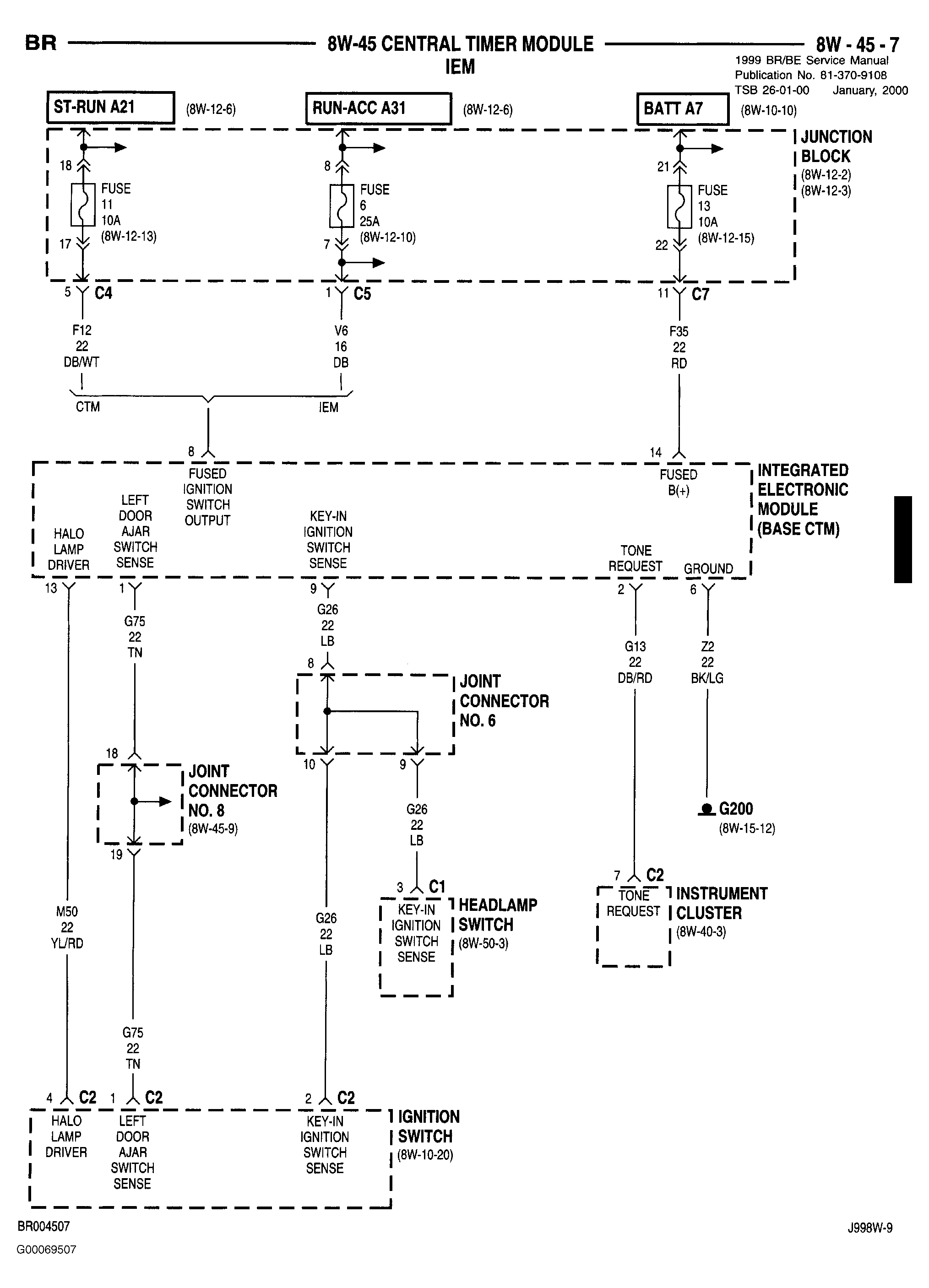

    Fig 108: 1999 BR Service Manual Revision - Page 8W-45-7
    G00069507

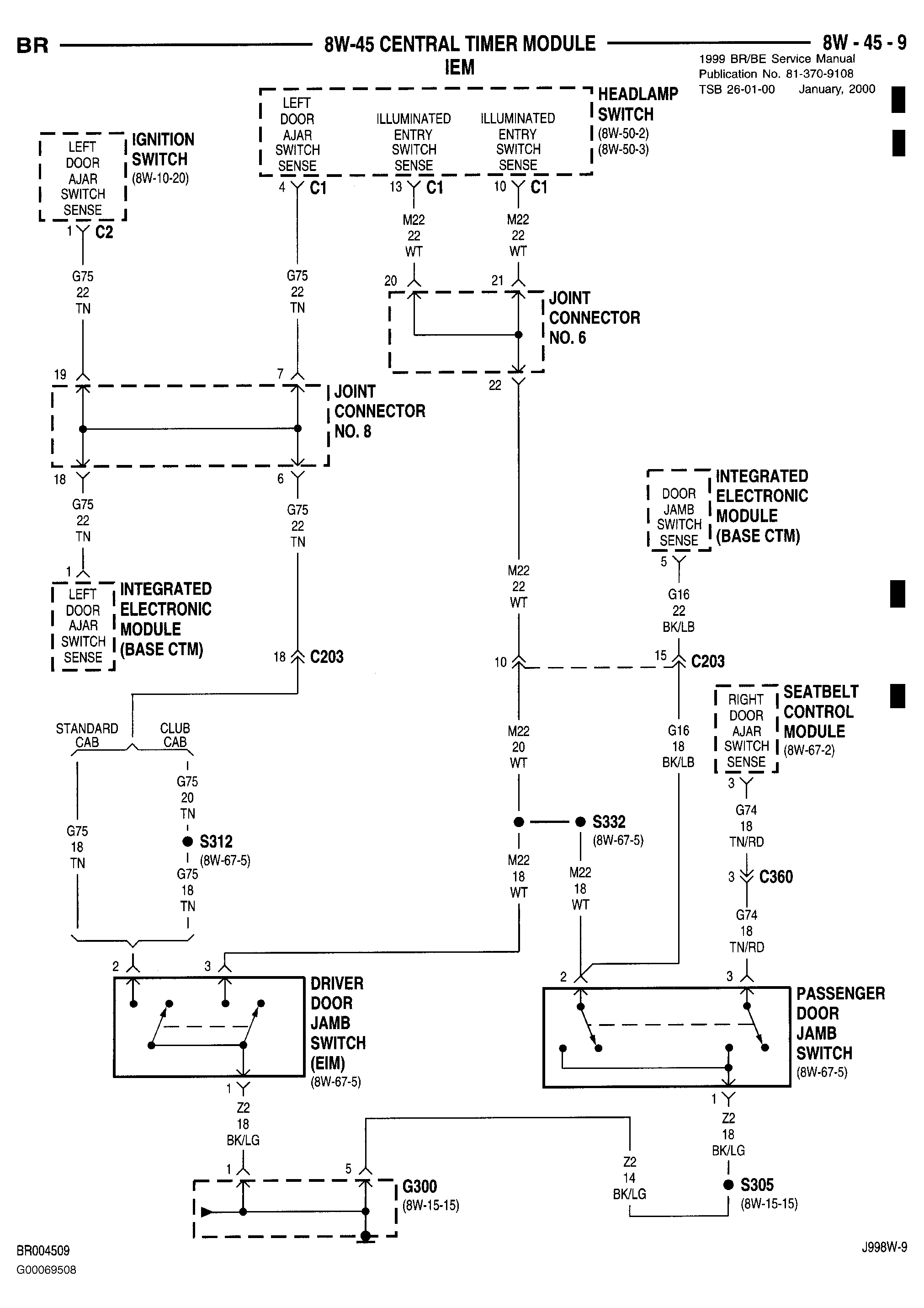

    Fig 109: 1999 BR Service Manual Revision - Page 8W-45-9
    G00069508

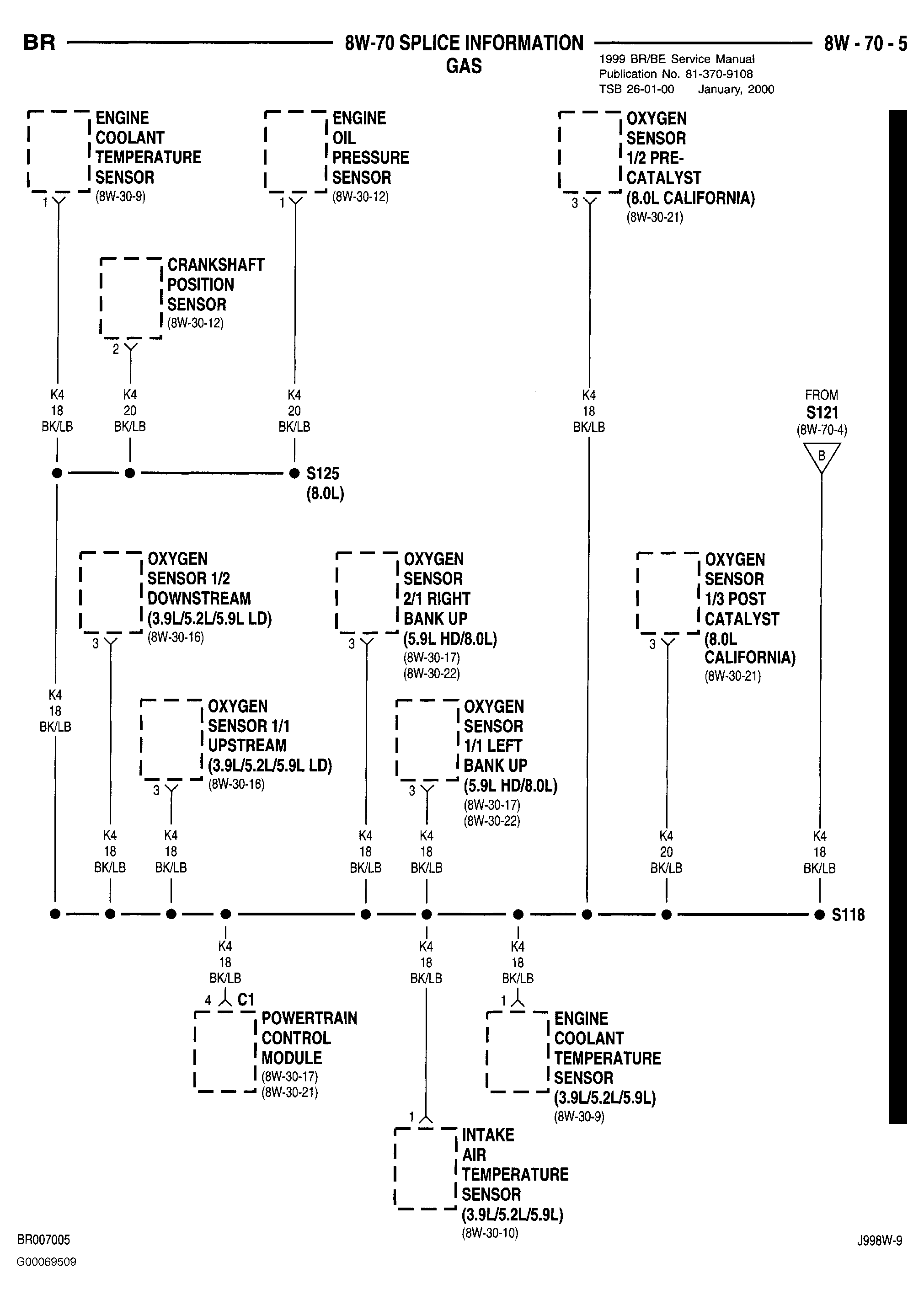

    Fig 110: 1999 BR Service Manual Revision - Page 8W-70-5
    G00069509

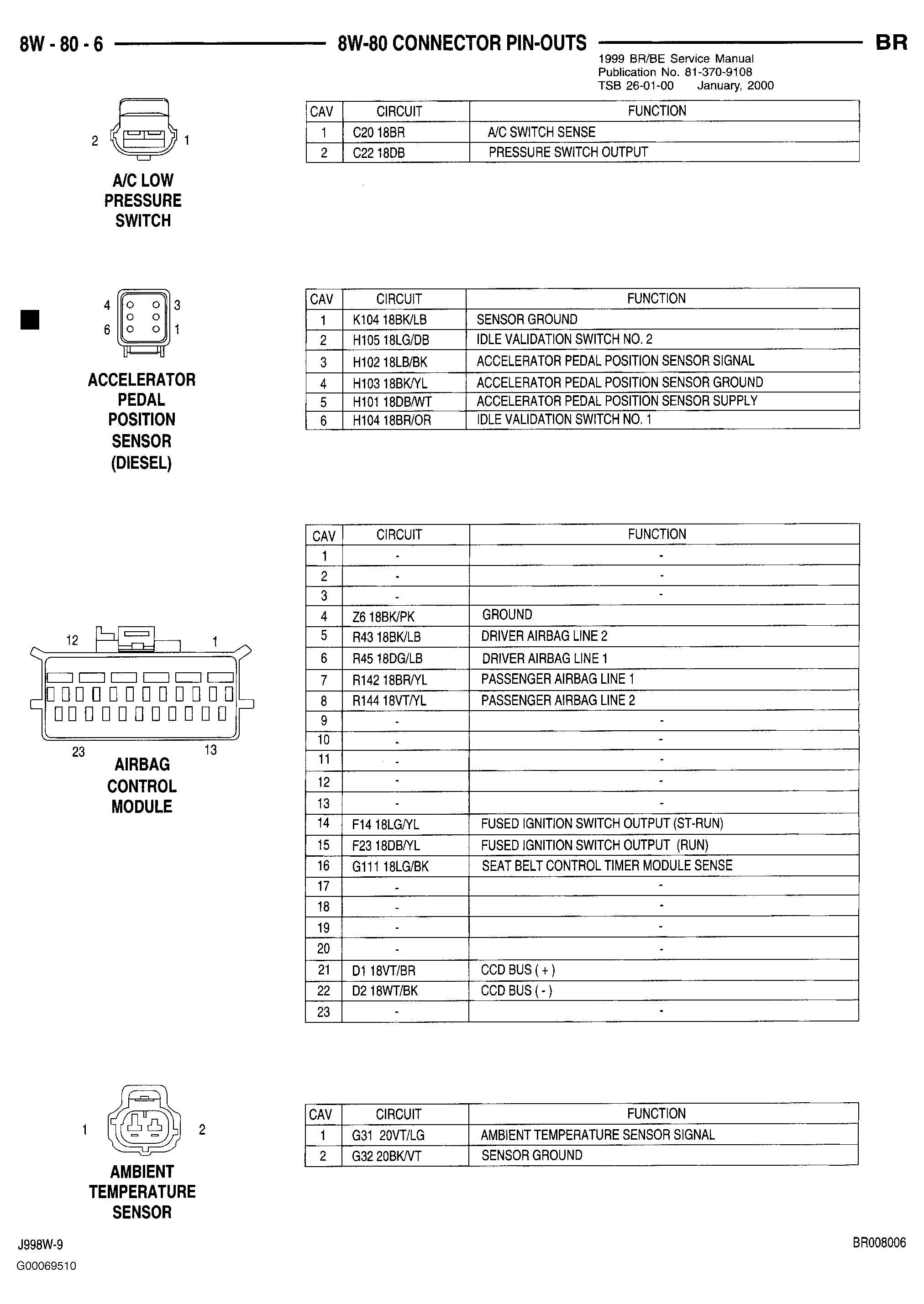

    Fig 111: 1999 BR Service Manual Revision - Page 8W-80-6
    G00069510

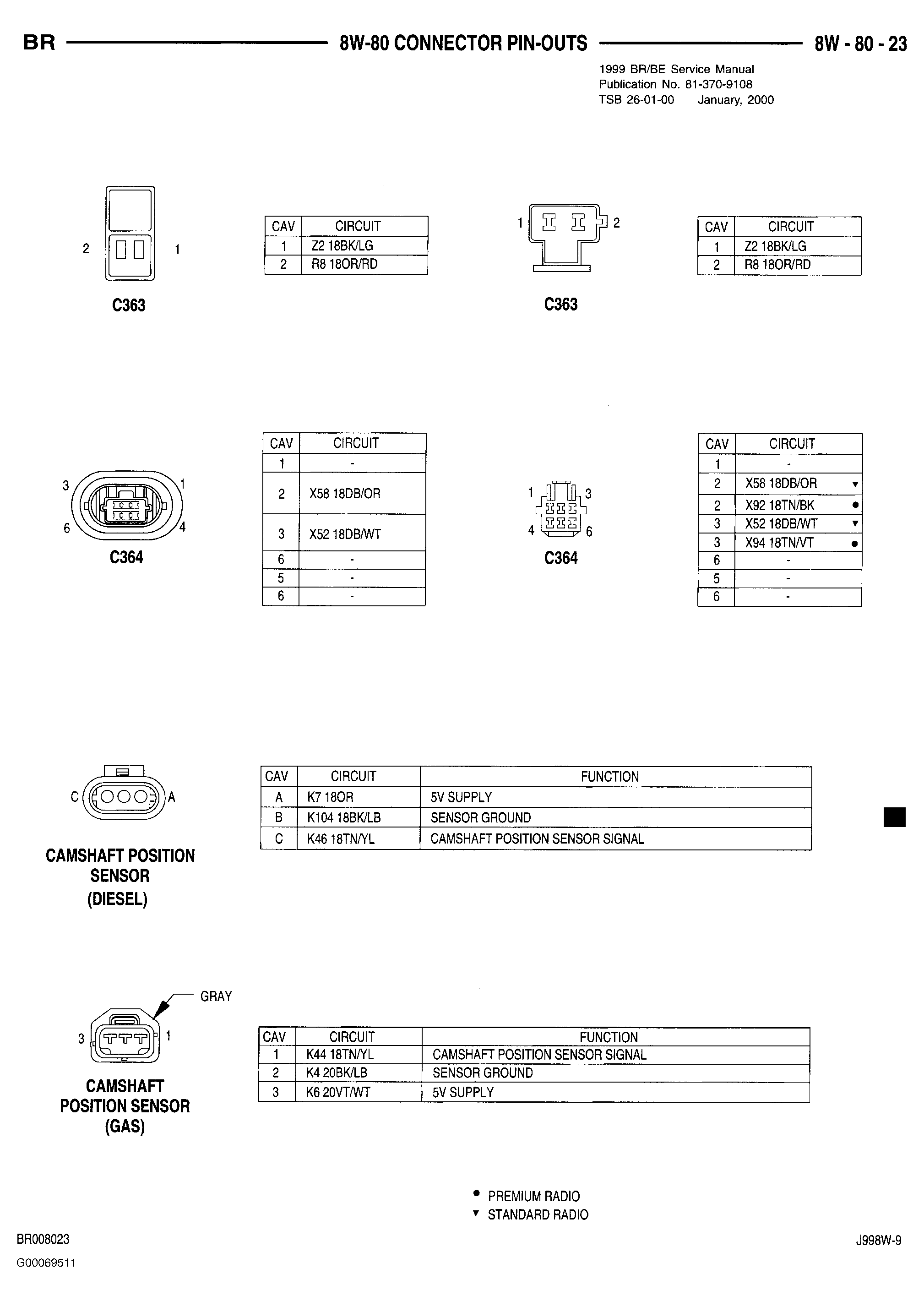

    Fig 112: 1999 BR Service Manual Revision - Page 8W-80-23
    G00069511

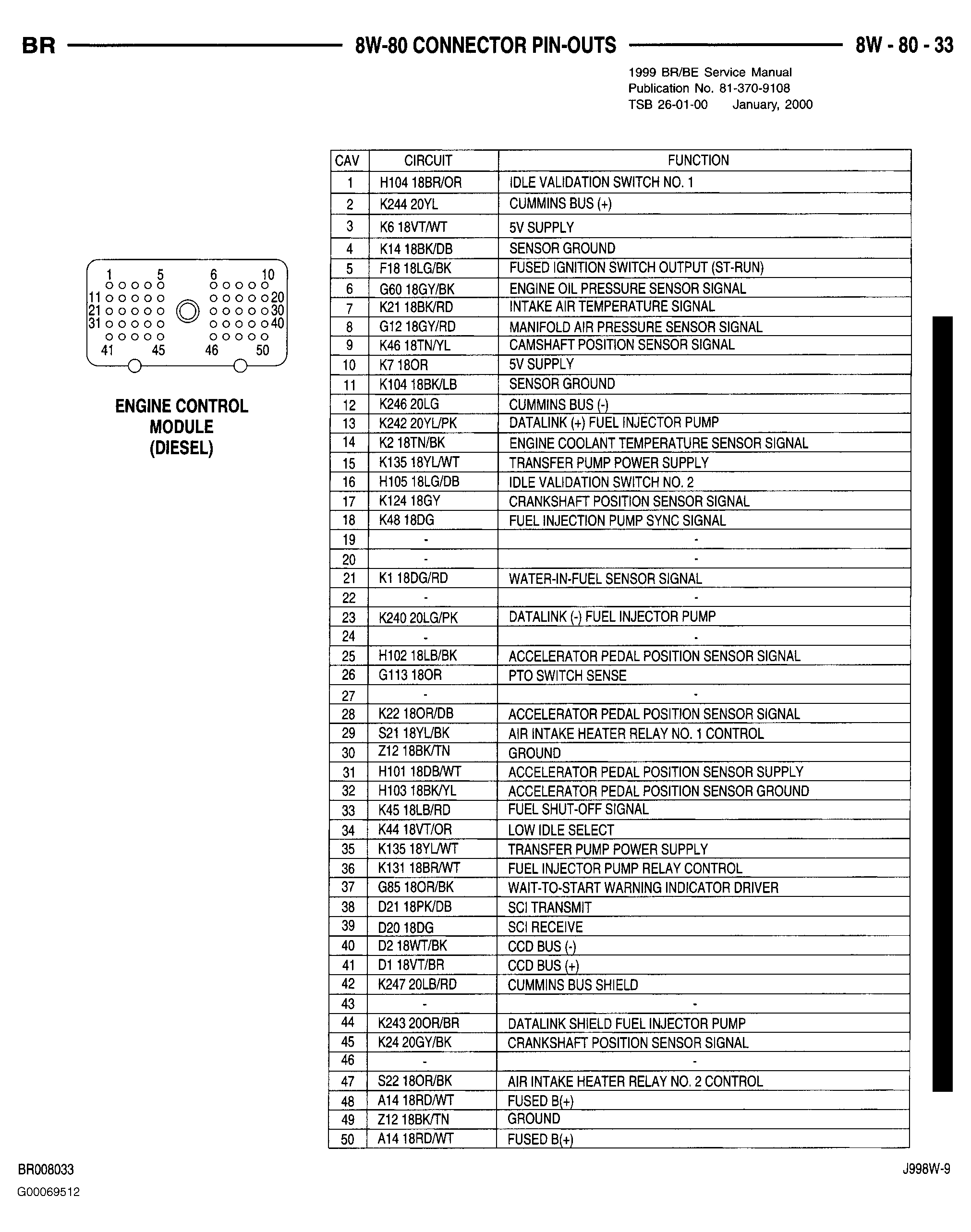

    Fig 113: 1999 BR Service Manual Revision - Page 8W-80-33
    G00069512

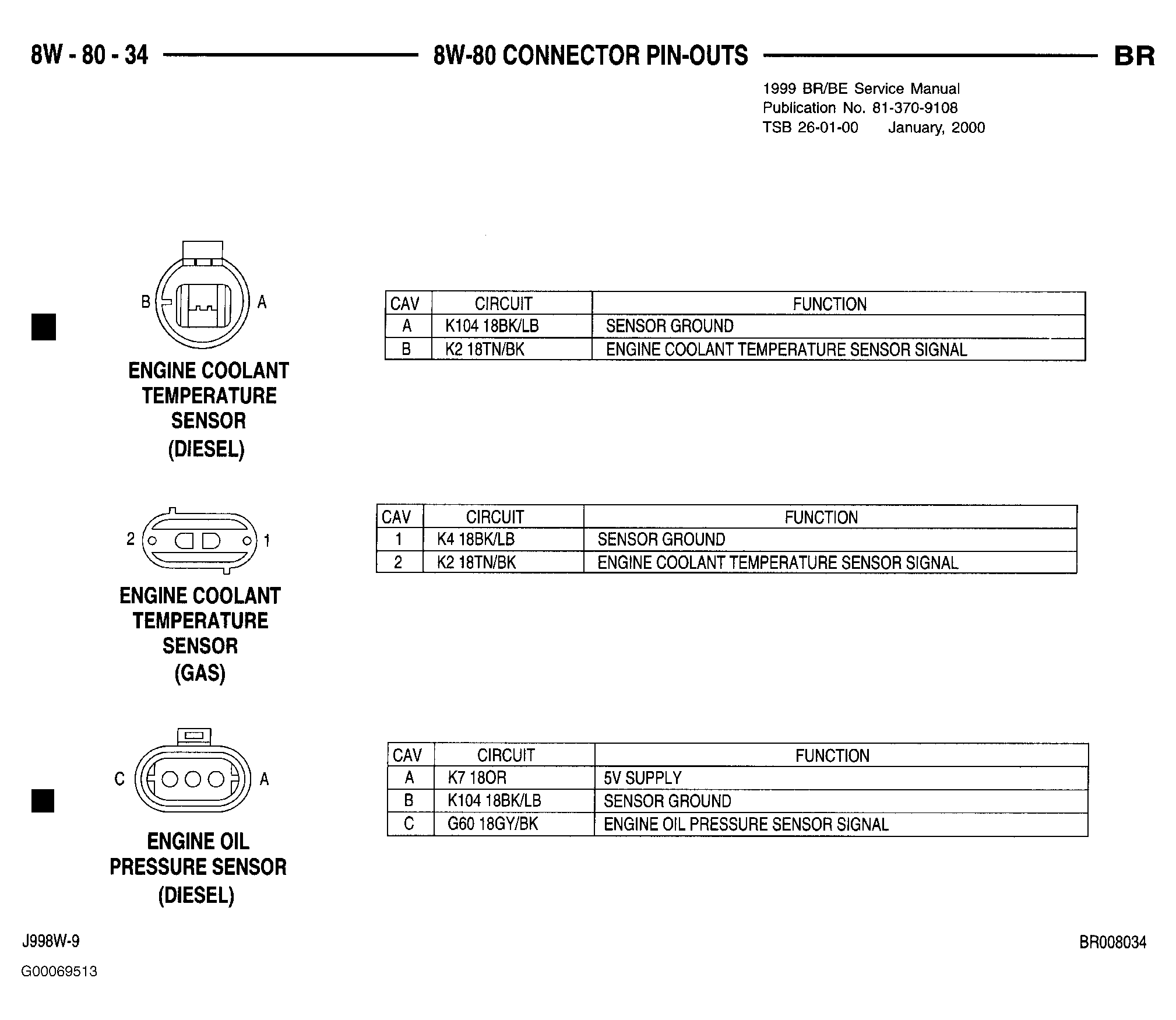

    Fig 114: 1999 BR Service Manual Revision - Page 8W-80-34
    G00069513

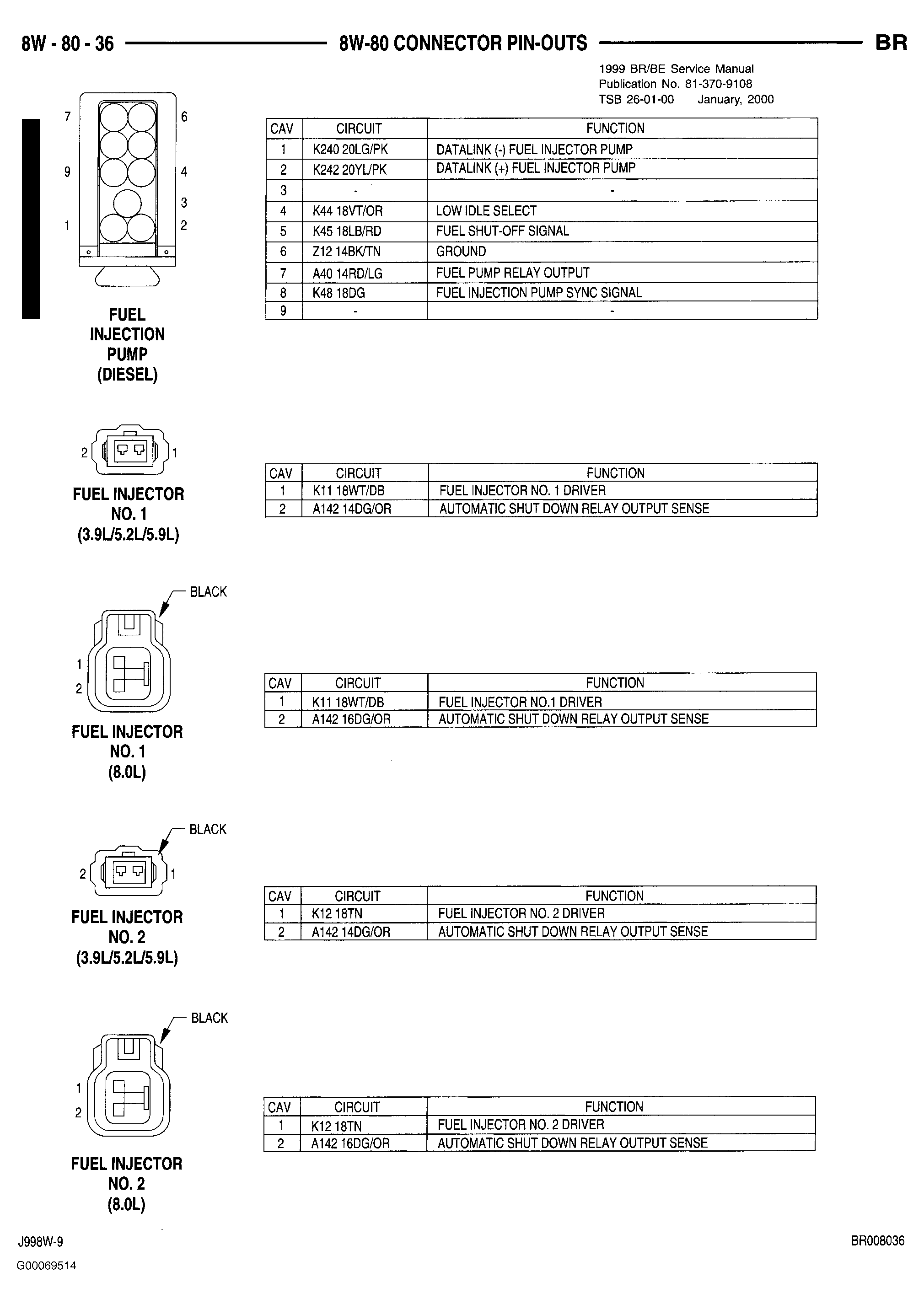

    Fig 115: 1999 BR Service Manual Revision - Page 8W-80-36
    G00069514
    Fig 116: 1999 BR Service Manual Revision - Page 8W-80-40
    G00069515

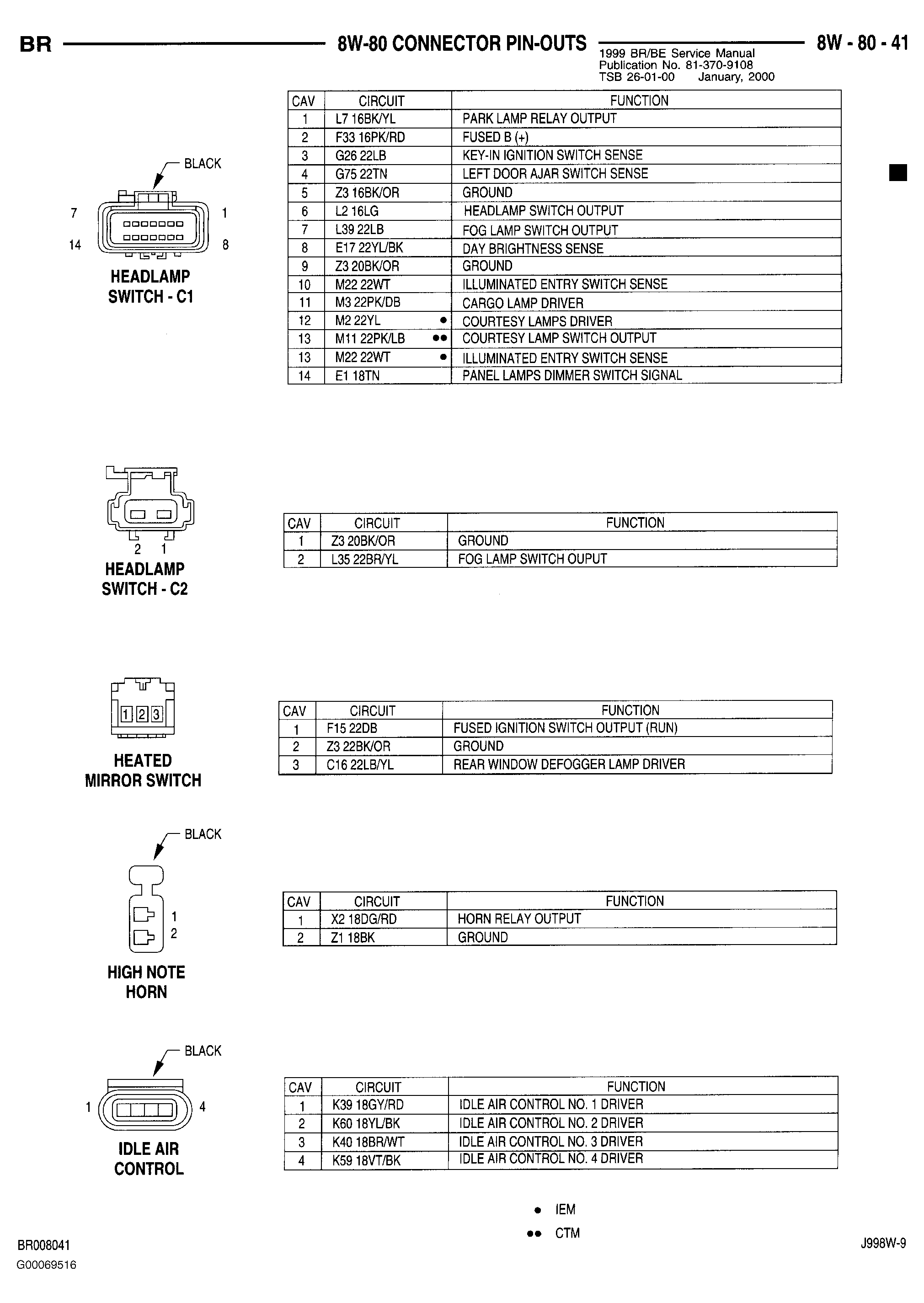

    Fig 117: 1999 BR Service Manual Revision - Page 8W-80-41
    G00069516

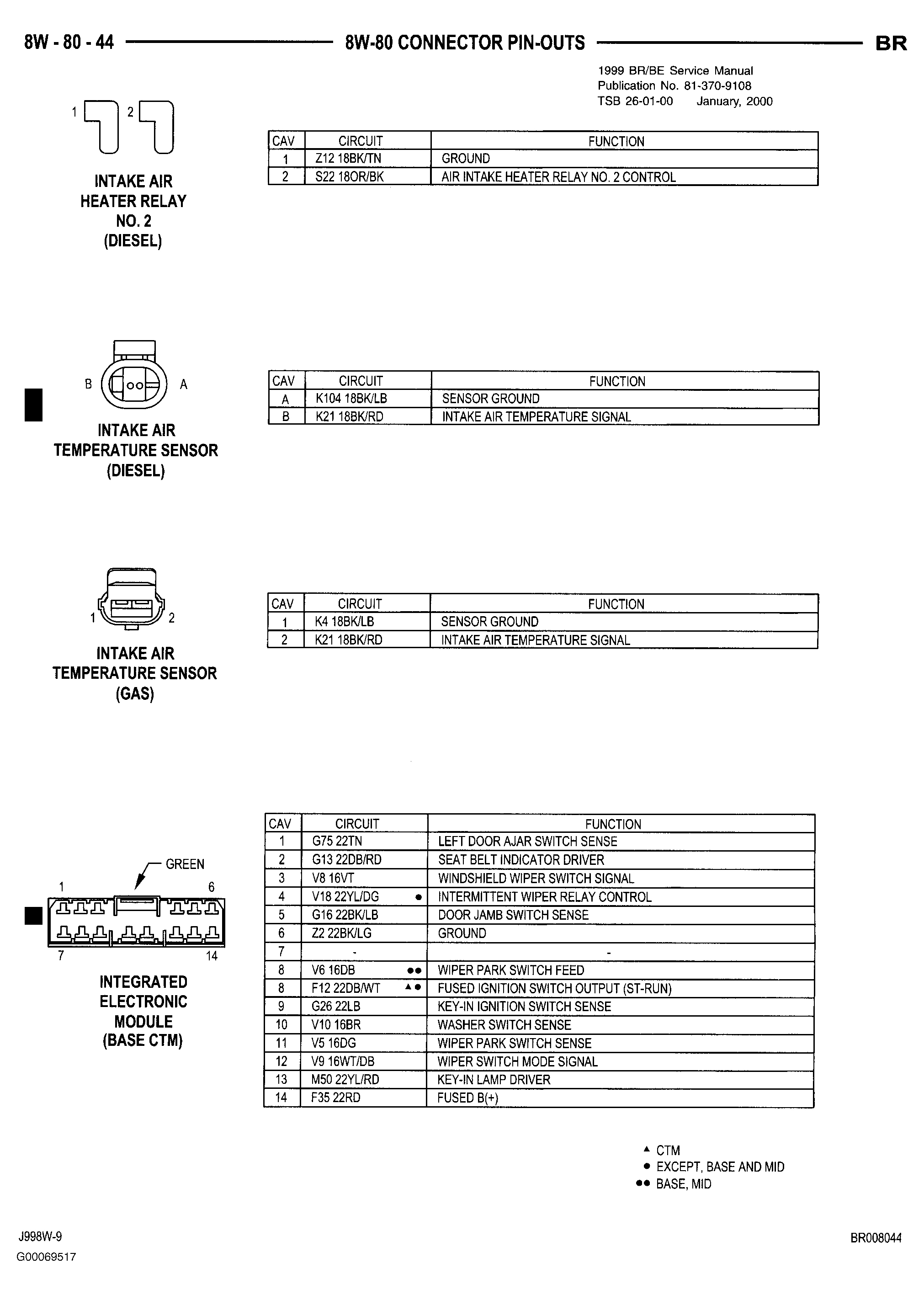

    Fig 118: 1999 BR Service Manual Revision - Page 8W-80-44
    G00069517

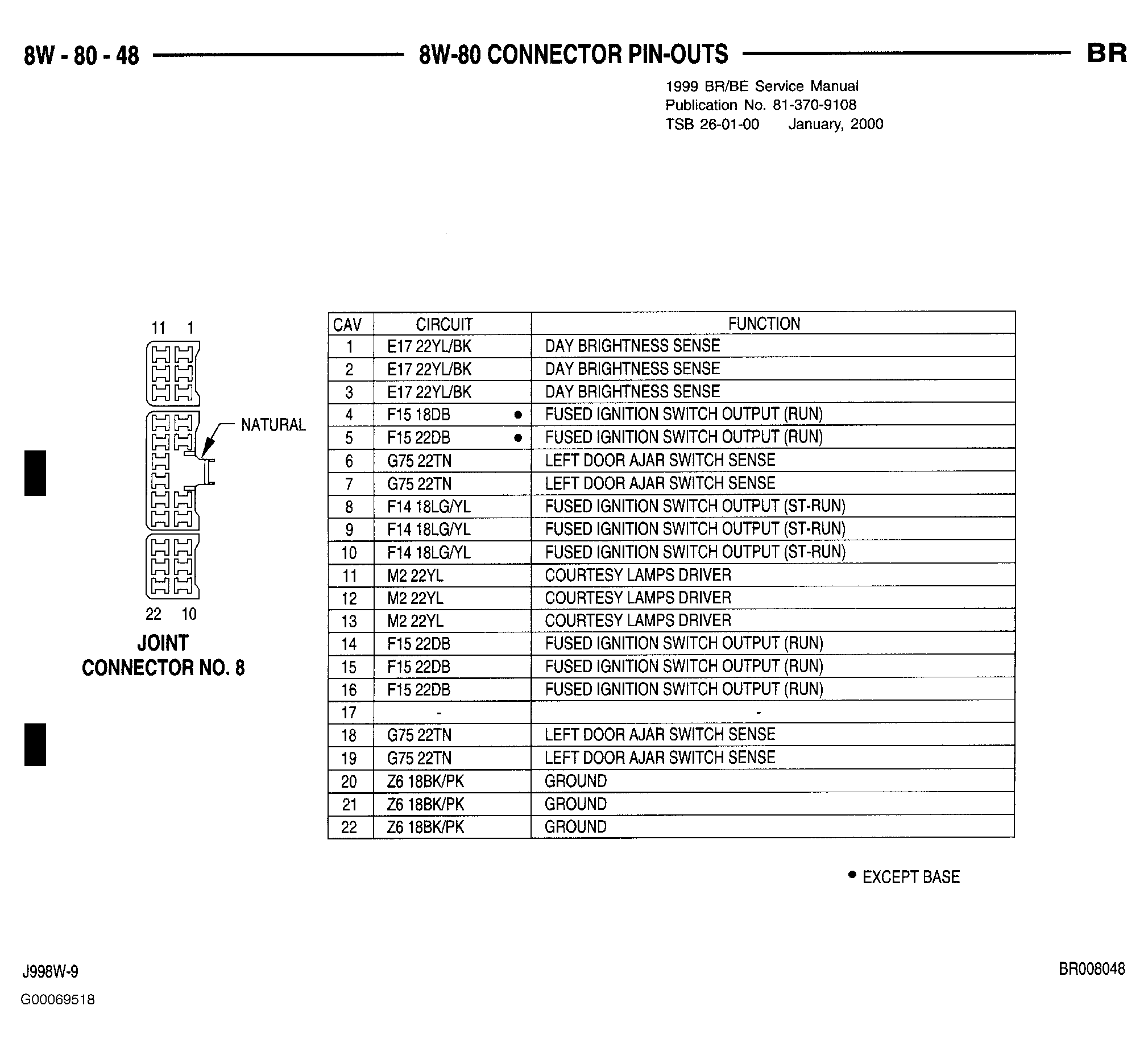

    Fig 119: 1999 BR Service Manual Revision - Page 8W-80-48
    G00069518

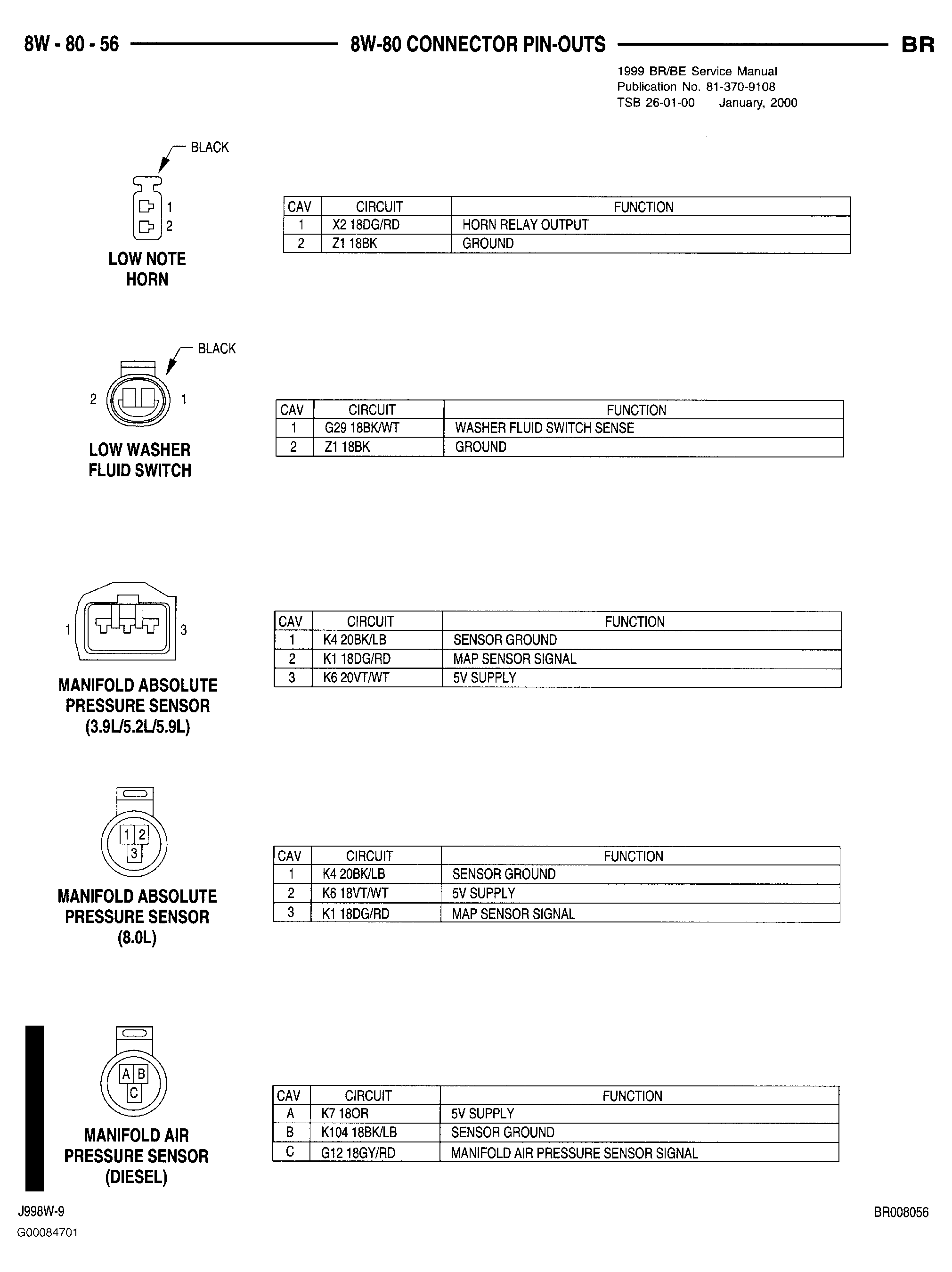

    Fig 120: 1999 BR Service Manual Revision - Page 8W-80-56
    G00084701

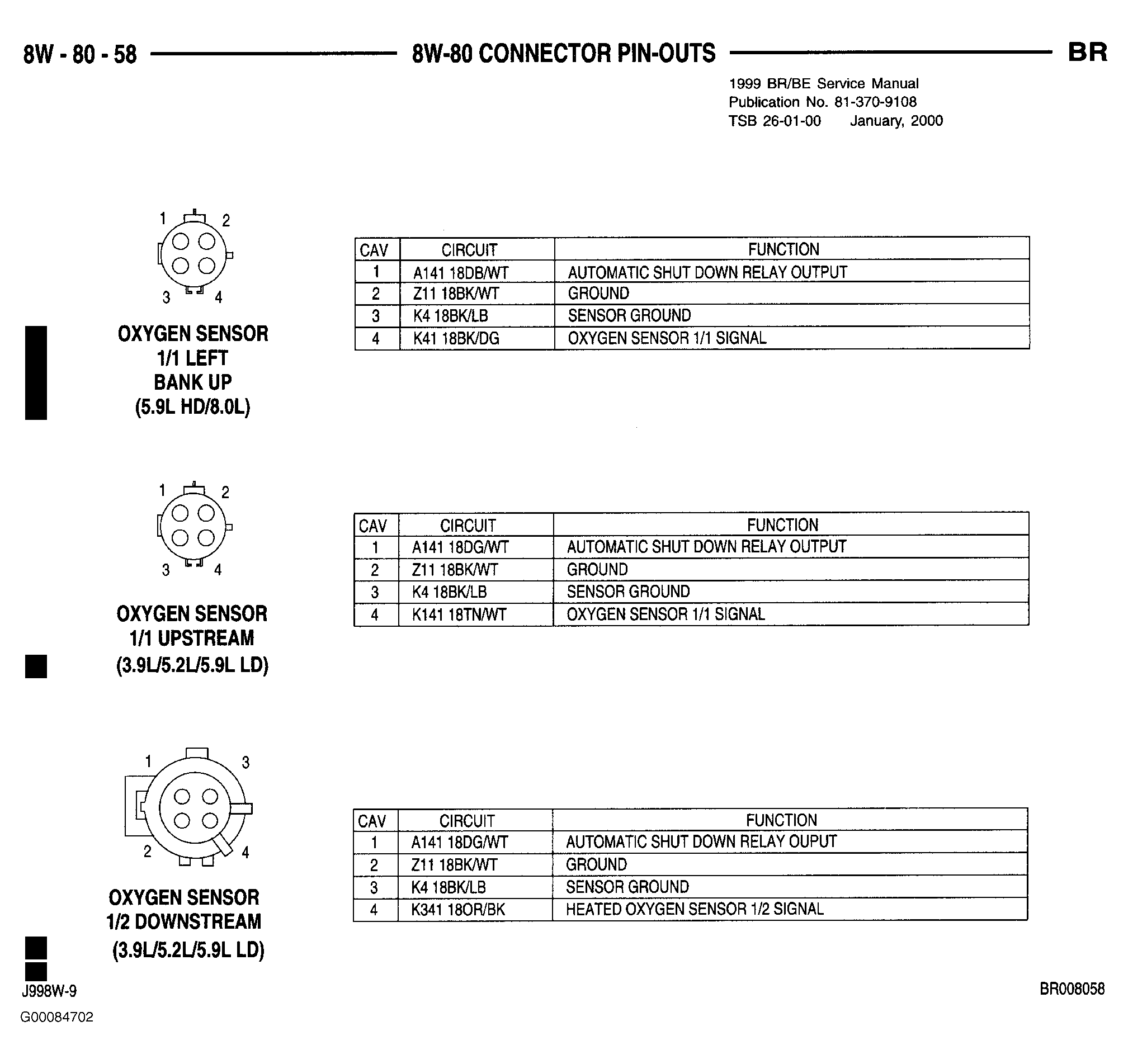

    Fig 121: 1999 BR Service Manual Revision - Page 8W-80-58
    G00084702

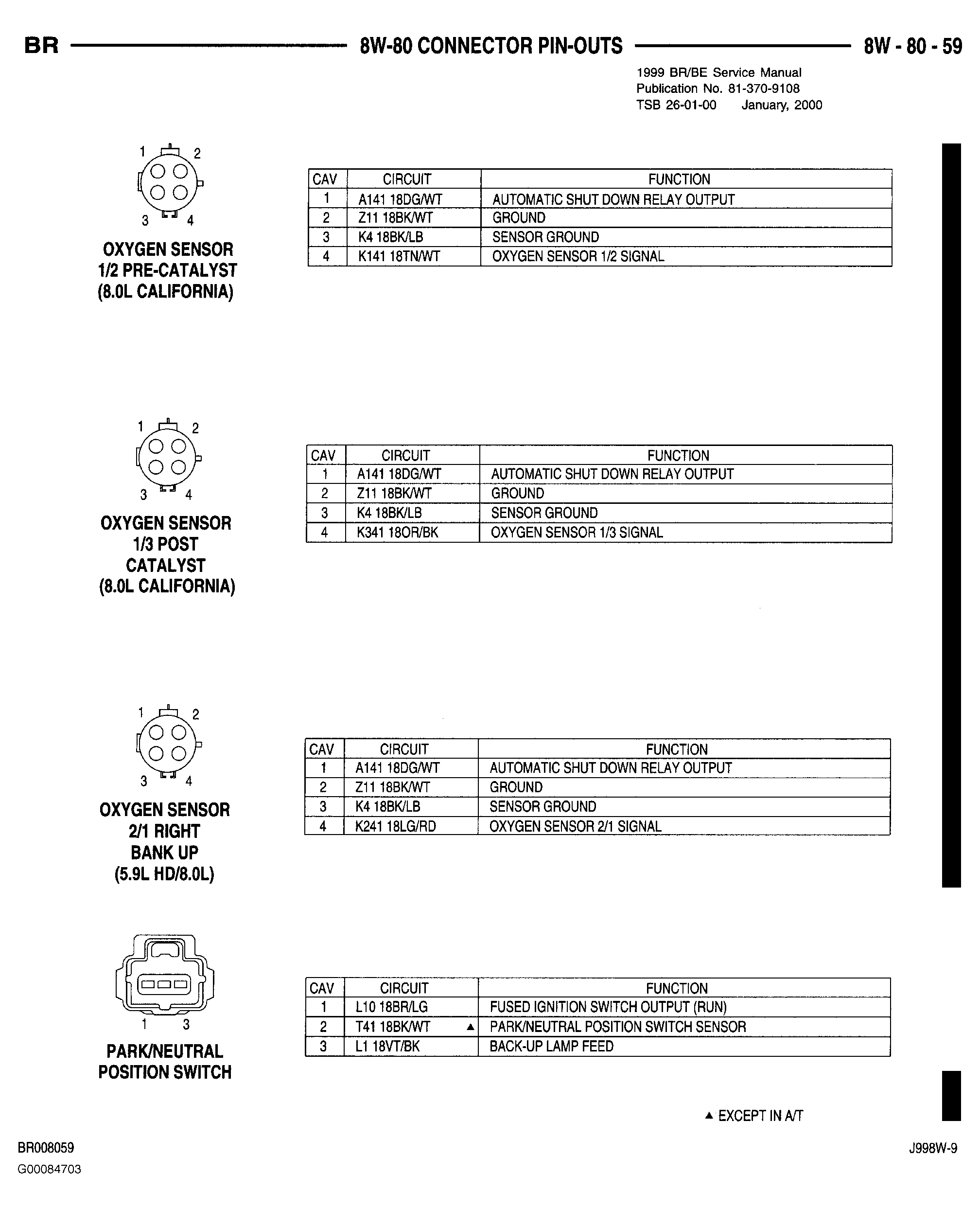

    Fig 122: 1999 BR Service Manual Revision - Page 8W-80-59
    G00084703

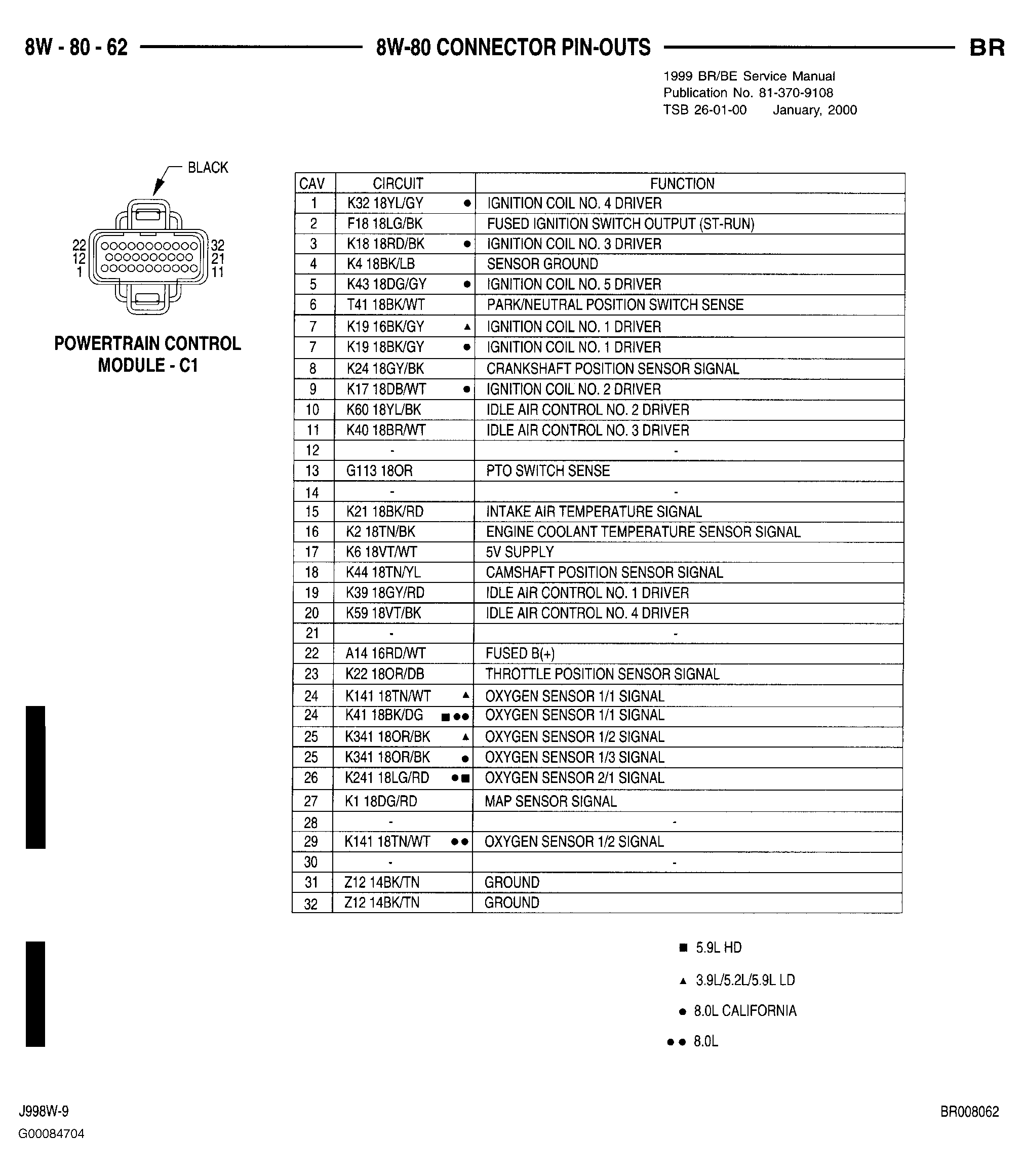

    Fig 123: 1999 BR Service Manual Revision - Page 8W-80-62
    G00084704

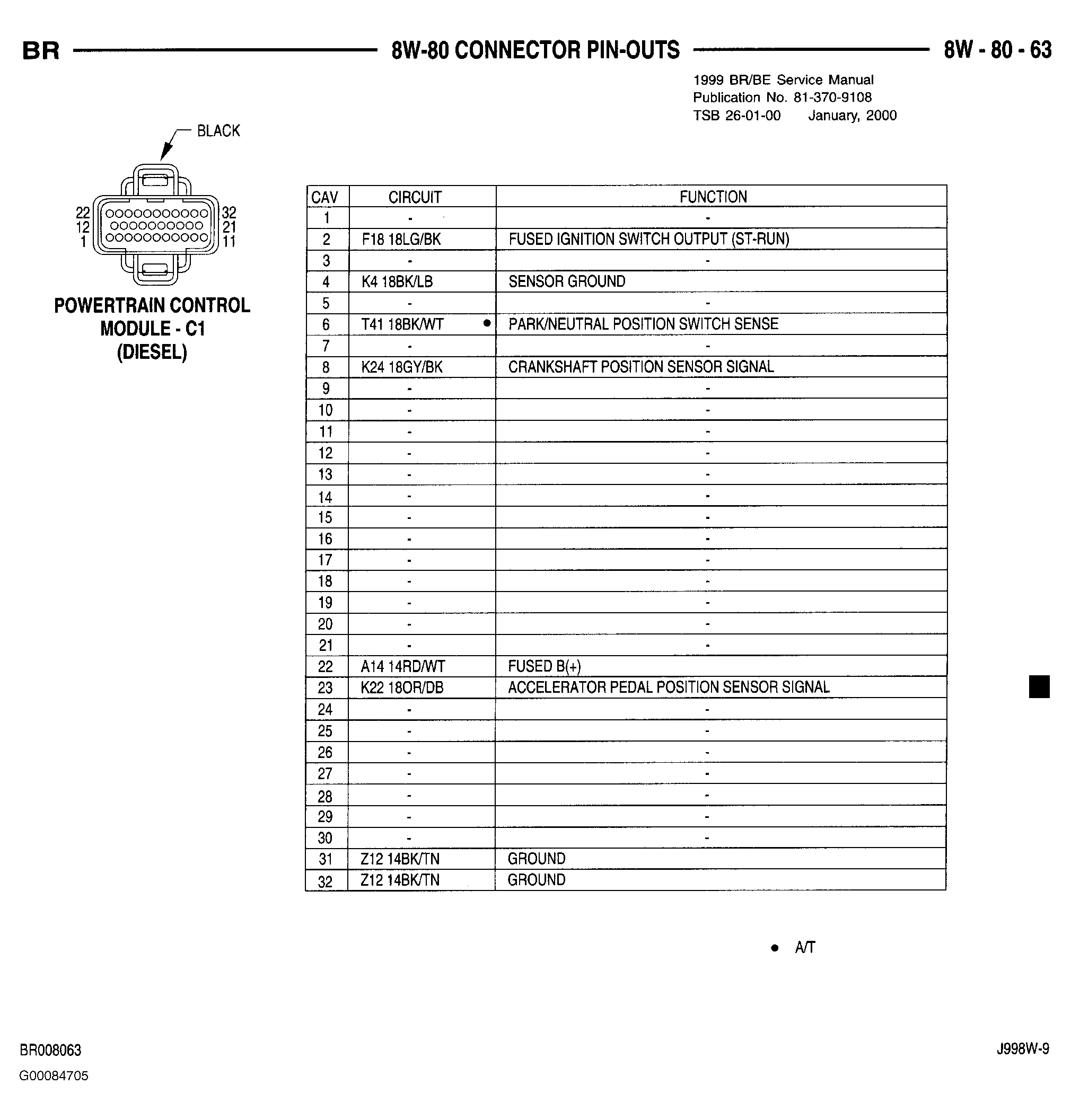

    Fig 124: 1999 BR Service Manual Revision - Page 8W-80-63
    G00084705

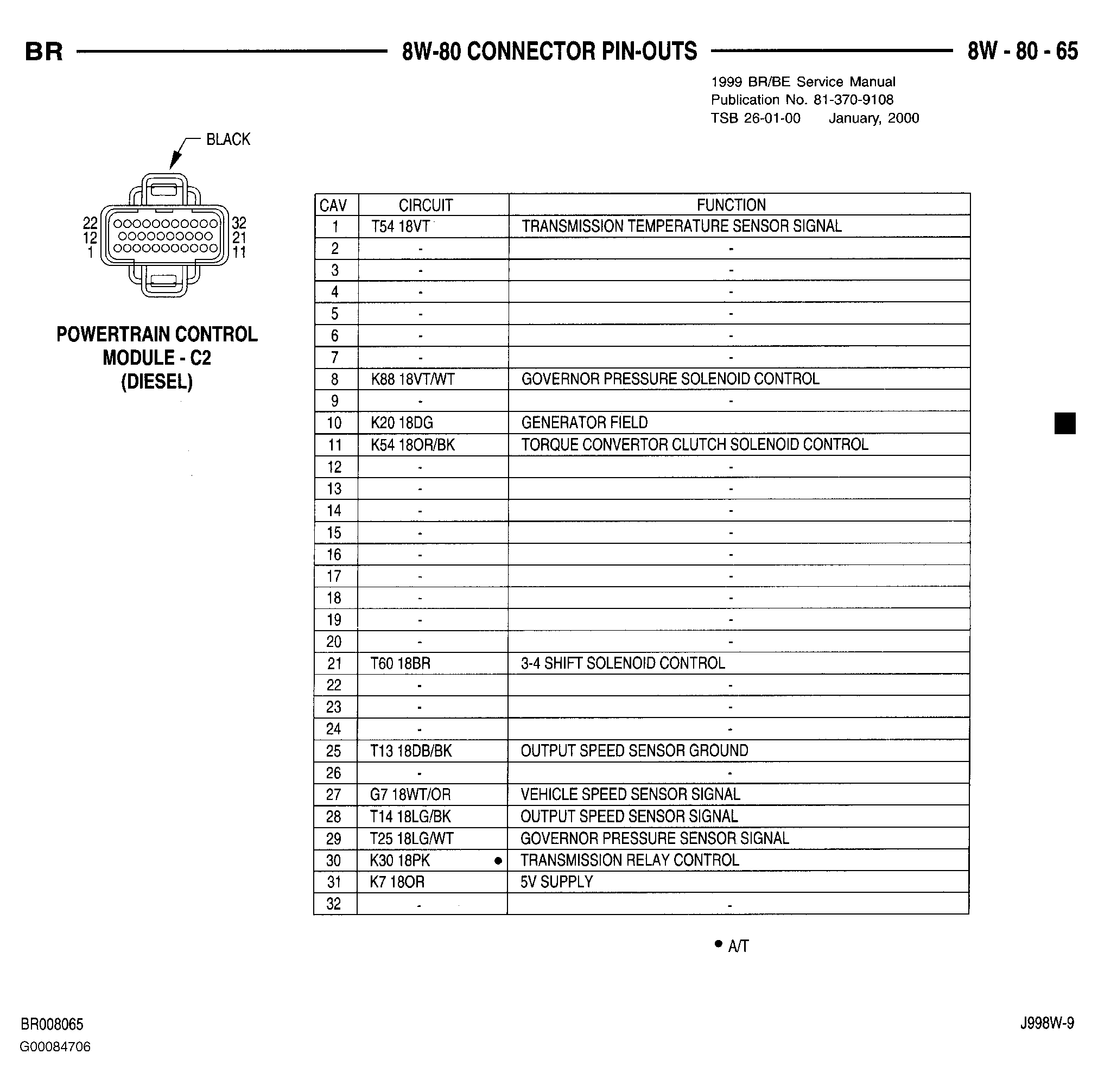

    Fig 125: 1999 BR Service Manual Revision - Page 8W-80-65
    G00084706

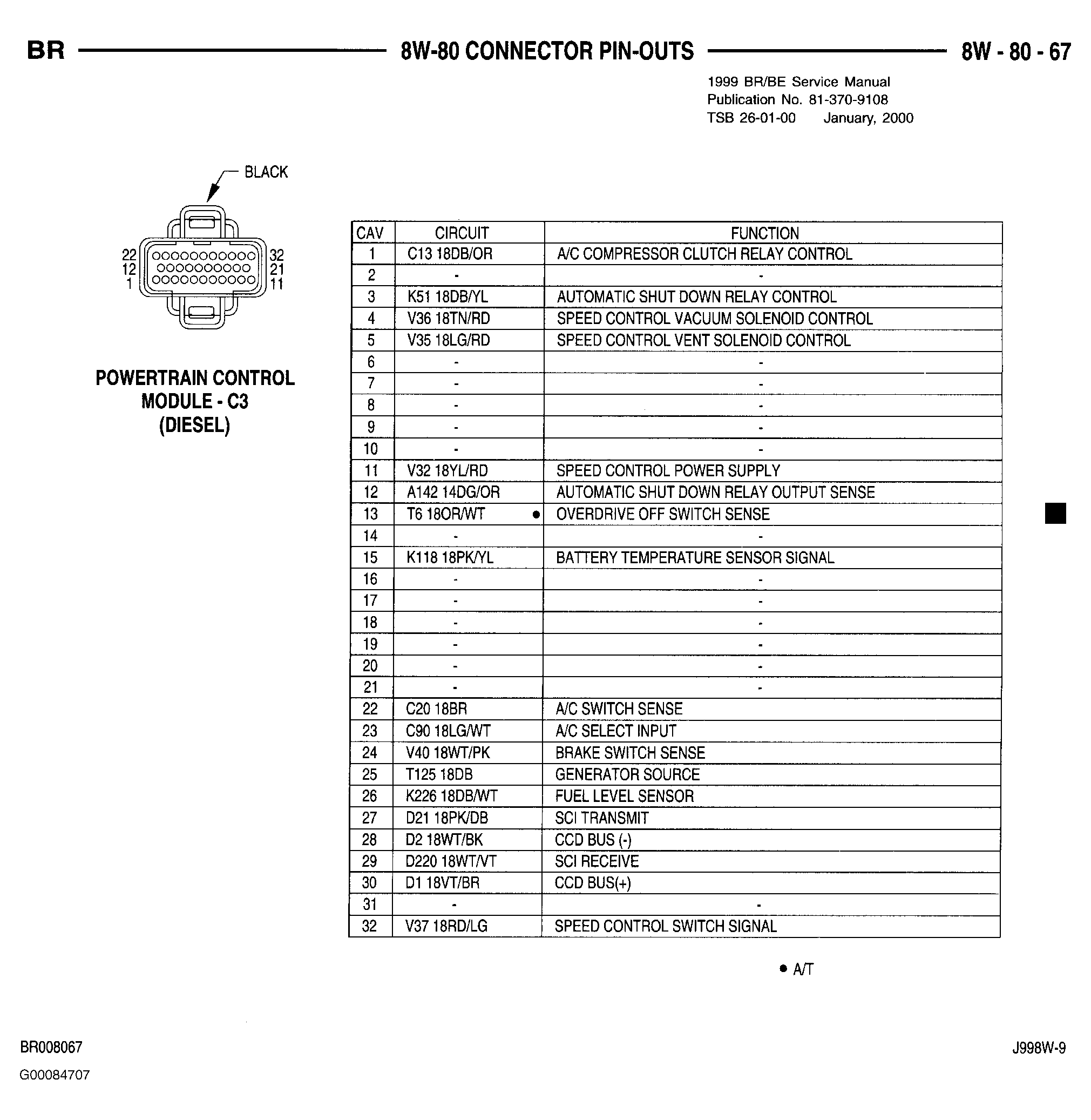

    Fig 126: 1999 BR Service Manual Revision - Page 8W-80-67
    G00084707

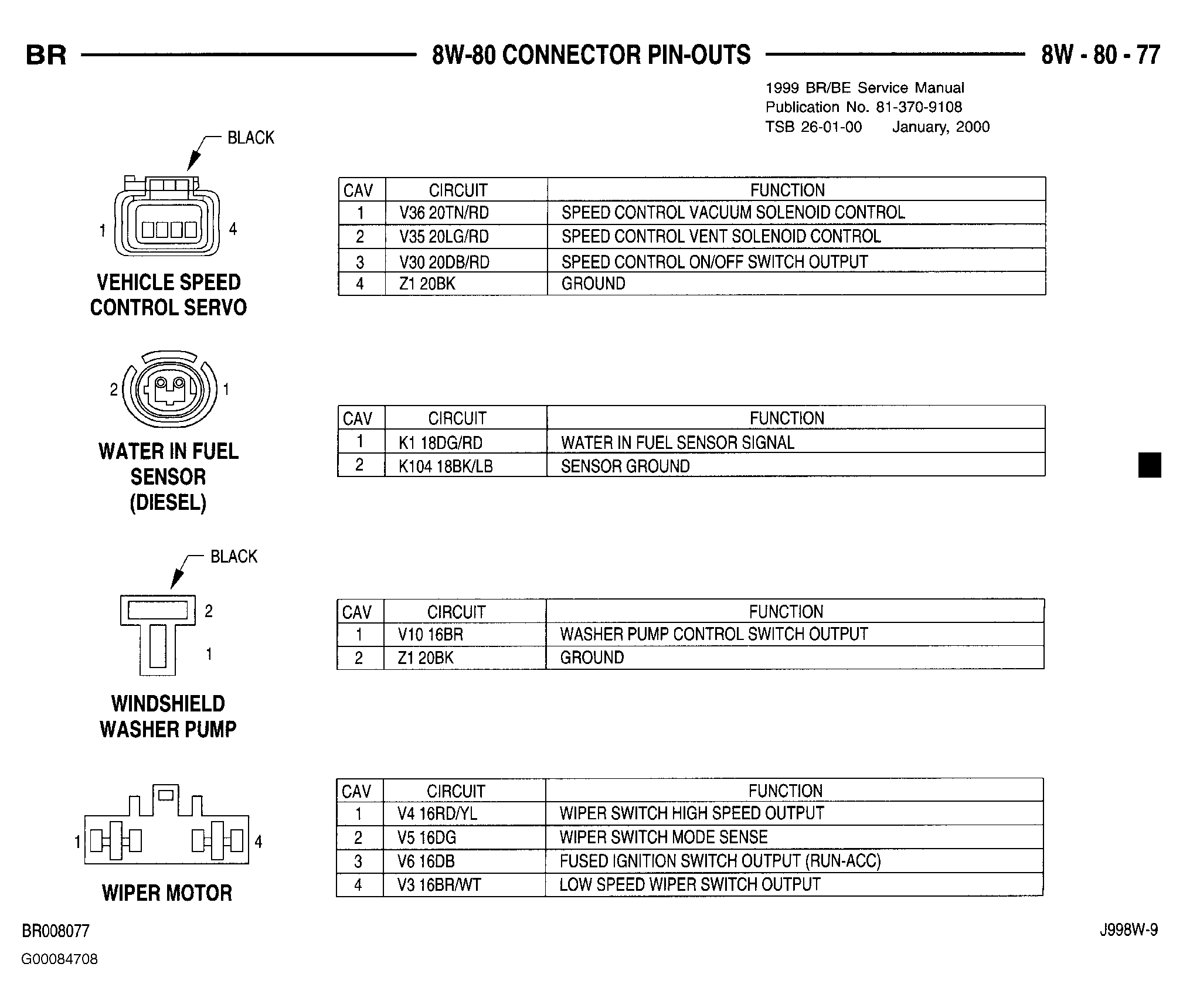

    Fig 127: 1999 BR Service Manual Revision - Page 8W-80-77
    G00084708

  4. DESCRIPTION OF CHANGES
    Revisions to the wiring schematics

  5. PAGES
    21-305, 21-306

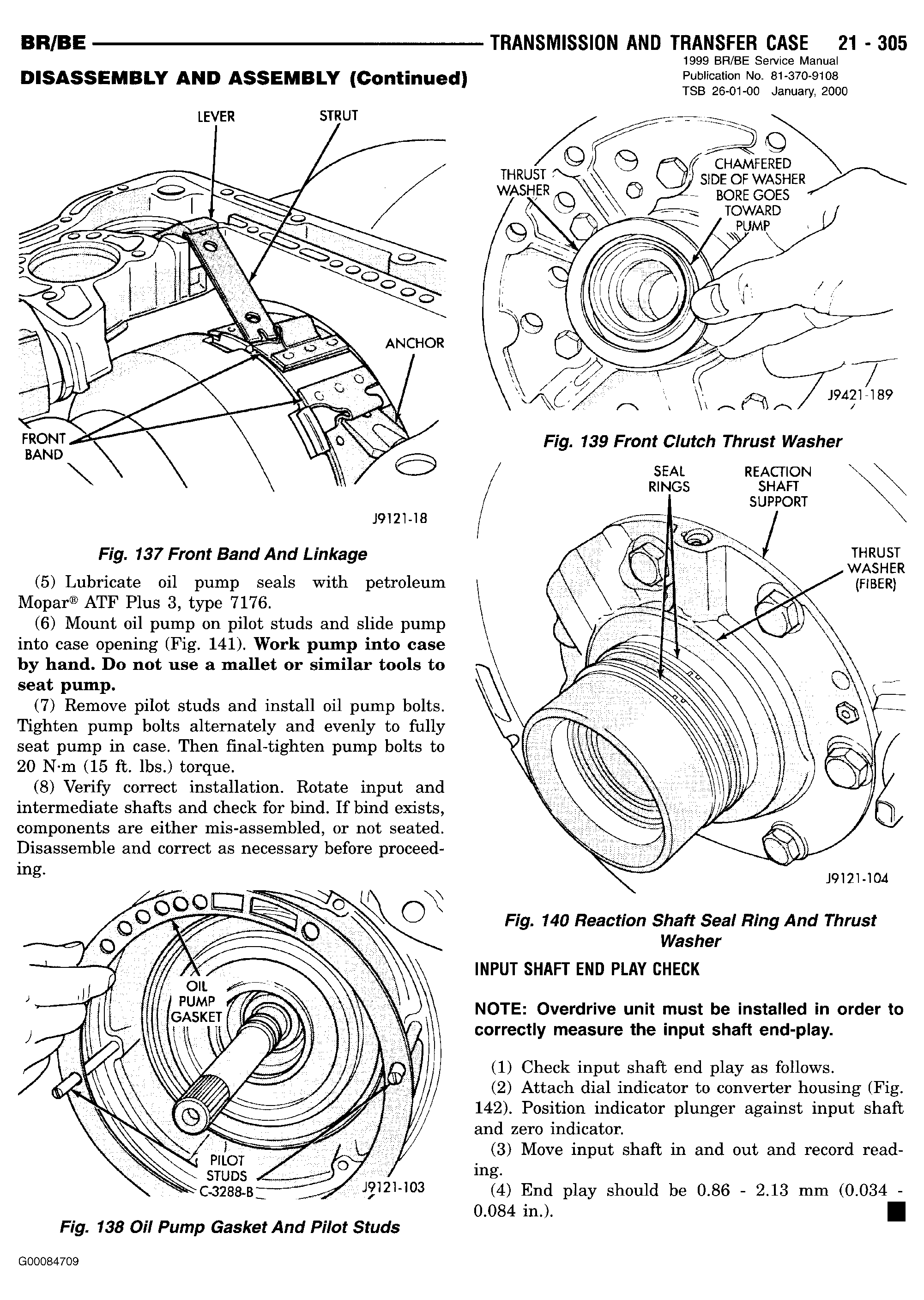

    Fig 128: 1999 BR/BE Service Manual Revision - Page 21-305
    G00084709

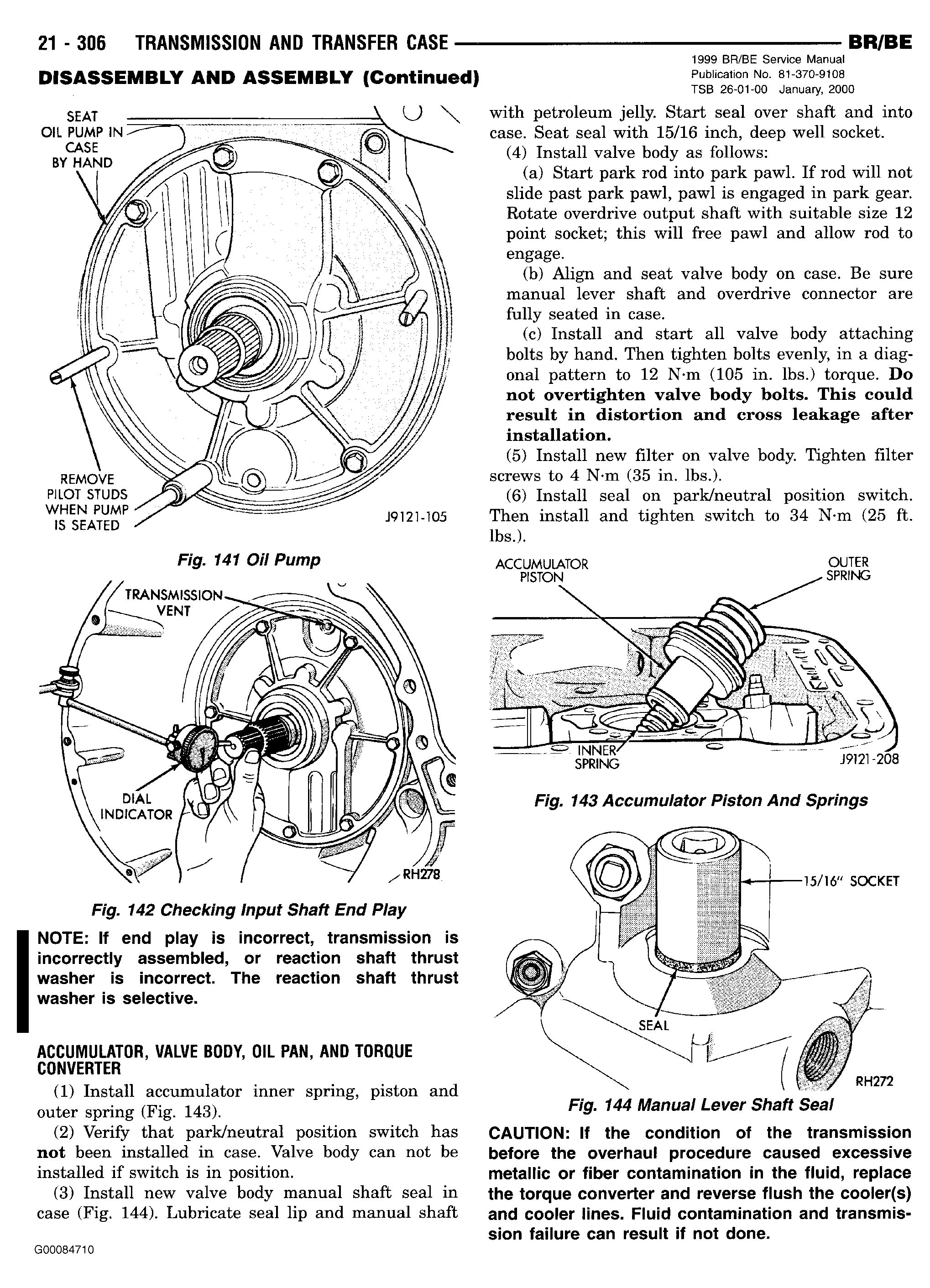

    Fig 129: 1999 BR/BE Service Manual Revision - Page 21-306
    G00084710

  6. DESCRIPTION OF CHANGES
    Revisions to the transmission front pump service procedures

1998 Ram Truck Service Manual - Publication Number 81-370-8108

  1. PAGES
    5-2

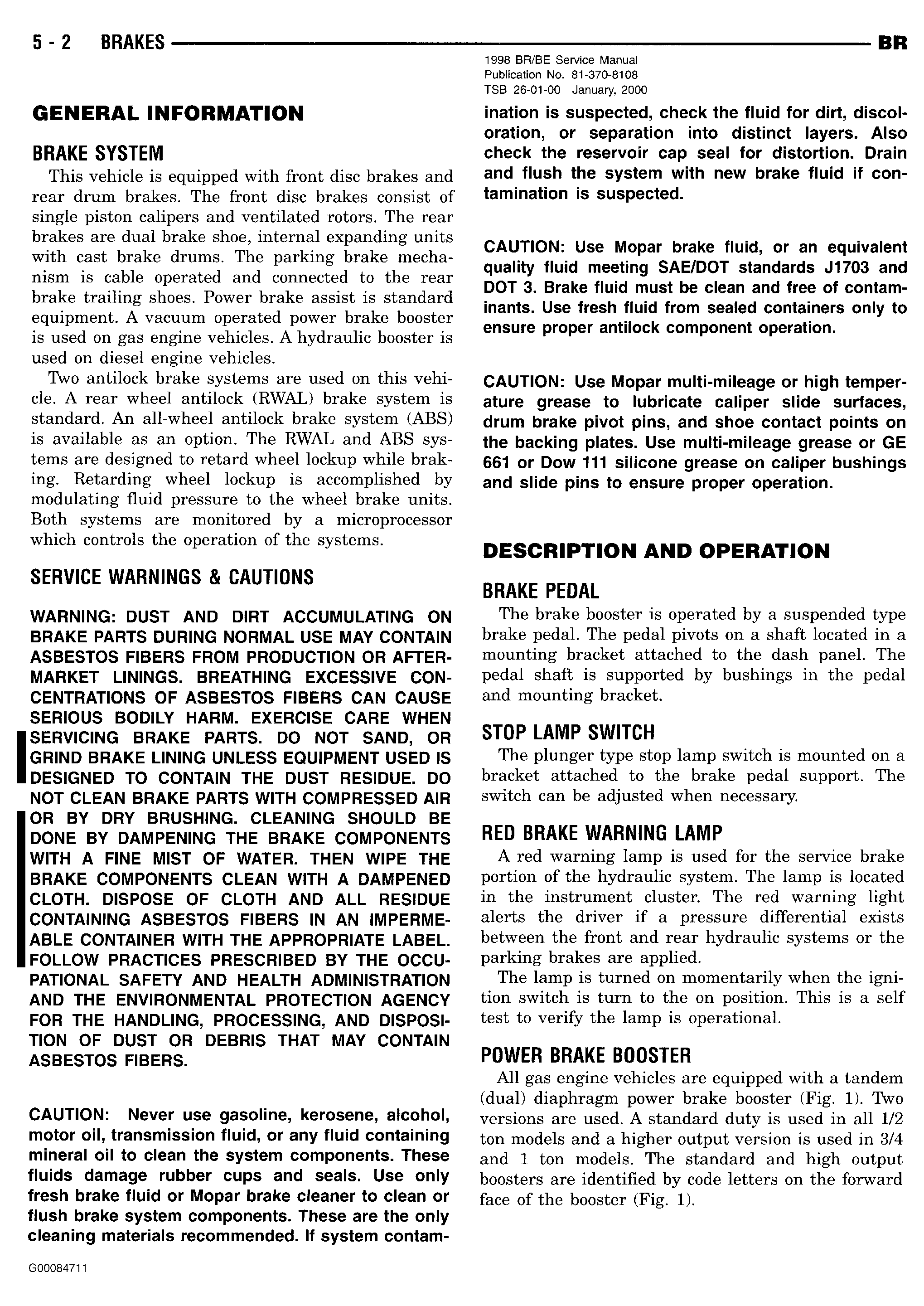

    Fig 130: 1998 BR Service Manual Revision - Page 5-2
    G00084711

  2. DESCRIPTION OF CHANGES
    Revisions to the warnings and cautions relating to brake dust

1997 Ram Truck Service Manual - Publication Number 81-370-7108

  1. PAGES
    5-2
    Fig 131: 1997 BR Service Manual Revision - Page 5-2
    G00084712

  2. DESCRIPTION OF CHANGES
    Revisions to the warnings and cautions relating to brake dust

1997 Ram Van/Wagon Service Manual - Publication Number 81-370-7107

  1. PAGES
    5-2

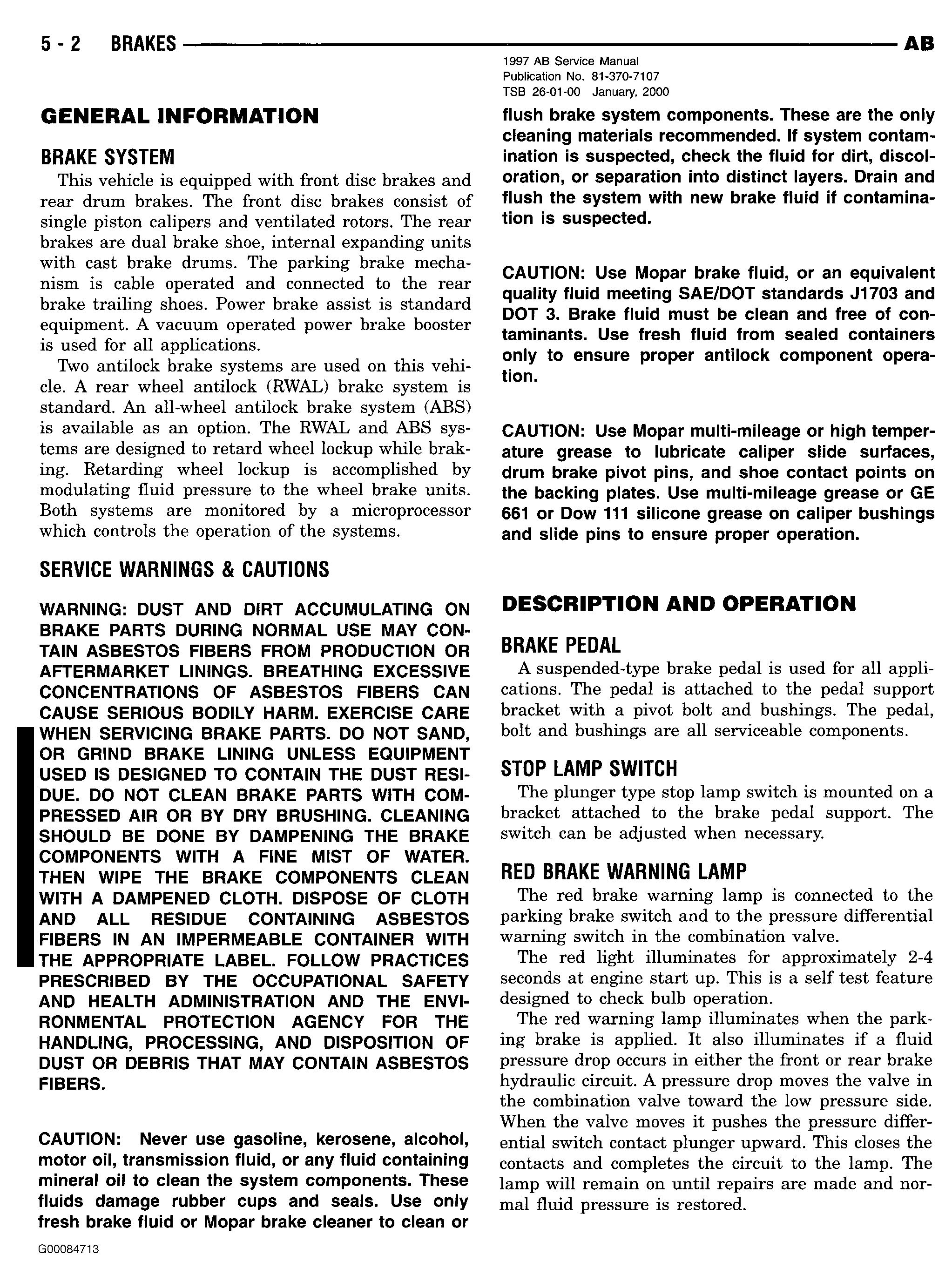

    Fig 132: 1997 AB Service Manual Revision - Page 5-2
    G00084713

  2. DESCRIPTION OF CHANGES
    Revisions to the warnings and cautions relating to brake dust

1997 2.5L/4.0L Cherokee Powertrain Diagnostic Manual - Publication Number 81-699-96098

  1. PAGES
    178, 196, 200, 204, 248, 286, 290, 306, 324, 328

  2. DESCRIPTION OF CHANGES
    Revisions to the oxygen sensor diagnostic tests

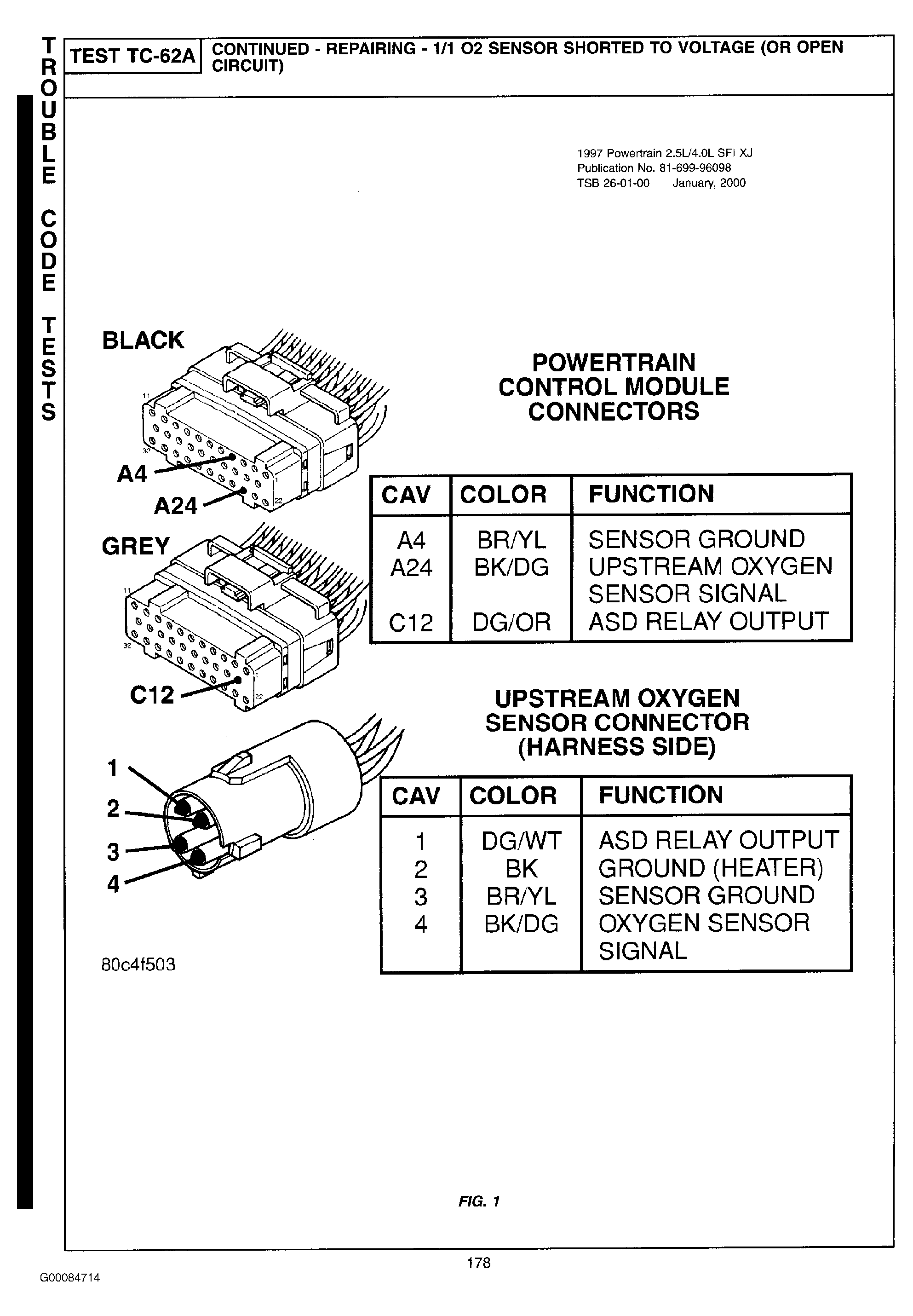

    Fig 133: 1997 XJ Powertrain Diagnostic Manual Revision - Page 178
    G00084714

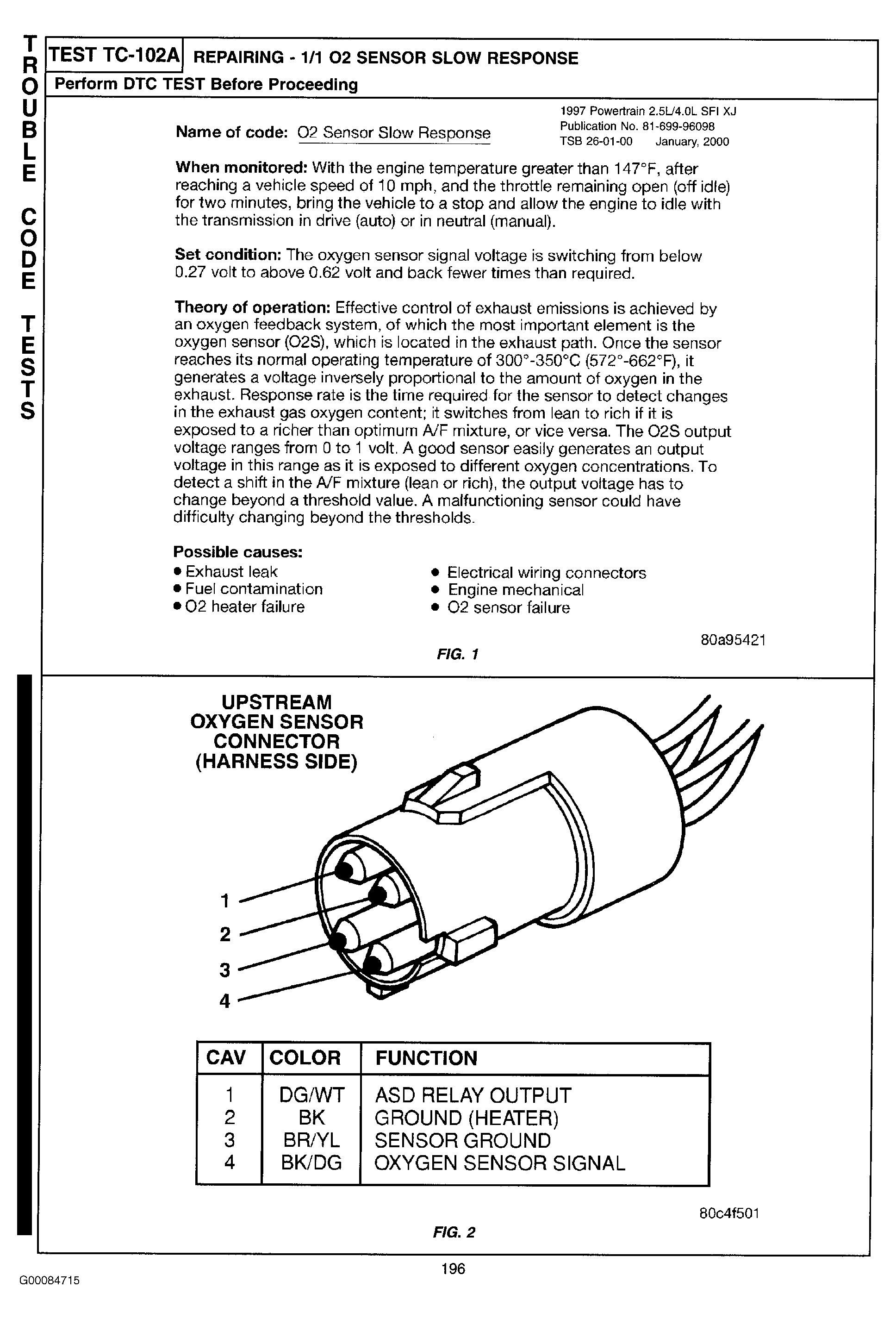

    Fig 134: 1997 XJ Powertrain Diagnostic Manual Revision - Page 196
    G00084715

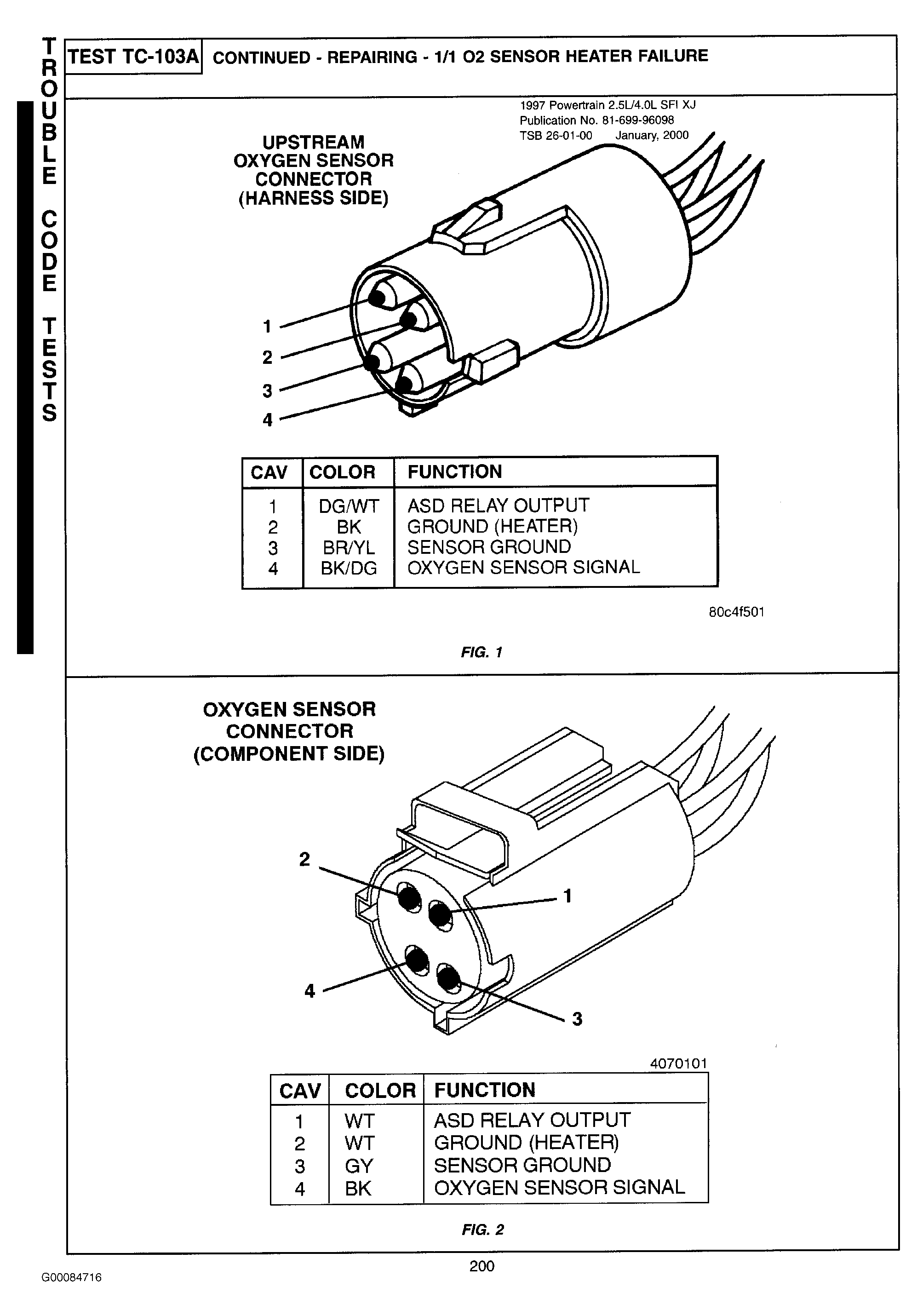

    Fig 135: 1997 XJ Powertrain Diagnostic Manual Revision - Page 200
    G00084716
    Fig 136: 1997 XJ Powertrain Diagnostic Manual Revision - Page 204
    G00084717

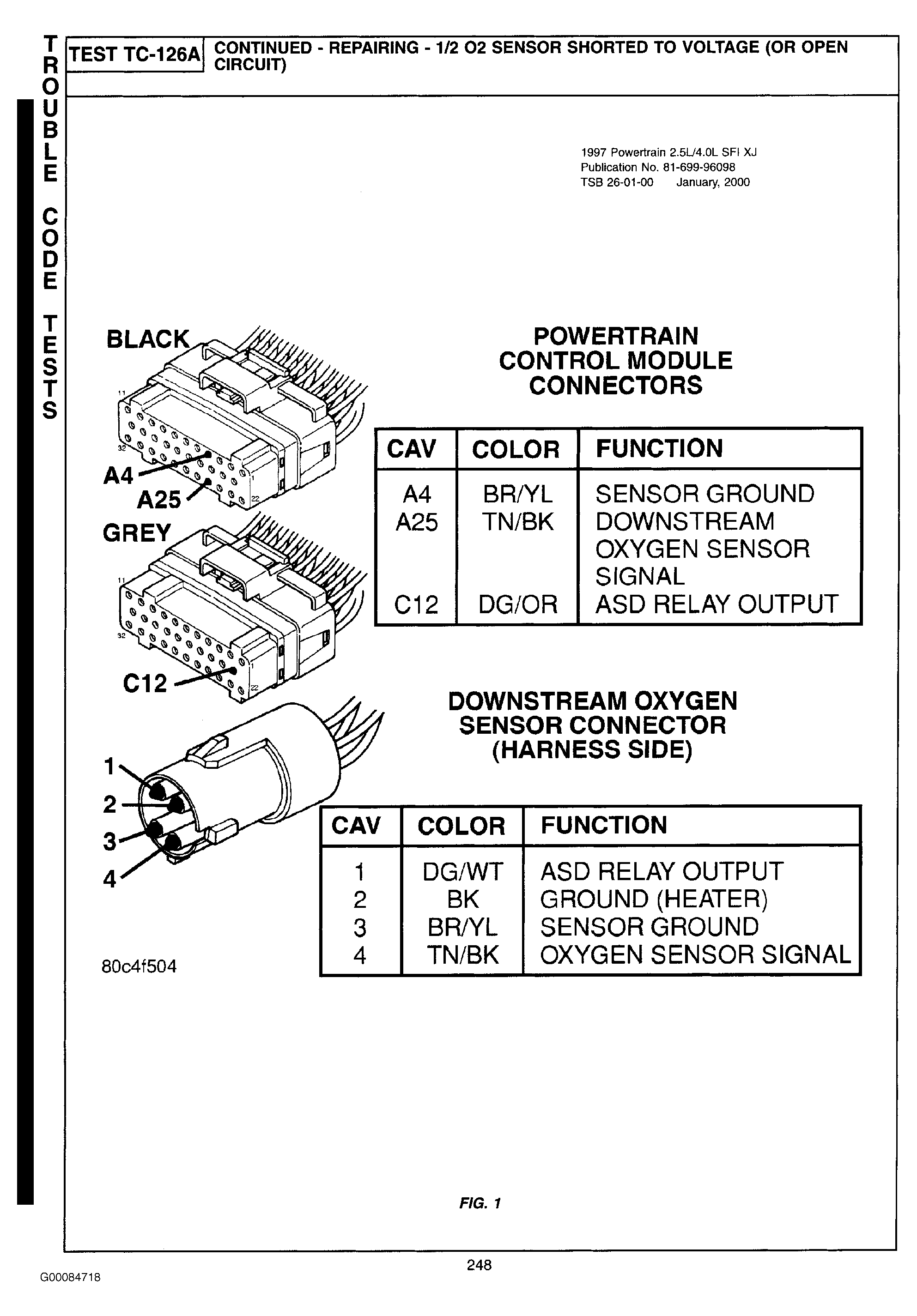

    Fig 137: 1997 XJ Powertrain Diagnostic Manual Revision - Page 248
    G00084718

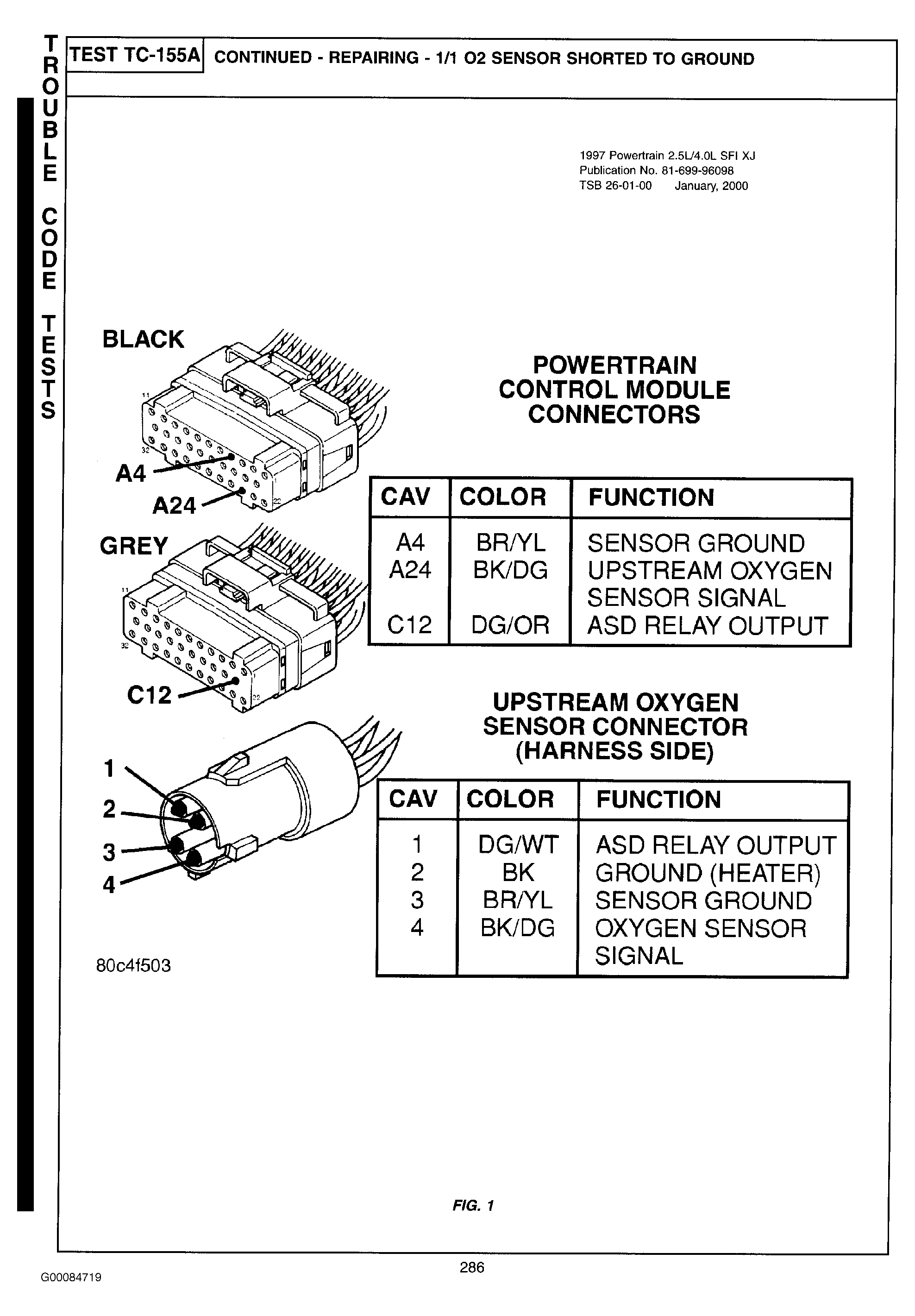

    Fig 138: 1997 XJ Powertrain Diagnostic Manual Revision - Page 286
    G00084719

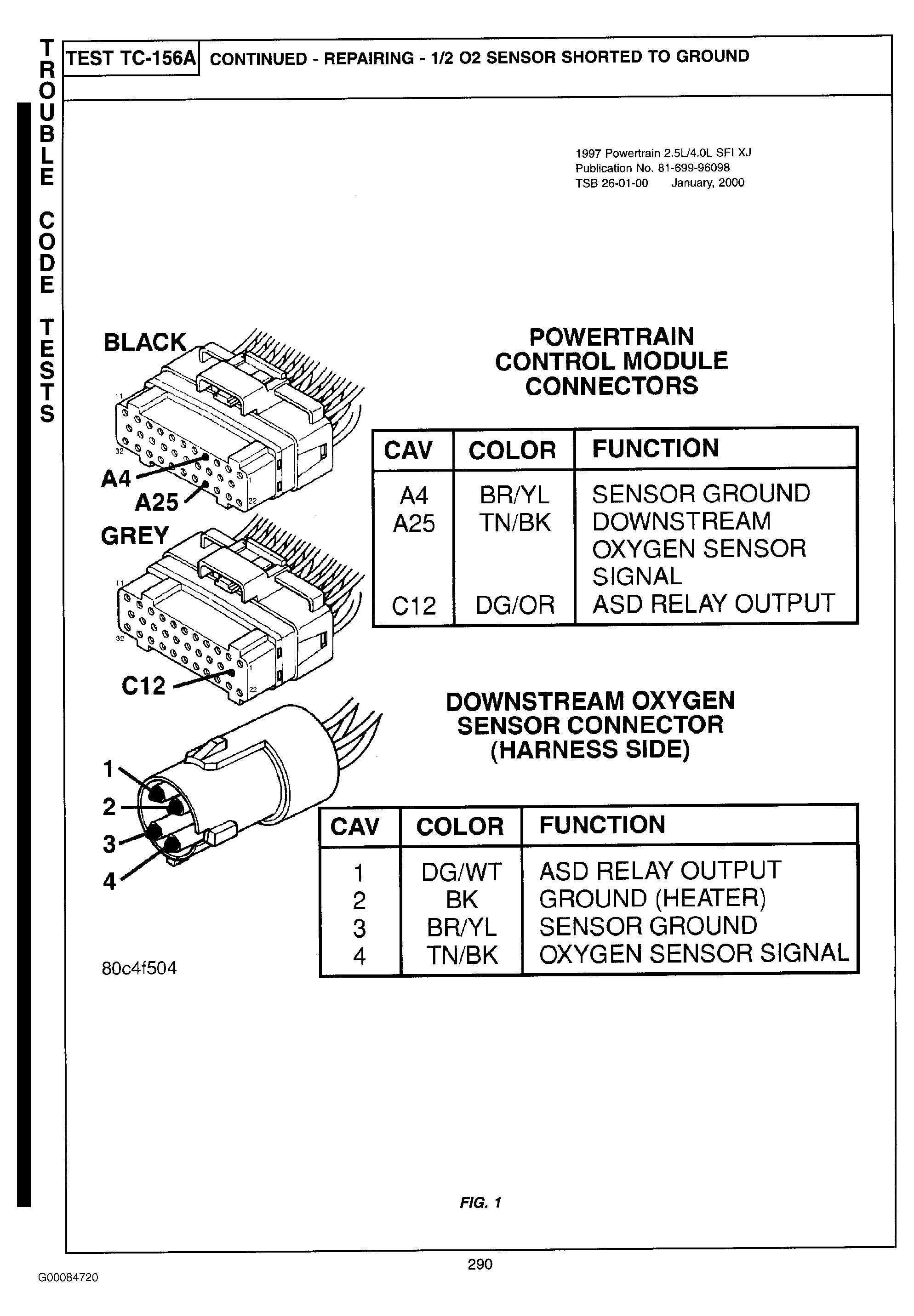

    Fig 139: 1997 XJ Powertrain Diagnostic Manual Revision - Page 290
    G00084720

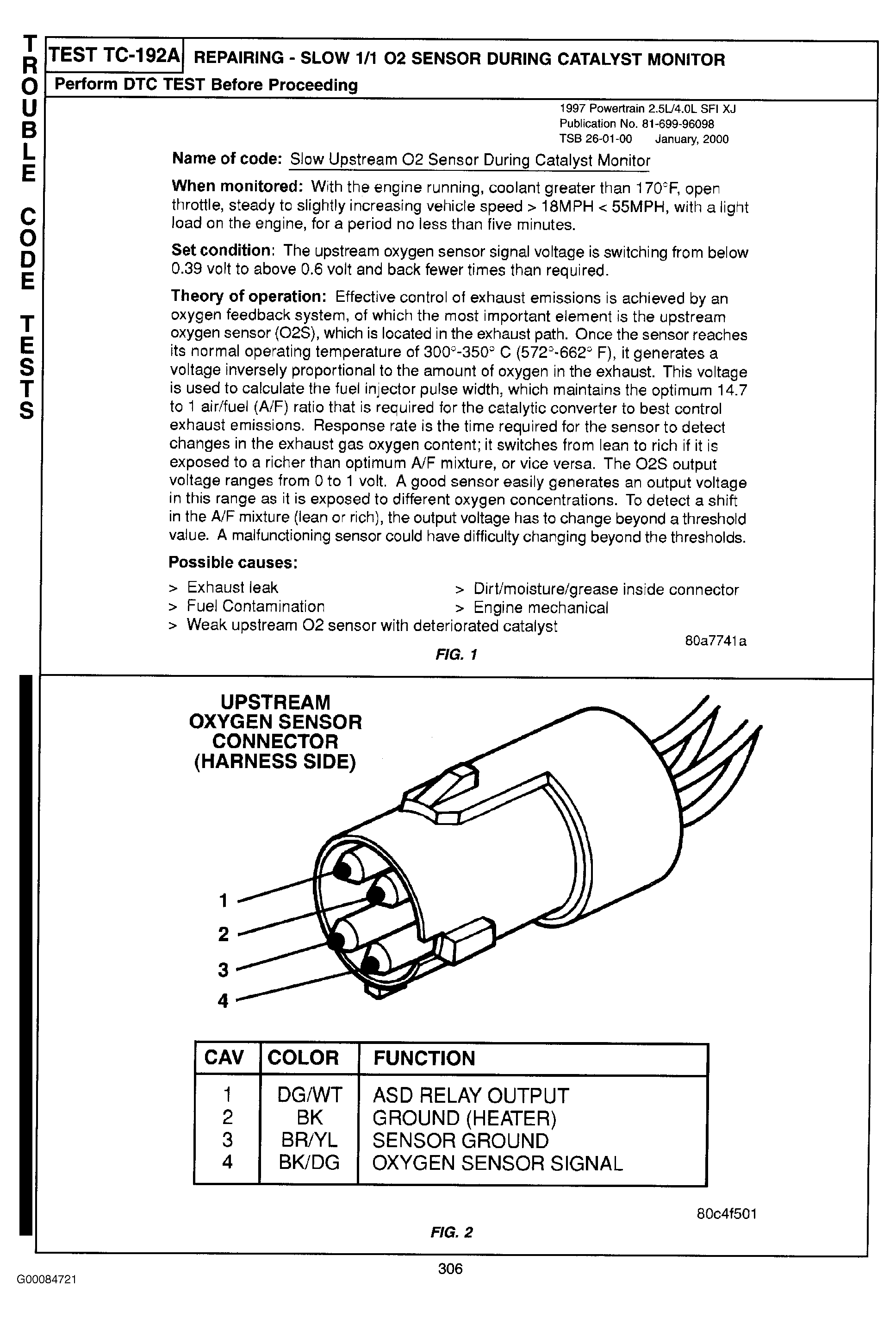

    Fig 140: 1997 XJ Powertrain Diagnostic Manual Revision - Page 306
    G00084721

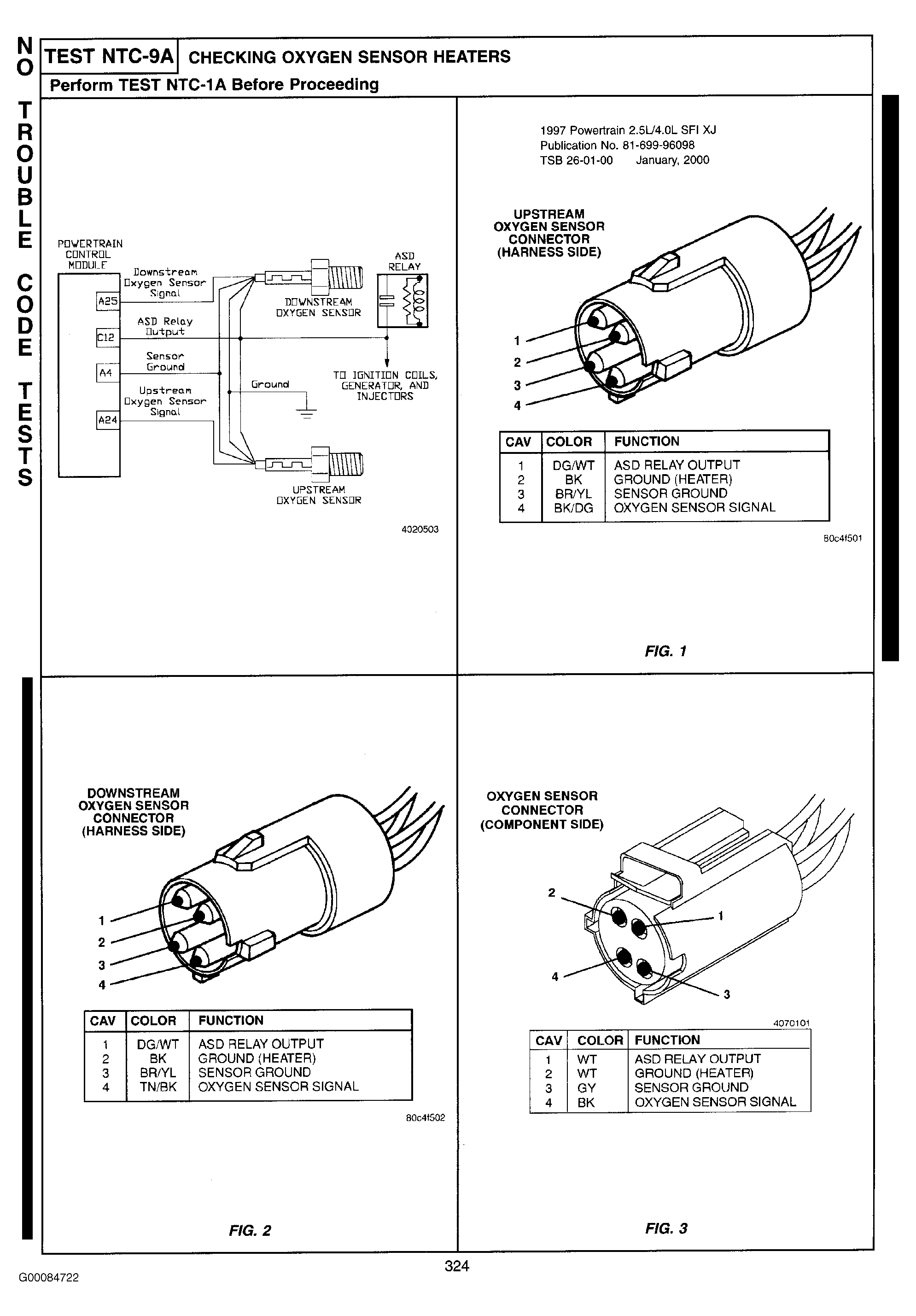

    Fig 141: 1997 XJ Powertrain Diagnostic Manual Revision - Page 324
    G00084722

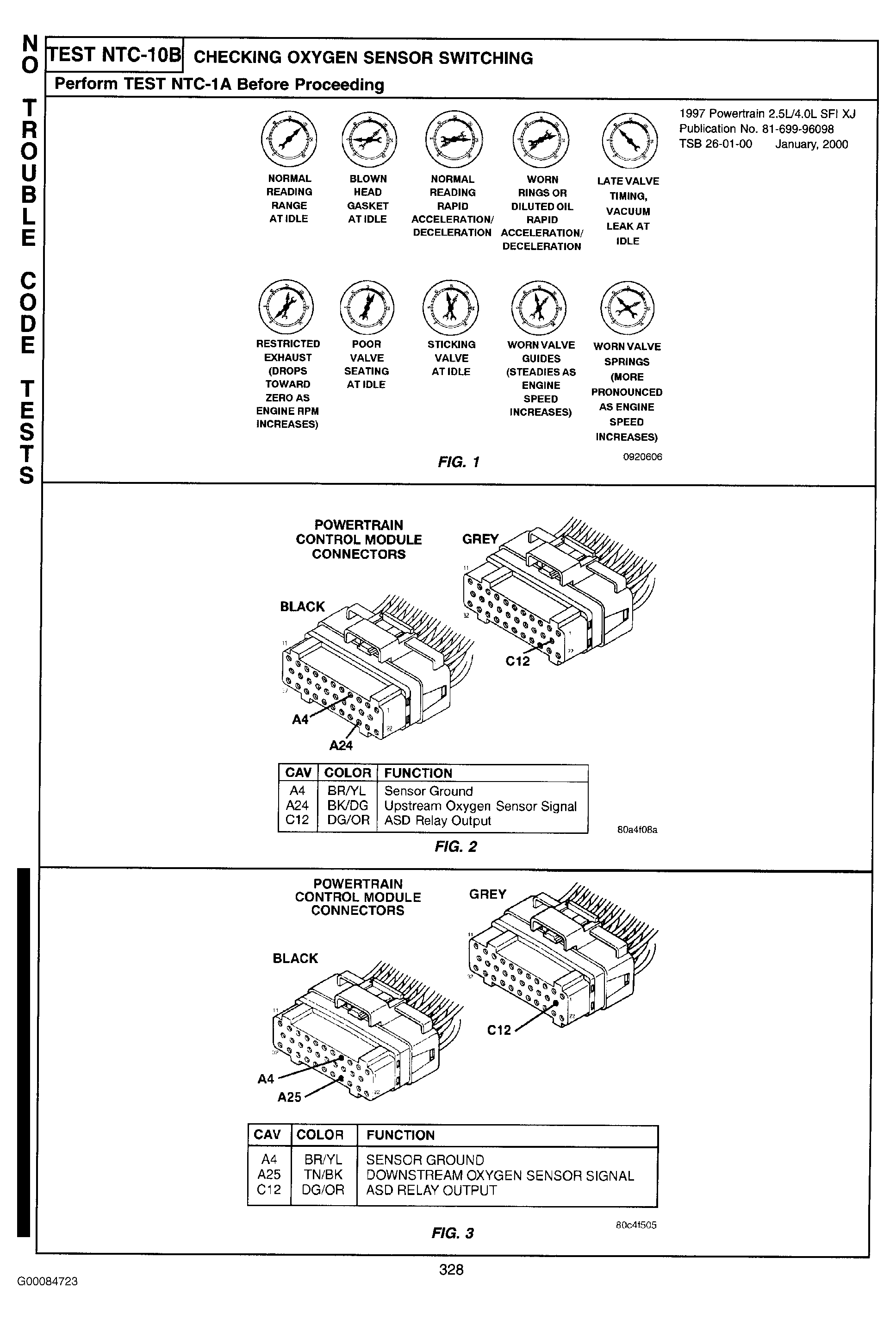

    Fig 142: 1997 XJ Powertrain Diagnostic Manual Revision - Page 328
    G00084723

1996 Ram Van/Wagon Service Manual - Publication Number 81-370-6107

  1. PAGES
    PAGES - 5-2

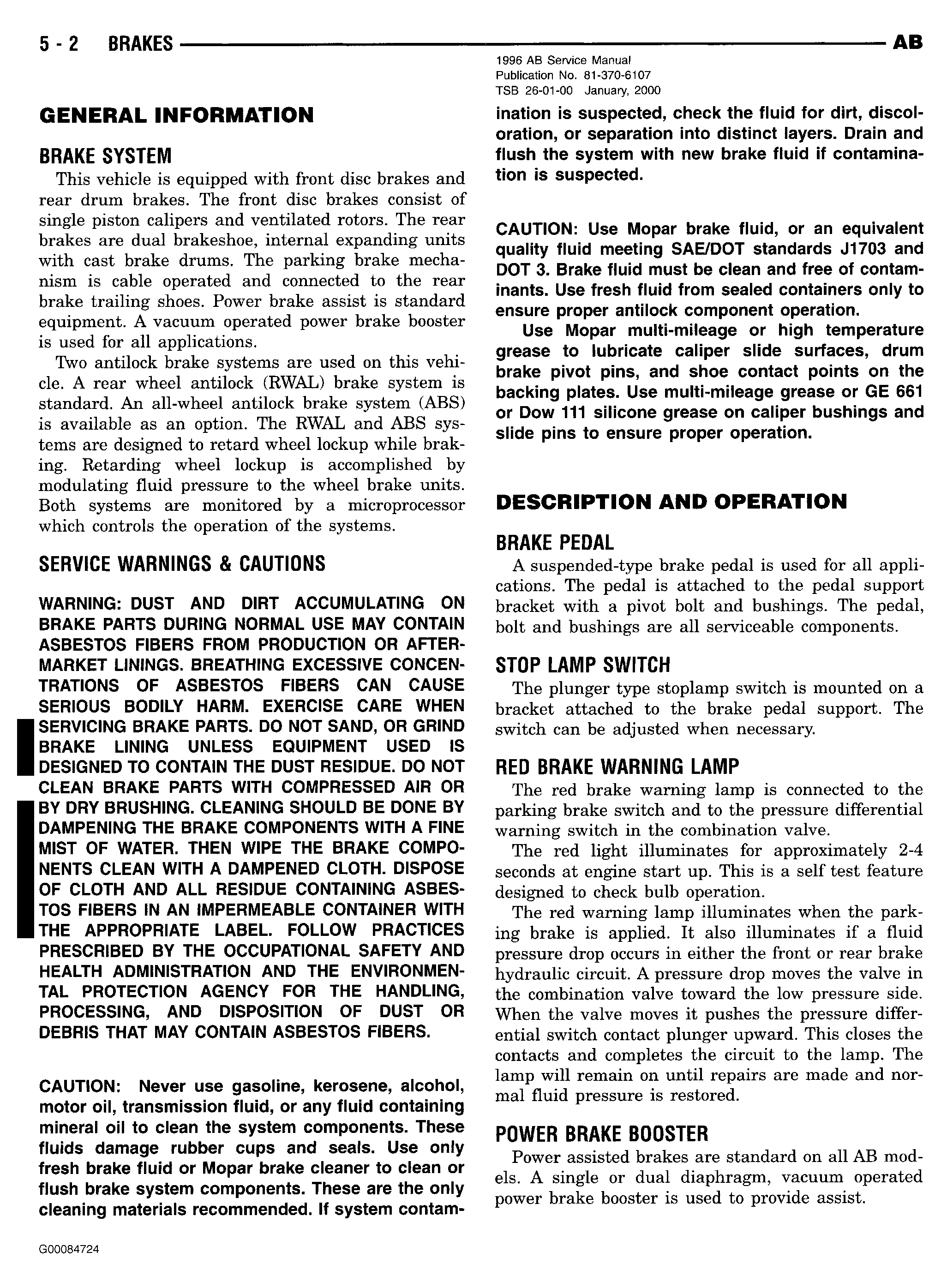

    Fig 143: 1996 AB Service Manual Revision - Page 5-2
    G00084724

  2. DESCRIPTION OF CHANGES
    Revisions to the warnings and cautions relating to brake dust

1995 Ram Van/Wagon Service Manual - Publication Number 81-370-5107

  1. PAGES
    5-2

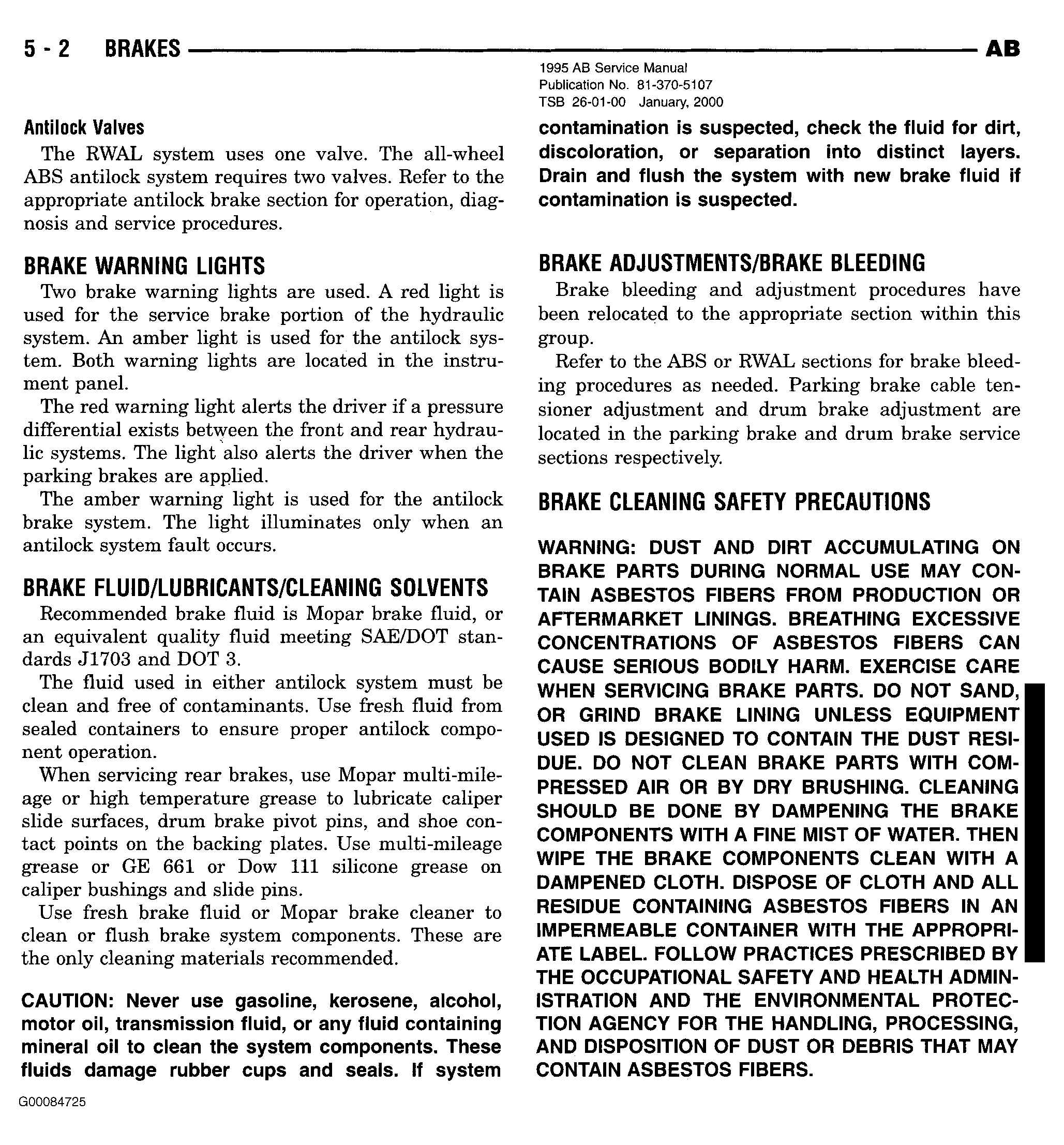

    Fig 144: 1995 AB Service Manual Revision - Page 5-2
    G00084725

  2. DESCRIPTION OF CHANGES
    Revisions to the warnings and cautions relating to brake dust
scientia non olet · About LEMON Manuals
