Heated Seat Switch

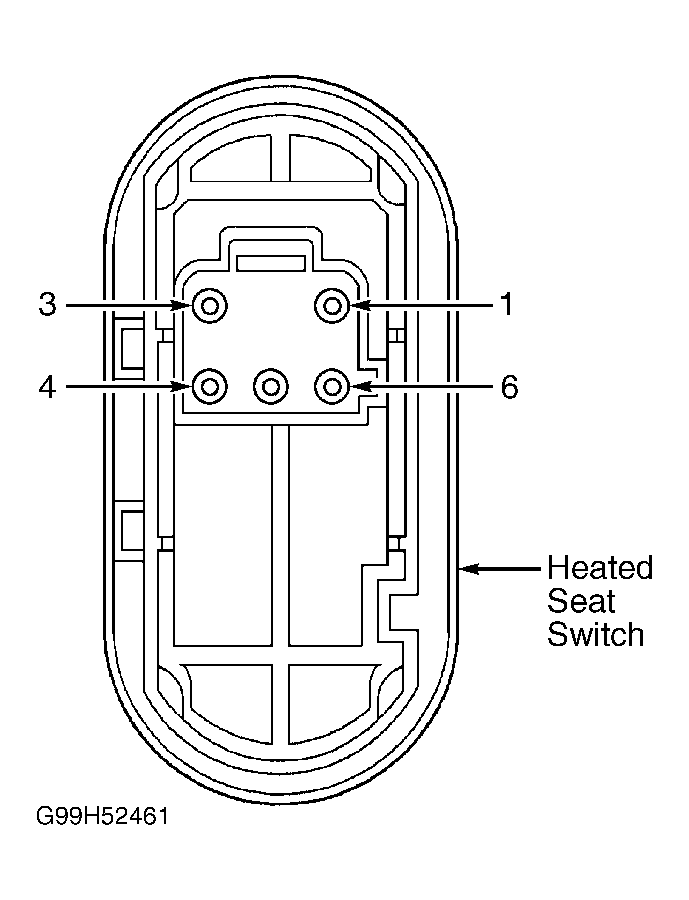

Remove heated seat switch from seat. See HEATED & MEMORY SEAT SWITCHES under REMOVAL & INSTALLATION. Using DVOM, measure resistance between heated seat switch terminals No. 4 and 6 of switch while operating switch to different positions. See Fig 1 . Compare readings to specifications. See HEATED SEAT SWITCH RESISTANCE table. If readings do not correspond with specifications, replace heated seat switch.
HEATED SEAT SWITCH RESISTANCE
| Switch Position | Reading Between Switch Terminals No. 4 & 6 (Ohms) |
|---|---|
| OFF | 2200 |
| LO | 415 |
| HI | 33 |
