Parking Brake
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, 2004 Chrysler 300M, and 2003 Dodge Intrepid. However, it is still accessible from the selected car via links, so may be relevant.

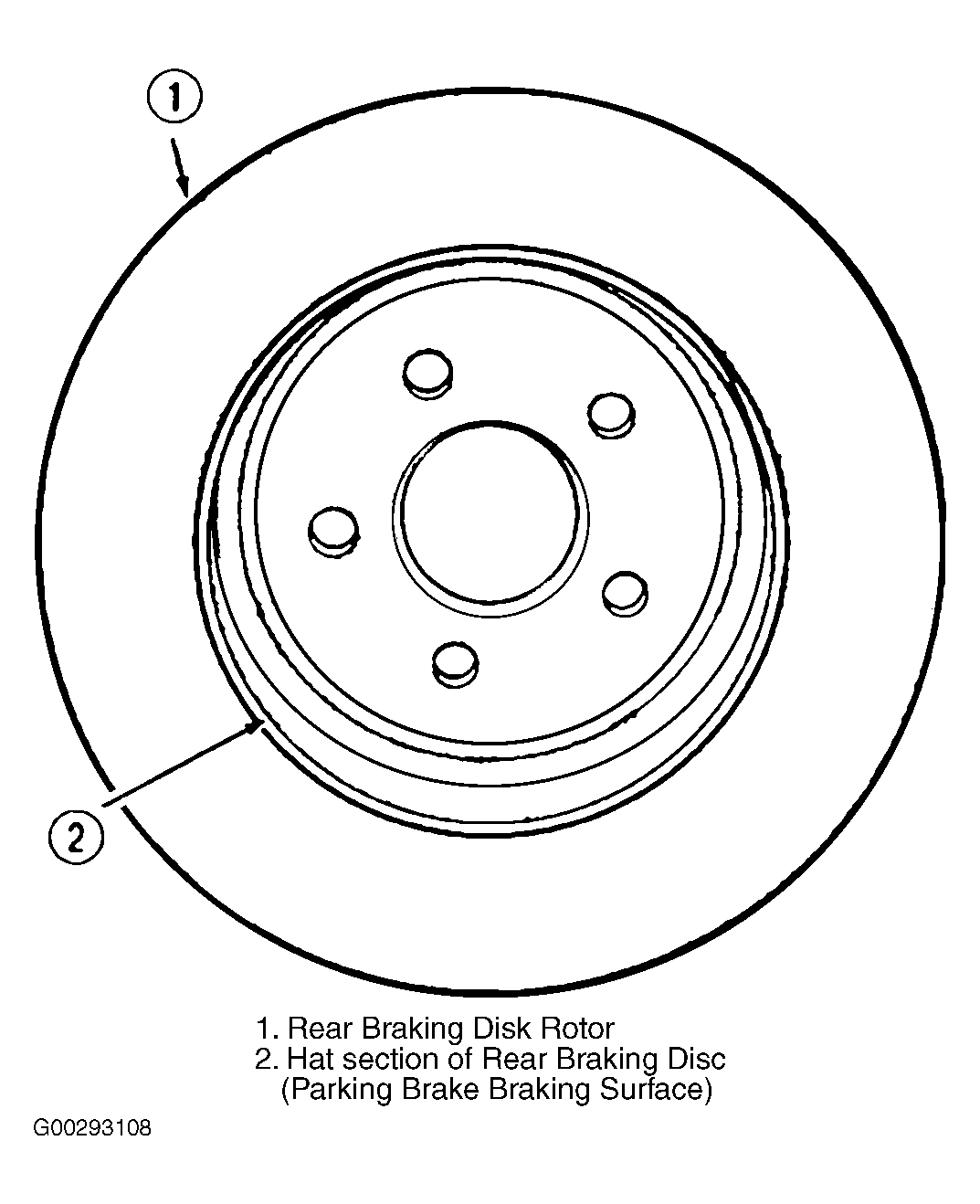

The parking brake mechanism on vehicles equipped with rear disc brakes consists of a small duo-servo brake which is mounted to the disc brake caliper adapter. The hat (center) section of the rear rotor serves as the braking surface (drum) for the parking brakes. See Fig 1.
The parking brake shoes are mechanically operated by an internal lever connected to a flexible steel (rear) cable. There are 2 rear cables, one for each rear wheel parking brake. The rear cables are joined at an equalizer bracket (and cable tensioner) which is attached to the intermediate cable. The opposite end of the intermediate cable is attached to the front cable which leads to the foot operated lever mounted inside the passenger compartment.
