Trouble Shooting: Washers

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, 2003 Chrysler 300M, and 2002 Dodge Intrepid. However, it is still accessible from the selected car via links, so may be relevant.

Whenever a windshield washer malfunction occurs, first verify that the windshield washer wire harness is properly connected to all connectors before starting normal diagnosis and repair. See Fig 1 -Fig 4 for washer testing.

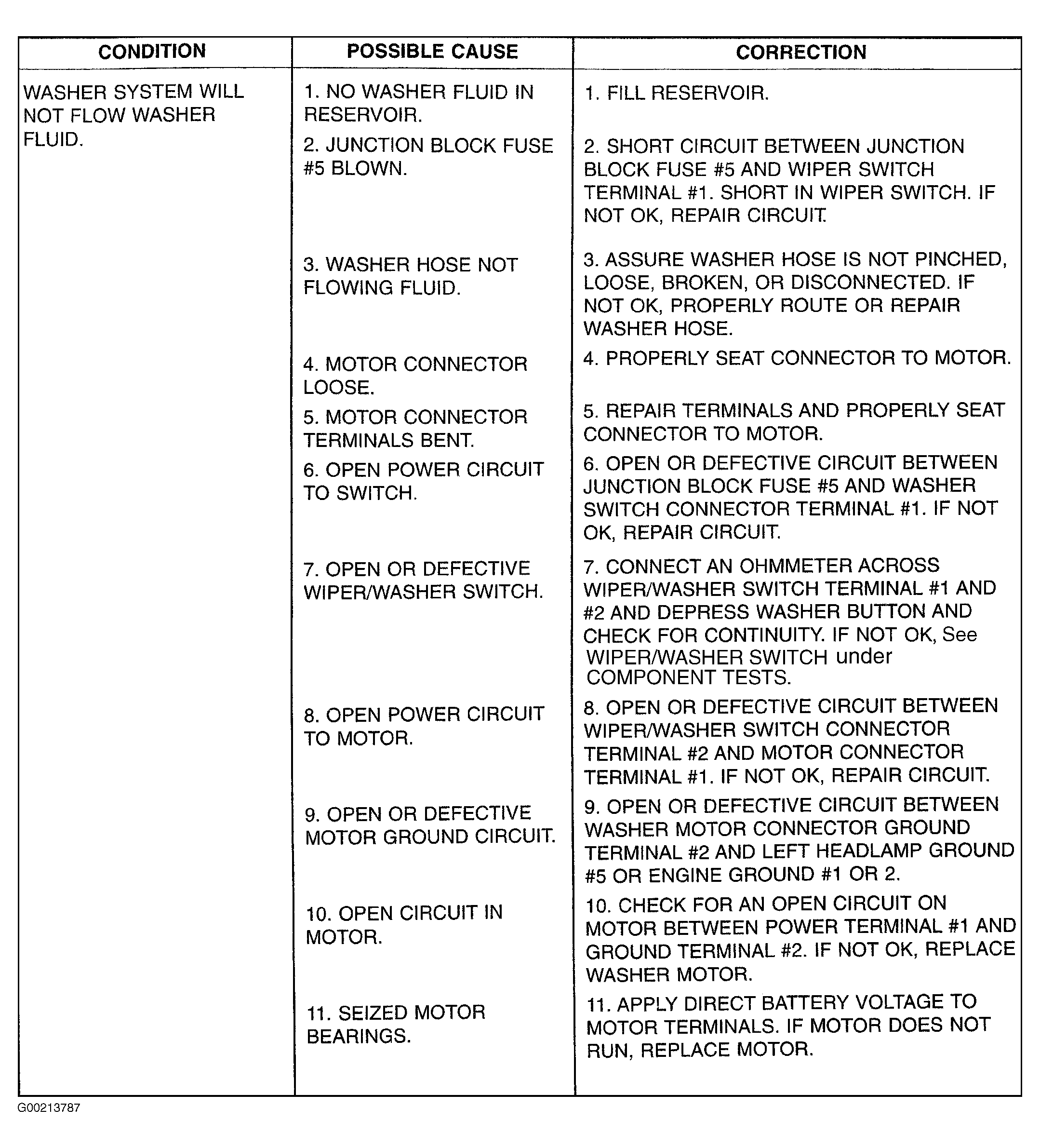

Fig 1: Washer Testing (1 Of 4)

Courtesy of CHRYSLER CORP.

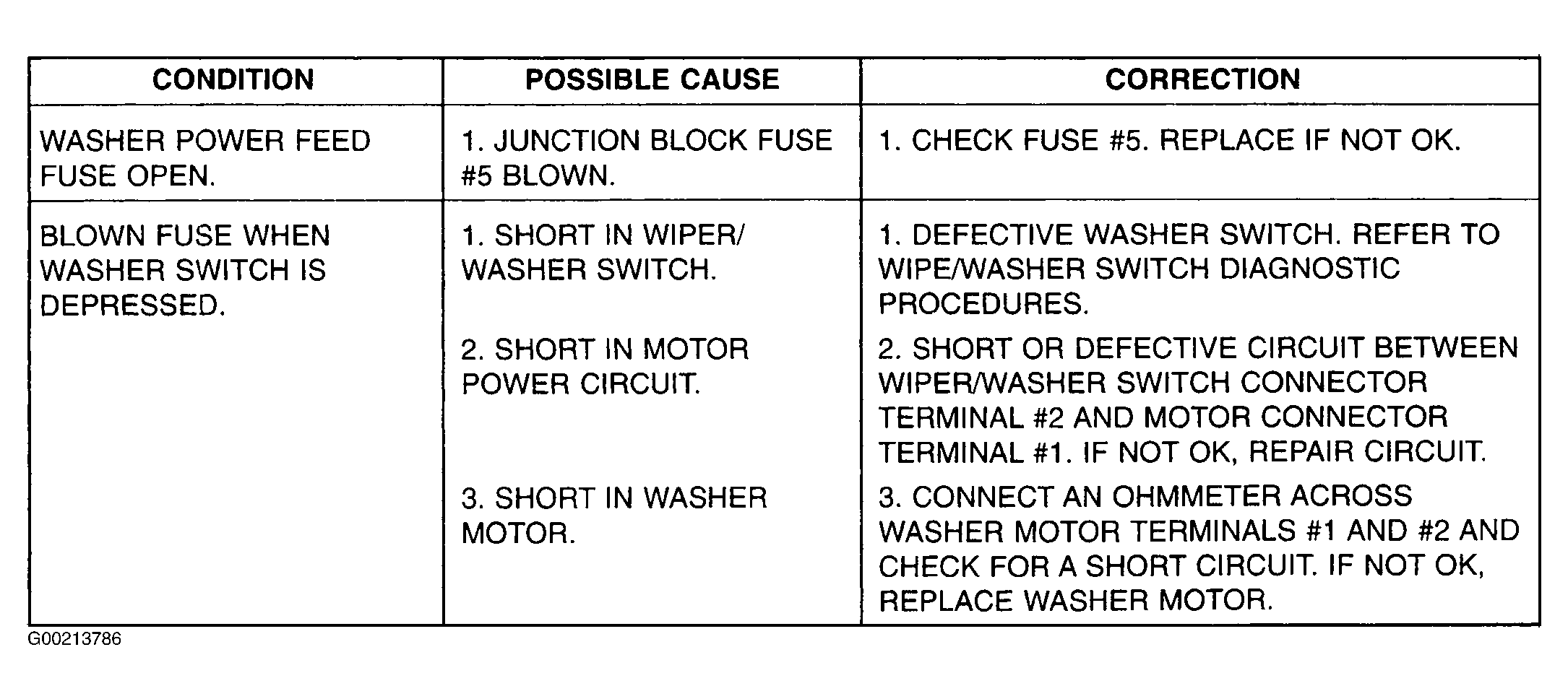

Fig 2: Washer Testing (2 Of 4)

Courtesy of CHRYSLER CORP.

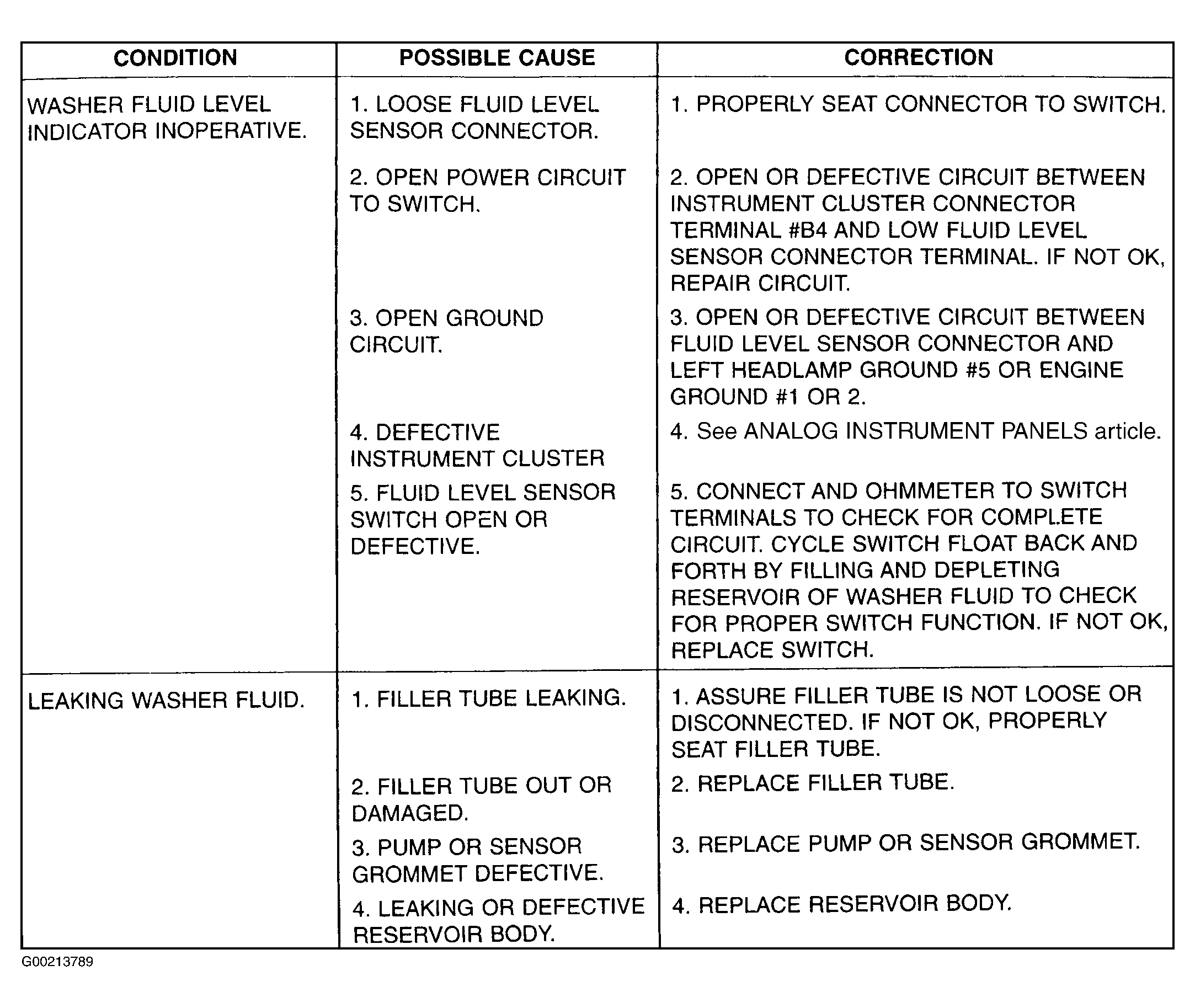

Fig 3: Washer Testing (3 Of 4)

Courtesy of CHRYSLER CORP.

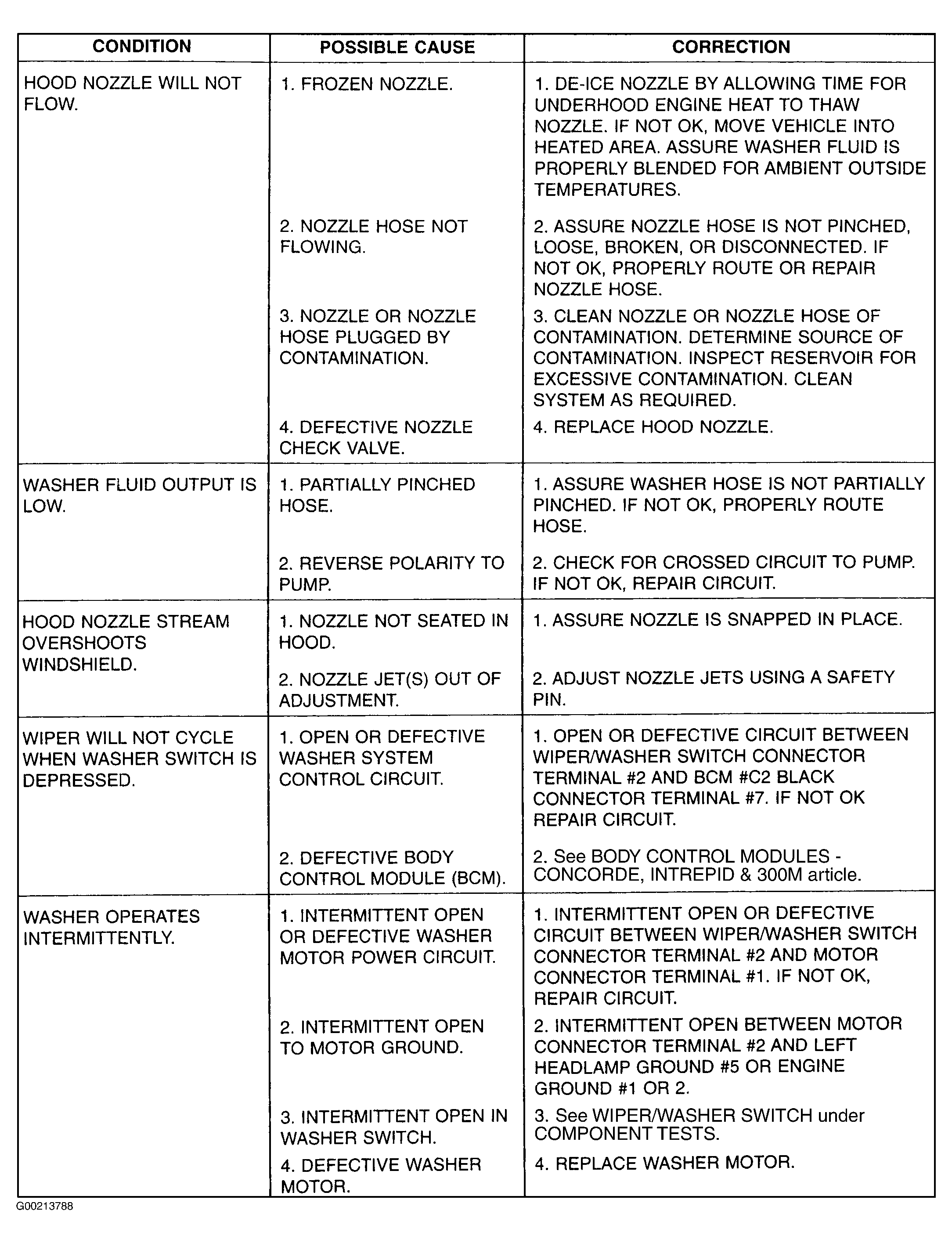

Fig 4: Washer Testing (4 Of 4)

Courtesy of CHRYSLER CORP.
