Section 115 (Hood System): Hood: Removal
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Raise hood to full up position.
- Mark all bolt and hinge attachment locations with a grease pencil or other suitable device to provide reference marks for installation.

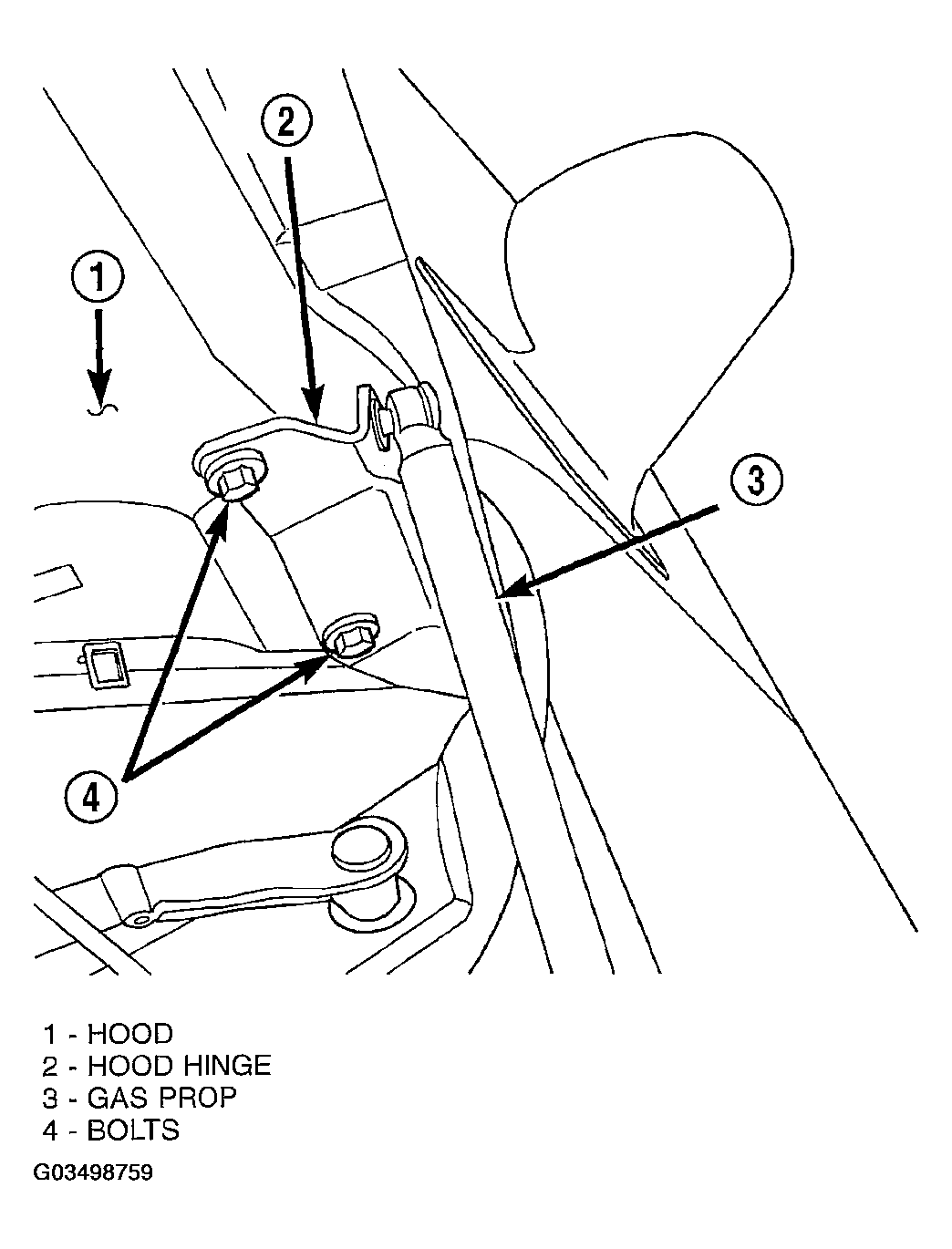

- Remove the top bolts attaching hood to hinge and loosen the bottom bolts until they can be removed by hand (Fig 1 ).
- With assistance from a helper at the opposite side of the vehicle to support the hood, remove bottom bolts attaching hood to hinge. Remove the hood from the vehicle.
