Section 95 (Lighting Systems - Exterior): Headlamp: Removal: Intrepid

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Headlamp lens fogging is a normal condition and does not require service unless excessive or continual. Moisture will vent from tubes or vents located on the back of the lamp.

Release hood latch and open hood.
Disconnect and isolate the battery negative cable.
Remove jackscrews attaching headlamp unit to crossmember and remove to access the lamp(s).
Disconnect wire connector from back of lamp socket (Fig 1).
CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.

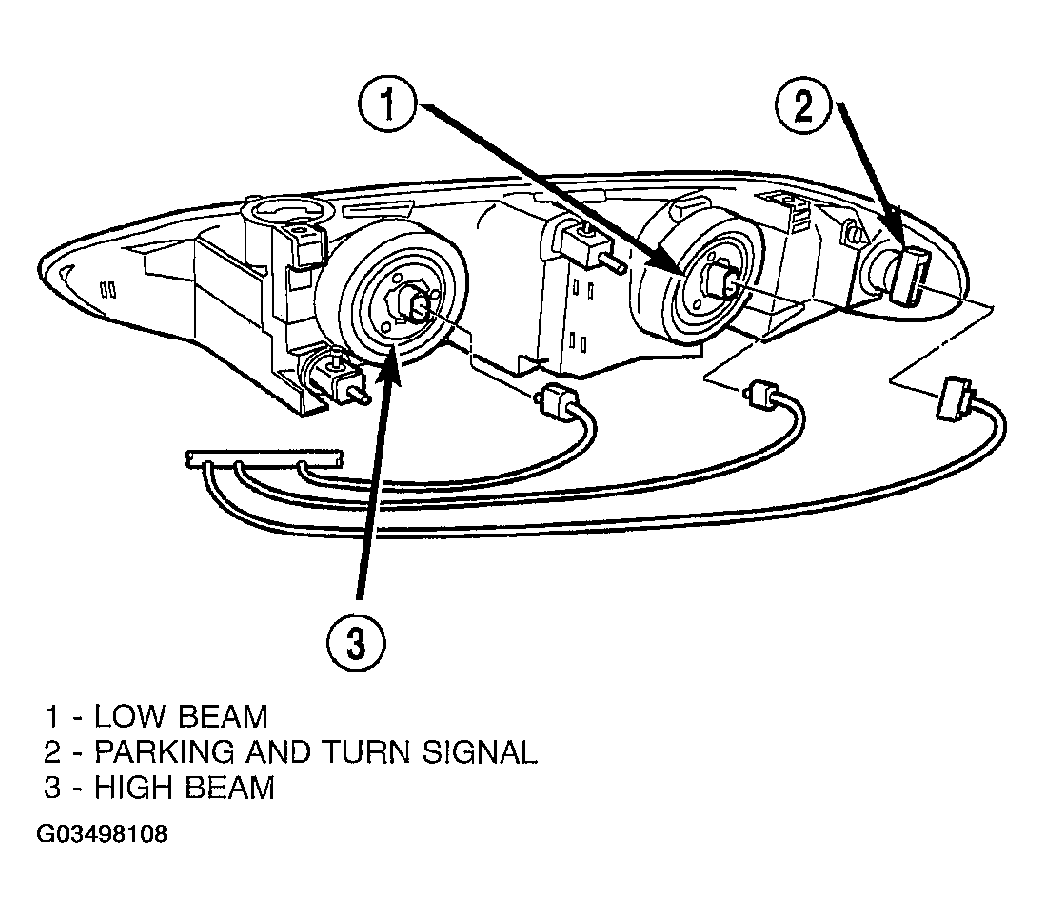

Fig 1: Headlamp - Intrepid
Courtesy of DAIMLERCHRYSLER CORP.
Rotate bulb (High beam or Low beam) and pull from headlamp unit.
