Fog Lamp: Removal: CONCORDE

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fog lamp housing screw in front fascia and pull lamp housing from the front fascia.
  2. Disconnect wire connector from fog lamp socket (Fig 1).

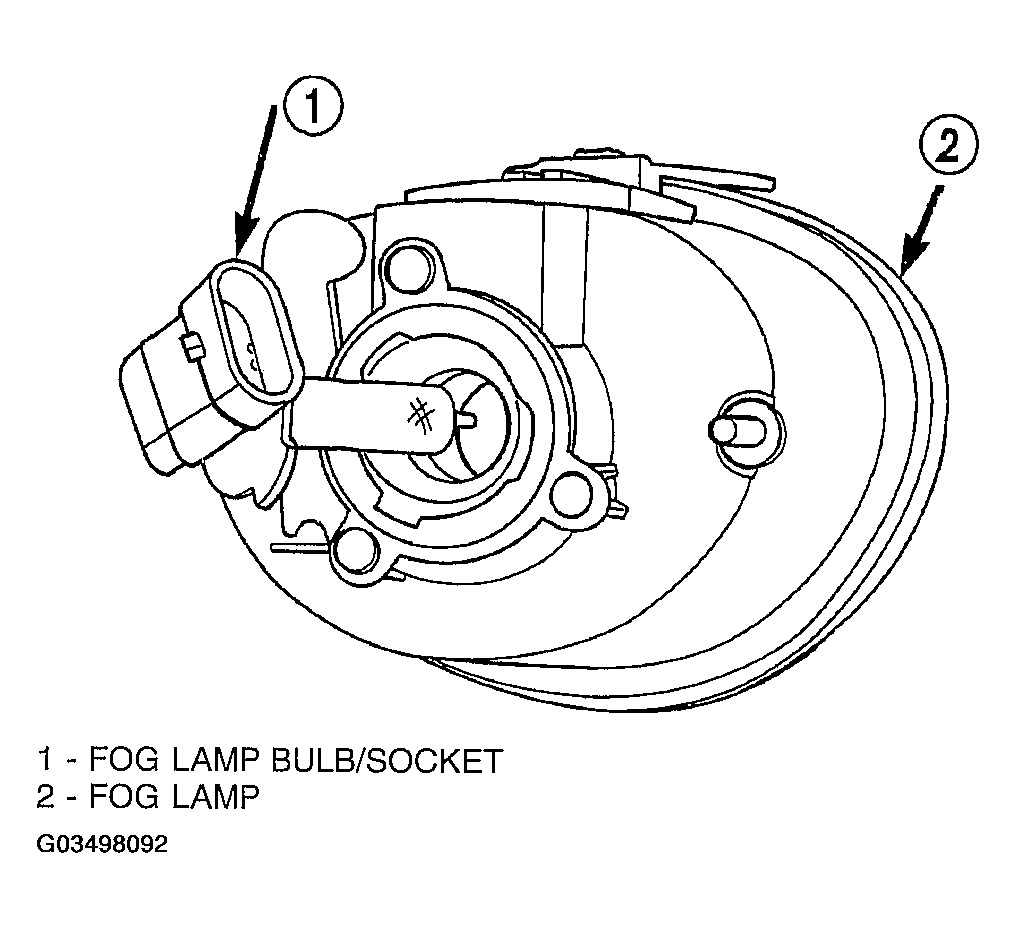

    Fig 1: Fog Lamp Bulb - Concorde
    G03498092Courtesy of DAIMLERCHRYSLER CORP.
  3. Rotate socket and pull bulb/socket from lamp housing.
