Standard Procedure - Fog Lamp Unit Alignment

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Prepare an alignment screen (Fig 1). Refer toHEADLAMP UNIT ALIGNMENT PREPARATION . A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp center line and straight ahead. To adjust fog lamp alignment, rotate the alignment screw (Fig 2), (Fig 3) or (Fig 4).

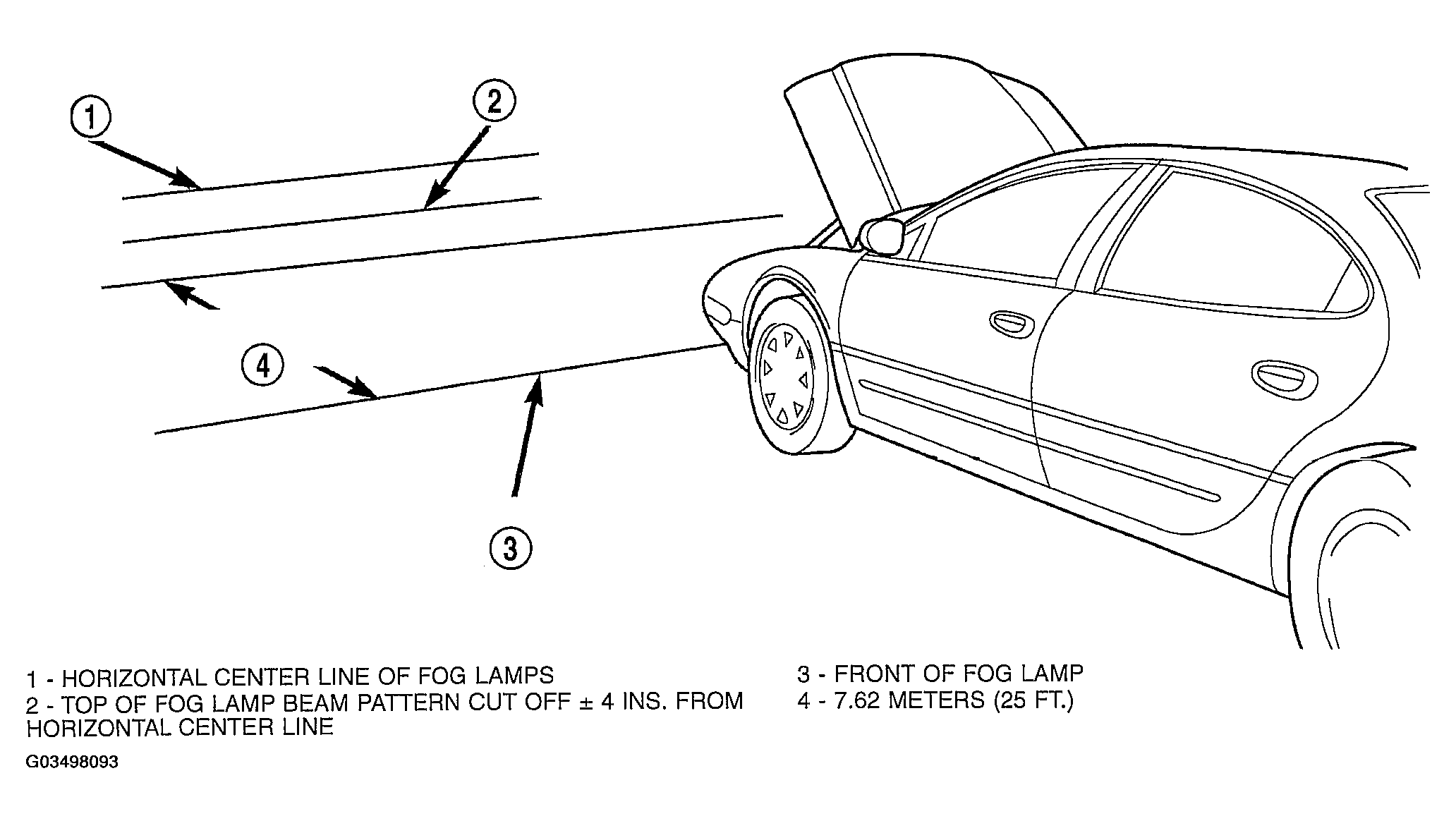

Fig 1: Fog Lamp Unit Alignment Screen

Courtesy of DAIMLERCHRYSLER CORP.

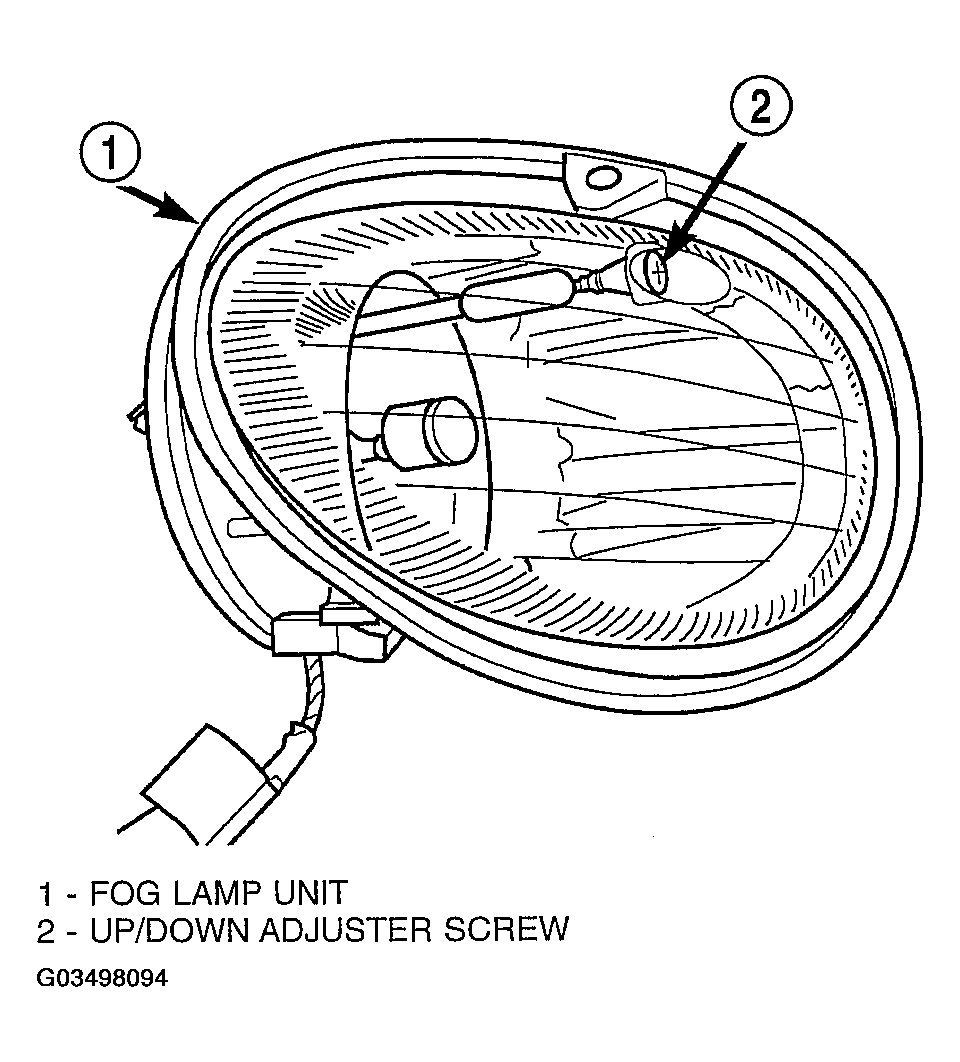

Fig 2: Fog Lamp Unit Adjuster Screw - Intrepid

Courtesy of DAIMLERCHRYSLER CORP.

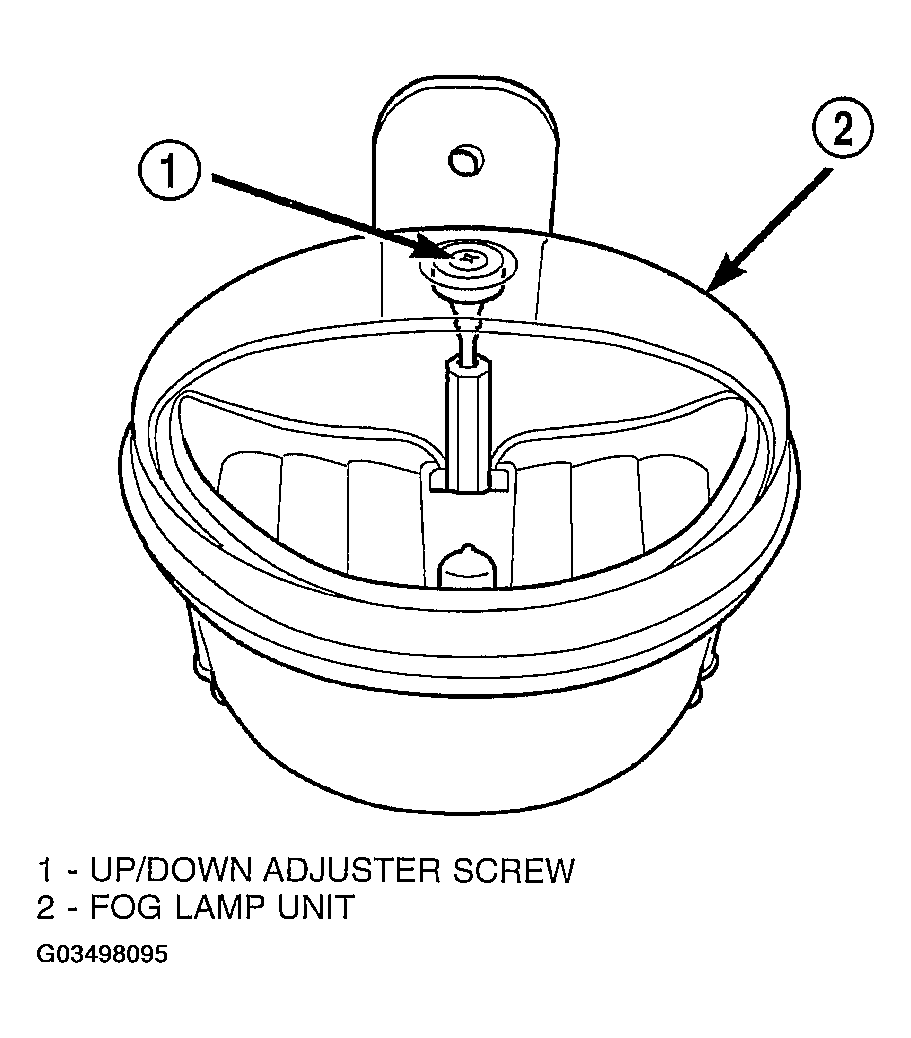

Fig 3: Fog Lamp Unit Adjuster Screw - Concorde

Courtesy of DAIMLERCHRYSLER CORP.

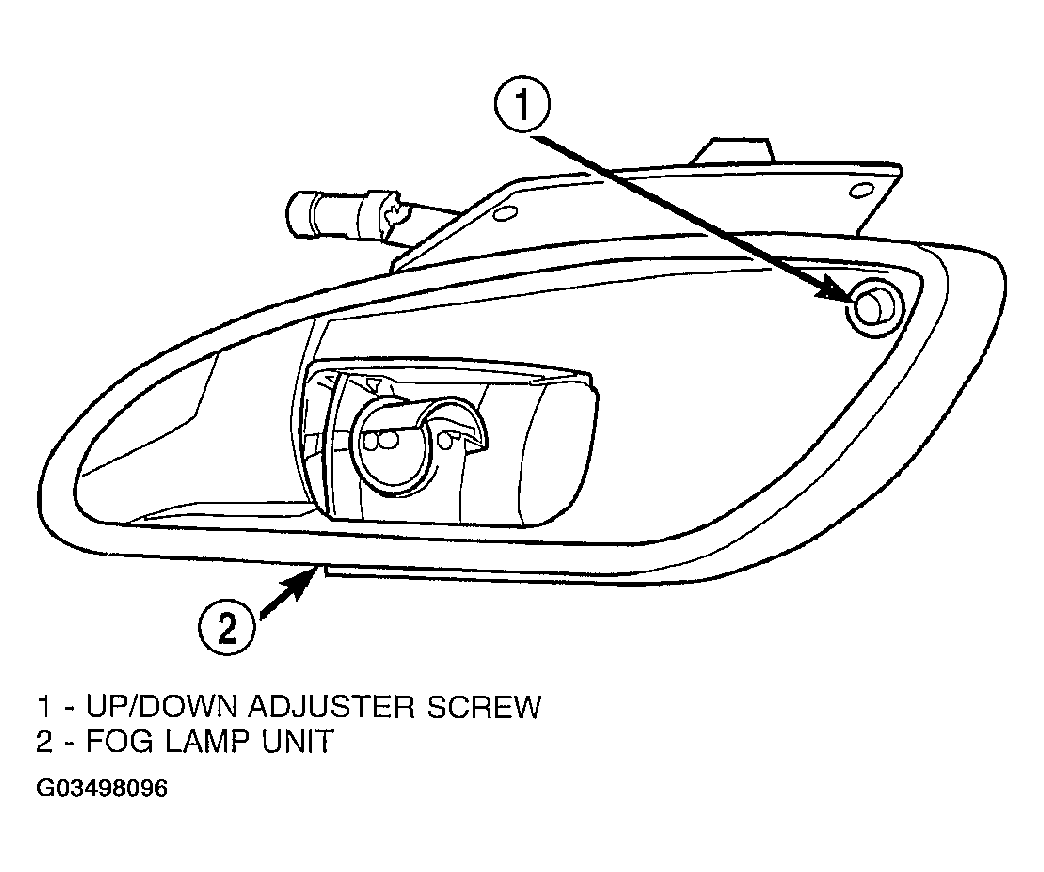

Fig 4: Fog Lamp Unit Adjuster Screw - 300M

Courtesy of DAIMLERCHRYSLER CORP.
