Instrument Cluster Mask/Lens: Removal
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
- Remove the instrument panel left end cap.
- Remove steering column shroud cover.
- Tilt the steering column down into the lowest position.
- Remove one screw (Limited/300M) to cluster bezel
- Remove the items to expose bezel mounting screws. Items vary depending on model.
- Remove two screws over upper cluster bezel in instrument panel brow area and all remaining attaching screws (four on Intrepid, Limited, and 300M, and five on Concorde).
- Using a trim stick (special tool #C-4755), gently pry out on the instrument panel cluster bezel, disconnect headlamp switch connector, and remove.
- Remove the instrument cluster screws.NOTE: Tilt steering wheel down to gain access for instrument cluster removal.
- Remove the instrument cluster from panel. The instrument panel wiring harness connectors are self-aligning, mounted directly to the rear panel. A force of approximately 9 kilograms (30 lbs.) will be required to disengage the cluster from the connectors and upper clips.

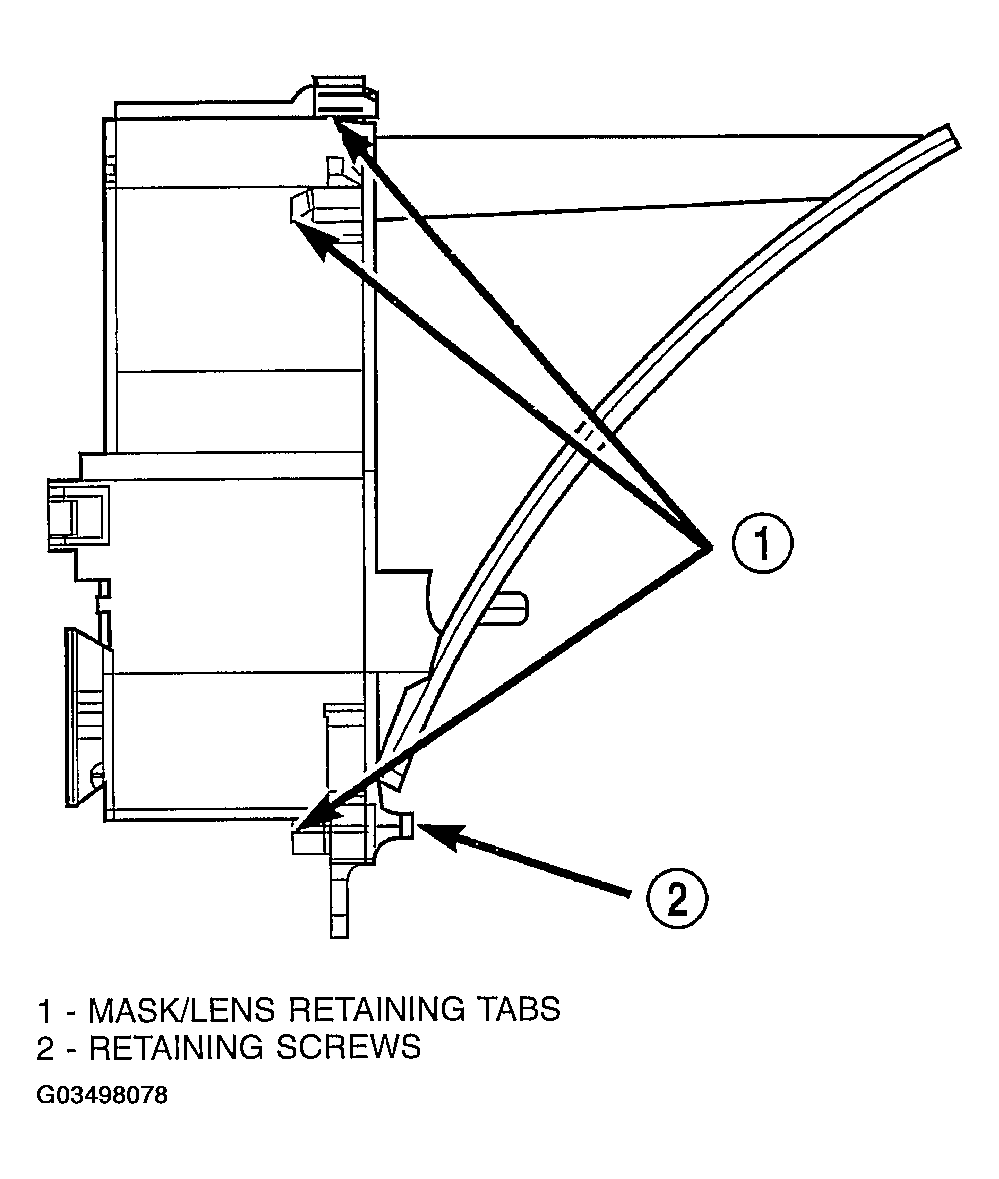

- Remove two screws to mask/lens (Fig 1 ).
- Unsnap seven retaining tabs holding mask/lens to cluster housing (Fig 2 ).
- Separate mask/lens from instrument cluster and remove.
