Water Pump - 3.5L: Installation

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Clean all O-ring surfaces on pump and cover.
Apply Mopar® Dielectric Grease or the equivalent silicone grease to the O-ring to facilitate assembly. Install new O-ring on water pump (Fig 1).

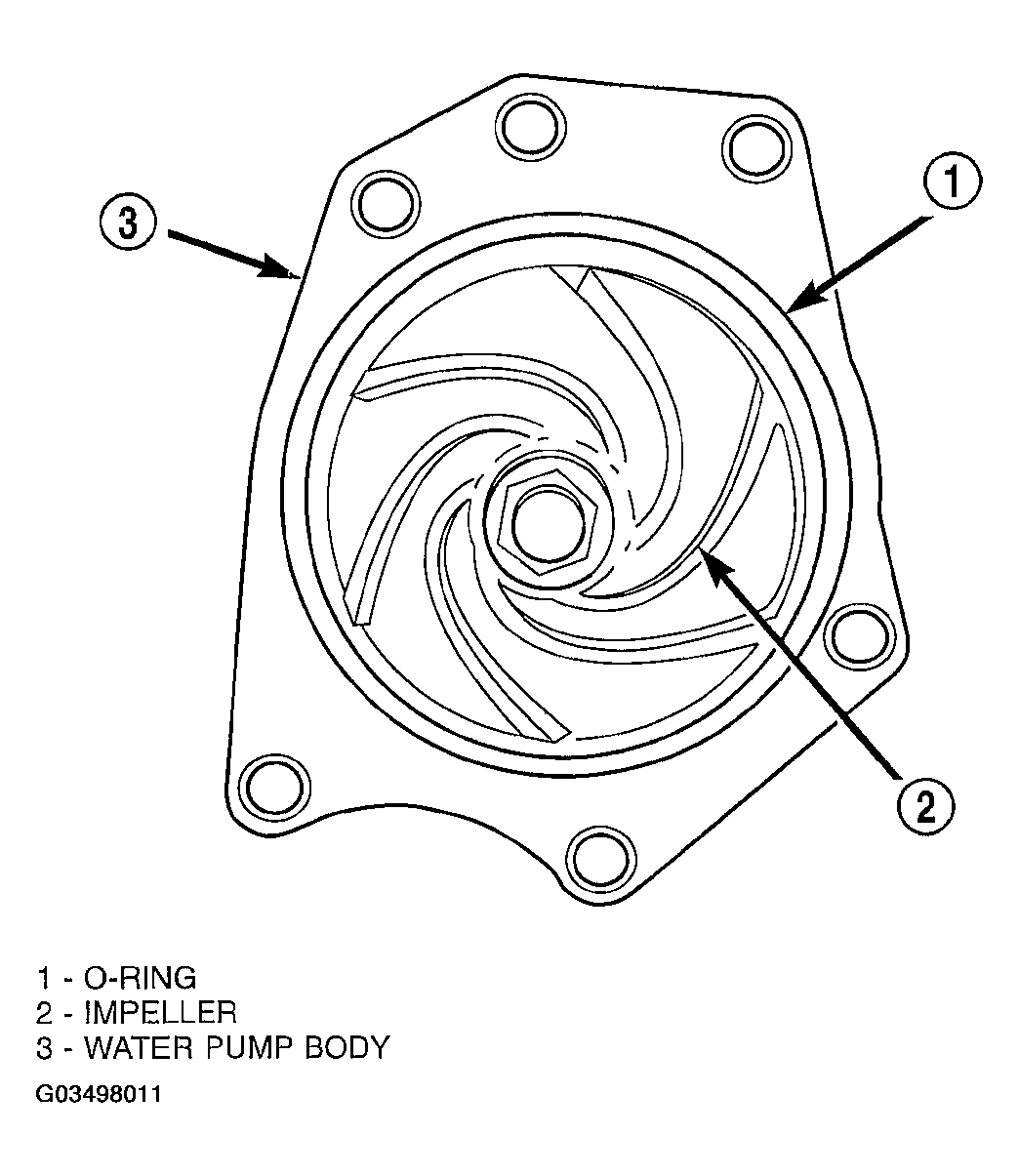

Fig 1: Water Pump - 3.5L
Courtesy of DAIMLERCHRYSLER CORP.
Position water pump to engine.
Install mounting bolts and tighten to 12 N.m (105 in.lbs.).
Install timing belt (Refer to TIMING BELT AND SPROCKETS ).
Install accessory drive belts (Refer to ACCESSORY DRIVE ).
Fill cooling system (Refer to STANDARD PROCEDURE ).
