Section 74 (Steering System - Electronic - Variable Power Assist): Reservoir: Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, 2003 Chrysler 300M, and 2002 Dodge Intrepid. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles equipped with the 2.7 liter engine use a power steering pump that has an integral reservoir (Figure). Vehicles equipped with the 3.5 liter engine use a power steering pump that has a remotely mounted reservoir (Fig 1).

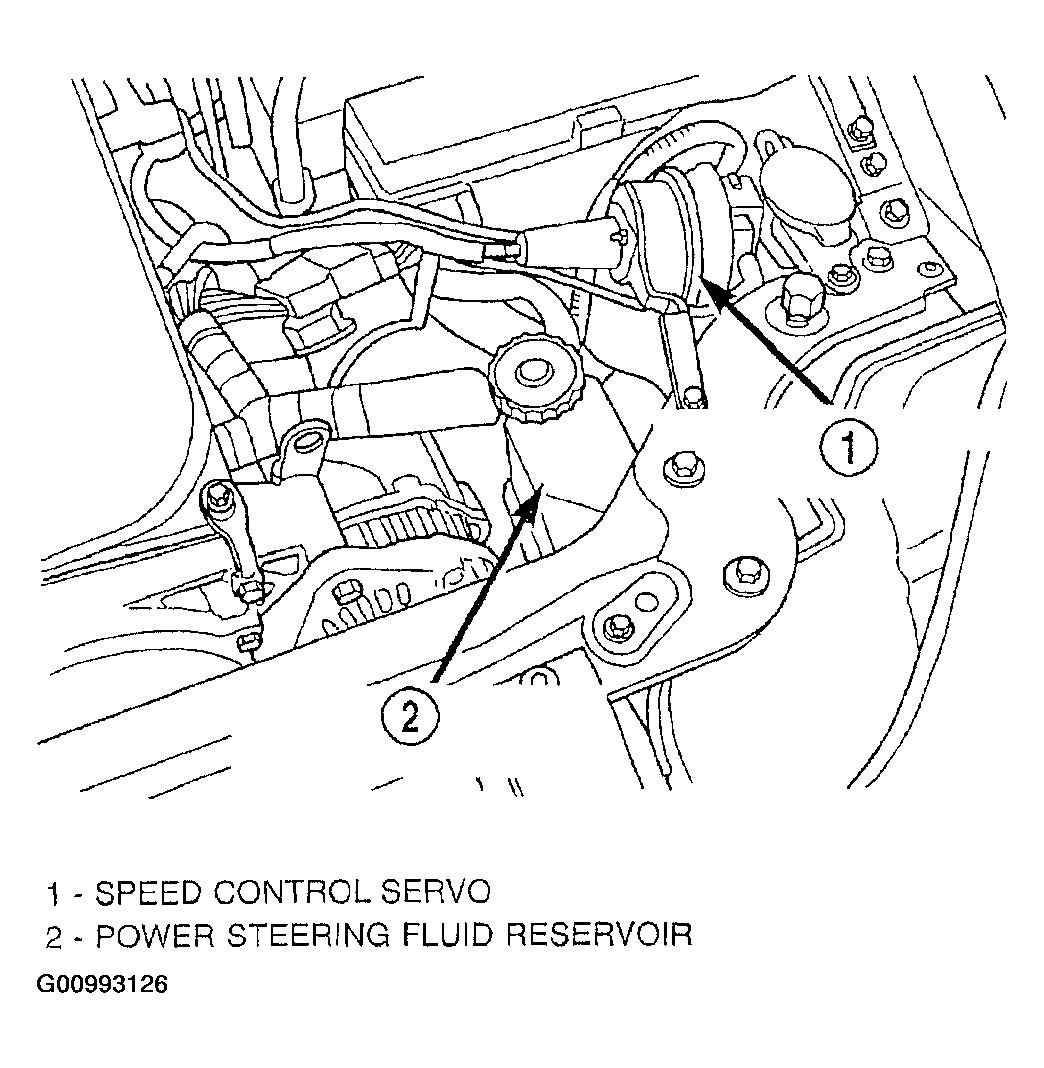

Fig 1: Identifying Power Steering Fluid Reservoir (3.5L Engine)

Courtesy of DAIMLERCHRYSLER CORP.
