Suction Line: Removal

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: REVIEW THE WARNING AT THE BEGINNING OF THIS ARTICLE BEFORE PERFORMING THE FOLLOWING OPERATION. (Refer to WARNING ).

Recover the refrigerant from the system. (Refer to STANDARD PROCEDURE - REFRIGERANT RECOVERY ).
Remove one M13 nut holding the suction line to the expansion valve Fig 1 and Fig 2 .

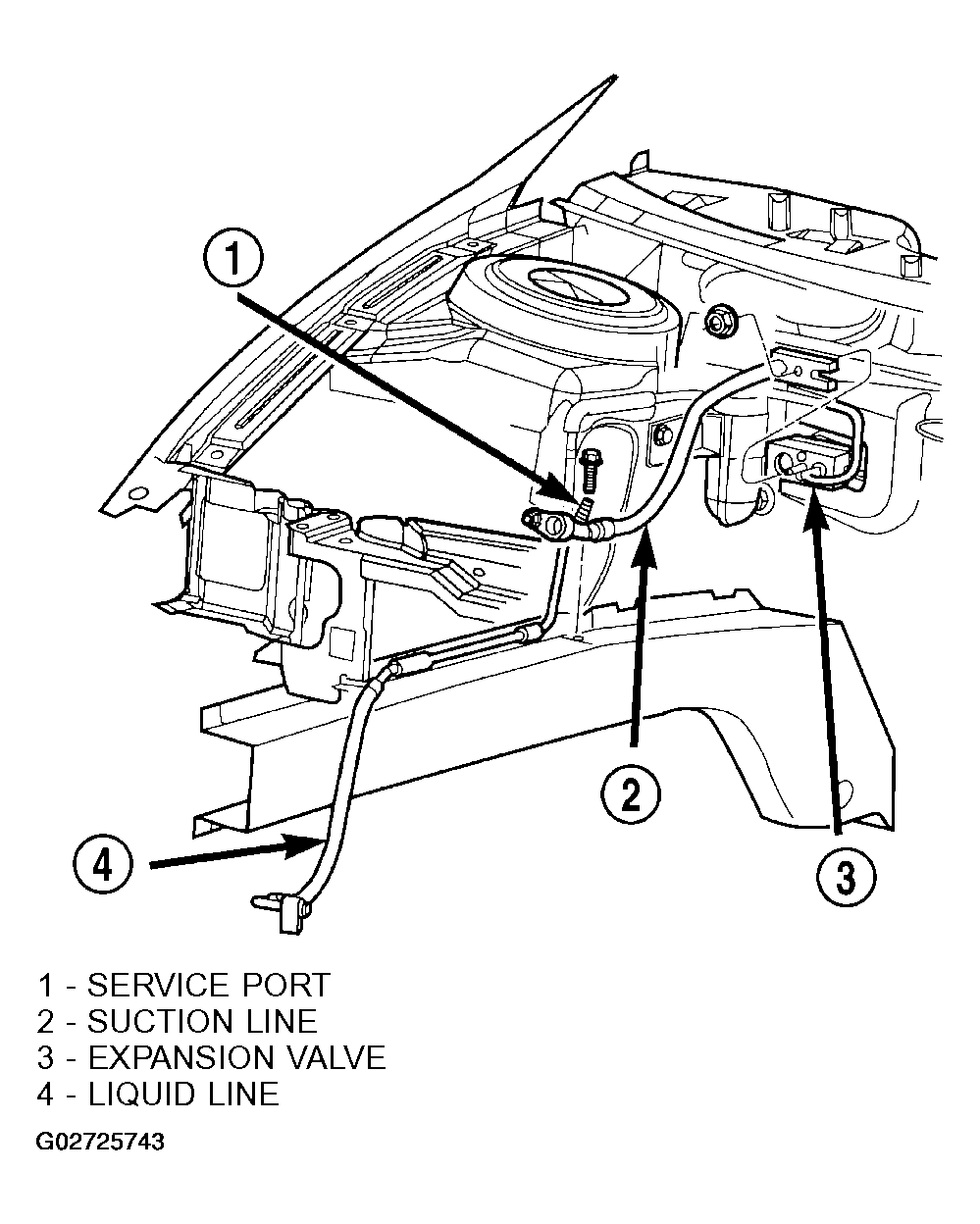

Fig 1: Identifying A/C Refrigerant Lines And Expansion Valve - 3.2/3.5L
Courtesy of DAIMLERCHRYSLER CORP.

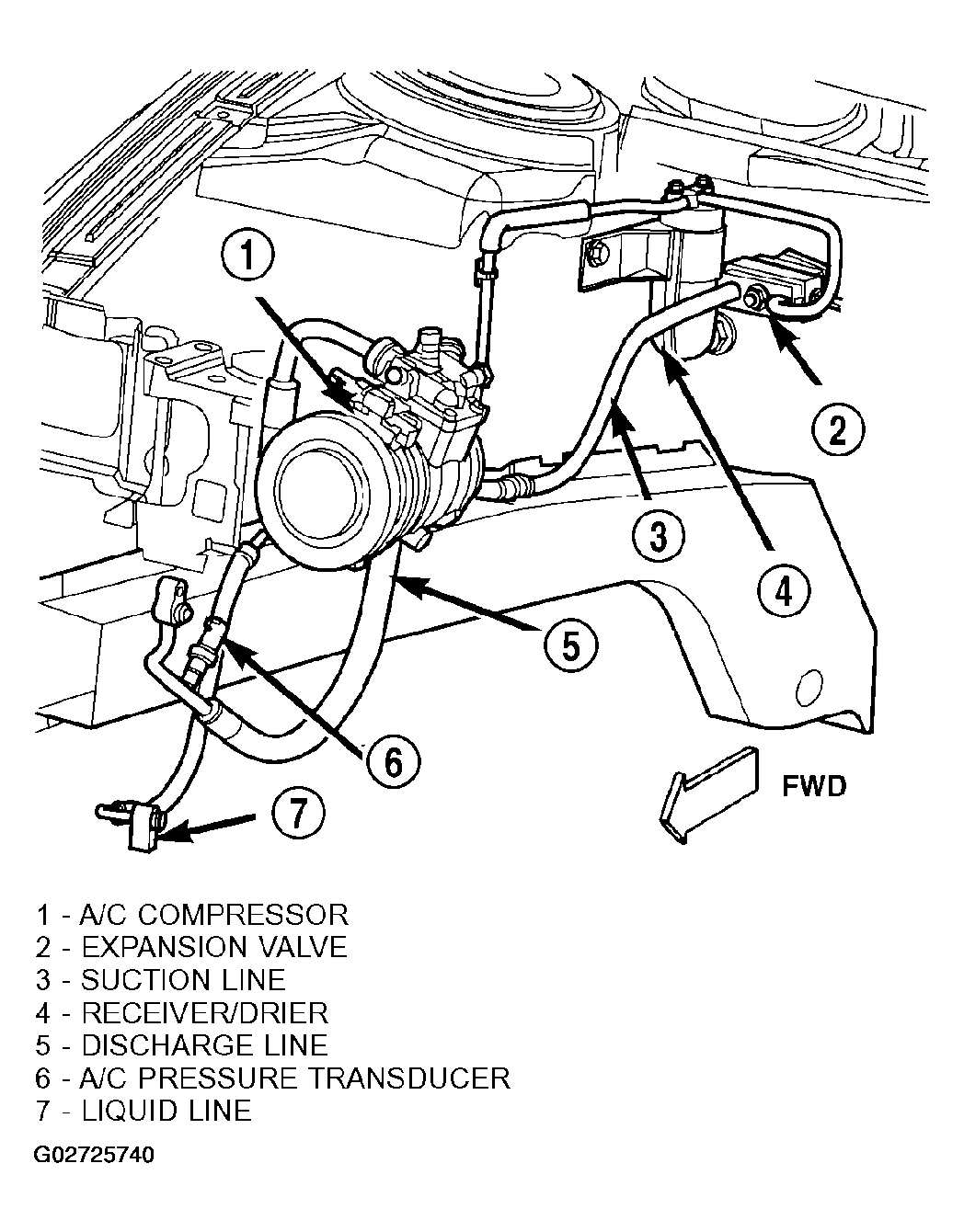

Fig 2: Identifying A/C Refrigerant Lines And Expansion Valve - 2.7L
Courtesy of DAIMLERCHRYSLER CORP.

CAUTION: Cap all lines that are not being replaced and cap the expansion valve tubes.
Remove the engine air inlet tube and air distribution duct for access to the compressor lines.
Remove the bolt holding the line at the compressor using a 6 mm Allen wrench (3.2/3.5L), or M10 Hex (2.7L) Fig 3 and Fig 4 .

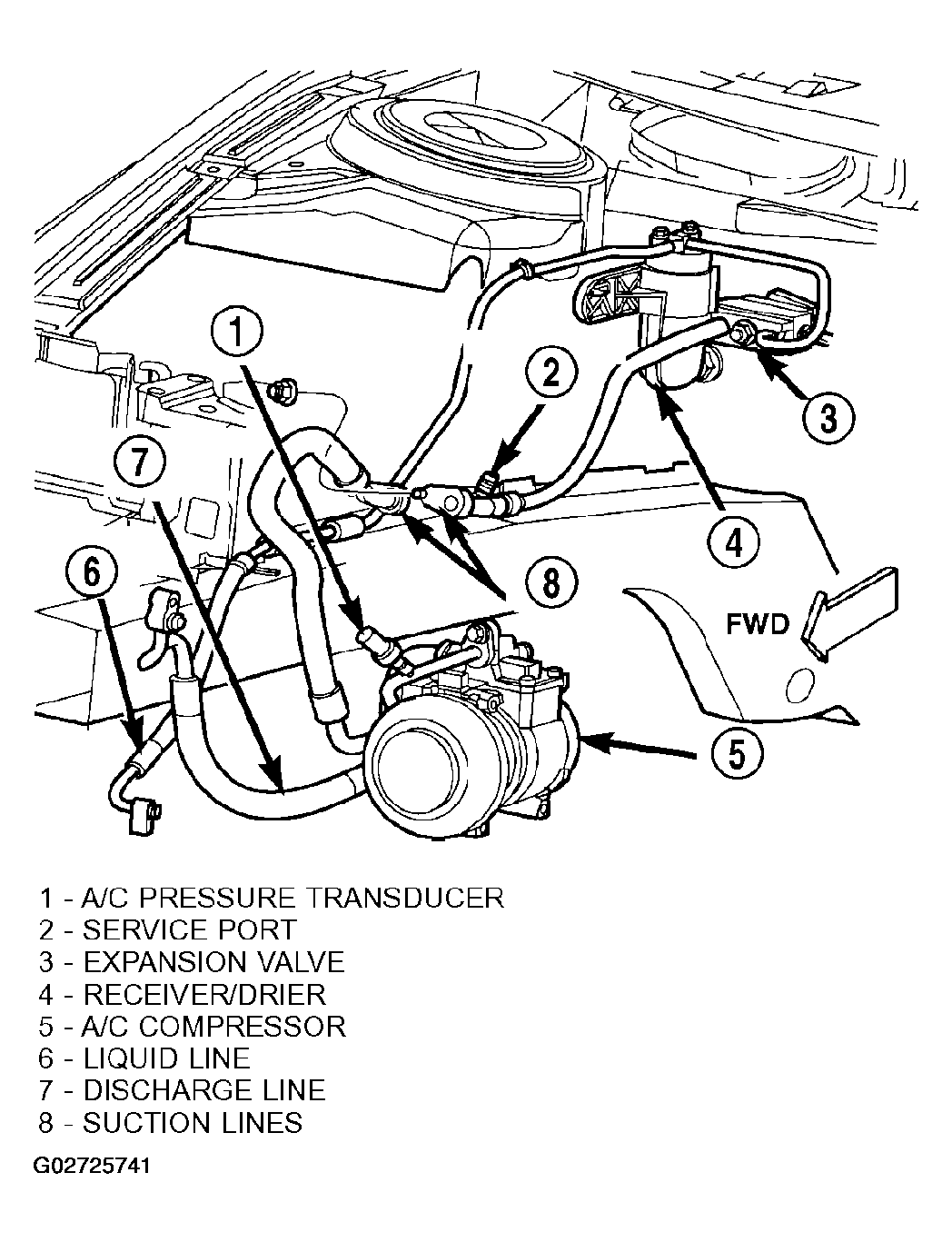

Fig 3: Identifying Suction Line - 3.2L/3.5L
Courtesy of DAIMLERCHRYSLER CORP.

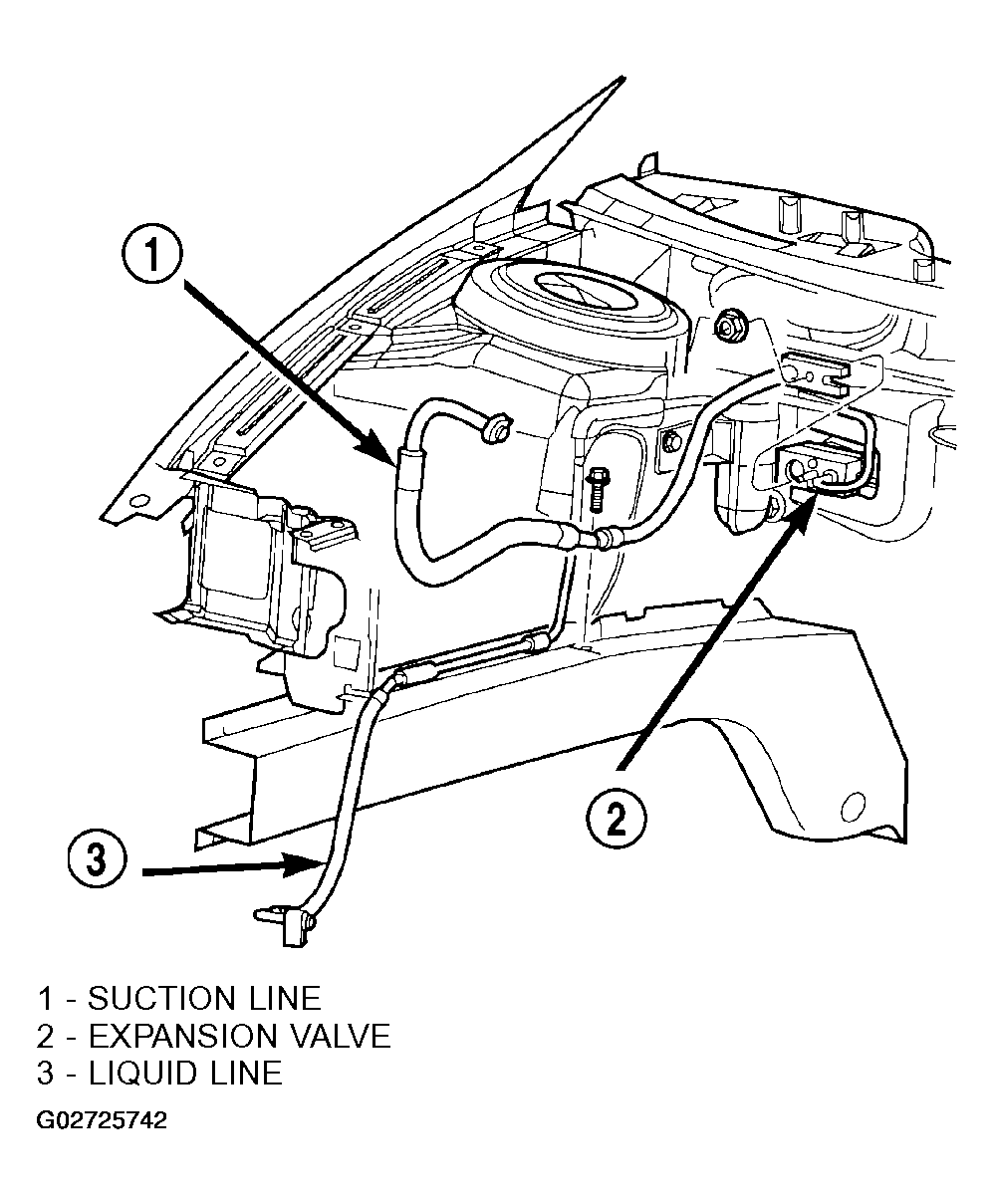

Fig 4: Identifying Suction Line - 2.7L
Courtesy of DAIMLERCHRYSLER CORP.
Remove the line by pulling the rear end of the line up out of the vehicle with the compressor end following through the tie-rod area.
