Wheelhouse Silencer: Installation

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

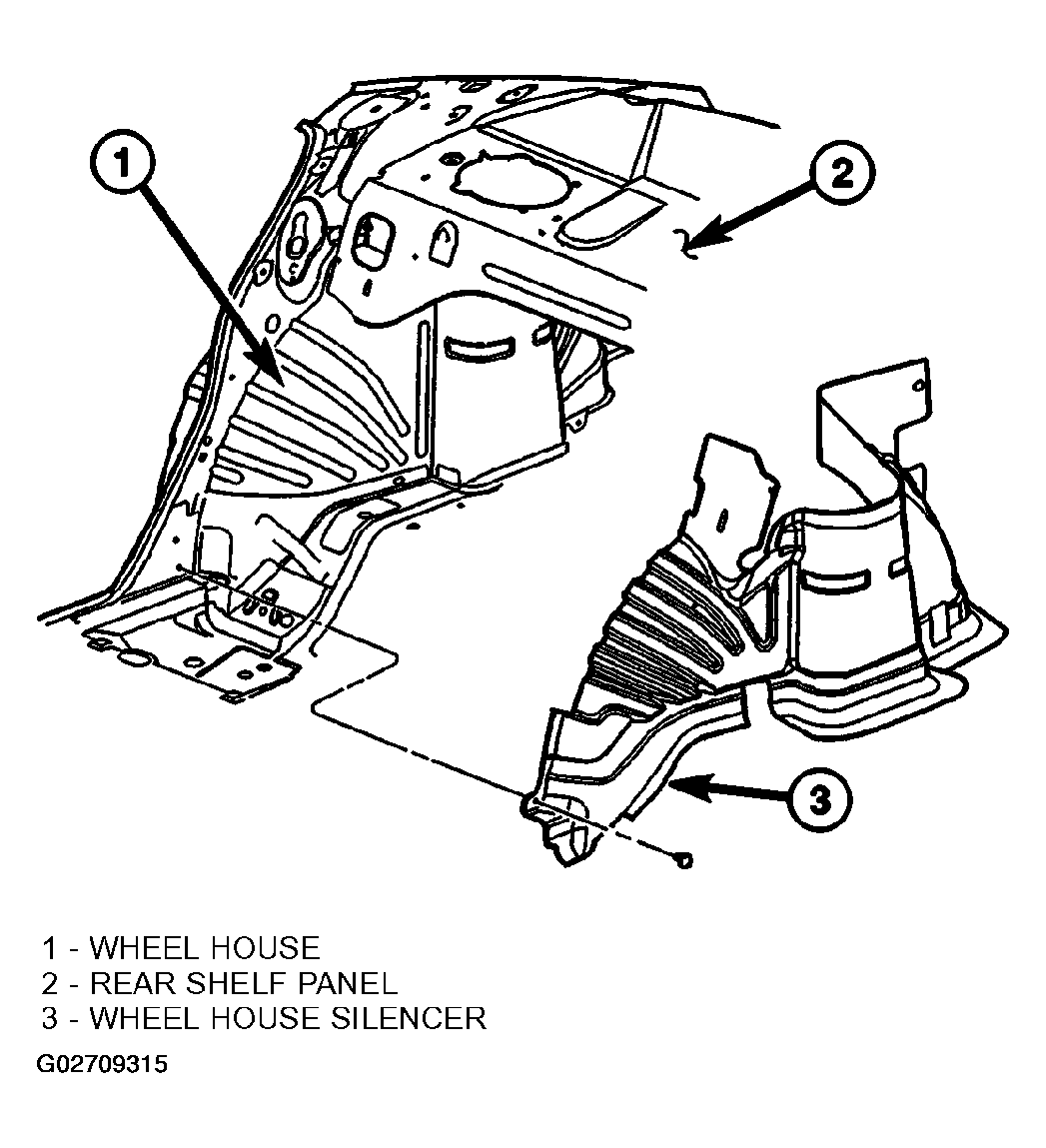

  1. Place silencer into position on the wheelhouse (Figure ).
  2. Install fasteners attaching silencer to wheelhouse.
  3. Install lower quarter trim (Refer to INSTALLATION  ).
  4. Install rear seat back.
