Center Console Rear Bezel: Removal

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Disengage tabs on sides at bottom (Fig 1 )
Open arm rest lid and remove rear end cap attaching screws.
Remove rear bezel.

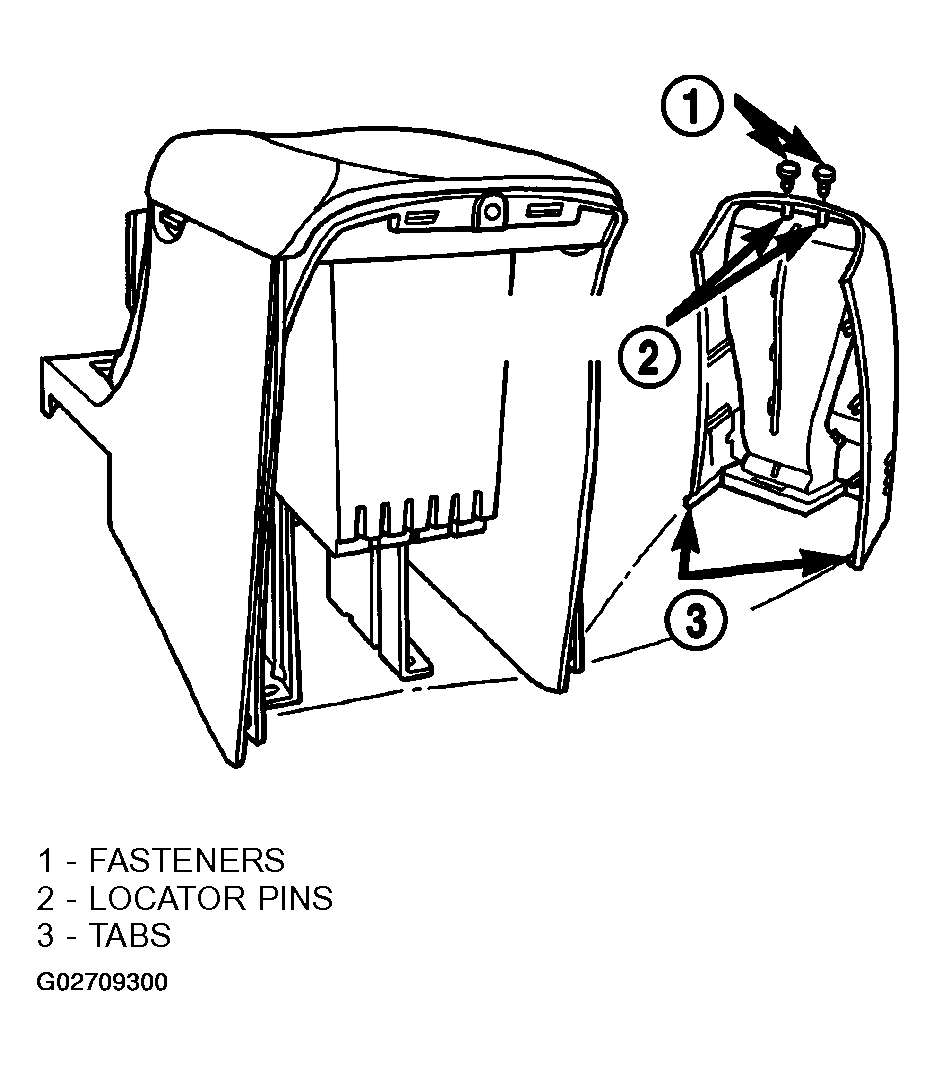

Fig 1: Removing Floor Console End Cap
Courtesy of DAIMLERCHRYSLER CORP.
