Removal - Concord

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Remove shift knob.
Remove floor console shift bezel (Figure ).
Raise console armrest lid.
Remove screws at top and bottom of cup attaching assembly (Fig 1 ).
Lift up and forward to remove assembly.

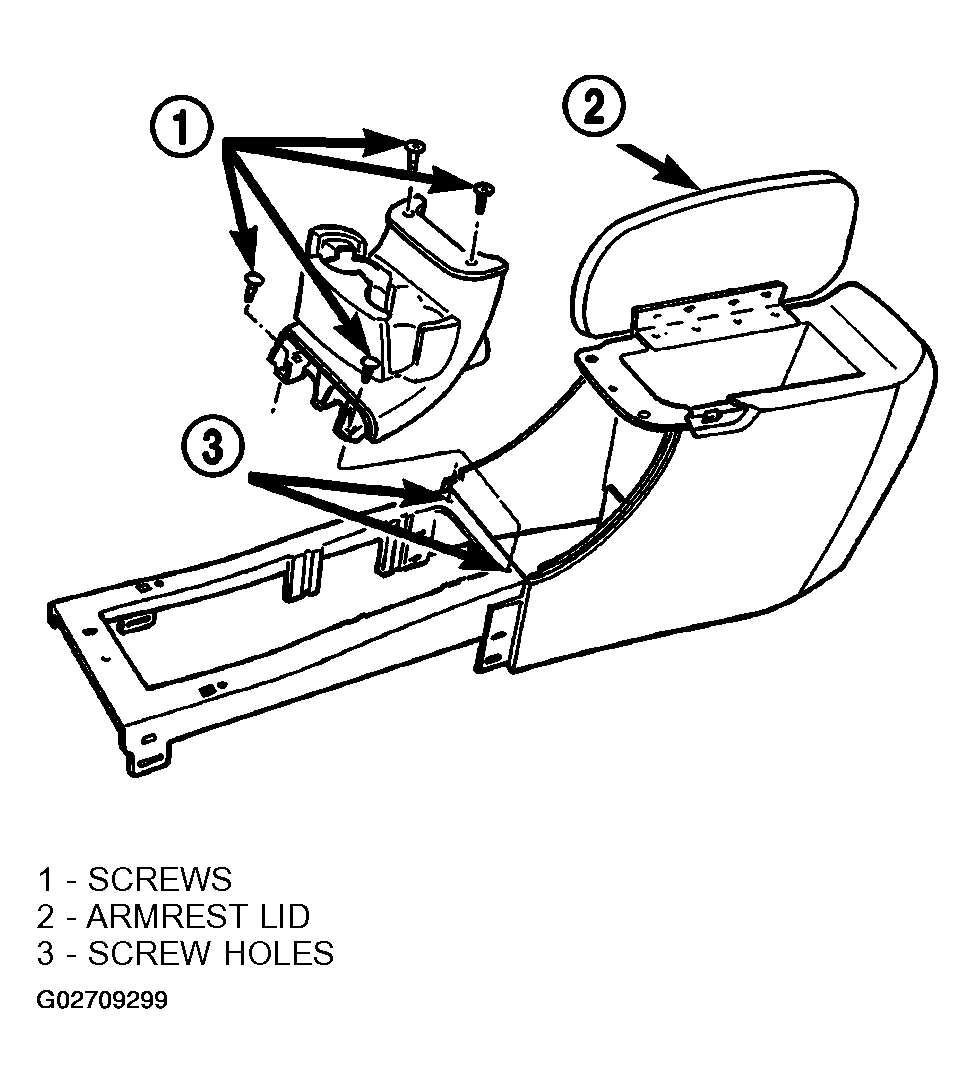

Fig 1: Removing Floor Console Cup Holder Assembly
Courtesy of DAIMLERCHRYSLER CORP.
