Exterior Handle: Removal

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove door trim panel. (Refer to REMOVAL  ).
  2. Remove water shield as necessary.
  3. Remove door glass.
  4. Disengage clips holding latch release link and lock link to door at latch.
  5. Disconnect links from latch.
  6. Remove screws attaching handle to door through access hole in door inner pane (Fig 1 ).
  7. Remove door handle from door.

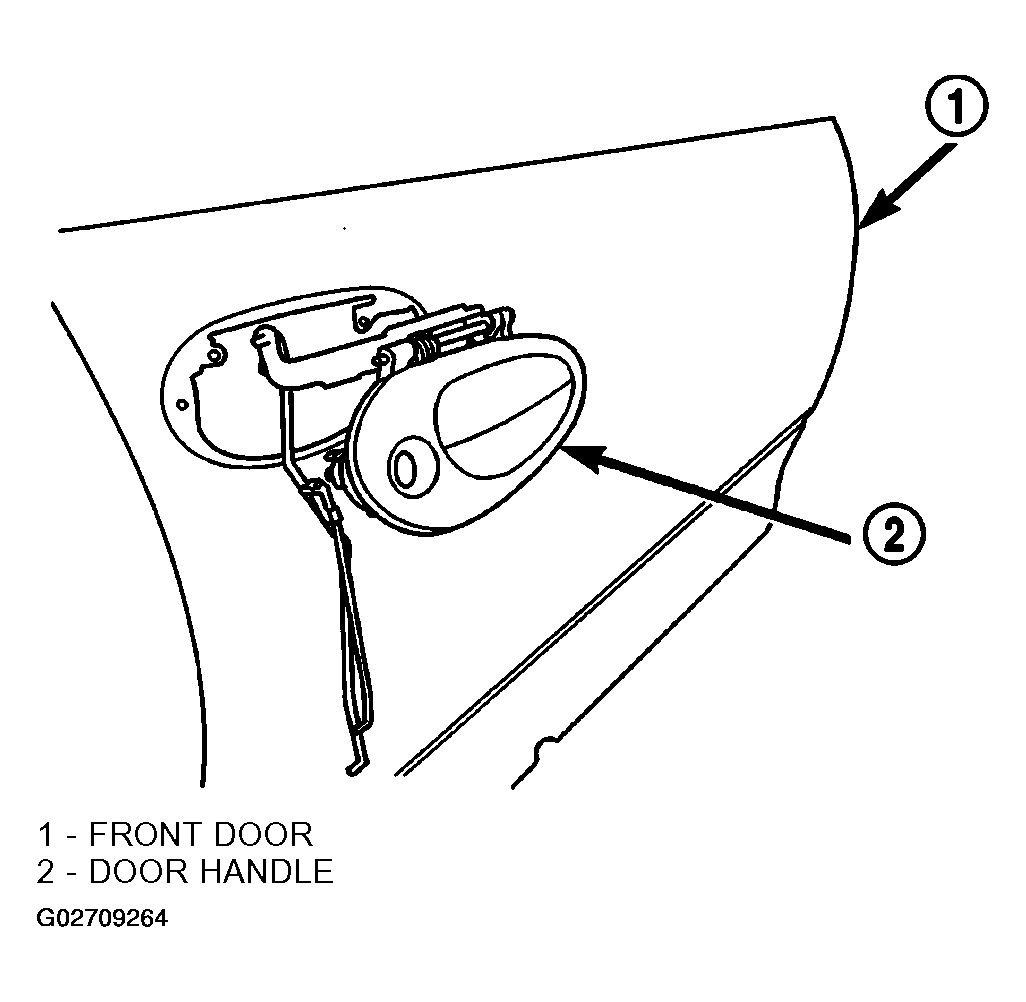

    Fig 1: Removing Outside Front Door Handle
    G02709264Courtesy of DAIMLERCHRYSLER CORP.
