Section 134 (Door System - Front): Door: Removal

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open front door.
  2. Mark location of hinge on door end frame.
  3. Disengage clips attaching wire harness connector and boot to hinge pillar.
  4. Remove connector from hinge pillar.
  5. Disengage clip attaching wire connector together on hinge pillar side of the connector.
  6. Remove door wire harness from instrument panel harness.
  7. Remove bolts attaching check strap to body.
  8. Support door on suitable lifting device.
  9. Remove bolt and nut attaching lower hinge to door end frame (Fig 1 ).
  10. Steady door on lifting device and remove bolt and nut attaching upper hinge to door end frame.
  11. Remove door from vehicle.

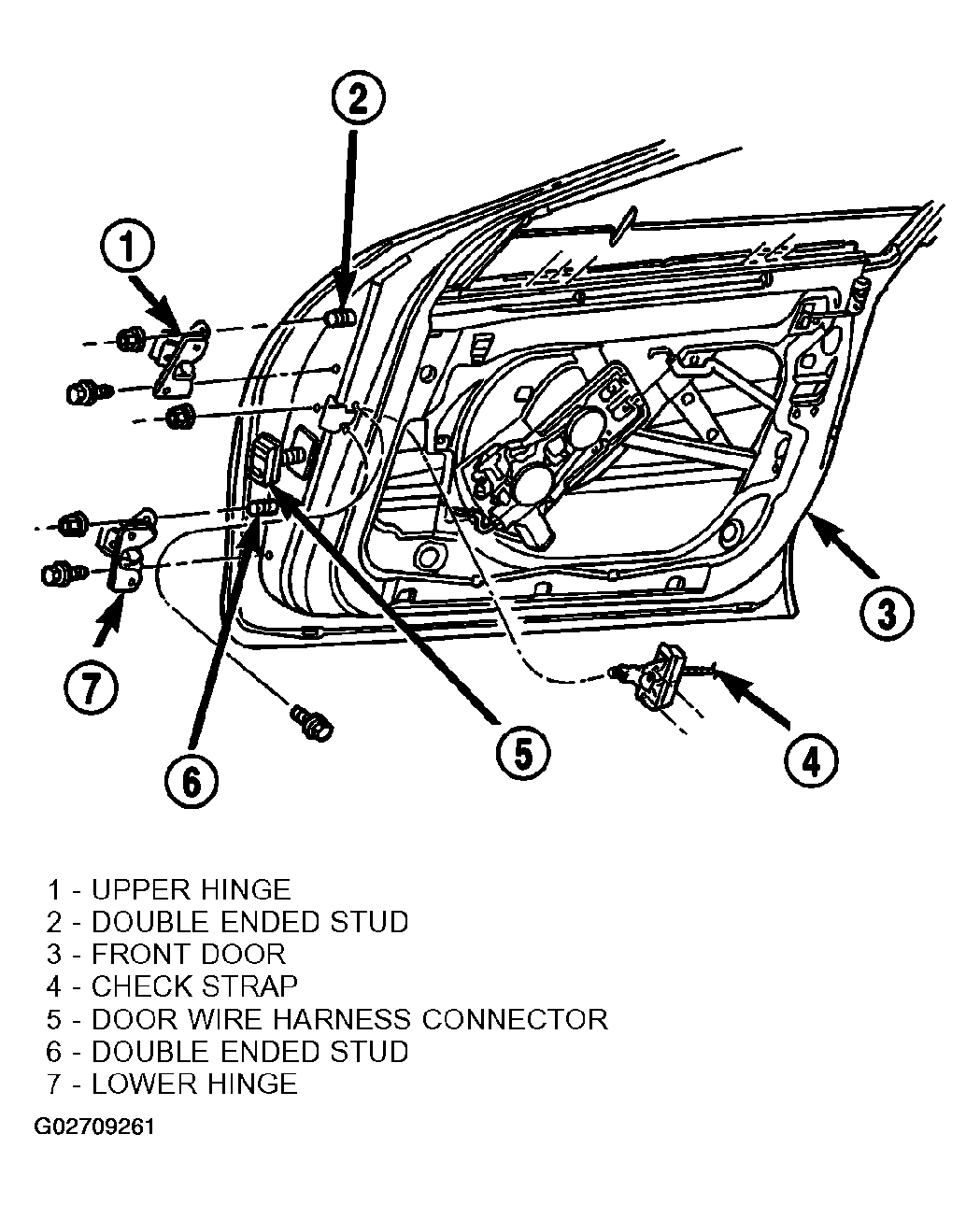

    Fig 1: Removing Front Door Upper And Lower Hinge
    G02709261Courtesy of DAIMLERCHRYSLER CORP.
