Service Port Valve Core: Removal
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

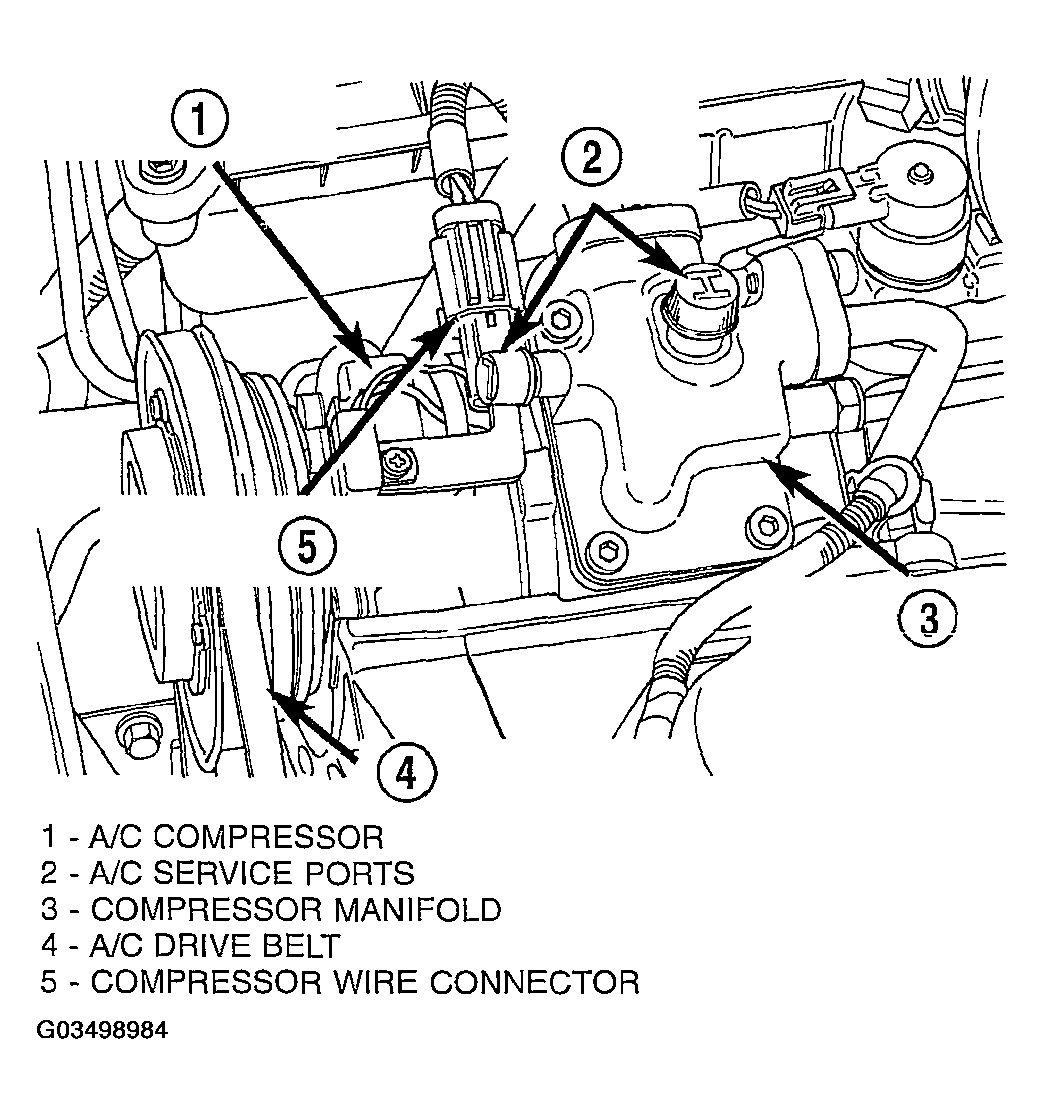

The 3.2 / 3.5L service port valve cores are located on the top of the manifold (High Side) and front side of the manifold (Low Side) (Fig 1). The 2.7L service port valve ports are located on the A/C liquid line (high side) and suction line (low side).
- Remove the valve caps. Recover the refrigerant. (Refer to - STANDARD PROCEDURE - REFRIGERANT RECOVERY )
- Using a standard valve core tool, remove the valve core. Be careful to prevent any dirt/debris from entering the valve core opening or getting on the replacement valve core.CAUTION: A valve that is not fully seated can lead to damage to the valve during evacuation and charge. This can result in system refrigerant discharge while uncoupling the charge adapters.
