Liquid Line: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: REVIEW THE WARNINGS BEFORE PERFORMING THE FOLLOWING OPERATION. (Refer to - WARNING )

Recover the refrigerant from the system. (Refer to - STANDARD PROCEDURE - REFRIGERANT RECOVERY )
Remove the engine air inlet tube and the air distribution duct on vehicles equipped with 3.2/3.5 L engines.
Remove the a/c line to the expansion valve fastener using a M10 Hex wrench. Remove the suction line block from the expansion valve, cap the line and swing it out of the way.
CAUTION: Cap off all lines that are not being replaced. Cap/plug the expansion valve and condenser fittings.
Disconnect the liquid line fastener at the receiver/drier (the short receiver/drier to evaporator line may be removed at this step).
Disconnect receiver/drier bracket fastener and separate the bracket from the strut panel (there are two hidden plastic fasteners to pry out).
Disconnect the liquid line fastener at the condenser (M10 Hex).
NOTE: The radiator upper crossmember must be removed to access the liquid line fastener. Refer to appropriate service information for the procedures.
Remove the liquid line mounting clamp fastener located near the service port (Fig 1).

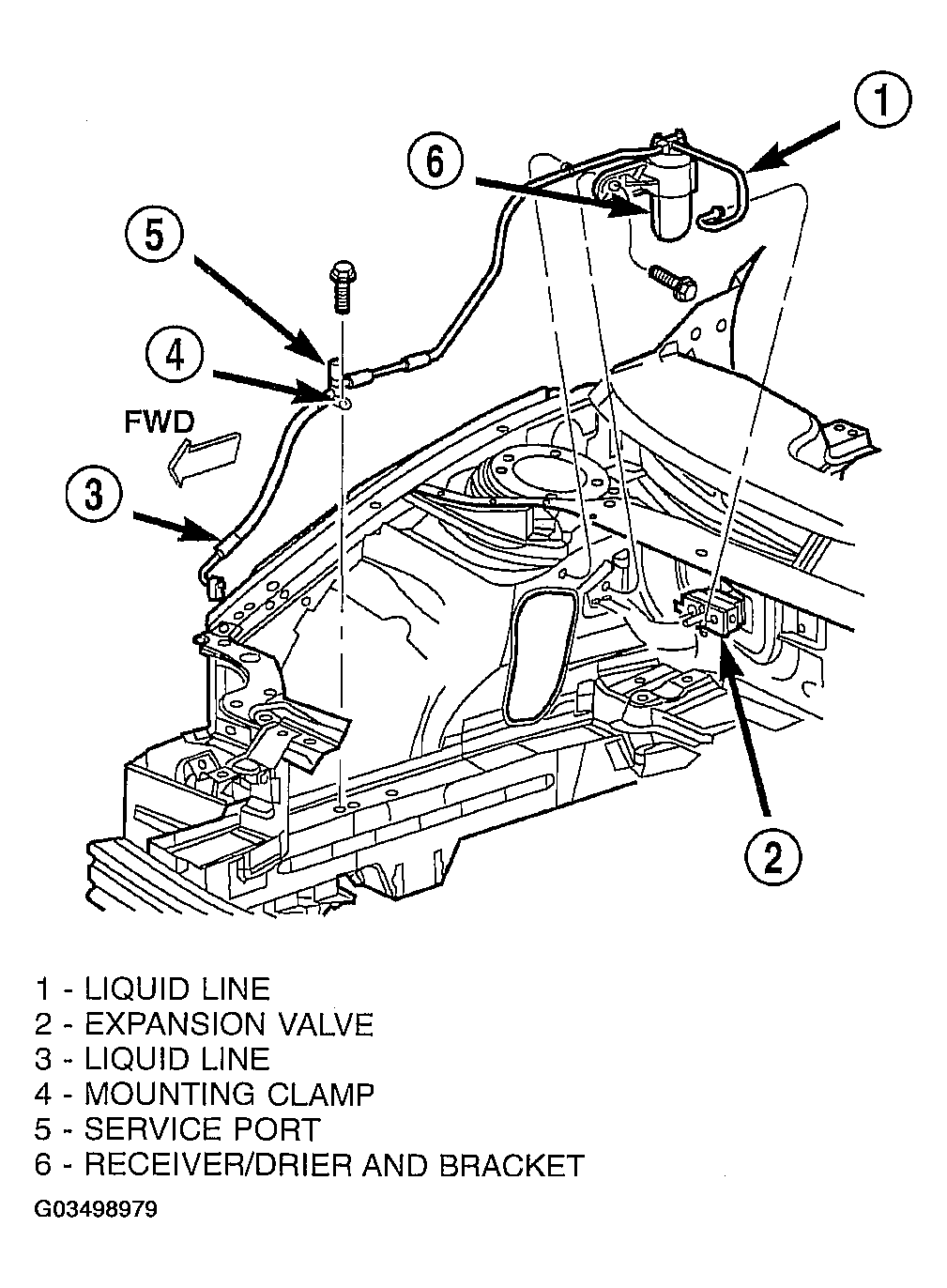

Fig 1: Liquid Lines
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the liquid line fastener at the receiver/drier. Remove the liquid line from the vehicle. Cap off all fittings to prevent moisture from entering the refrigerant system.
