Wheelhouse Silencer: Installation

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

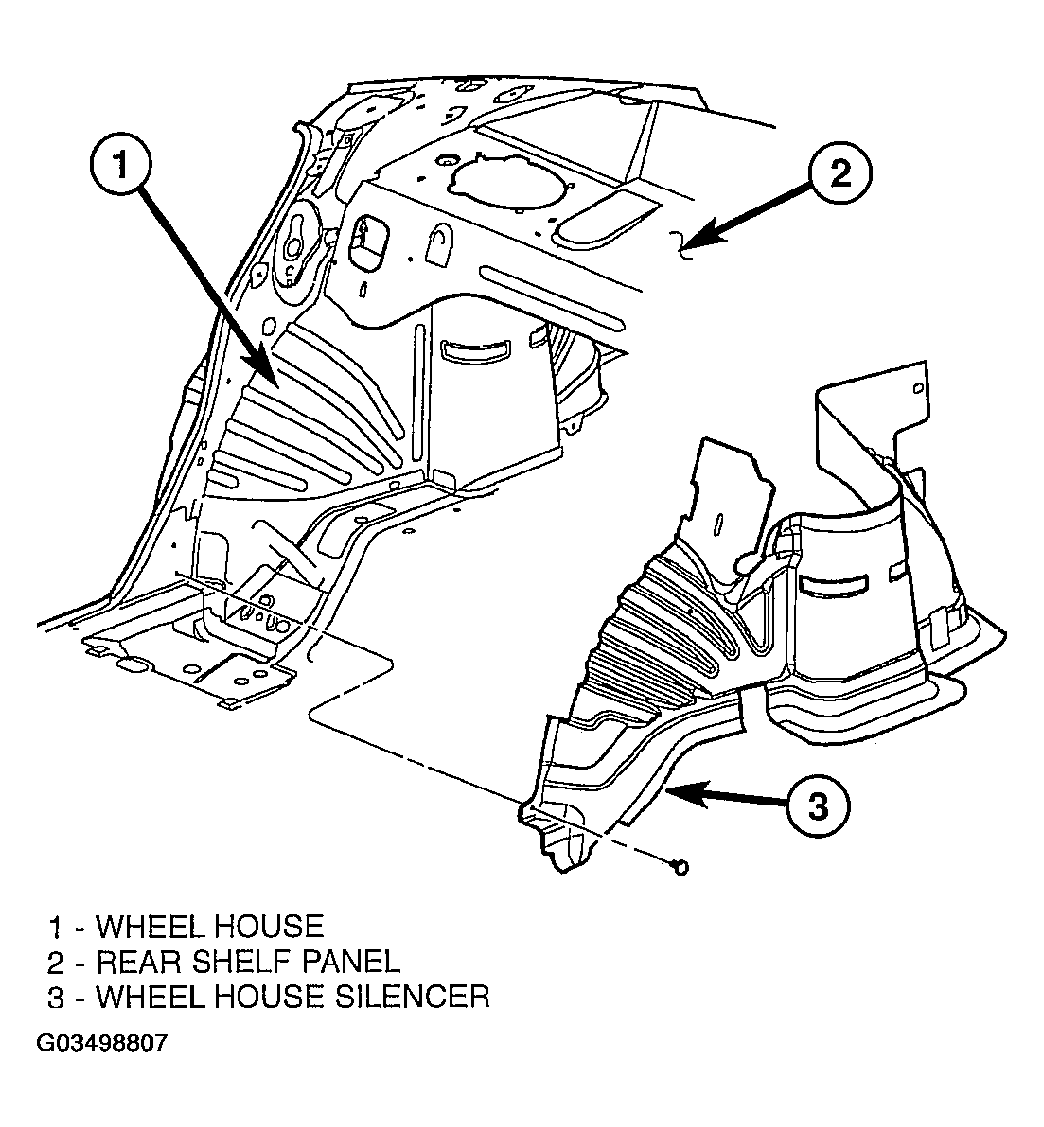

  1. Place silencer into position on the wheel house (Figure ).
  2. Install fasteners attaching silencer to wheel house.
  3. Install lower quarter trim (Refer to LOWER QUARTER TRIM  ).
  4. Install rear seat back (Refer to REAR SEAT BACK ).
