Rear Shelf Trim Panel: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove seat cushion and back.
  2. Remove quarter trim lower and upper trim panels.
  3. Remove center seat belt anchor bolt.
  4. Remove push pin fasteners.
  5. Pull rear shelf trim panel away from rear glass to disengage clips (Fig 1 ).

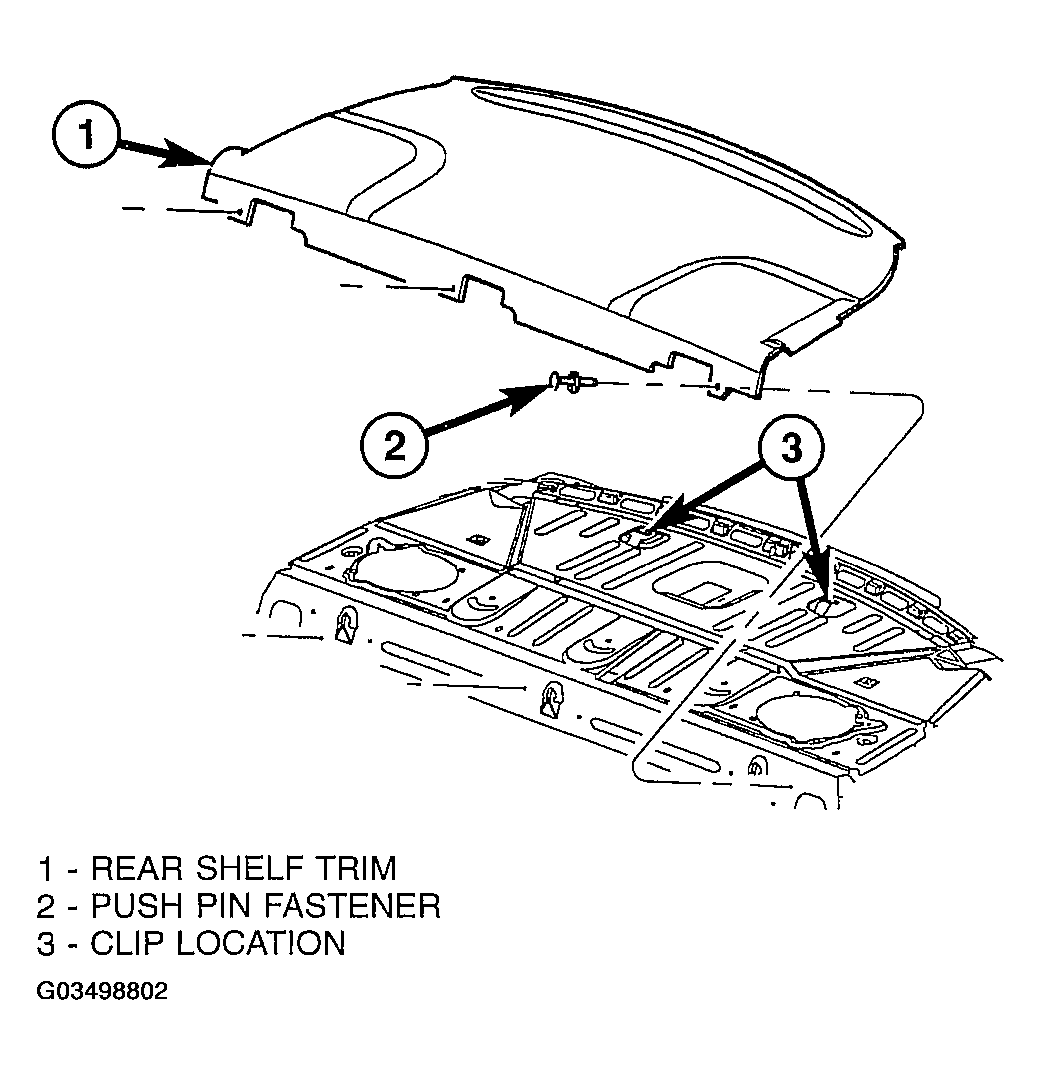

    Fig 1: Removing Parcel Shelf Trim Panel
    G03498802Courtesy of DAIMLERCHRYSLER CORP.
  6. Disengage CHMSL wire connector, if equipped.
  7. Feed center seat belt and bezel through rear shelf trim panel
  8. Remove rear shelf trim panel from vehicle.
