Steering Column Cover Reinforcement: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column cover (Refer to STEERING COLUMN COVER  ).
  2. Remove four bolts attaching steering column cover reinforcement (Fig 1 ).

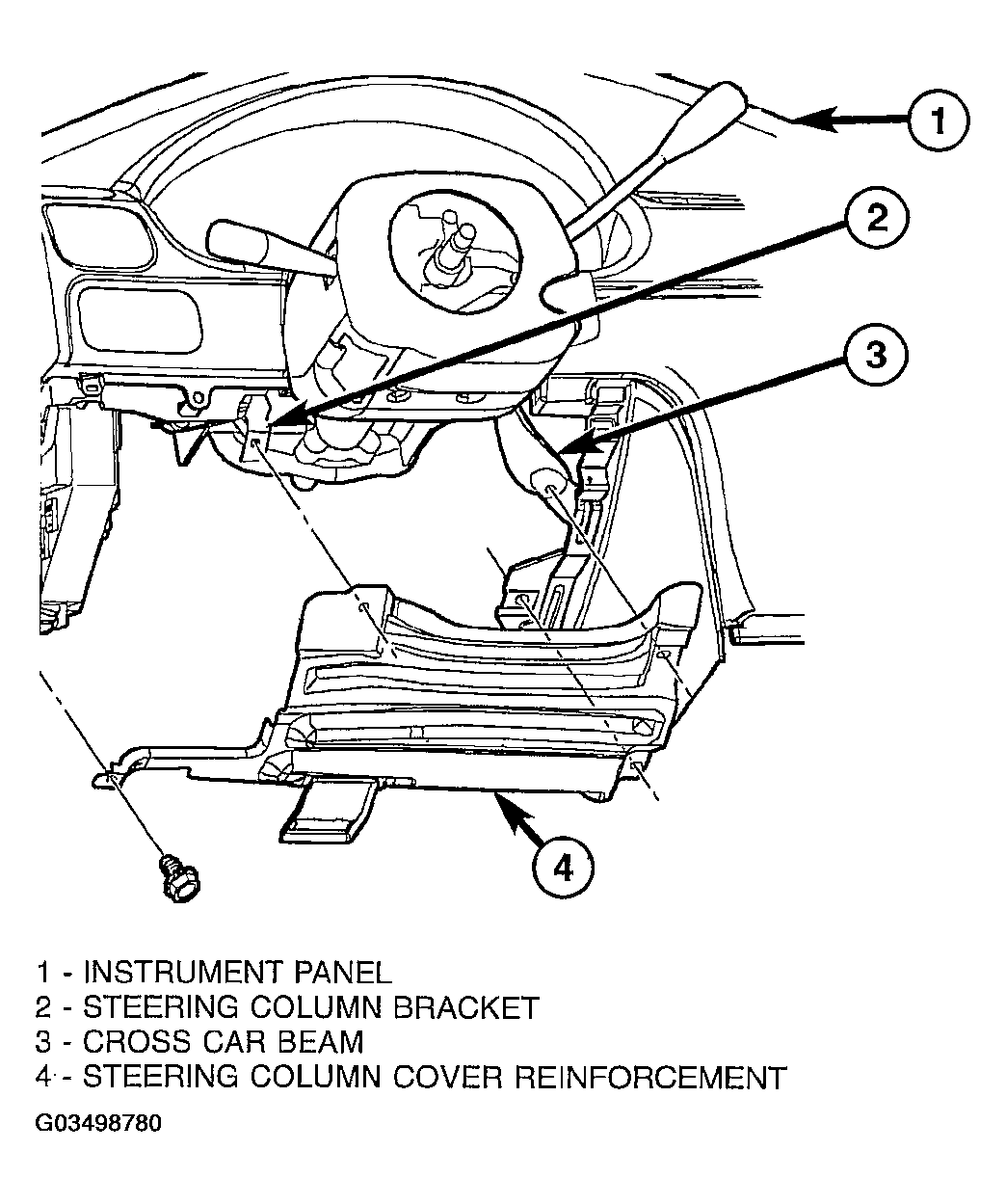

    Fig 1: Steering Column Cover Reinforcement
    G03498780Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove diagnostic connector from the steering column cover reinforcement.
  4. Remove steering column cover reinforcement from vehicle.
