Instrument Panel Top Cover: Installation

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

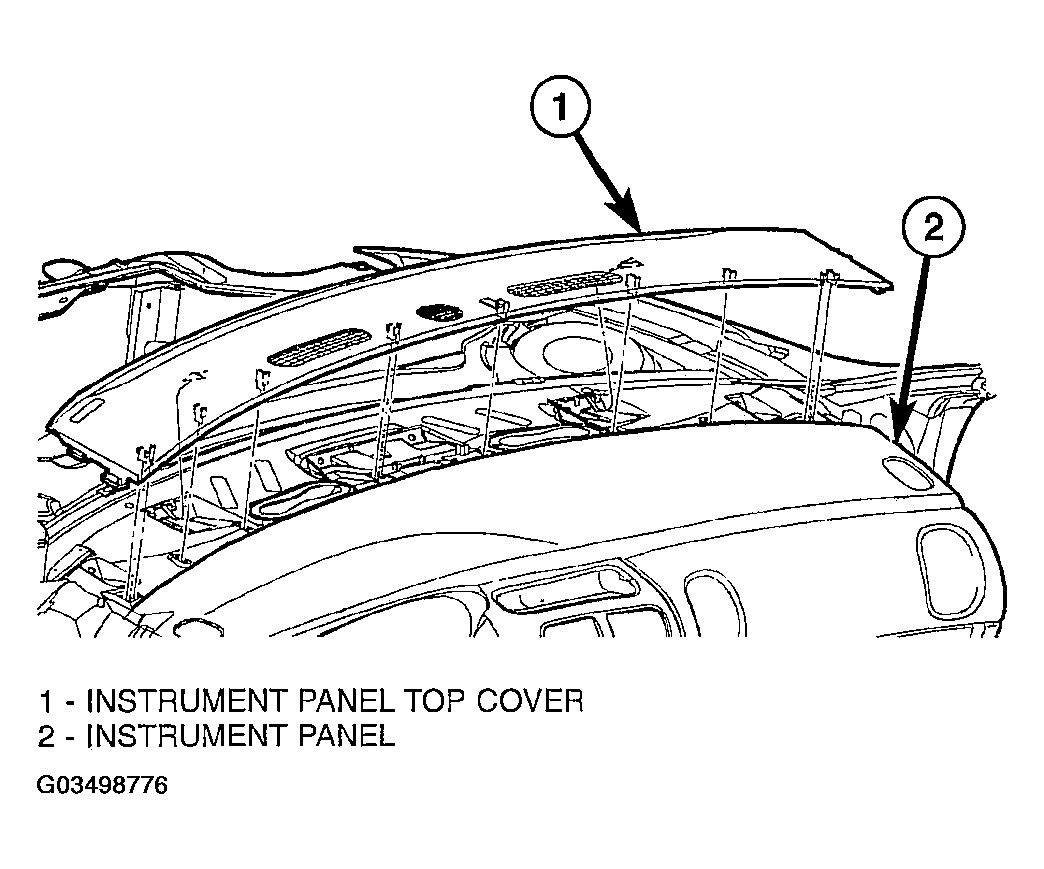

  1. Place the instrument panel top cover into position over the slots for the retaining clips, slide forward and firmly snap into place (Figure ).
  2. Firmly push down on the rear of the instrument panel top cover to engage clips.
  3. Place the left and right A-pillar moldings into position over the retaining clip slots, slide forward and firmly snap into place.
