Section 113 (Door System - Rear): Latch: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close door glass.
  2. Remove door trim panel. (Refer to TRIM PANEL  )
  3. Remove rear glass channel.
  4. Disconnect lock button link from door latch.
  5. Disconnect outside door handle link from door latch.
  6. Remove screws attaching door latch to door end frame (Fig 1 ).

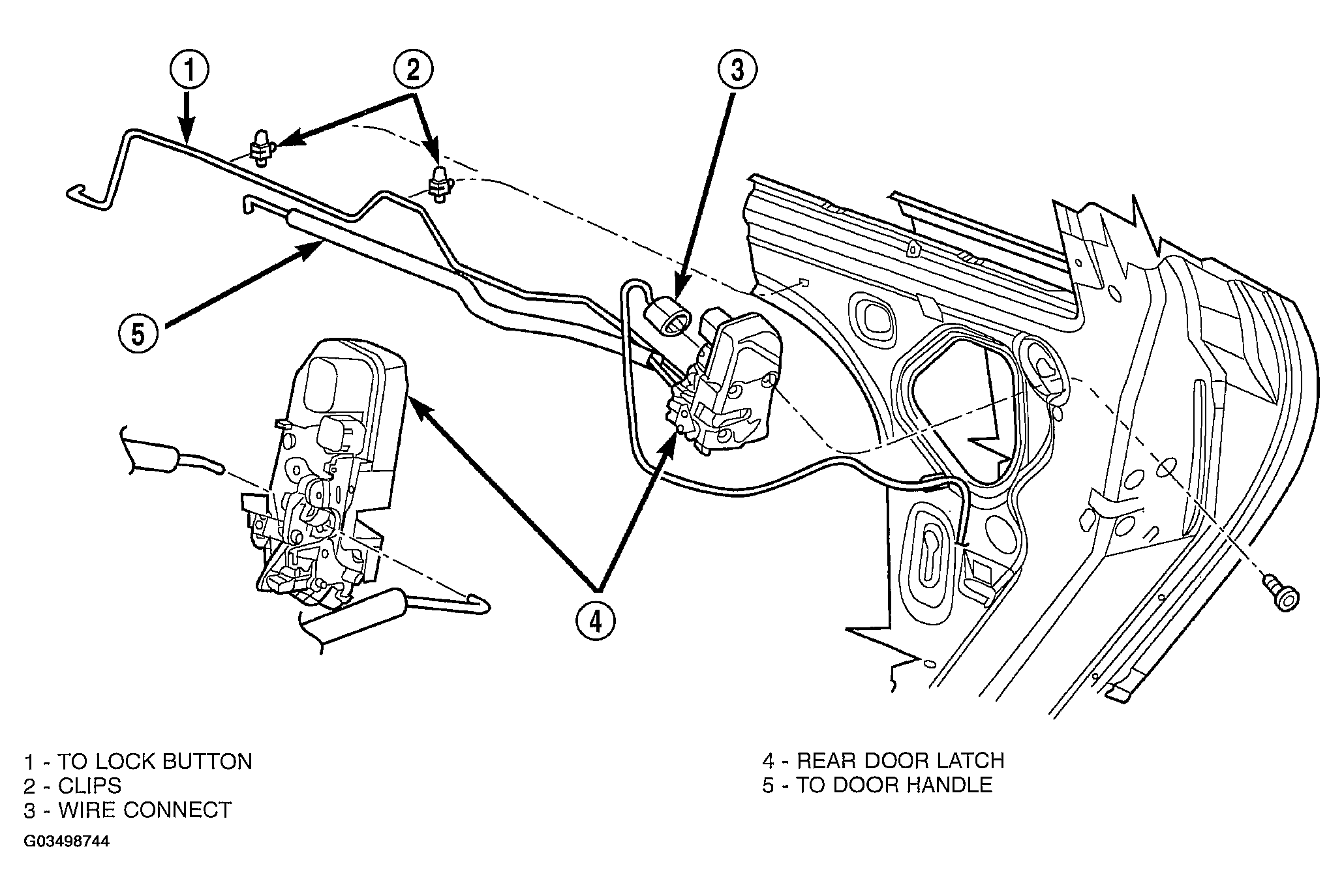

    Fig 1: Rear Door Latch
    G03498744Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove latch from door.
