Lock Cylinder: Removal
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Remove door trim panel. (Refer to TRIM PANEL )
- Remove water shield, as necessary
- Raise door glass.
- Disengage clip holding lock link to lock cylinder.
- Disconnect link from lock cylinder.
- Disconnect clip attaching lock cylinder to door handle.

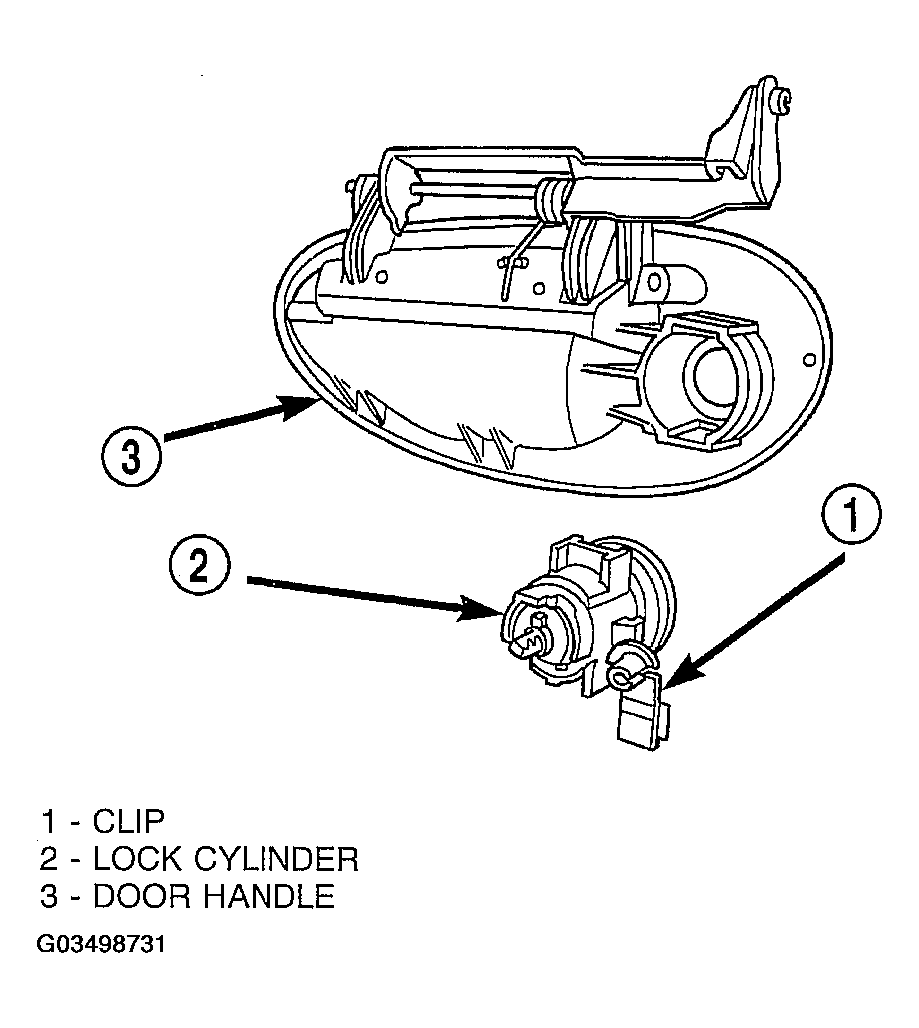

- Pull lock cylinder from door handle (Fig 1 ).
