Section 112 (Door System - Front): Door: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open front door.
  2. Mark location of hinge on door end frame.
  3. Disengage clips attaching wire harness connector and boot to hinge pillar.
  4. Remove connector from hinge pillar.
  5. Disengage clip attaching wire connector together on hinge pillar side of the connector.
  6. Remove door wire harness from instrument panel harness.
  7. Remove bolts attaching check strap to body.
  8. Support door on suitable lifting device.
  9. Remove bolt and nut attaching lower hinge to door end frame (Fig 1 ).

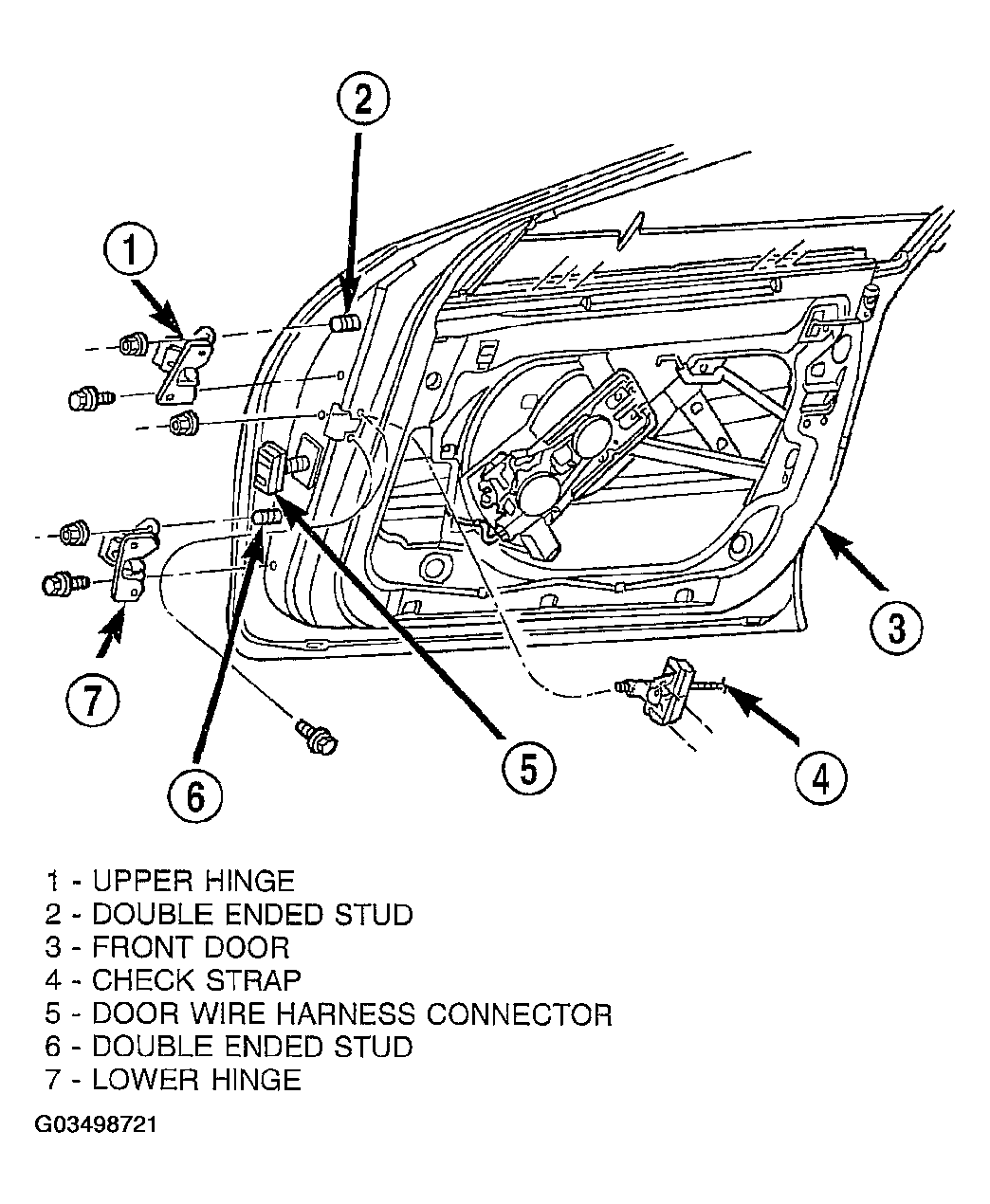

    Fig 1: Front Door And Hinge
    G03498721Courtesy of DAIMLERCHRYSLER CORP.
  10. Steady door on lifting device and remove bolt and nut attaching upper hinge to door end frame.
  11. Remove door from vehicle.
