Section 109 (Power Steering Pump): Reservoir: Description

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles equipped with the 2.7 liter engine use a power steering pump that has an integral reservoir (Figure ). Vehicles equipped with the 3.5 liter engine use a power steering pump that has a remotely mounted reservoir (Fig 1 ).

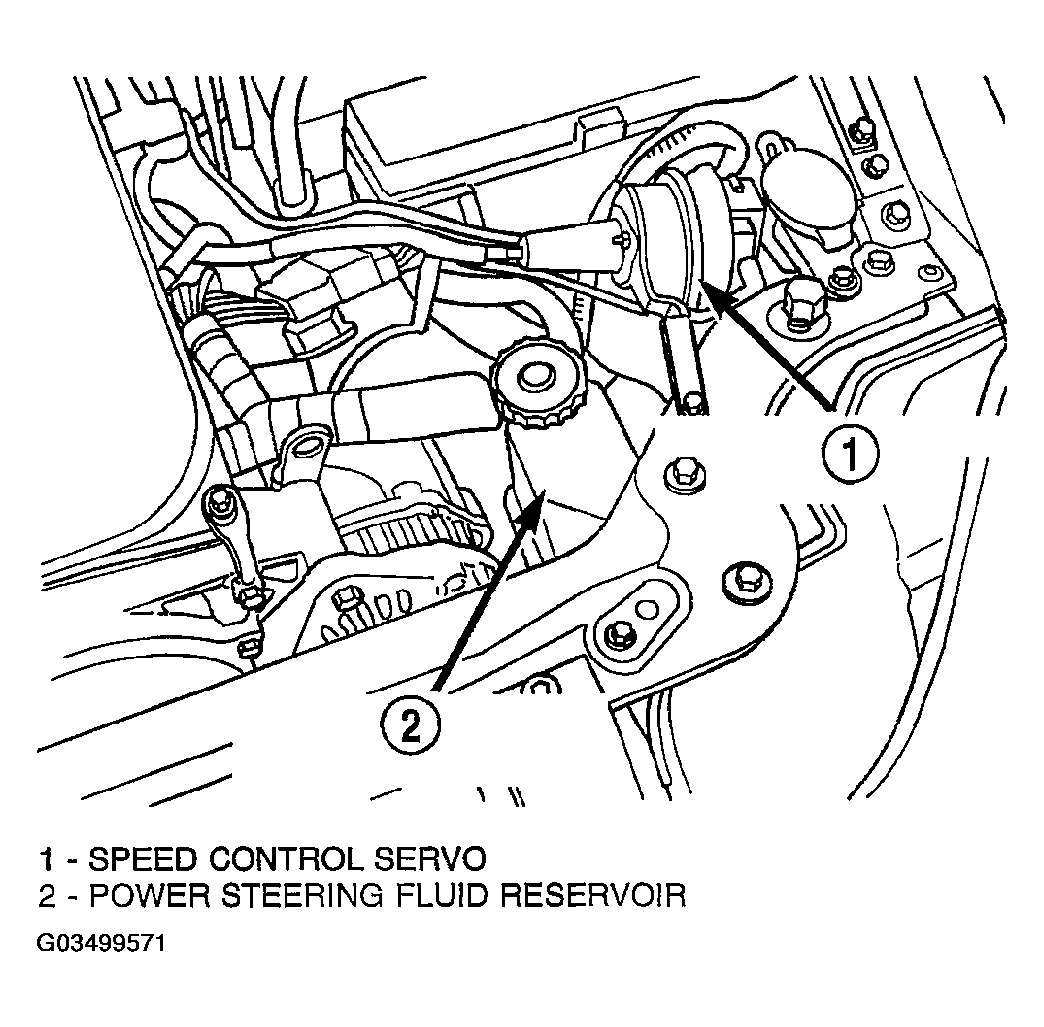

Fig 1: Power Steering Fluid Reservoir (3.5L Engine)

Courtesy of DAIMLERCHRYSLER CORP.
