Valve Springs: Inspection

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

When valves have been removed for inspection, reconditioning or replacement, valve springs should be tested (Fig 1 ). As an example; the compression length of the spring to be tested is 38.00 mm (1.496 in.). Turn table of Tool C-647 until surface is in line with the 38.00 mm (1.496 inches.) mark on the threaded stud and the zero mark on the front. Place spring over stud on the table and lift compressing lever to set tone device. Pull on torque wrench until ping is heard. Take reading on torque wrench at this instant. Multiply this reading by two. This will give the spring load at test length. Fractional measurements are indicated on the table for finer adjustments. Refer to 3.5L ENGINE to obtain specified height and allowable tensions. Replace springs that do not meet specifications.

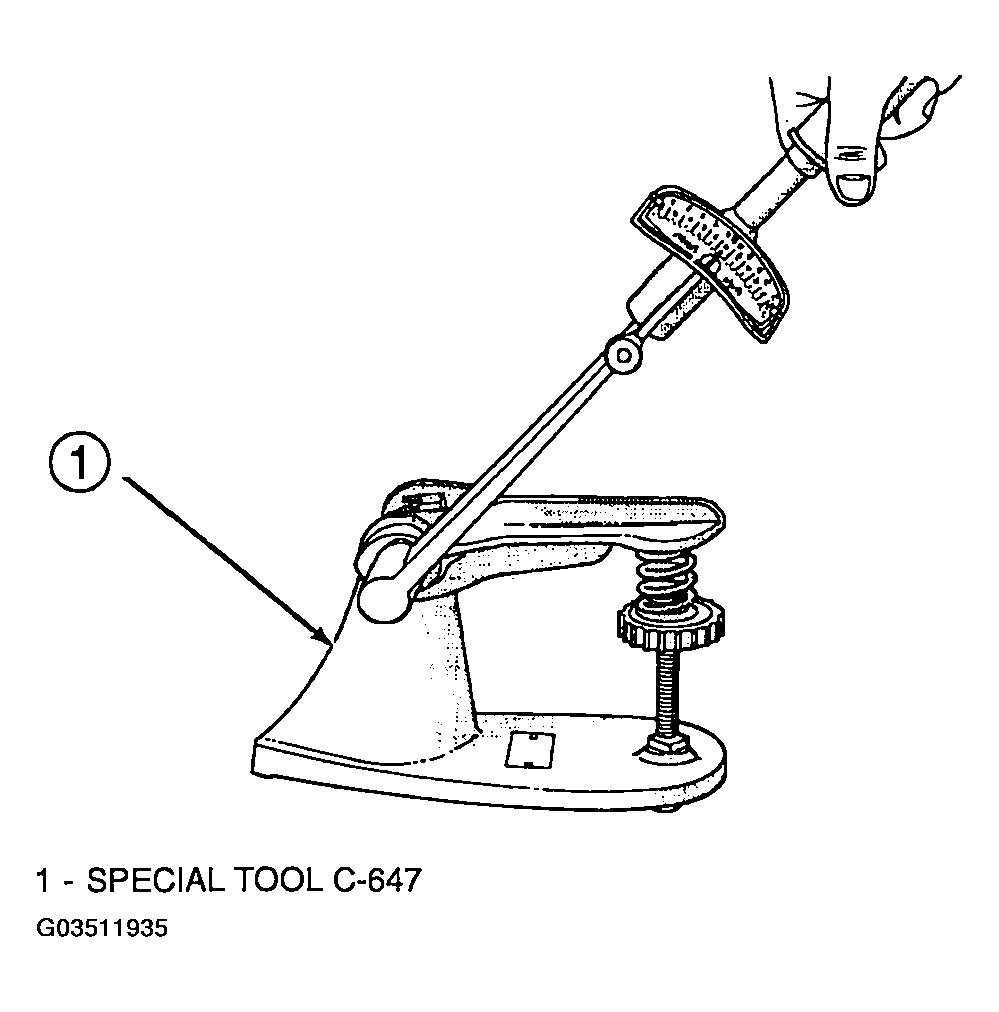

Fig 1: Testing Valve Spring

Courtesy of DAIMLERCHRYSLER CORP.
