Rocker Arm / Adjuster Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rocker arm and shafts. (Refer to REMOVAL  )
  2. Remove dowel pin using a 4 mm screw, nut, spacer, and washer installed into the pin (Fig 1 ). Thread the screw into the pin, then loosen the nut on the screw. This will pull the dowel out of the shaft support. Do not reuse dowel pins. Remove the rocker arms and pedestals in order.

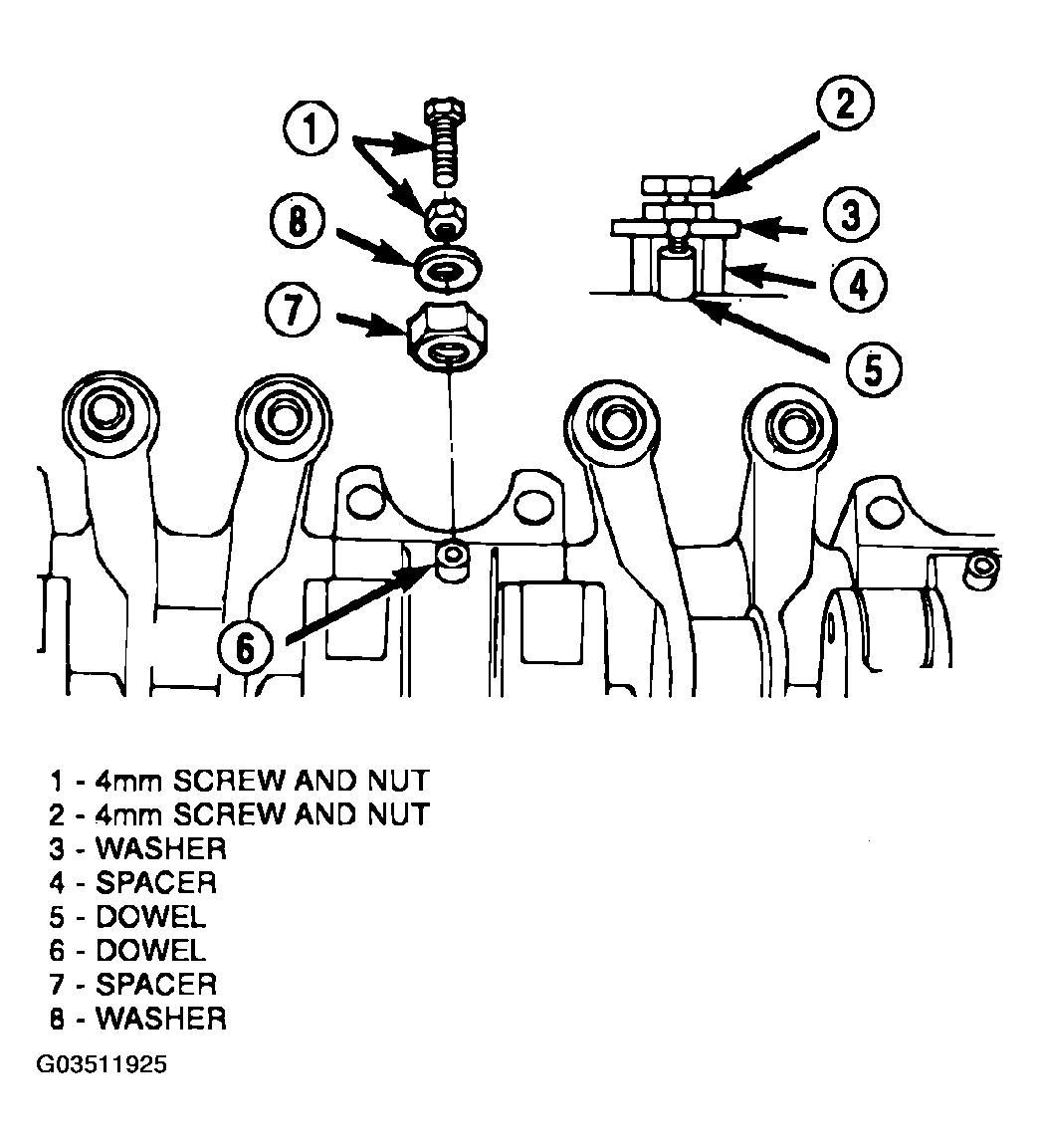

    Fig 1: Rocker Arms and Shaft - Disassembly
    G03511925Courtesy of DAIMLERCHRYSLER CORP.
  3. Check the rocker arm mounting portion of the shafts for wear or damage. Replace if damaged or heavily worn.
  4. Check shaft oil holes for clogging with small wire, clean as required.
