Oil Pump: Disassembly

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. To remove the relief valve, proceed as follows:
  2. Remove cotter pin. Drill a 3.175 mm (1/8 inch.) hole into the relief valve retainer cap and insert a self-threading sheet metal screw into cap.
  3. Clamp screw into a vise and while supporting oil pump body, remove cap by tapping oil pump body using a soft hammer. Discard retainer cap and remove spring and relief valve (Fig 1 ).

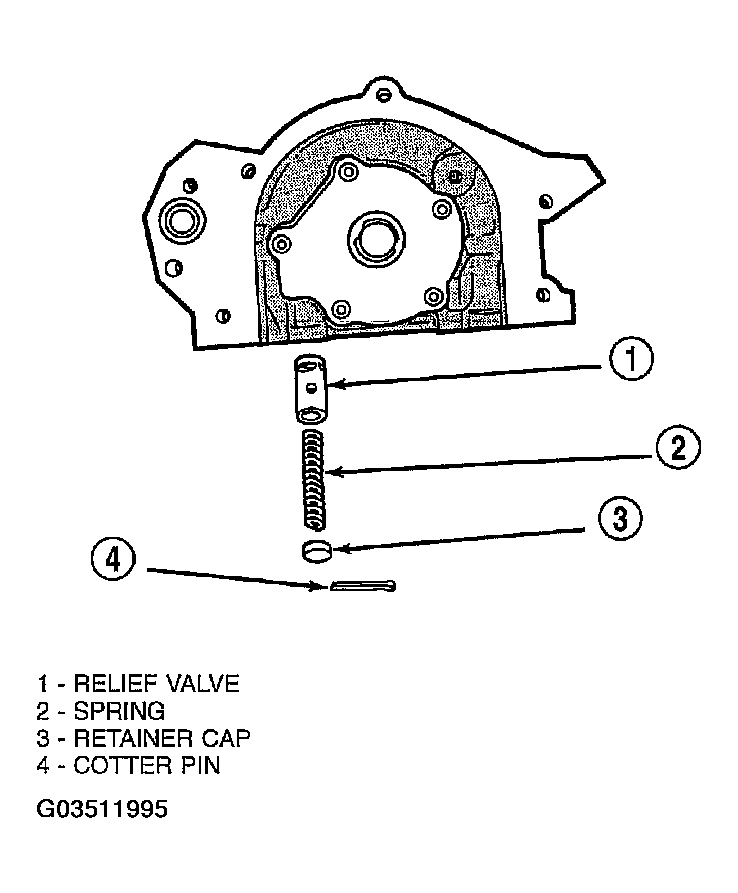

    Fig 1: Oil Pressure Relief Valve
    G03511995Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove oil pump cover screws, and lift off cover.
  5. Remove pump rotors.
  6. Wash all parts in a suitable solvent and inspect carefully for damage or wear (Fig 2 ).

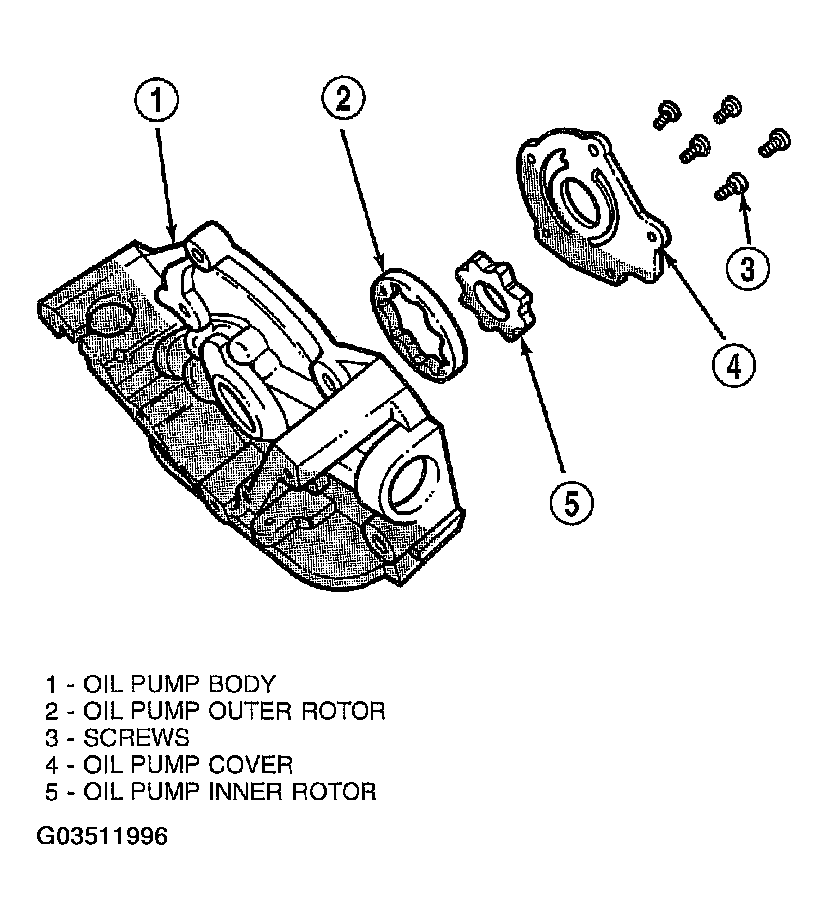

    Fig 2: Oil Pump
    G03511996Courtesy of DAIMLERCHRYSLER CORP.
