In-Tank Fuel Pump
Fuel pump is a positive displacement, immersible pump with a permanent magnet electric motor. Fuel is drawn in through a separate filter/strainer at bottom of fuel pump and pushed through filter to fuel outlet line (to fuel injectors). Voltage to operate pump is supplied from fuel pump relay. On some models, fuel pump relay is activated by ASD relay.

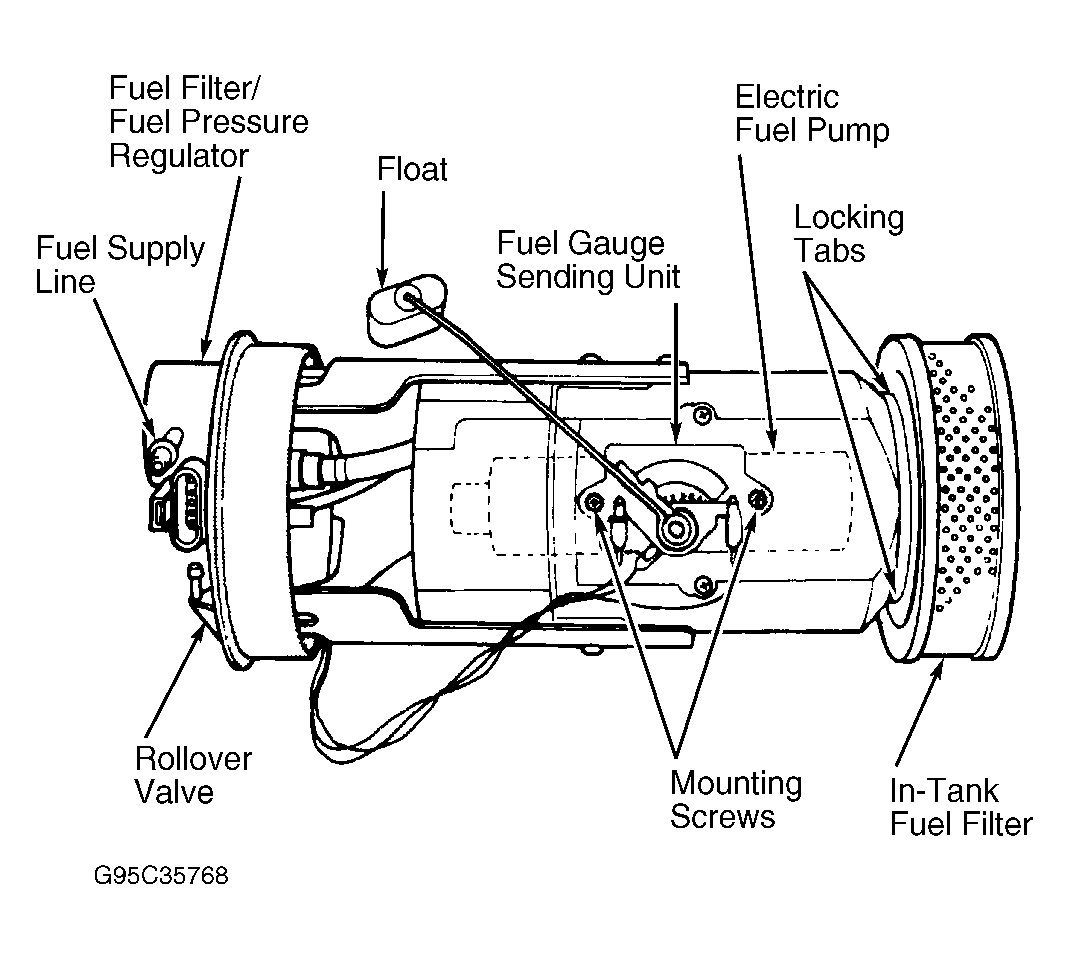

On all models except Avenger and Sebring Coupe, a fuel pump module includes a combination fuel filter/fuel pressure regulator, fuel pump reservoir, a separate in-tank fuel filter, pressure relief/rollover valve, fuel gauge sending unit and fuel supply line. See Fig 1 .
