Removal & Installation: Camshafts: Removal

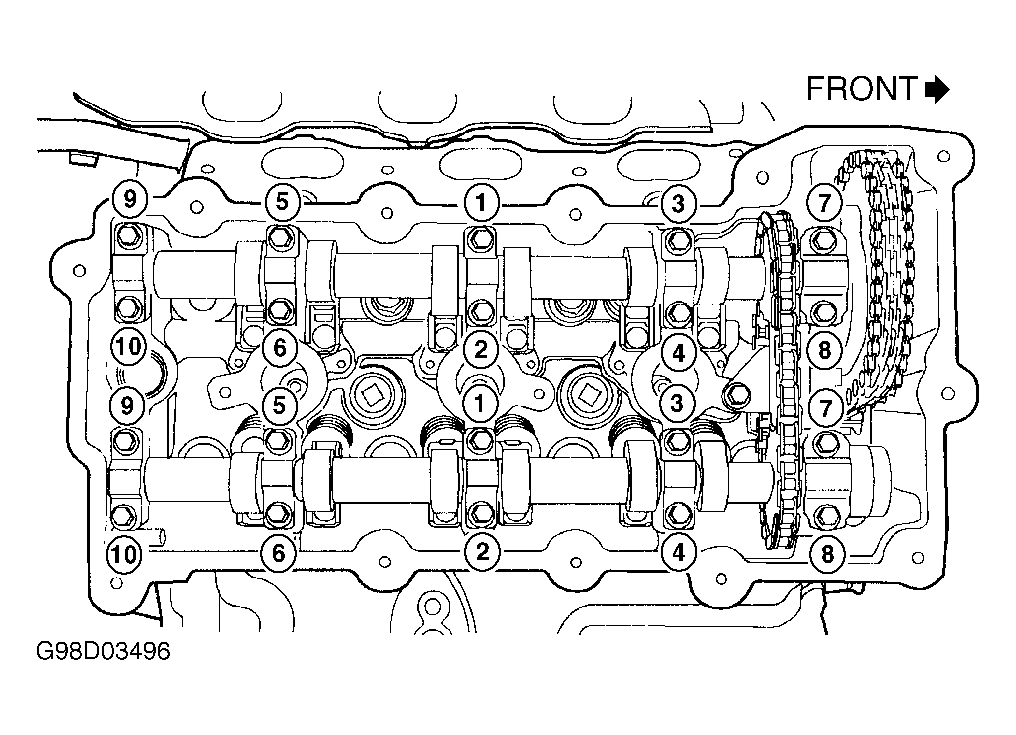

  1. Remove primary timing chain. See PRIMARY TIMING CHAIN & SPROCKETS . Remove secondary chain tensioner mounting bolts. Slowly loosen camshaft bearing cap bolts in reverse order of installation. See Figure.
  2. Remove camshaft bearing caps and keep in order. Bearing caps have been marked with a number and a letter for location identification. Remove camshafts, secondary chain, and tensioner as an assembly. Remove tensioner and camshaft chain from camshaft.
CAUTION: DO NOT nick or scratch journals when removing camshaft.
