Fuses & Relays

Power Distribution Center (PDC) is located in the engine compartment. See Fig 1 . This center contains fuses and relays for circuit that operate only under the hood. A label which identifies these components is located on the underside of the cover.

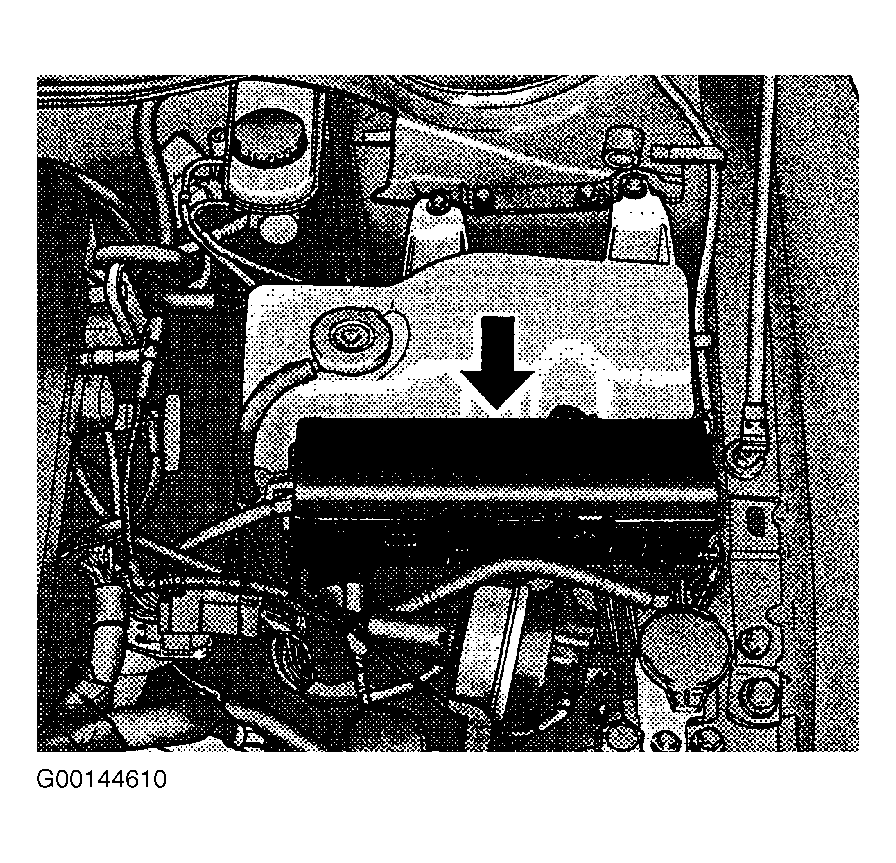

Fig 1: Locating Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.

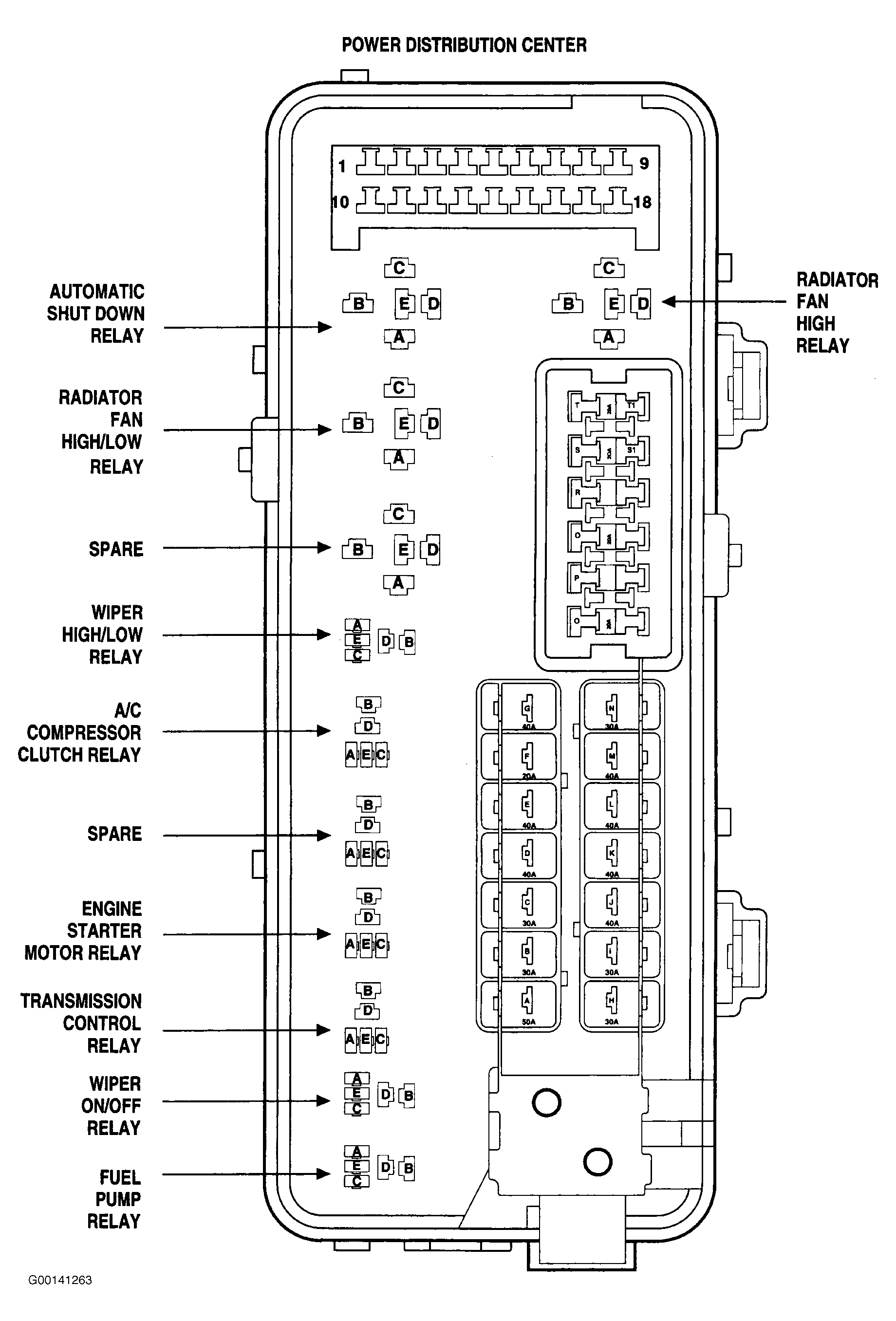

Fig 2: Identifying Power Distribution Center Fuses, Connector & Relay Terminals

Courtesy of CHRYSLER CORP.

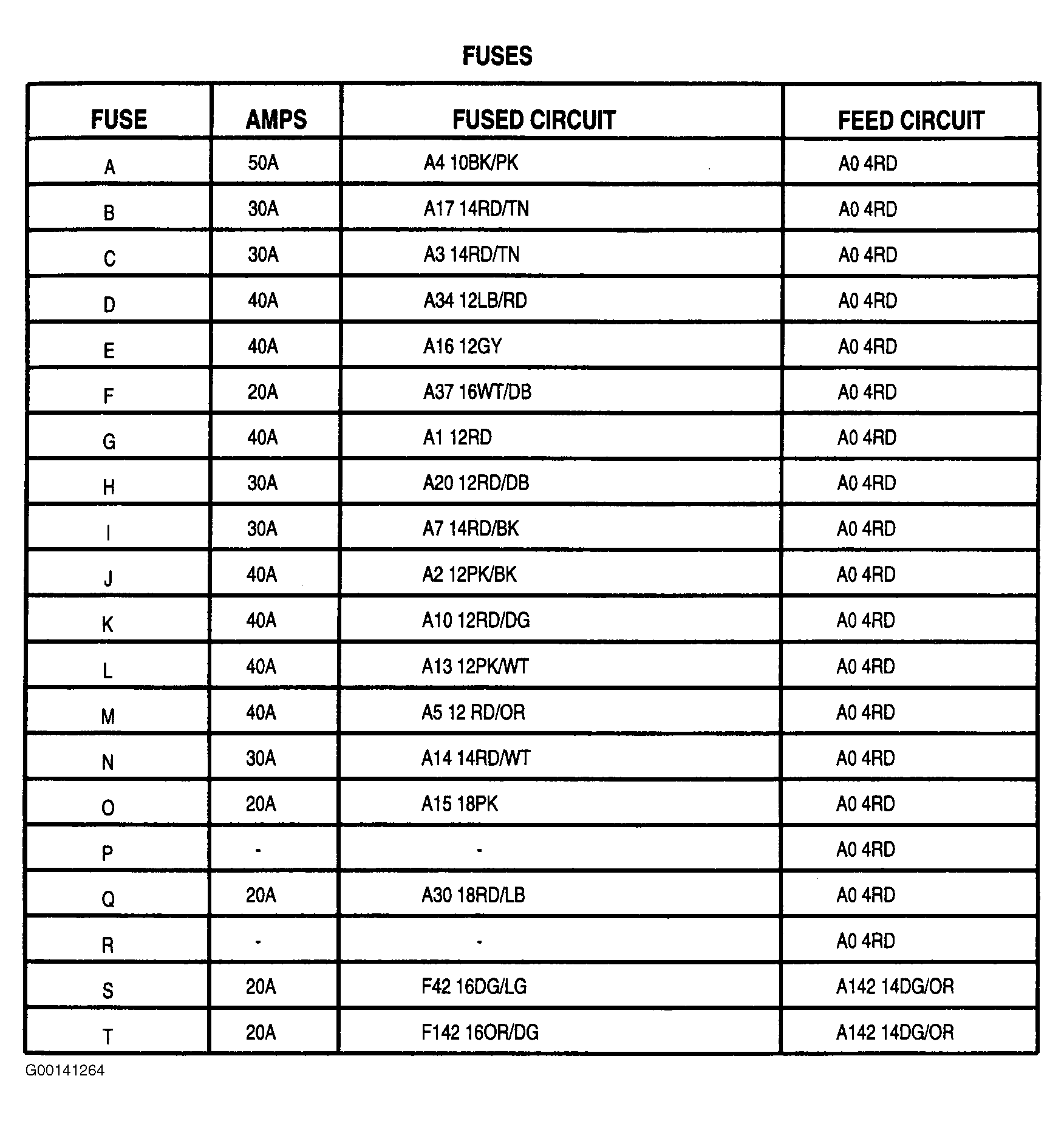

Fig 3: Identifying Fuse Ratings & Circuits

Courtesy of CHRYSLER CORP.
