Fuses & Relays

The fuse block is located behind the end cover at the left side of the instrument panel. See Fig 1 . Pull the cover straight away from the instrument panel for access to the fuses. The location and identification of fuse block fuses and relays can be found on the inside of the instrument panel end cover.

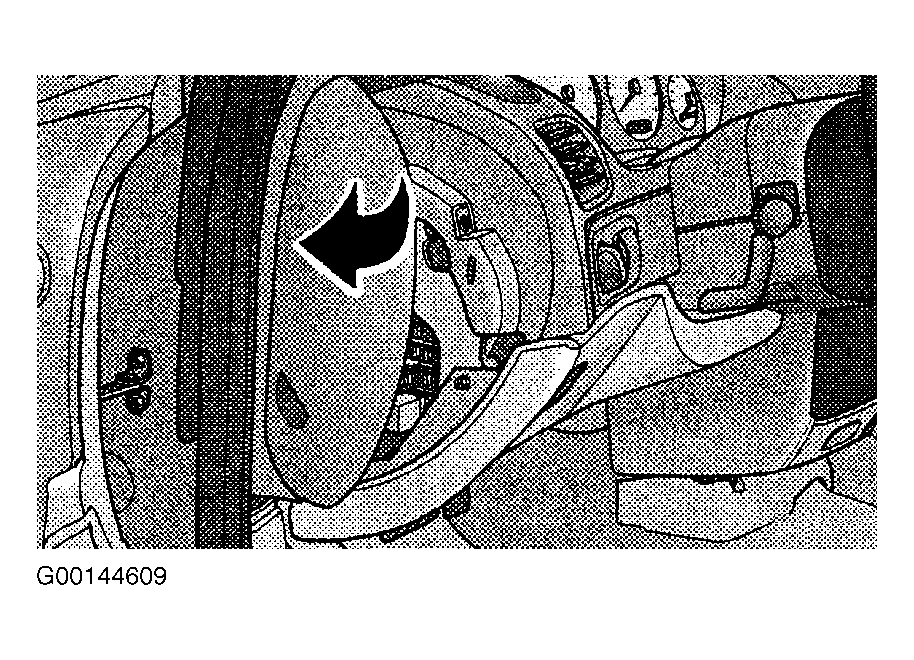

Fig 1: Locating Junction Block

Courtesy of DAIMLERCHRYSLER CORP.

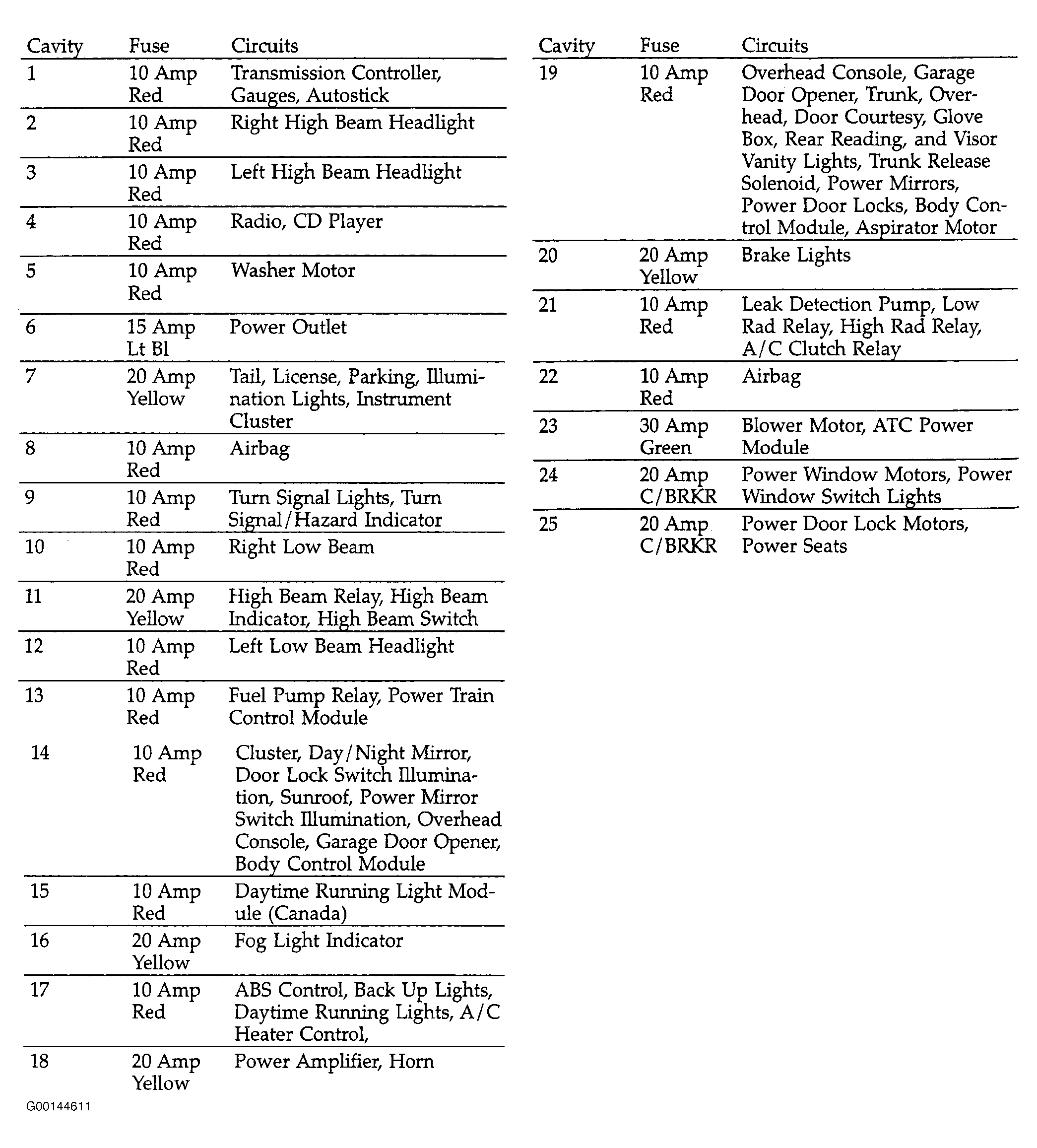

Fig 2: Identifying Junction Fuses & Circuit Breakers

Courtesy of DAIMLERCHRYSLER CORP.
