Power Distribution Center

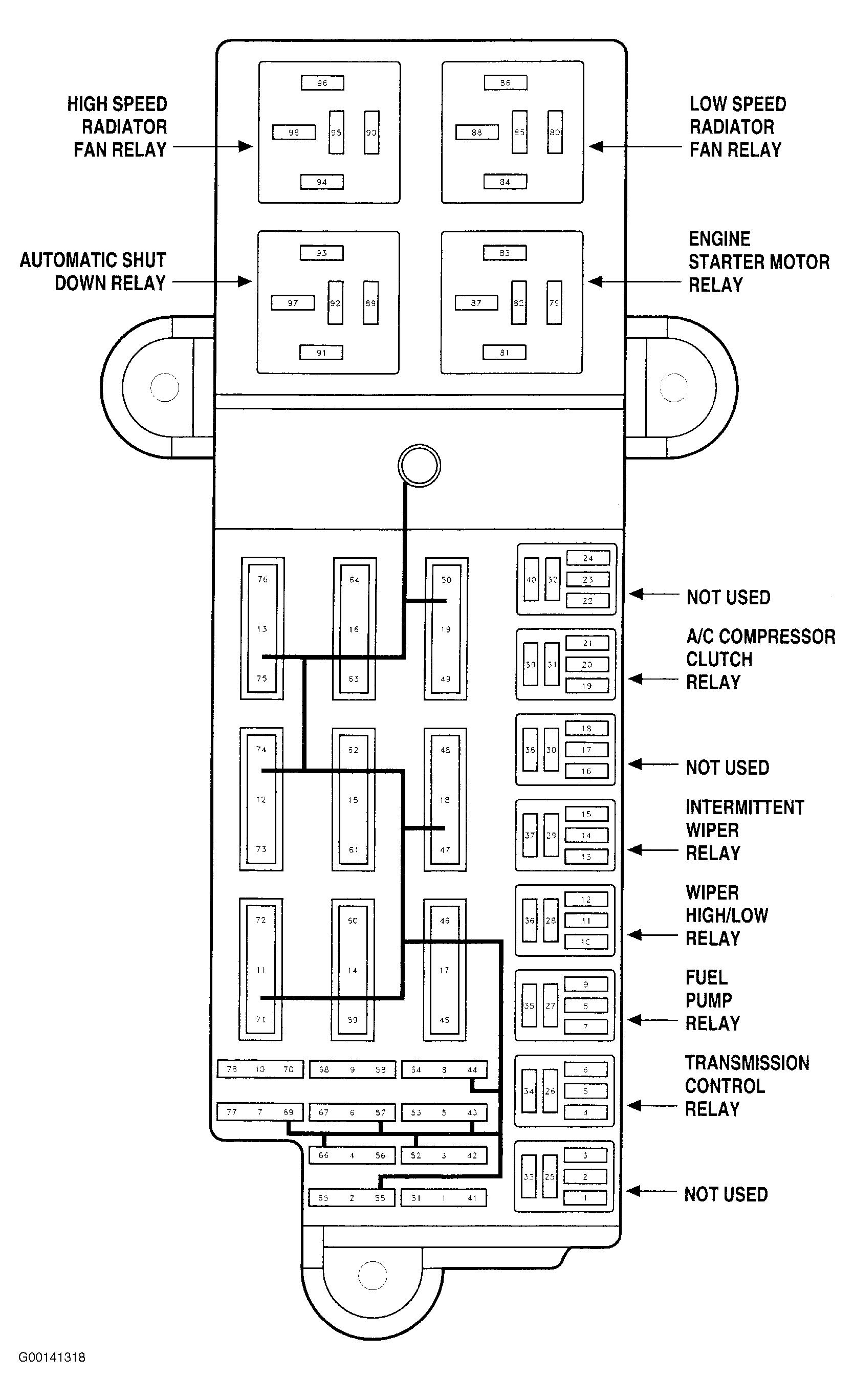

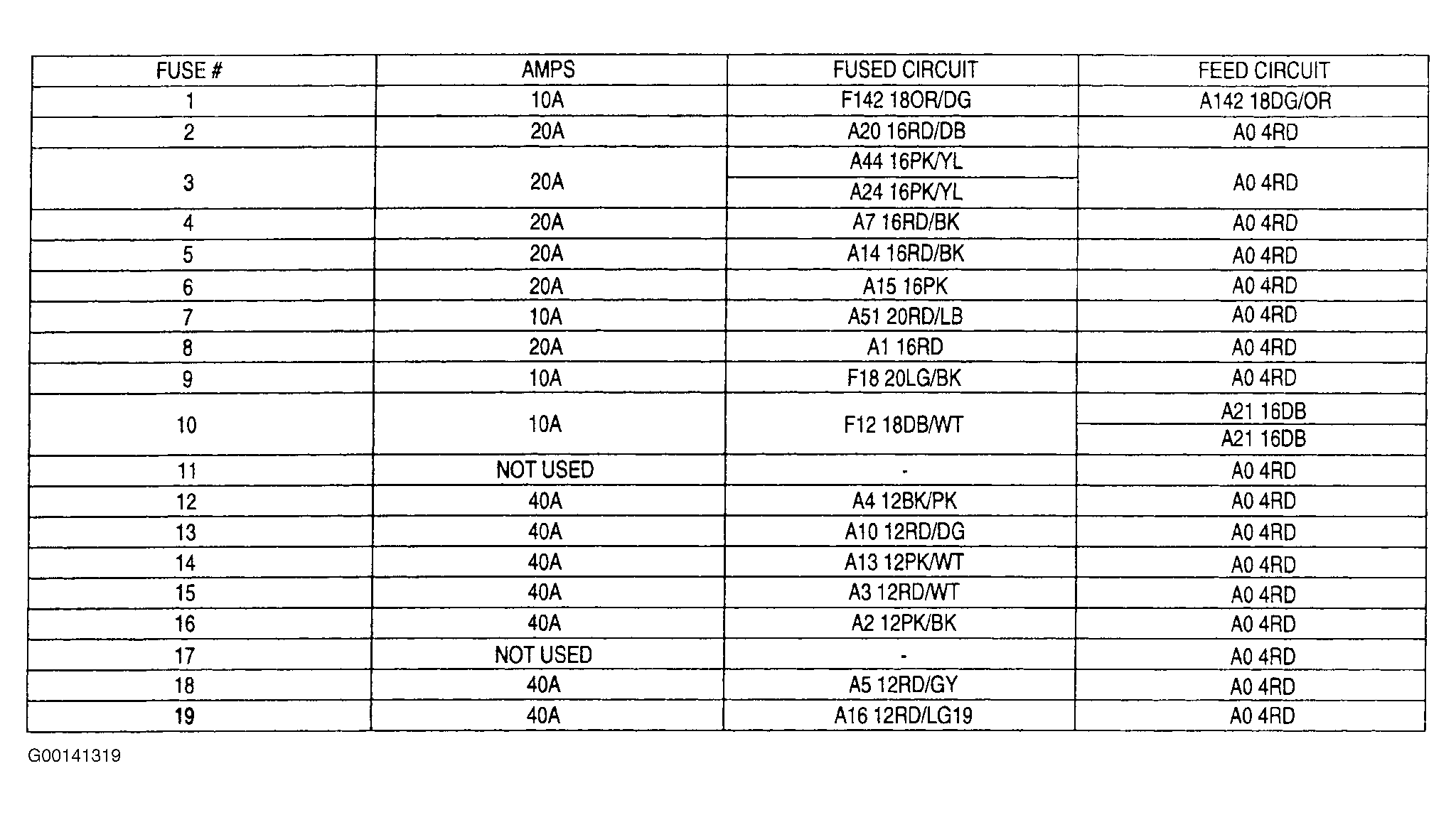

The Power Distribution Center (PDC) is located in left front corner of engine compartment, just behind battery. See Fig 1 . For PDC fuse locations, see Fig 2 .
POWER DISTRIBUTION CENTER (PDC) FUSE & CIRCUIT IDENTIFICATION
| Fuse No. | Amperage | Circuit |
|---|---|---|
| 1 | 10 | 1/2 Downstream Oxygen Sensor |
| 2 | 20 | Controller Anti-Lock Brake |
| 3 | 20 | Transmission Control Module & Transmission Control Relay |
| 4 | 20 | Junction Block Fuse No. 5 & Brake Lamp Switch |
| 5 | 20 | Automatic Shutdown Relay & Powertrain Control Module |
| 6 | 20 | Combination Flasher & Sentry Key Immobilizer Module |
| 7 | 10 | Ignition Switch |
| 8 | 20 | Fuel Pump Relay, Ignition Switch & Starter Relay |
| 9 | 10 | A/C Compressor Clutch Relay, Brake Shift Interlock Solenoid, Fuel Pump Module, High Speed Radiator Fan Relay, Instrument Cluster, Low Speed Radiator Fan Relay & Sentry Key Immobilizer Module |
| 10 | 10 | Controller Anti-Lock Brake, Fuel Pump Relay & Powertrain Control Module |
| 11 | ..... | Not Used |
| 12 | 40 | Rear Window Defogger Relay |
| 13 | 40 | Controller Anti-Lock Brake |
| 14 | 40 | Junction Block Fuses No. 7 & 8 |
| 15 | 40 | Headlamp Switch, JB Circuit Breaker No. 1, JB Fuses No. 9 & 10, & JB Headlamp Delay Relay |
| 16 | 40 | Ignition Switch |
| 17 | ..... | Not Used |
| 18 | 40 | Intermittent Wiper Relay |
| 19 | 40 | A/C Compressor Clutch Relay, High Speed Radiator Fan Relay & Low Speed Radiator Fan Relay |
