Junction Block

The Junction Block (JB) is located under left side of instrument panel. The Body Control Module (BCM) is mounted to JB. See Fig 1 . For JB fuse locations, see Fig 2 and Fig 3 .

Fig 1: Locating BCM/Junction Block

Courtesy of CHRYSLER CORP.

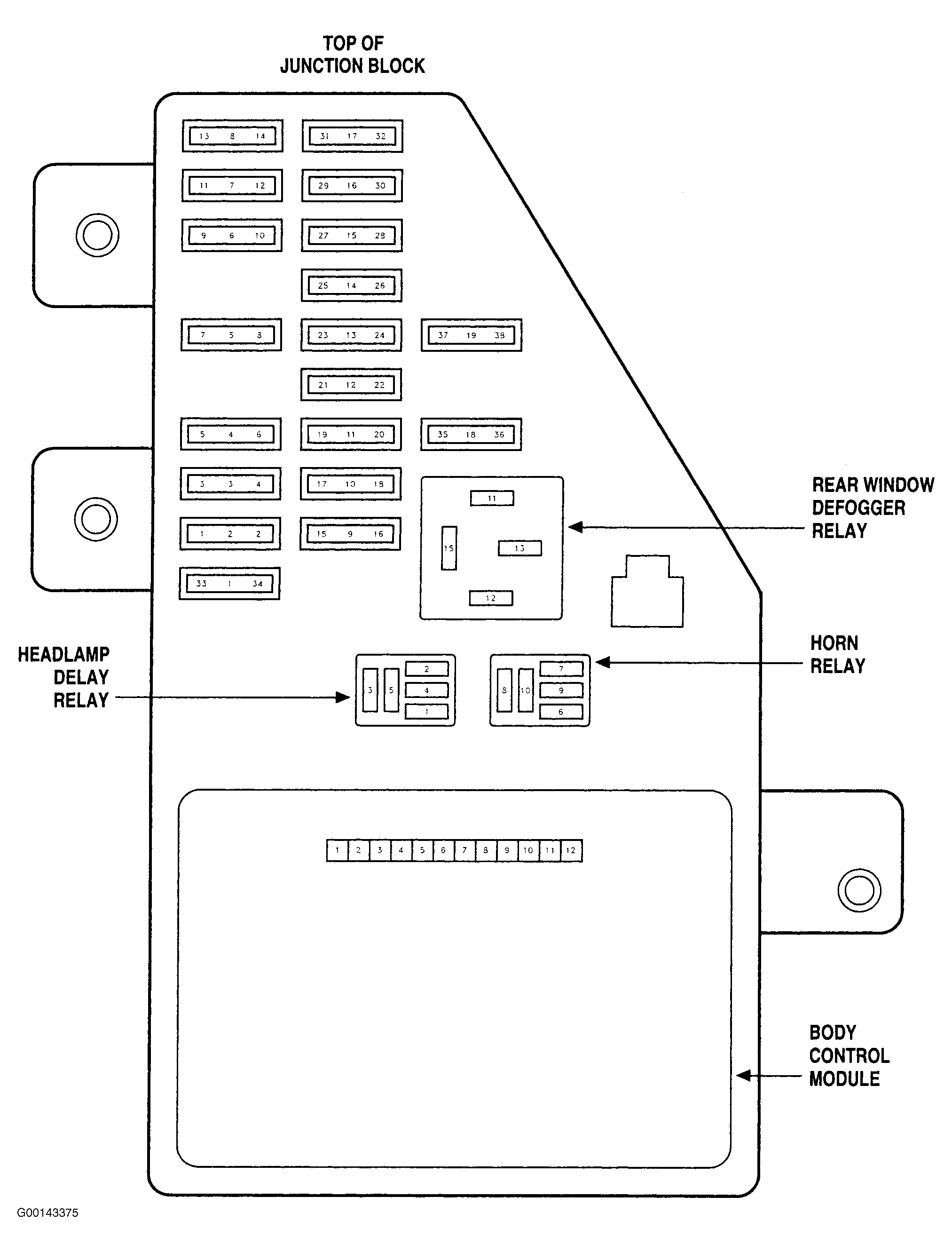

Fig 2: Identifying Junction Block (1 Of 2)

Courtesy of CHRYSLER CORP.

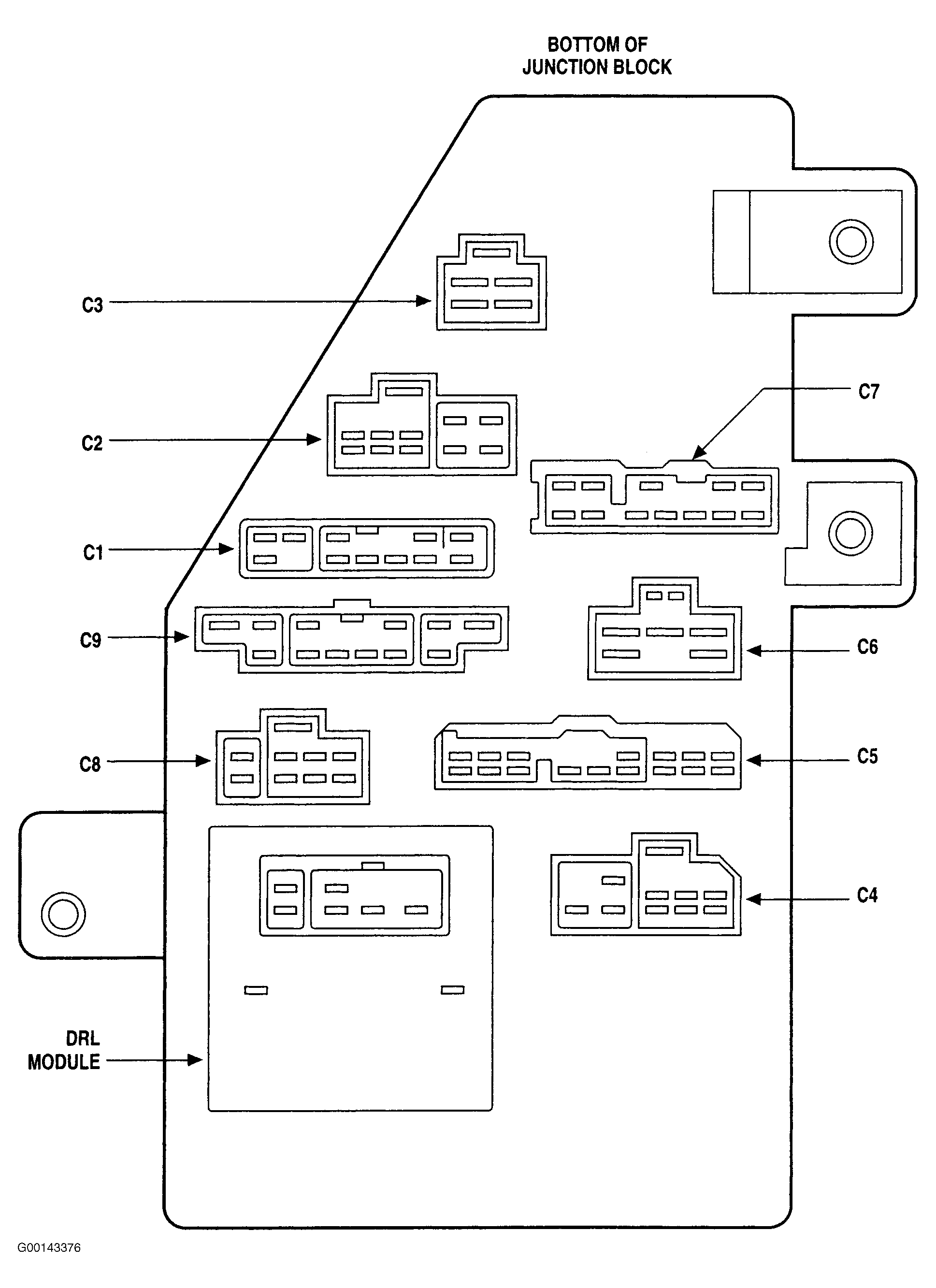

Fig 3: Identifying Junction Block (2 Of 2)

Courtesy of CHRYSLER CORP.

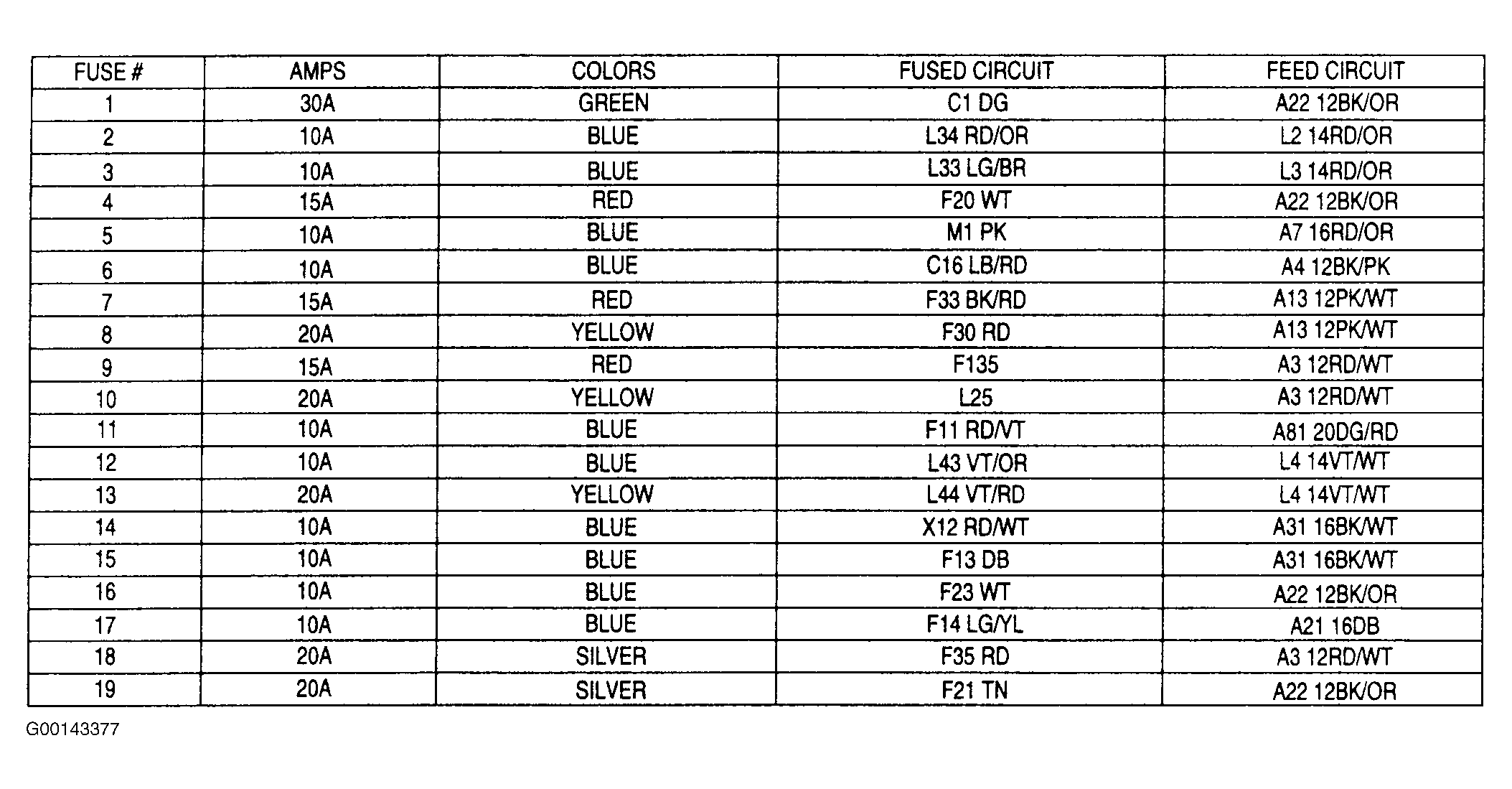

Fig 4: Identifying Junction Block Fuses & Circuits

Courtesy of CHRYSLER CORP.

JUNCTION BLOCK FUSE & CIRCUIT IDENTIFICATION

Fuse No.	Amperage	Circuit
1	30	Resistor Block
2	10	DRL Module & Right Headlamp
3	10	Body Control Module & Left Headlamp
4	15	Back-Up Lamp Switch (M/T), Door Lock Switches, DRL Module & Transmission Range Sensor (A/T)
5	10	A/C Heater Control, Body Control Module, Cylinder Lock Switches (With VTSS), Data Link Connector, Dome Lamp, Glove Box Lamp, Overhead Map Lamps, Power Mirror & Door Lock Switches (With VTSS), Radio, Trunk Lamp & Visor/Vanity Lamps
6	10	A/C Heater Control & Heated Mirrors
7	20	Headlamp Switch & Instrument Cluster
8	20	Cigar Lighter, Horn Relay & Power Amplifier
9	15	Body Control Module
10	20	DRL Module
11	10	Autostick Switch, Body Control Module, Instrument Cluster & Transmission Control Module
12	10	DRL Module & Left Headlamp
13	20	Fog Lamp Switch & Right Headlamp
14	10	Radio
15	10	Intermittent Wiper Relay, Rear Window Defogger Relay, Wiper Hi/Lo Relay & Wiper Switch
16	10	Airbag Control Module
17	10	Airbag Control Module
