Connector Identification

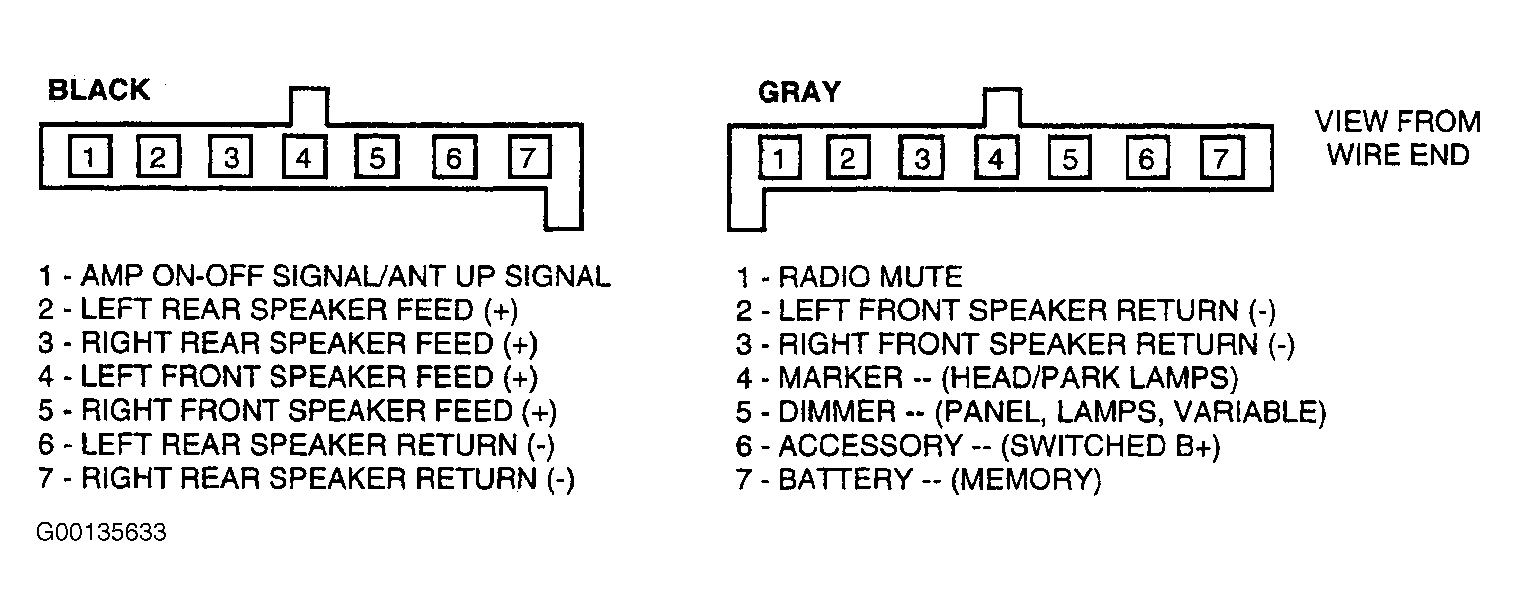

Fig 1: Radio Connectors On A Standard System

G00135633

Courtesy of CHRYSLER CORP.

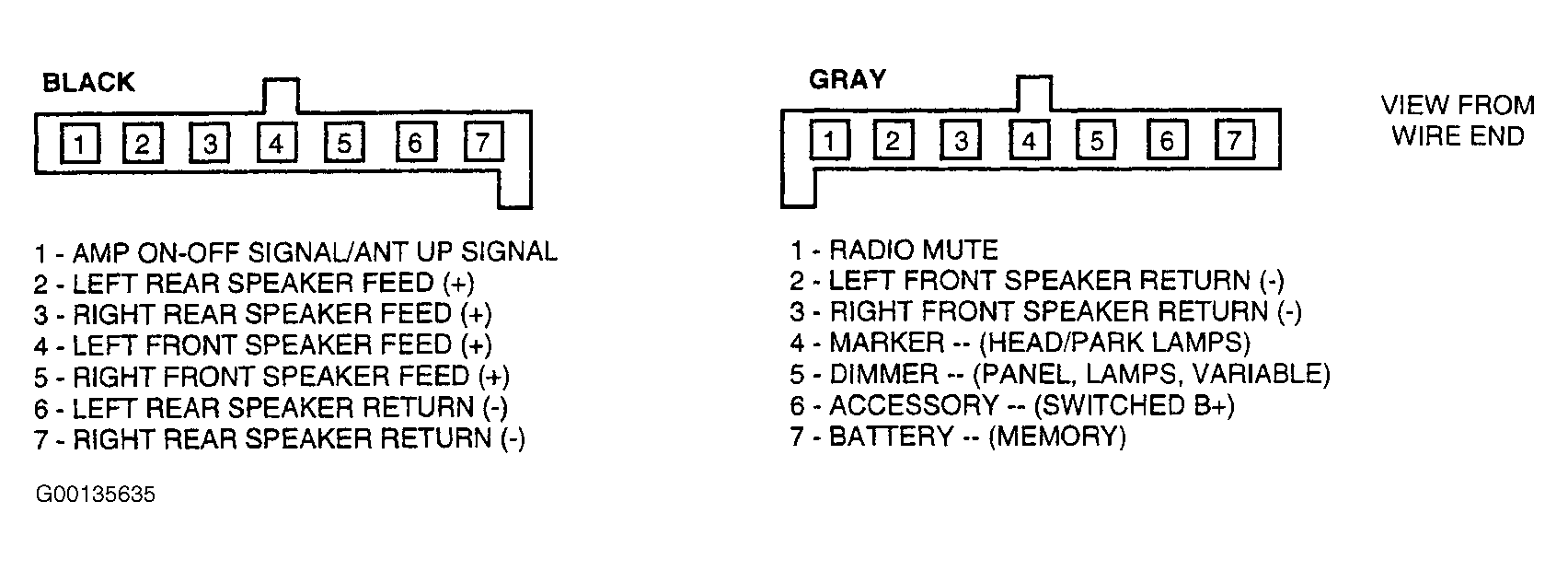

Fig 2: Radio Connectors On An Infinity System

G00135635

Courtesy of CHRYSLER CORP.
