Component Locations

COMPONENT LOCATIONS

Component Location
Antenna Right Side Of Trunk. See Fig 1 .
Body Control Module Under LH Side Of Steering Column
Fuse 5 Top Of Junction Block. See Fig 3 .
Fuse 8 Top Of Junction Block. See Fig 3 .
Fuse 14 Top Of Junction Block. See Fig 3 .
G301 In RH Rear Of Trunk, Near Antenna Mount. See Fig 1 .
Headlamp Switch On LH Side Of Steering Column. See Fig 2 .
Junction Block Behind Cover On Far Left Side Of Instrument Panel. See Fig 4 .
LH Front Door Speaker In LH Front Door. See Fig 7 .
LH Front Instrument Panel Speaker Top Of Dash On LH Side. See Fig 6 .
LH Rear Speaker Behind Rear Seat On LH Side. See Fig 8 .
Power Amplifier Under RH Front Seat. See Fig 5 .
Radio In Center Panel Of Dash
RH Front Door Speakers In RH Front Door. See Fig 7 .
RH Front Instrument Panel Speaker Top Of Dash On RH Side
RH Rear Speaker Behind Rear Seat On LH Side. See Fig 8 .

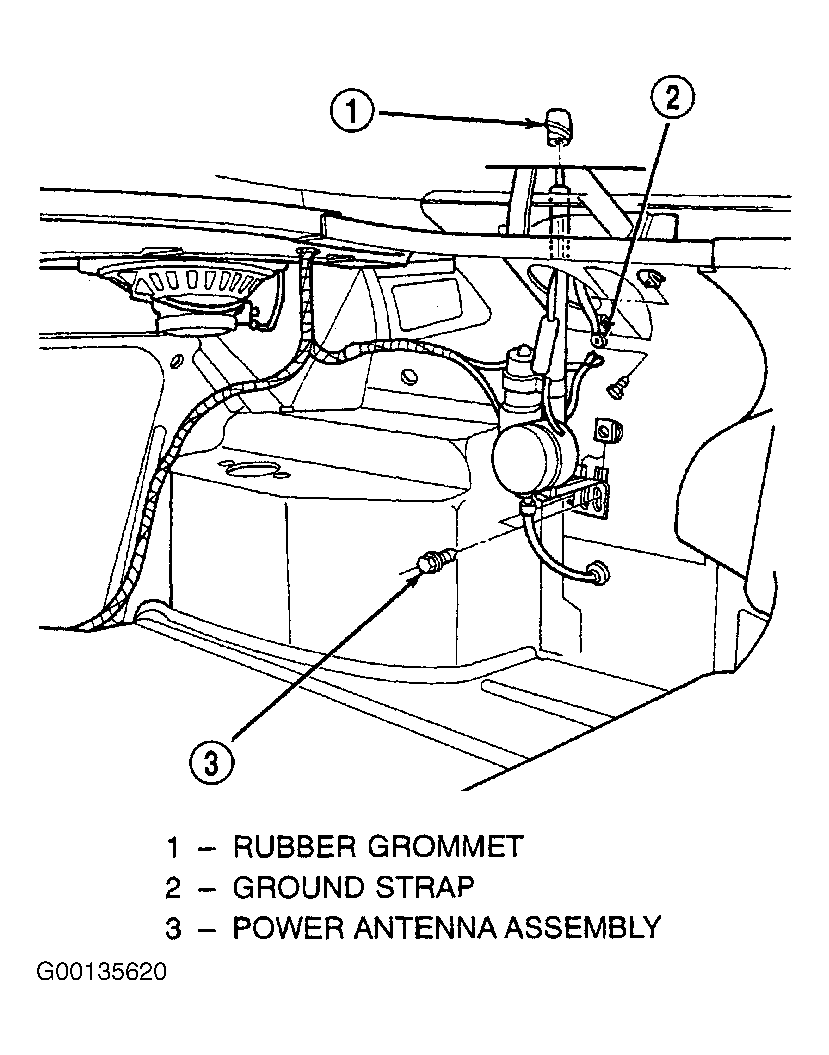

Fig 1: Locating Antenna
G00135620Courtesy of CHRYSLER CORP.

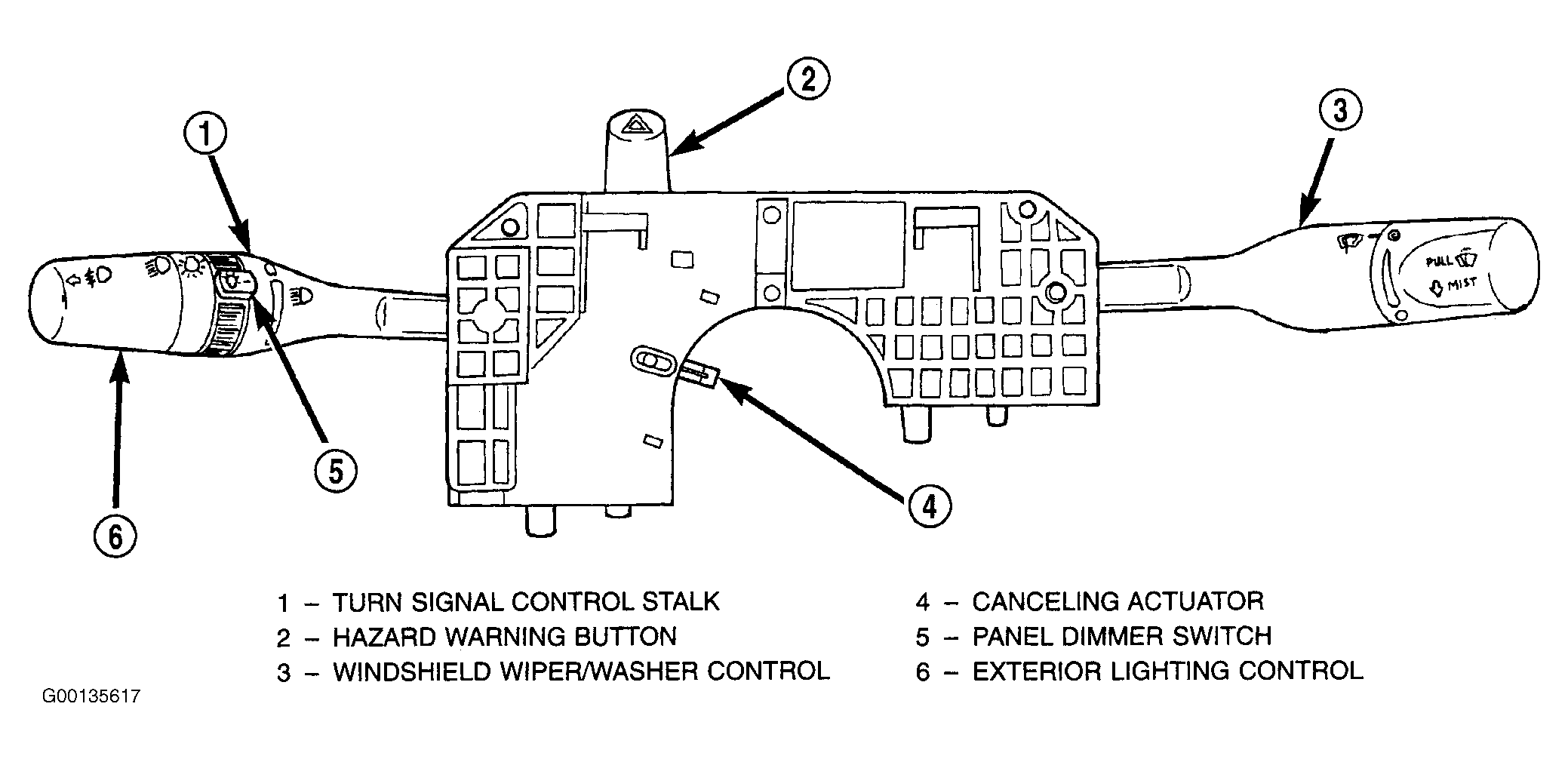

Fig 2: Locating Headlamp Switch
G00135617Courtesy of CHRYSLER CORP.

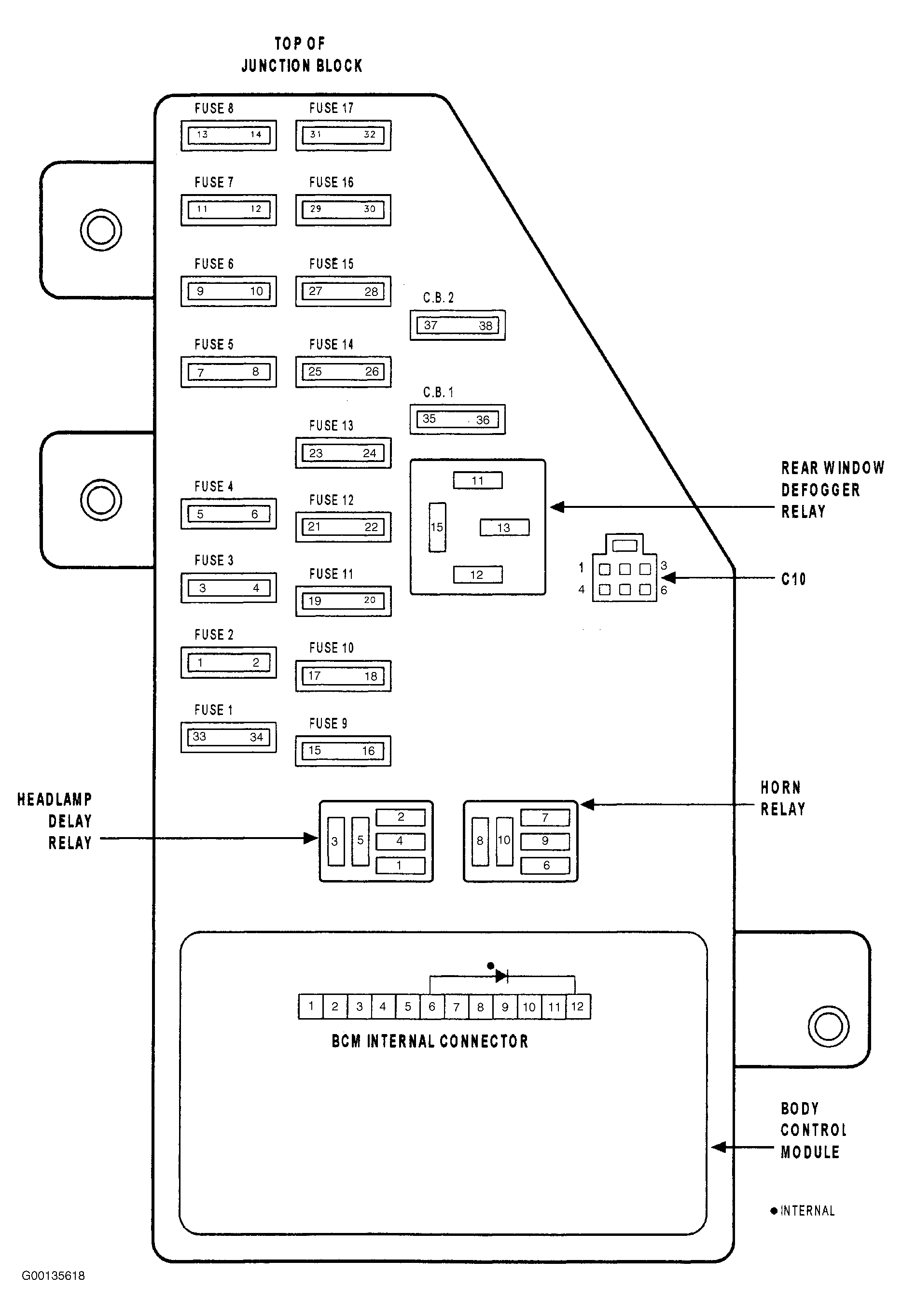

Fig 3: Locating Junction Block Fuses
G00135618Courtesy of CHRYSLER CORP.

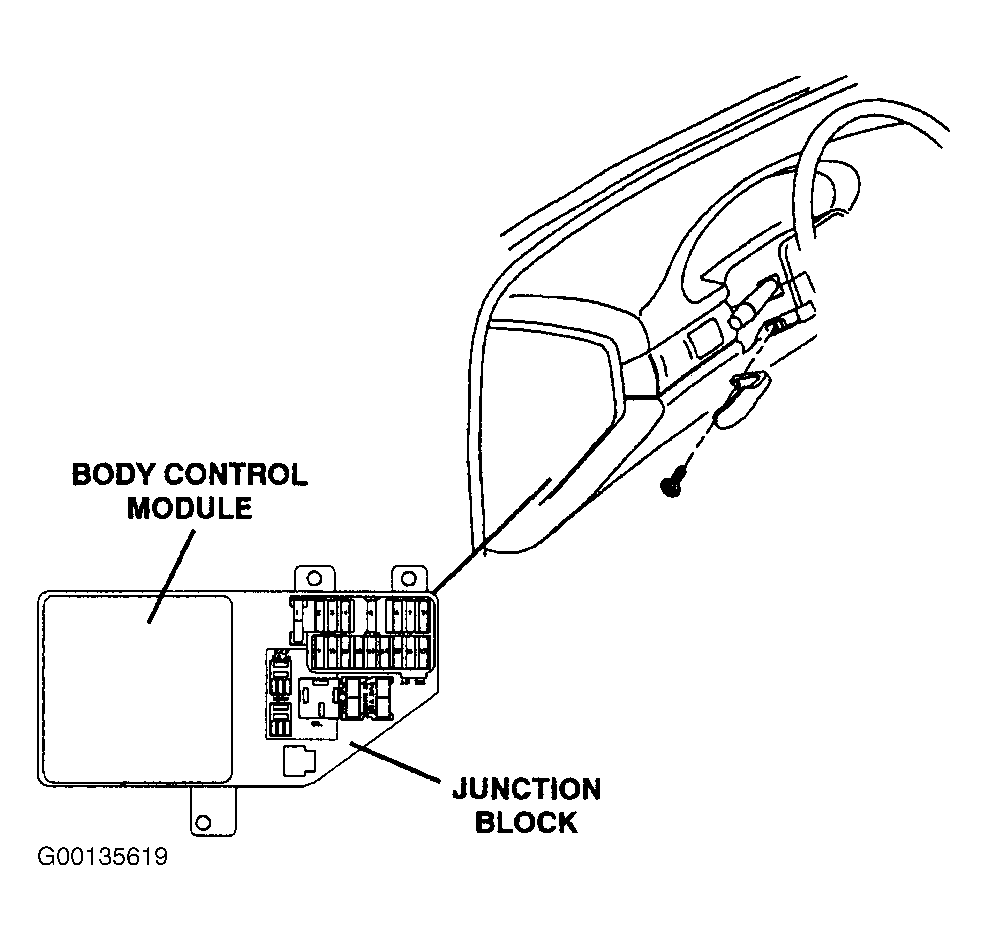

Fig 4: Locating Body Control Module & Junction Block
G00135619Courtesy of CHRYSLER CORP.

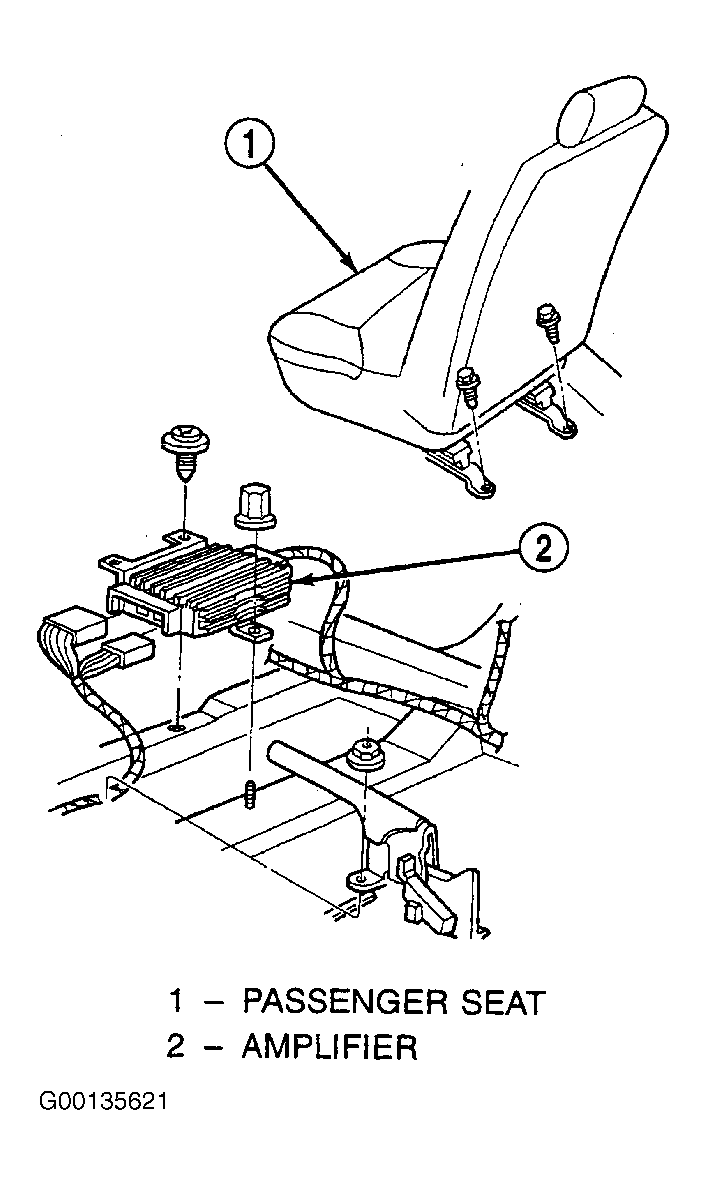

Fig 5: Locating Power Amplifier
G00135621Courtesy of CHRYSLER CORP.

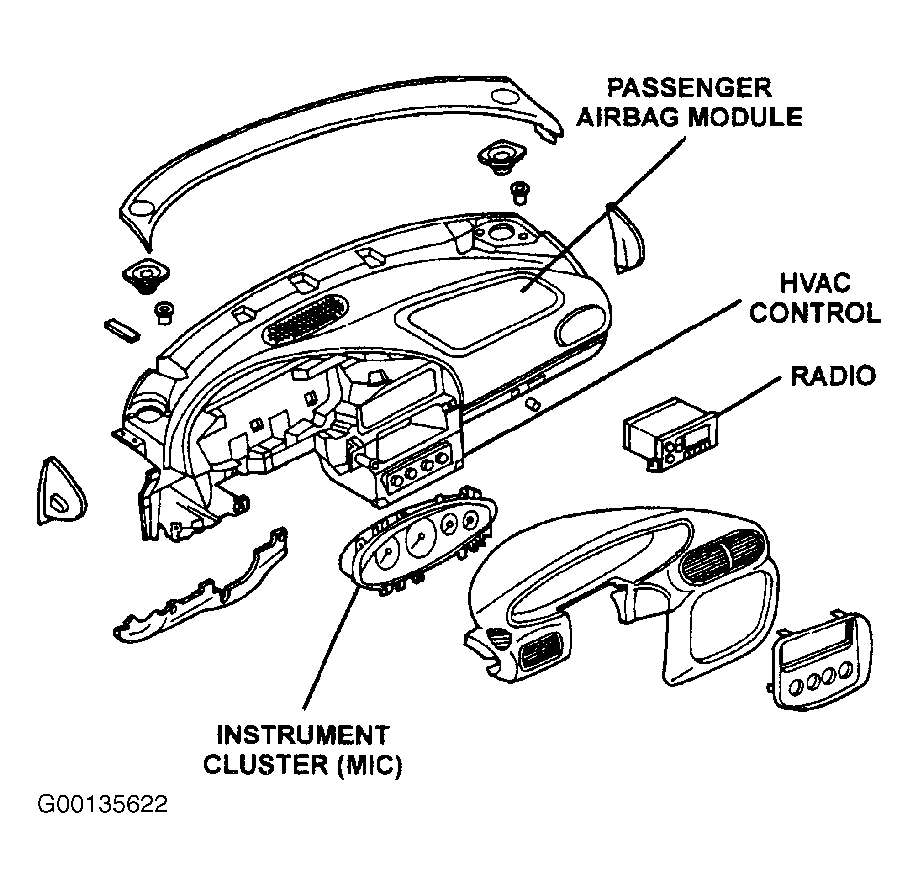

Fig 6: Locating Radio, HVAC & Speakers
G00135622Courtesy of CHRYSLER CORP.

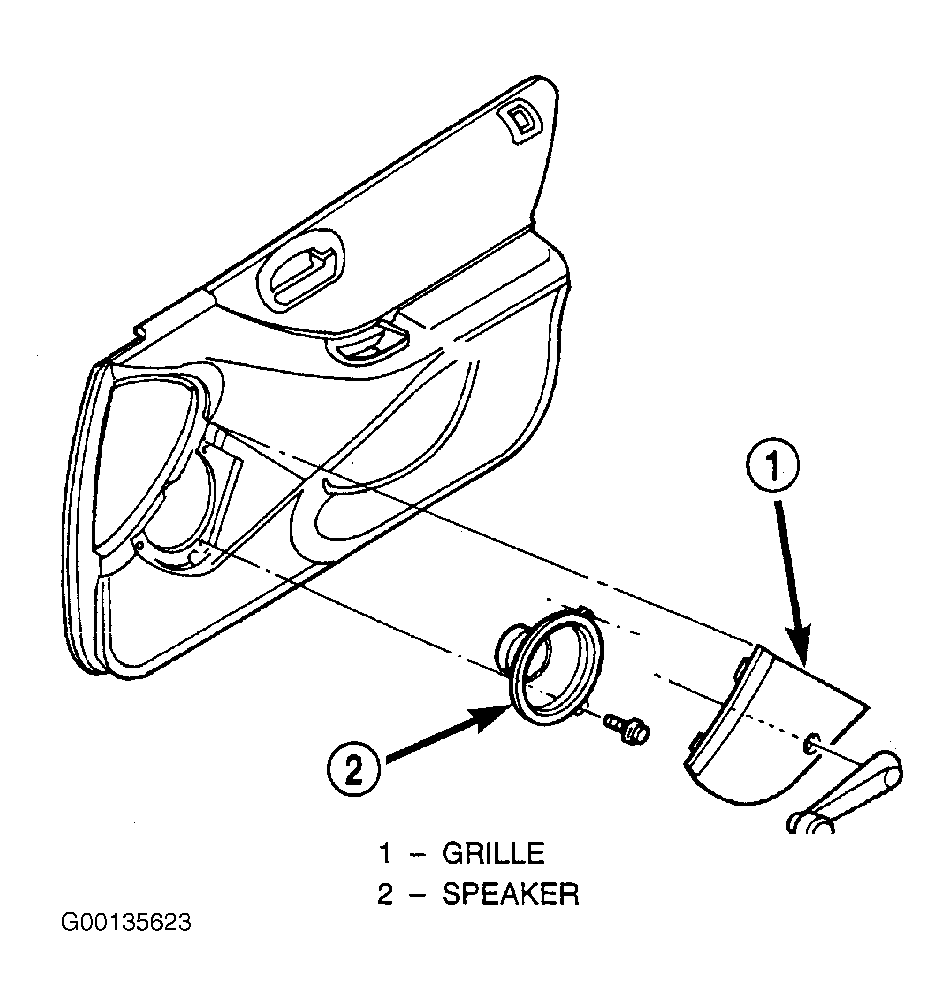

Fig 7: Locating Front Door Speakers
G00135623Courtesy of CHRYSLER CORP.

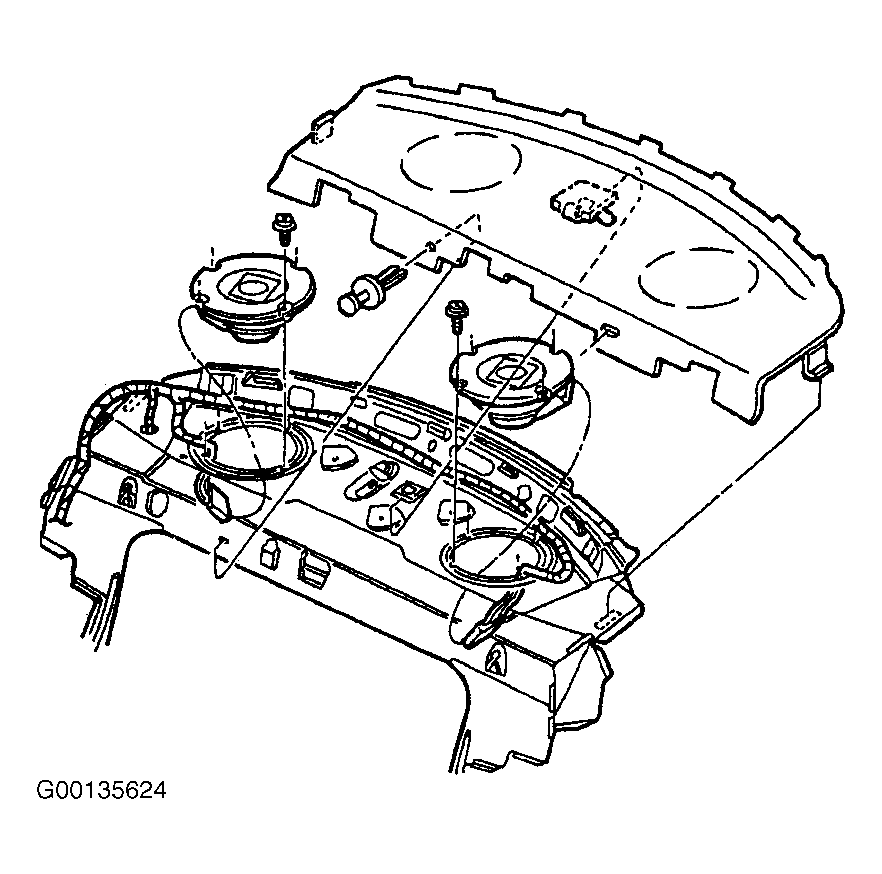

Fig 8: Locating Rear Speakers
G00135624Courtesy of CHRYSLER CORP.
