Camshaft Position Sensor: Installation

Install camshaft position sensor in timing chain cover. Push camshaft position sensor fully downward against timing chain cover.
Install and tighten bolt for camshaft position sensor to specification while holding camshaft position sensor downward. See TORQUE SPECIFICATIONS . Install electrical connector for camshaft position sensor.

If reusing camshaft position sensor, clean old paper spacer from camshaft end of camshaft position sensor. Install NEW paper spacer on camshaft end of camshaft position sensor.
On all camshaft position sensors, install camshaft position sensor in timing belt housing. Push camshaft position sensor downward until it contacts the camshaft sprocket.
Install and tighten bolt for camshaft position sensor to specification while holding camshaft position sensor downward against camshaft sprocket. See TORQUE SPECIFICATIONS . Install electrical connector on camshaft position sensor.
Ensure gasket sealing surfaces for upper intake manifold is clean. Install gasket for upper intake manifold. The old gasket may be reused provided gasket is not damaged.
Install upper intake manifold with all bolts loosely installed. Tighten bolts for upper intake manifold in sequence to specification. See Fig 2. See TORQUE SPECIFICATIONS . To install remaining components, reverse removal procedure. Use NEW rubber seals on each side of EGR pipe at upper intake manifold when installing EGR pipe. Ensure EGR pipe correctly seats in upper intake manifold.

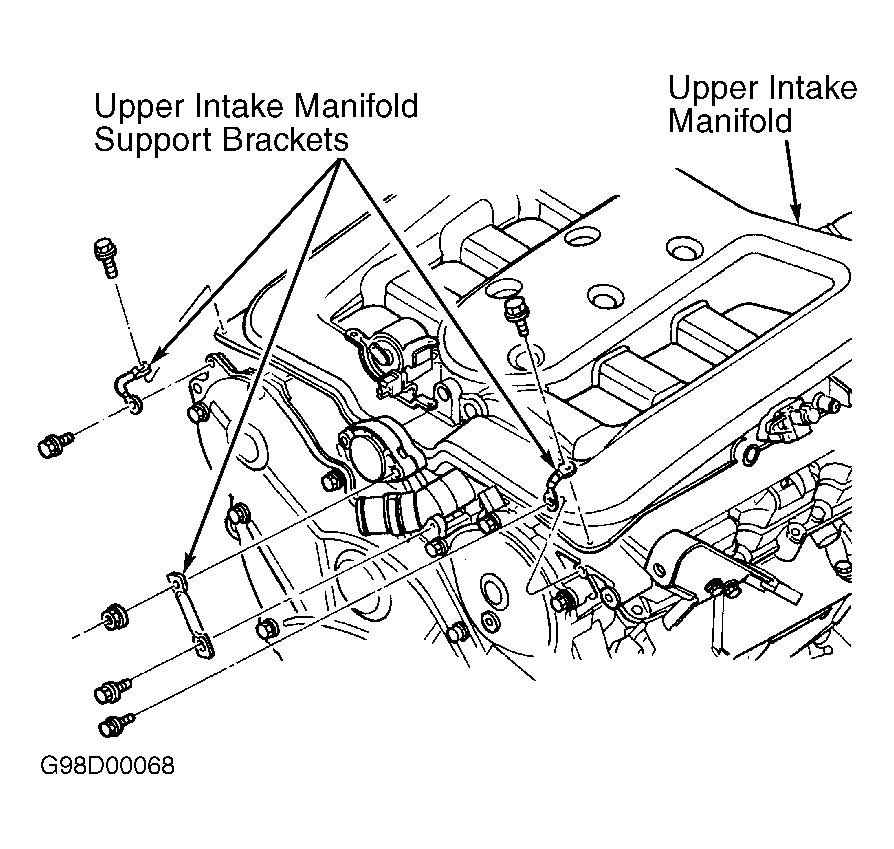

Fig 1: Locating Upper Intake Manifold & Support Brackets (Concorde, Intrepid, LHS & 300M 3.2L & 3.5L)

Courtesy of CHRYSLER CORP.

Fig 2: Upper Intake Manifold Bolt Tightening Sequence (Concorde, Intrepid, LHS & 300M 3.2L & 3.5L)

Courtesy of CHRYSLER CORP.
