Floor Jack: Talon

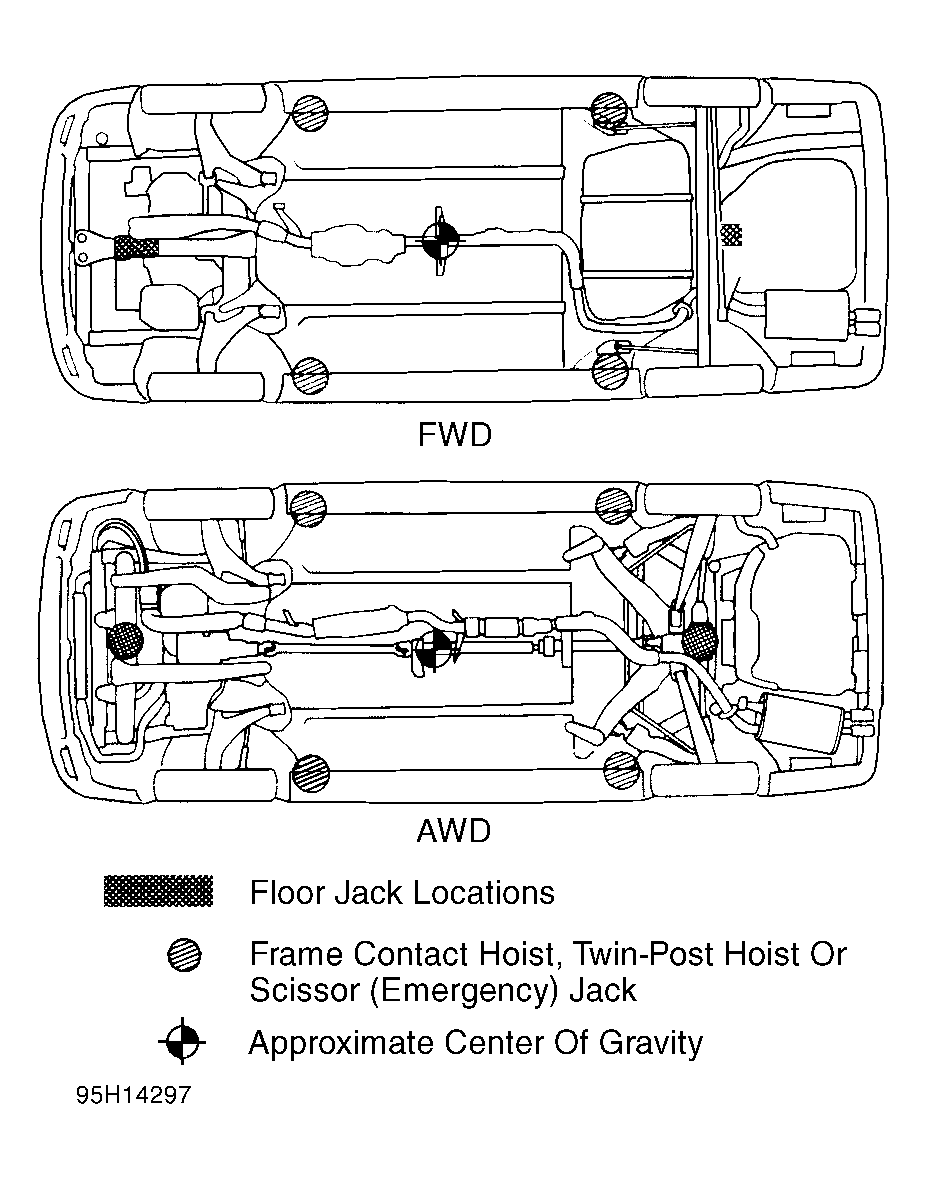

Floor jack should only be used under midpoint of centermember (front) or under reinforced jacking bracket located below rear of fuel tank. See Figure.
