Adjustment Verification

Raise front window to full up position. Raise and lower rear window fully. Ensure that;

• Rear window operates smoothly
• Rear window maintains proper alignment
• Rear window weatherstrip seals against front window

If any problems exist, adjust front window and/or readjust rear window.

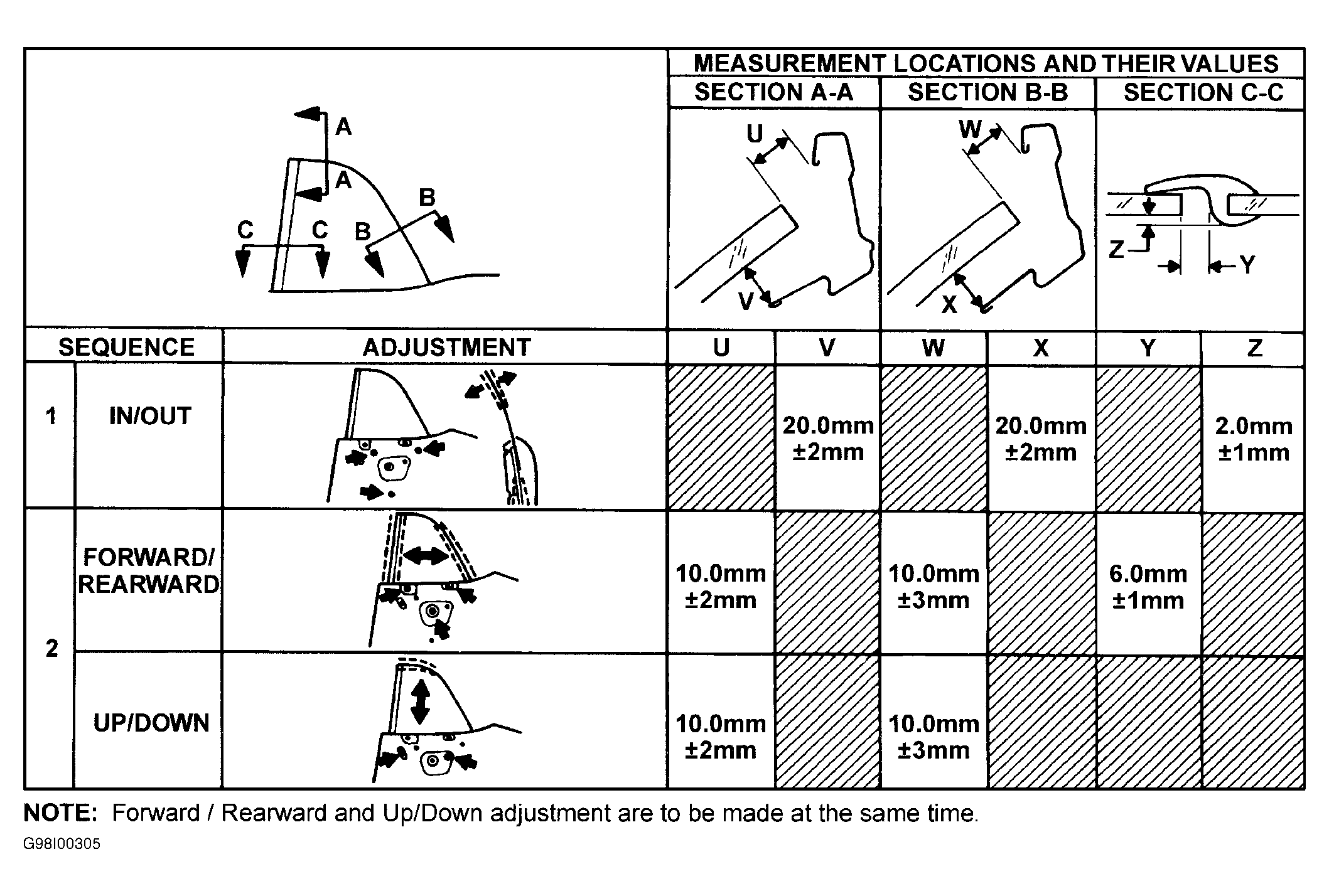

Fig 1: Adjusting Rear Window

Courtesy of CHRYSLER CORP.
